MechMaxx 4400lbs Capacity Stationary Electric Hydraulic Double Scissor Lift Table, 51.2" x 33.5" Platform, 70.1" Lift Height, UL Certified Motor, ELTD44

MechMaxx 4400lbs Capacity Stationary Electric Hydraulic Double Scissor Lift Table, 51.2" x 33.5" Platform, 70.1" Lift Height, UL Certified Motor, ELTD44

$2,899.00

Heavy-Duty Double Scissor Lift Table for Industrial Applications

This stationary electric hydraulic lift table is powered by a 3 HP 110V motor and a heavy-duty hydraulic pump to provide dependable lifting performance in demanding work environments. With a 4,400 lb load capacity, a maximum lift height of 70.1 inches, and a 51.2" x 33.5" platform, it is well suited for warehouses, manufacturing facilities, and distribution centers.

Designed to position heavy loads at an appropriate working height, this lift table helps improve efficiency and safety during material handling, assembly, manufacturing, inspection, maintenance, and storage operations. Integrated safety features help protect both operators and equipment during use.

Ideal for: Warehouses • Manufacturing Plants • Distribution Centers • Assembly Areas • Maintenance Departments

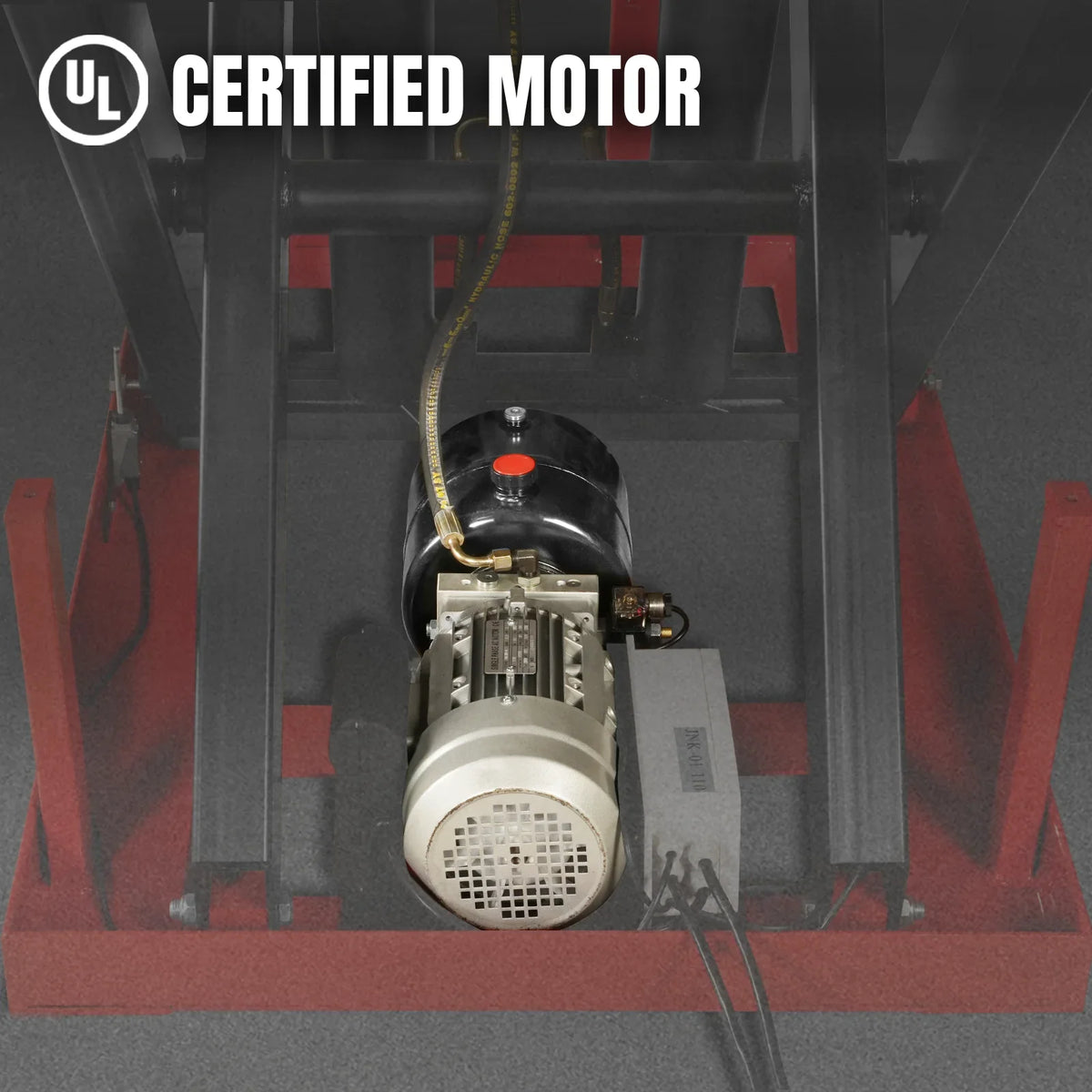

✔️ Powered by a heavy-duty hydraulic pump and 3 HP 110V electric motor.
✔️ 4,400 lb lifting capacity for handling heavy materials and equipment.
✔️ Maximum raised height of 70.1" with a 51.2" x 33.5" platform.
✔️ Designed to improve material handling, assembly, inspection, manufacturing, and maintenance operations.
✔️ Safety frame automatically locks the hydraulic system and stops platform descent when an obstruction is detected.
✔️ Scissor assembly incorporates safety spacing to help reduce pinch hazards.
✔️ Heavy-duty oil cylinder with return device and check valve helps prevent platform drop in the event of hydraulic hose failure.
✔️ Detachable lifting ring provides convenient access during installation and setup.

Features

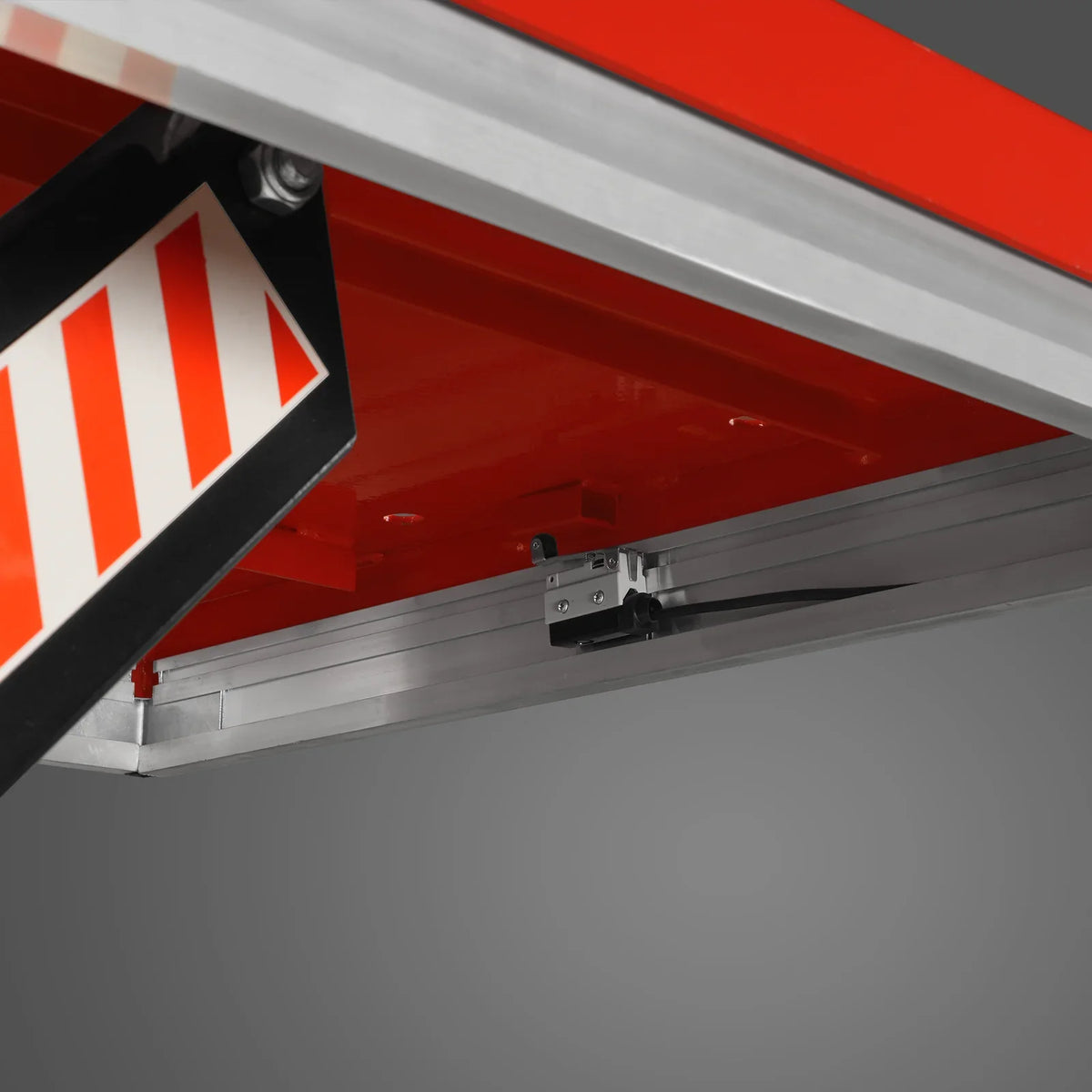

🛡️ Safety Frame System

  • When the safety frame presses against an obstruction, the hydraulic pump will automatically lock.
  • The platform will stop descending immediately when contact with an obstruction is detected.
Safety frame system

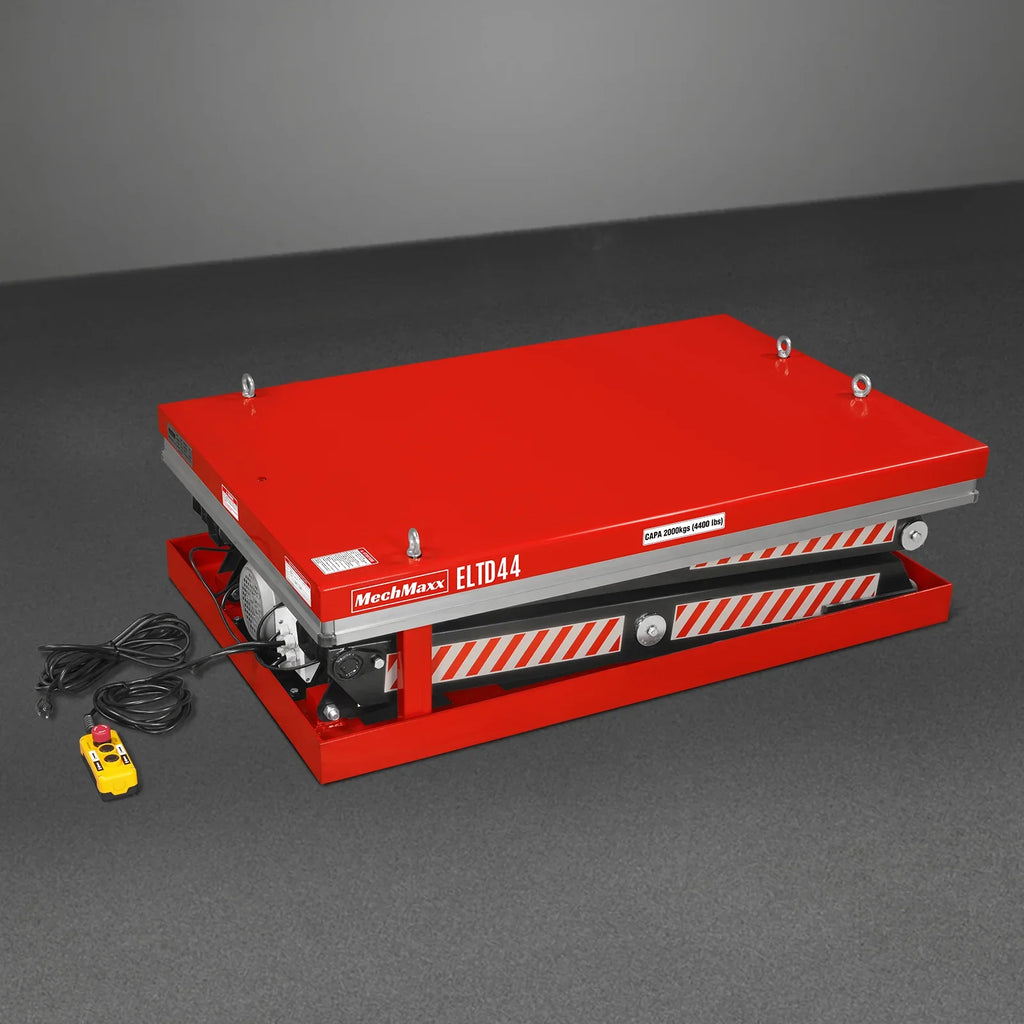

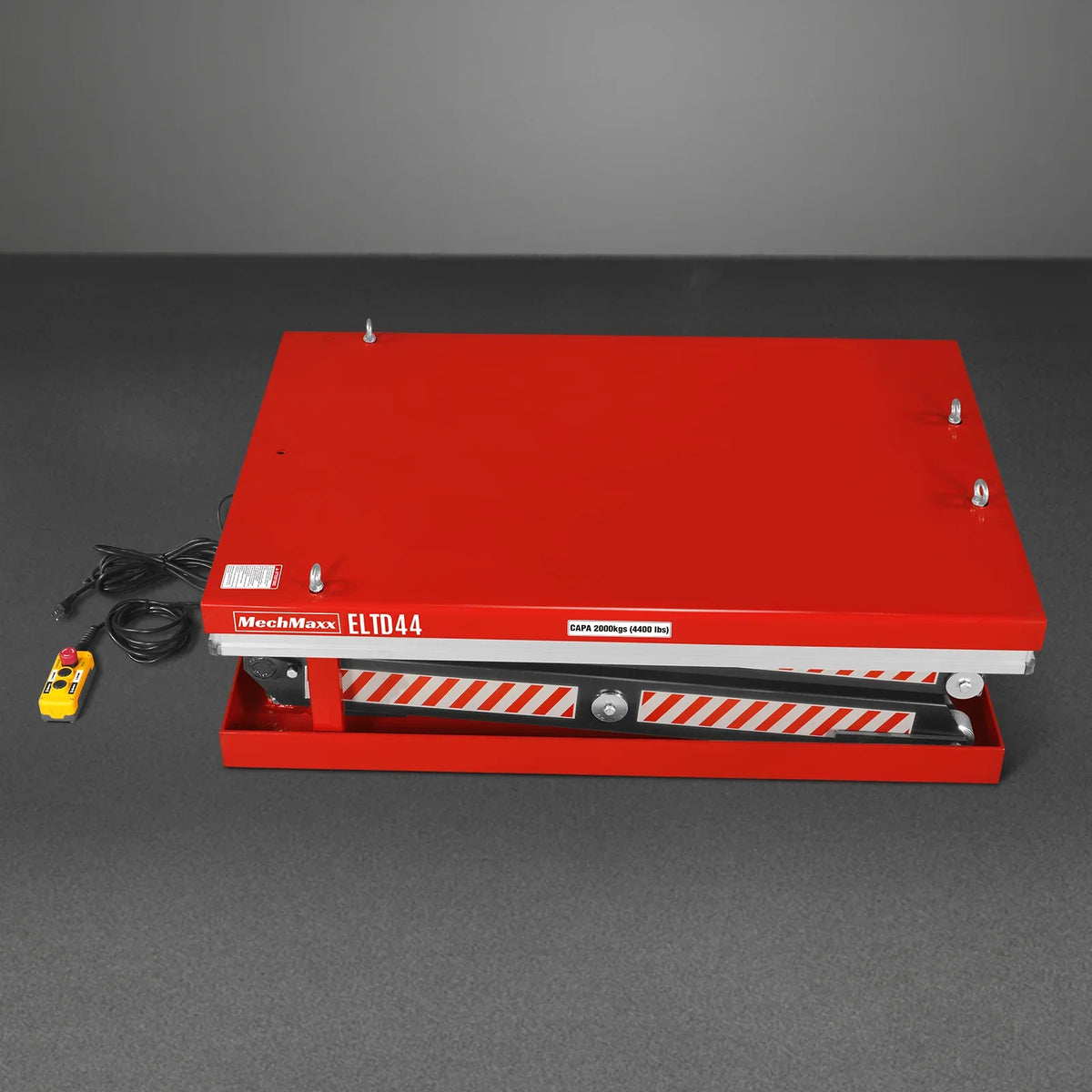

🔩 Lifting Eye Bolts

  • Detachable lifting ring designed for convenient installation.
  • Provides easier access and handling during countertop installation and setup.
Lifting eye bolts

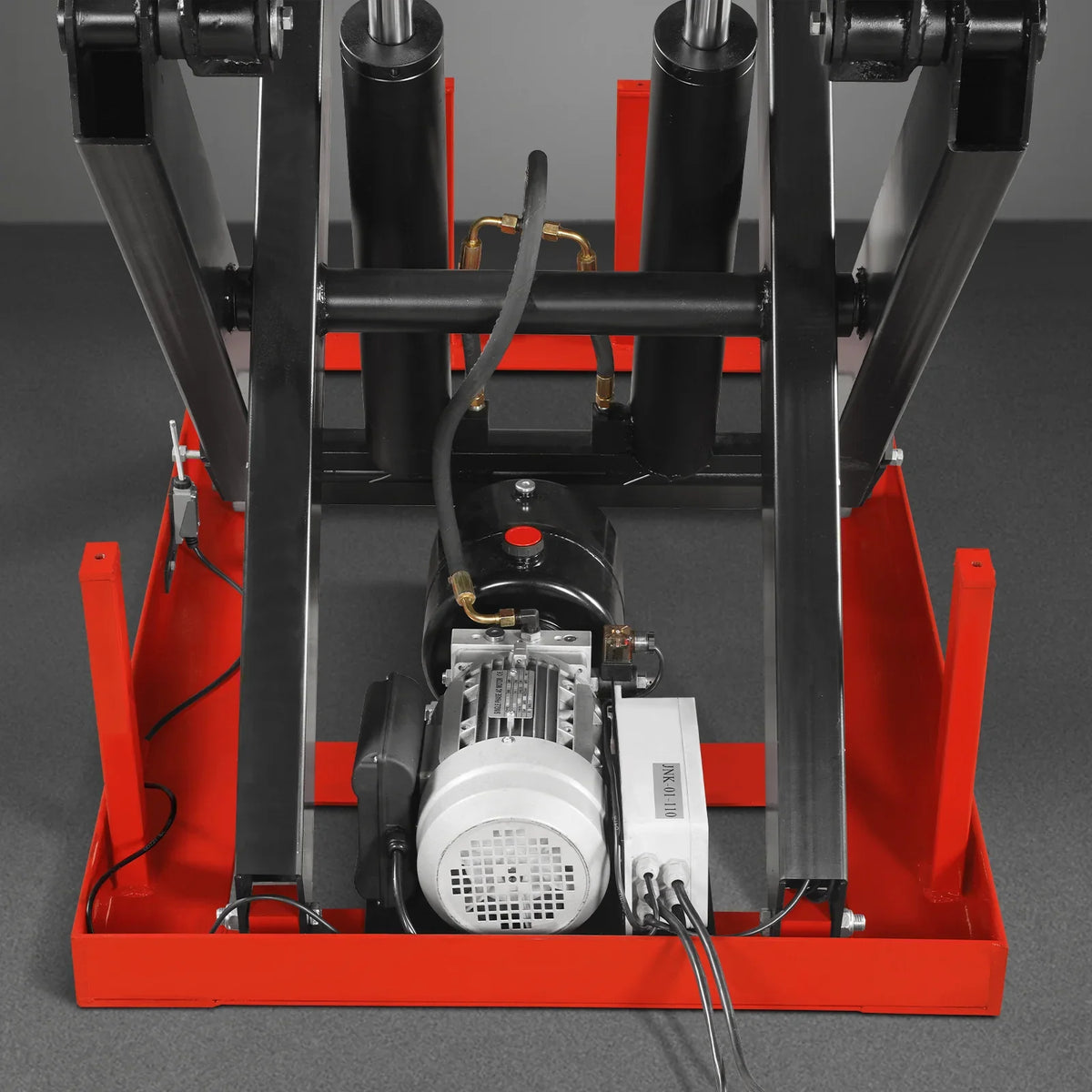

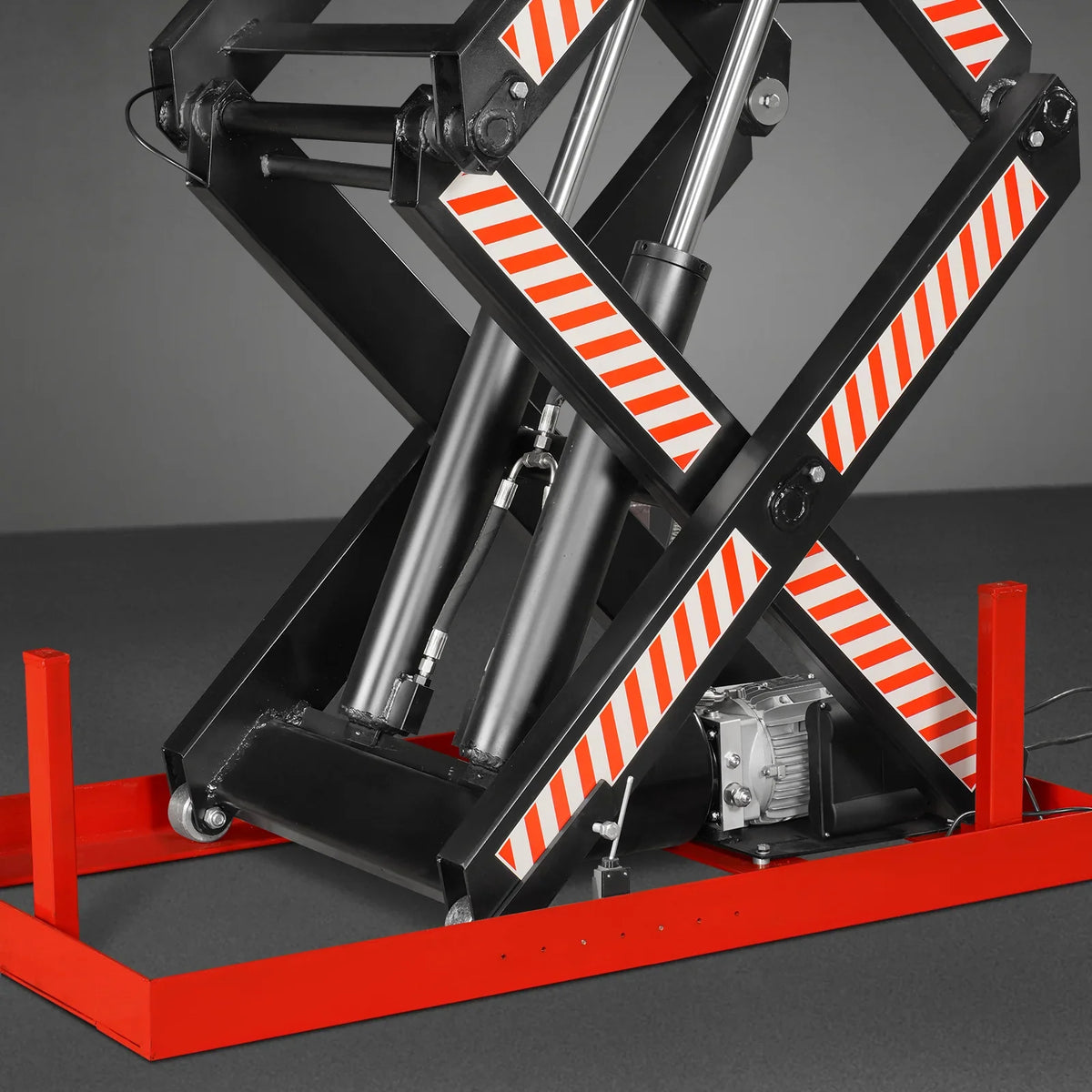

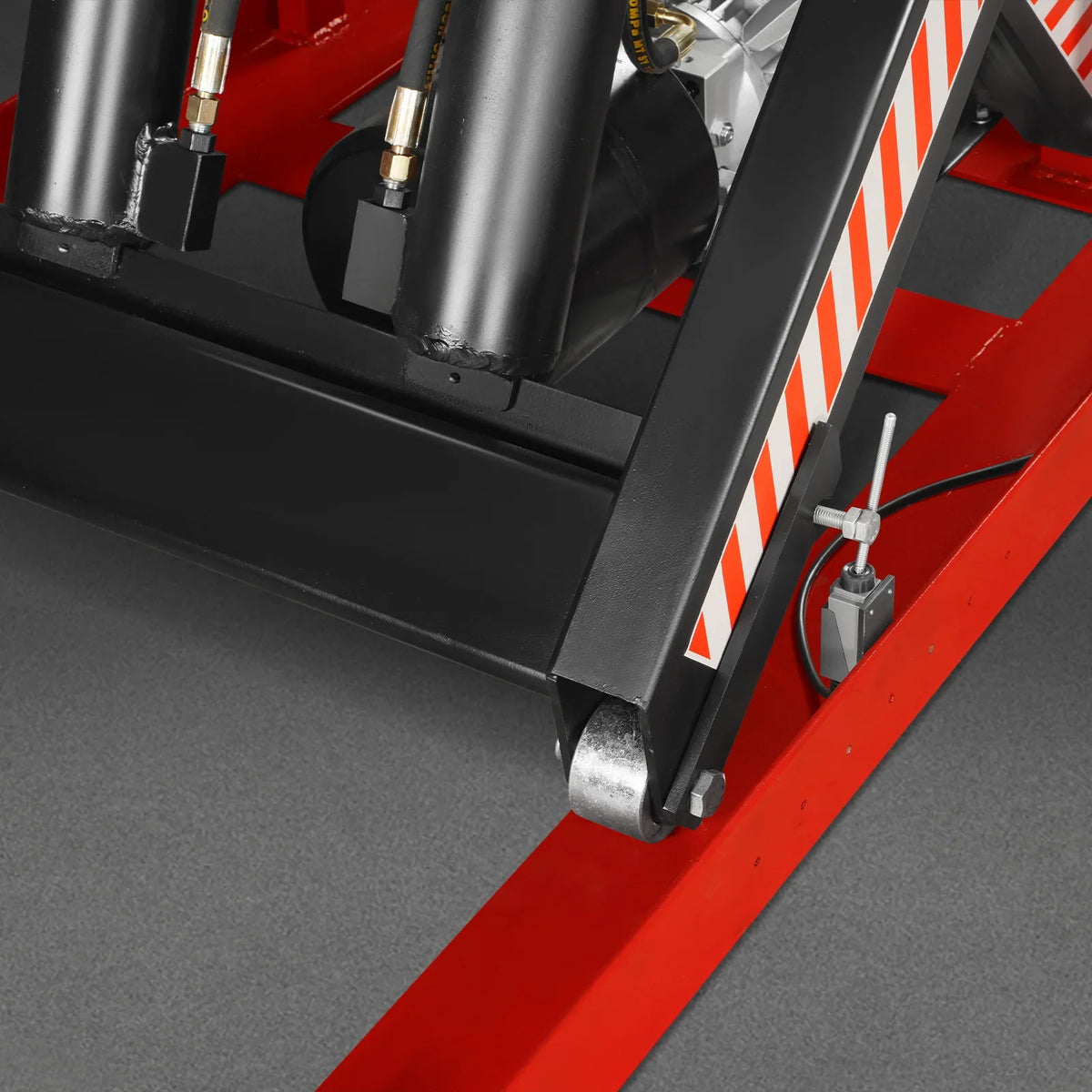

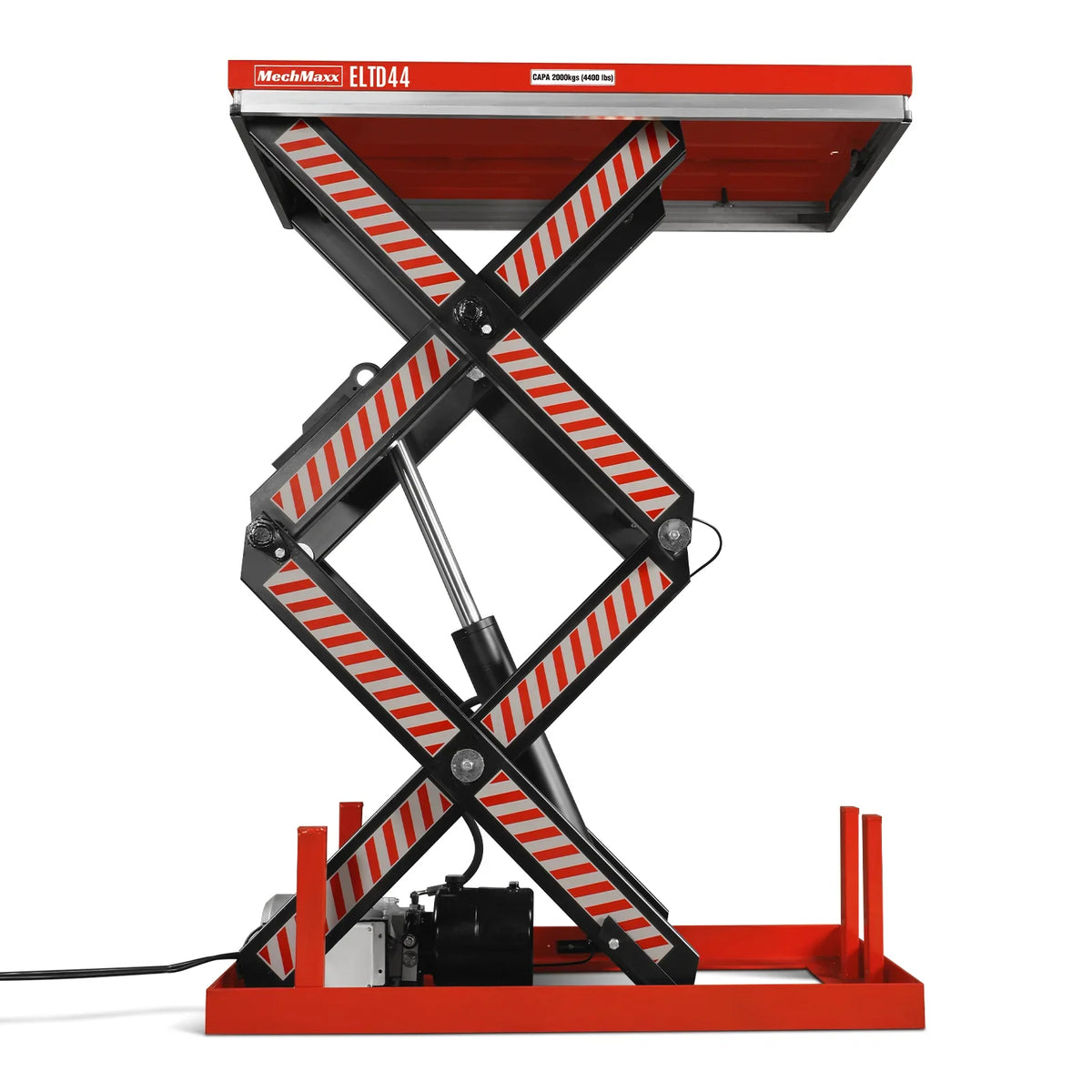

⚙️ Double Heavy-Duty Oil Cylinder

  • Provides stable lifting performance under heavy load conditions.
  • Equipped with a return device and check valve for enhanced safety.
  • Helps prevent sudden table drop in the event of hydraulic hose failure.
Hydraulic cylinder system

Specifications

Model & Identification

  • Model: ELTD44

Power System

  • Voltage: 110V 60Hz 1PH
  • Motor Horsepower: 3HP / 2.2KW
  • Power Type: Electric-Hydraulic

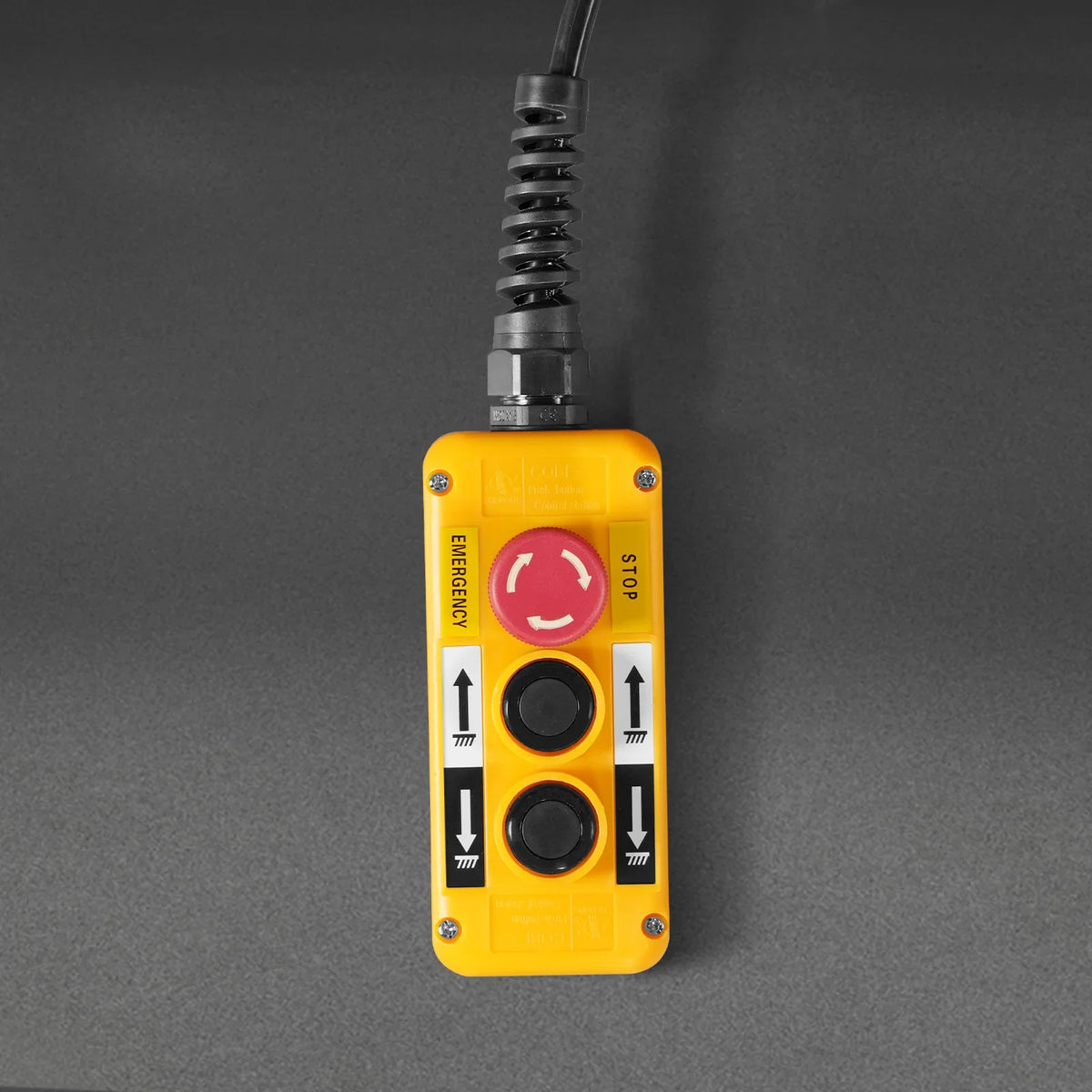

  • Lift Control: Hand Operated

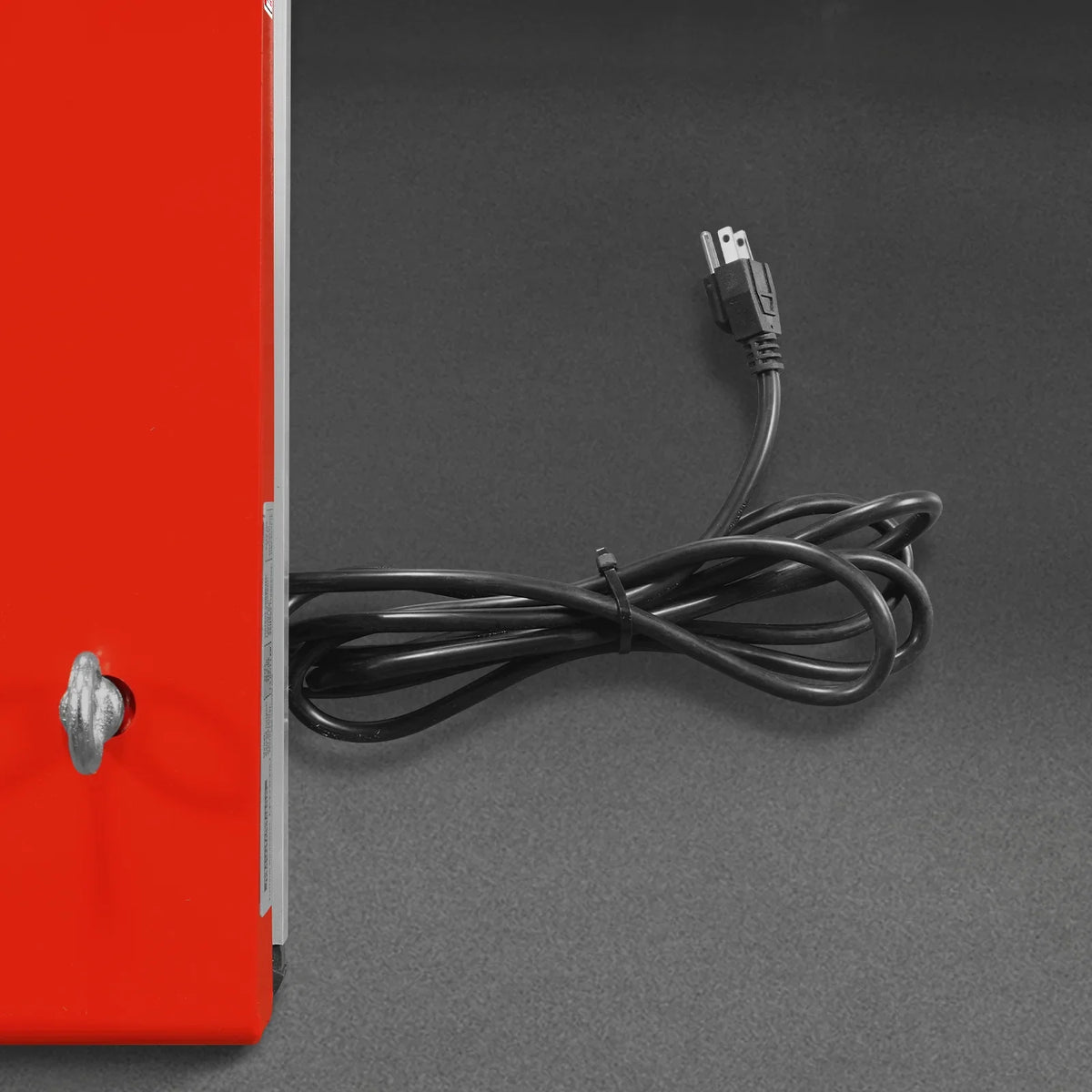

  • Wire Length: 16 ft

Capacity & Lift

  • Weight Capacity: 4400 lbs

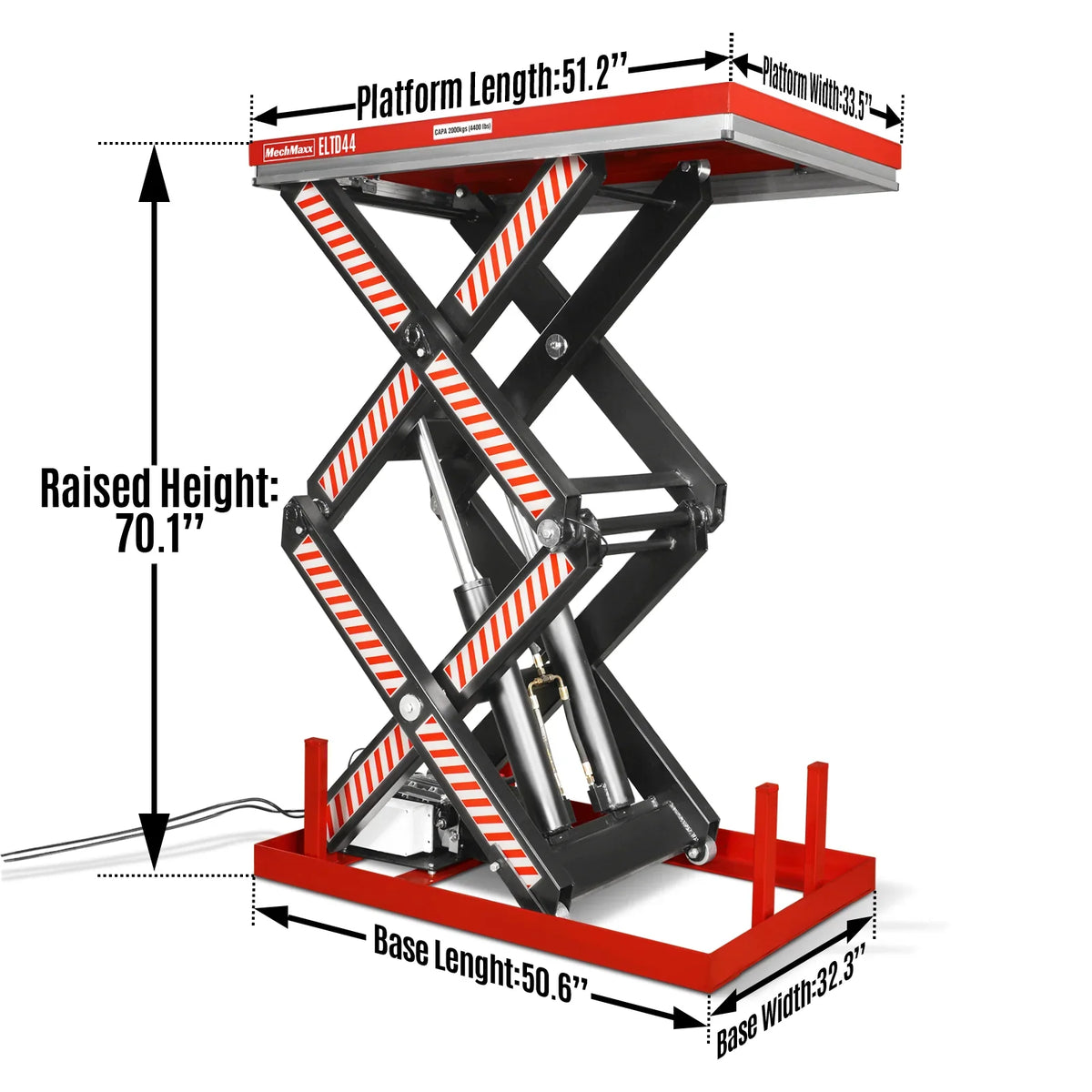

  • Raised Height: 70.1 in

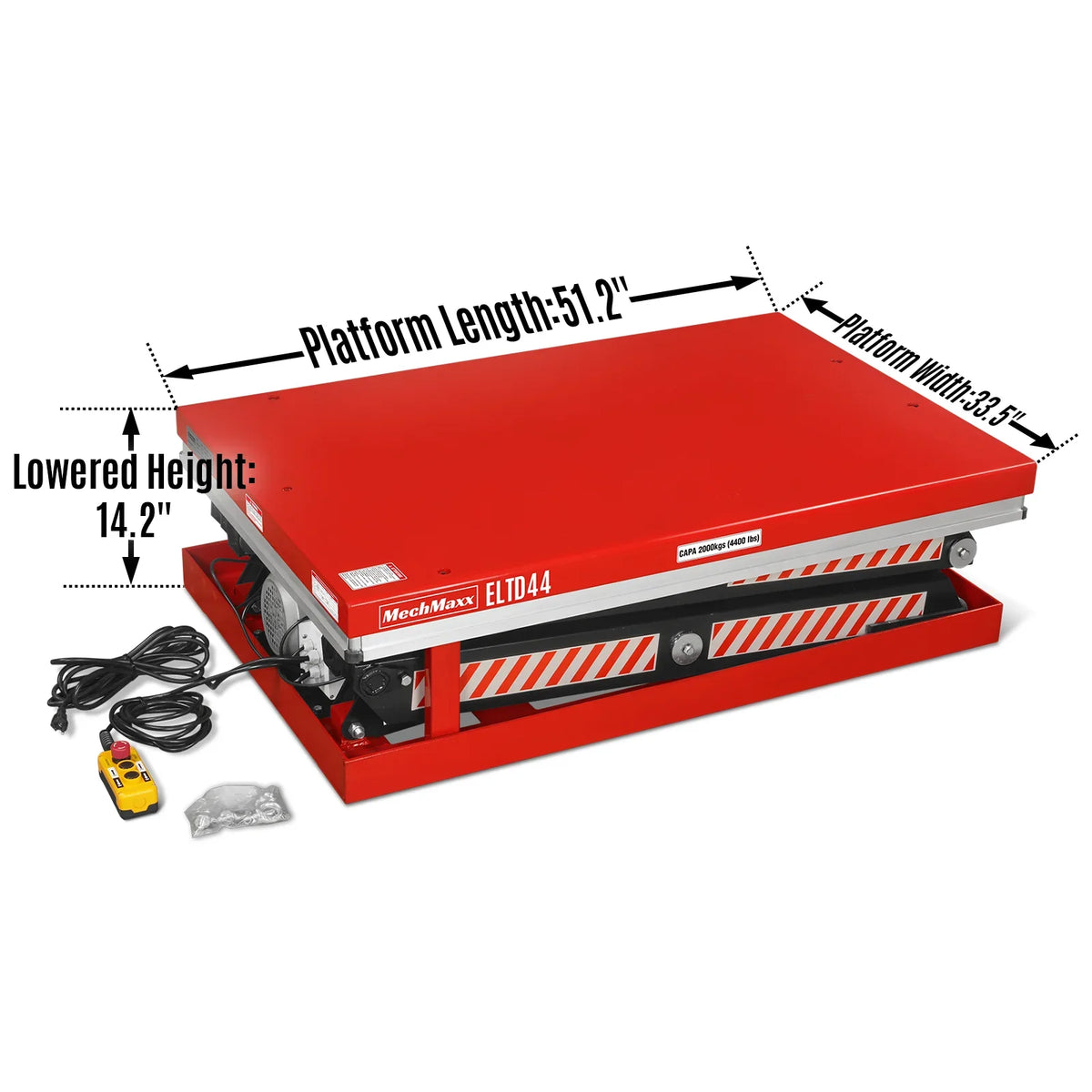

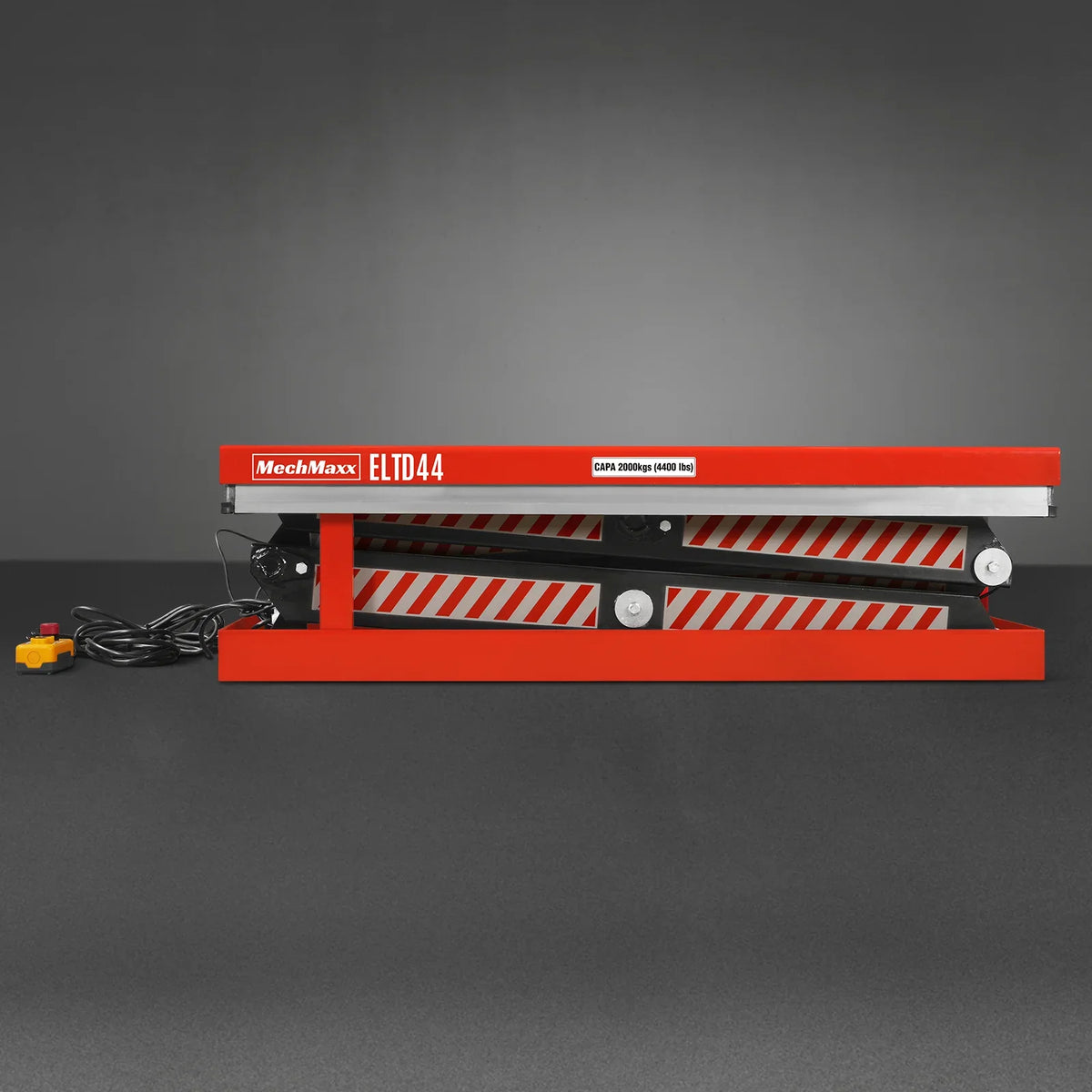

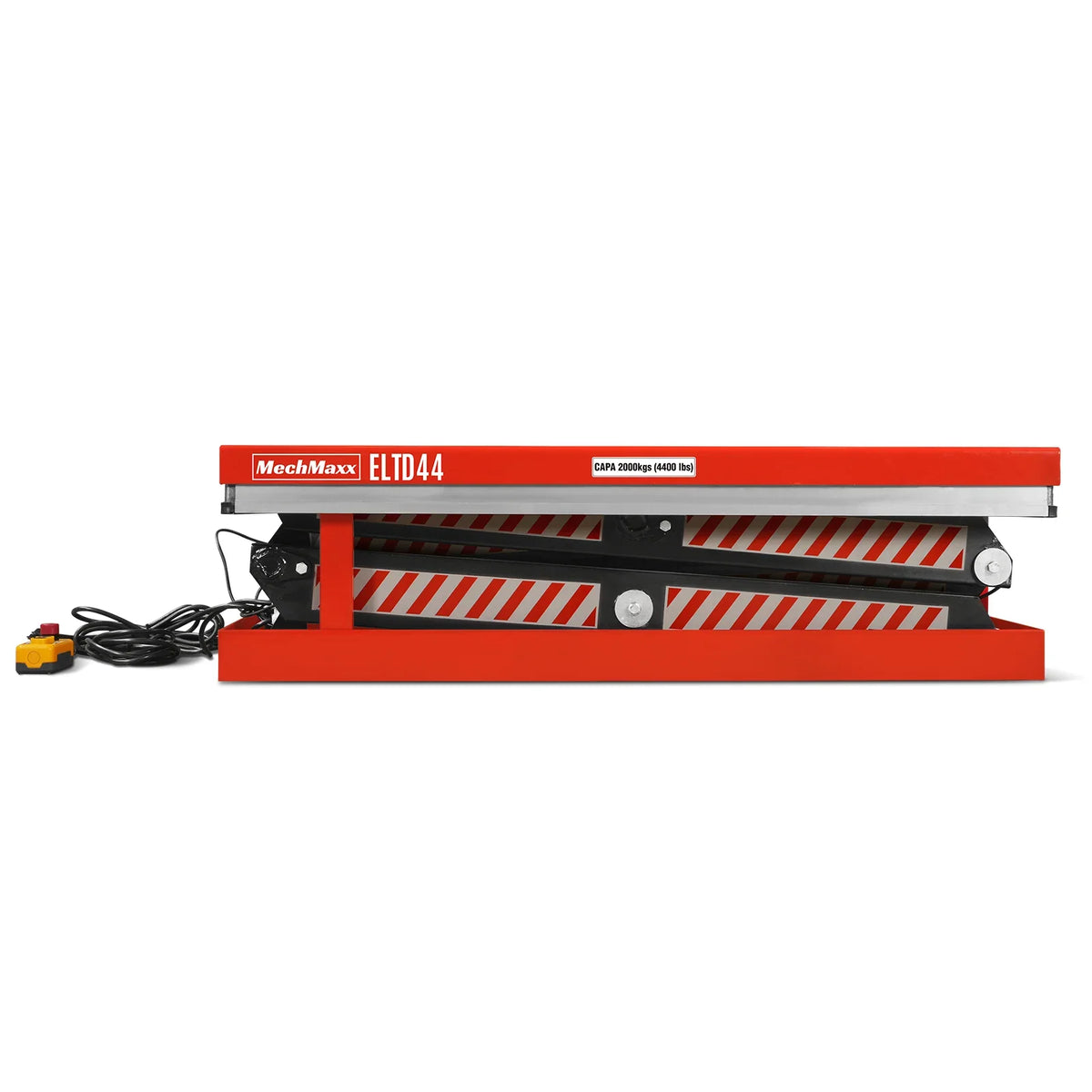

  • Lowered Height: 14.2 in
  • Scissor Type: Double Scissor Lift

Platform & Structure

  • Platform Size: 51.2" x 33.5"
  • Base Size: 50.6" x 32.3"
  • Material: Steel
  • Assembly Required: No

Dimensions & Shipping

  • Packing Size: 52" x 34" x 17"
  • Net Weight: 705 lbs
  • Gross Weight: 860 lbs
