Rhino Shelter Instant Garage (RV/Boat Garage) 14’W x 36’L x 15’H
Rhino Shelter Instant Garage (RV/Boat Garage) 14’W x 36’L x 15’H
The 14x36x15 instant garage is popularly used as an rv boat garage but can fulfill a variety of uses. The gambrel shape provides additional storage space with a high point in the center of the structure to fit your tall vehicles. Store your RV, boats, cars, trucks, commercial equipment, and other investments with confidence that they will be safe.
This product comes with a 10 oz. cover that is built to withstand the harsh elements of weather. The double zipper doors on either end of the garage allow for convenient drive-thru access. Our frames are made of heavy-duty galvanized steel and come with a cable earth anchor kit to provide extra reinforcement for your structure. Extend the life of your most expensive investments with outdoor protection that lasts.
Features
- All steel frame components have a heavy-duty galvanized finish for maximum strength and durability.
- Easy bolt-together design, all pre-drilled and cut.
- Wind Brace Support for Both Sides.
- Two double zippered doors with bottom pockets.
- One full roll-up door kit.
- Protective plastic tube end caps for all open ends.
- Standard thread-plated hardware kit with retaining nuts and protective stainless steel washers.
- Quick Assembly Wrench Included.
- Heavy-duty poly rope for the main cover tie down.
- Heavy-duty grommets on covers and doors.
- Twenty-two (22) permanent anchors are included.
- Five (5) Box Shipment.
- Average installation time is 8 to 10 hours.
Specifications
| Nominal Size | 14′ Wide x 36′ Long x 15′ High |
| Arches | Ten (10) on 48″ spacing, 2-3/8″ frame members |

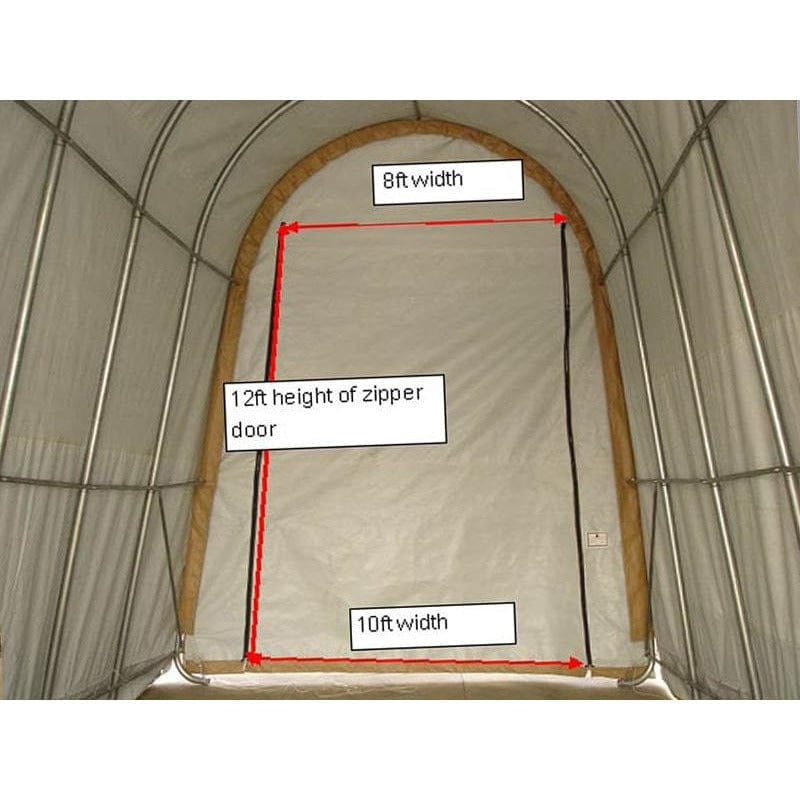

| Standard End Door Size | 12′9″ Wide x 12′6″ High, 8′6″ Wide at Top |
| Available Colors | Outer Colors: Green or Gray Interiors: White Only |
| Shipping Weight | 1,043 lbs, shipped in eight (8) boxes via motor freight |
| Pallet Dimensions | 48″ x 87″ x 30″ |
| Box Dimensions |
Box 1: 86″ L x 27″ W x 5″ H Box 2: 86″ L x 27″ W x 5″ H Box 3: 86″ L x 27″ W x 8″ H Box 4: 74″ L x 21″ W x 5″ H Box 5: 68″ L x 21″ W x 5″ H Box 6: 68″ L x 21″ W x 5″ H Box 7: 50″ L x 21″ W x 5″ H Box 8: 67″ L x 24″ W x 9″ H |
| Main Cover | UV Protected Fabric Backed Poly Material, 10 oz. weight, 22 mil thick |
| Fire Retardant Standard | Main Cover & Doors meet CPAI -84 Section 5 |
| Anchors | Twenty-Two (22) 36″ Anchors with U-Bolts & Drive Rod |
Package Includes
- 10 oz. UV Treatment Cover
- 2 Double Zipper Doors-12’W x 12’8″H (9’3″W at top)
- 22 Cable Earth Anchor Kit
- 2-3/8″ Galvanized Steel Frame
- Roll Up Door Kit for front door included
