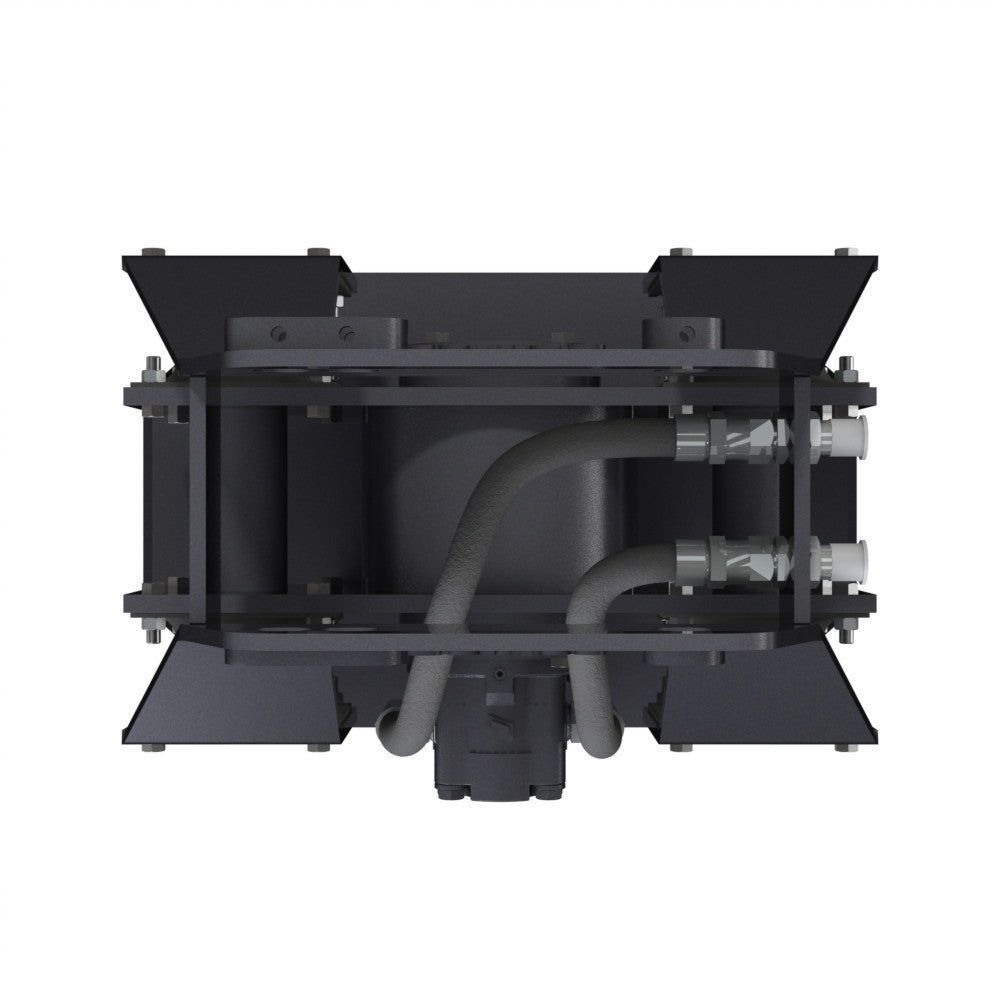

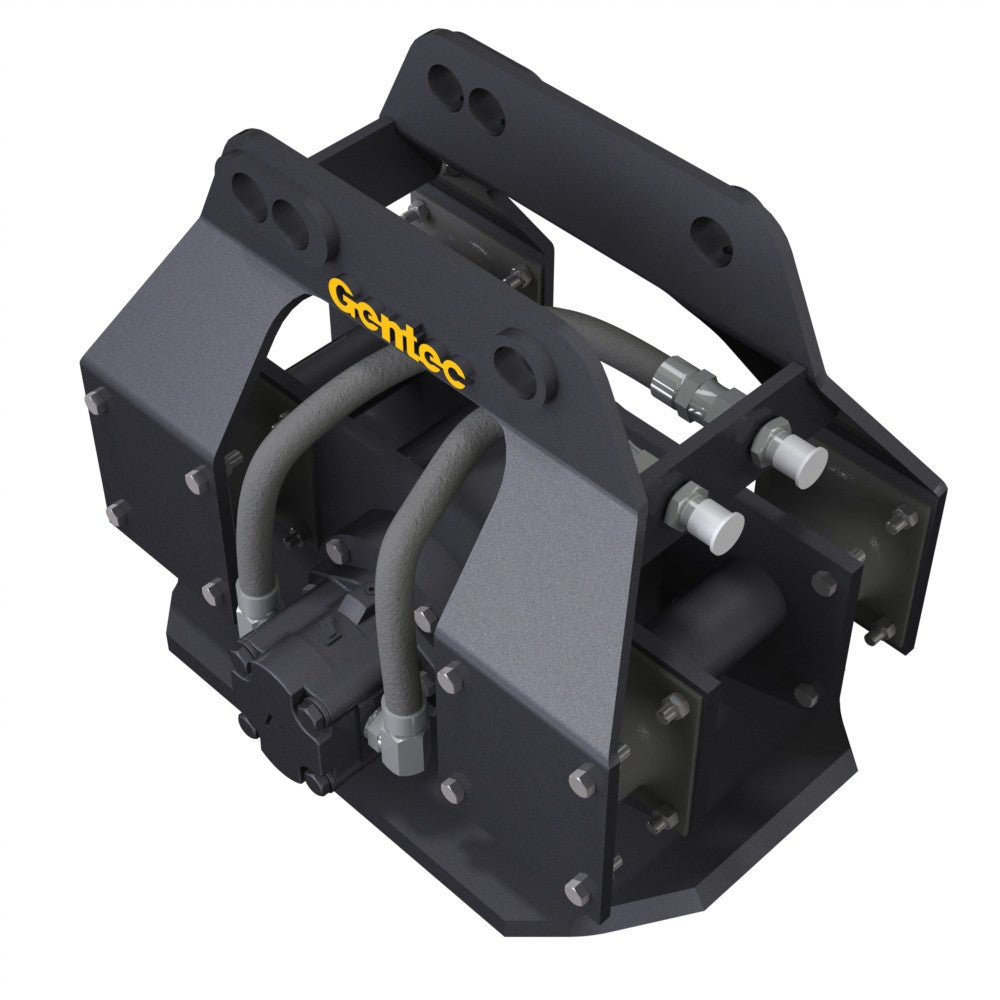

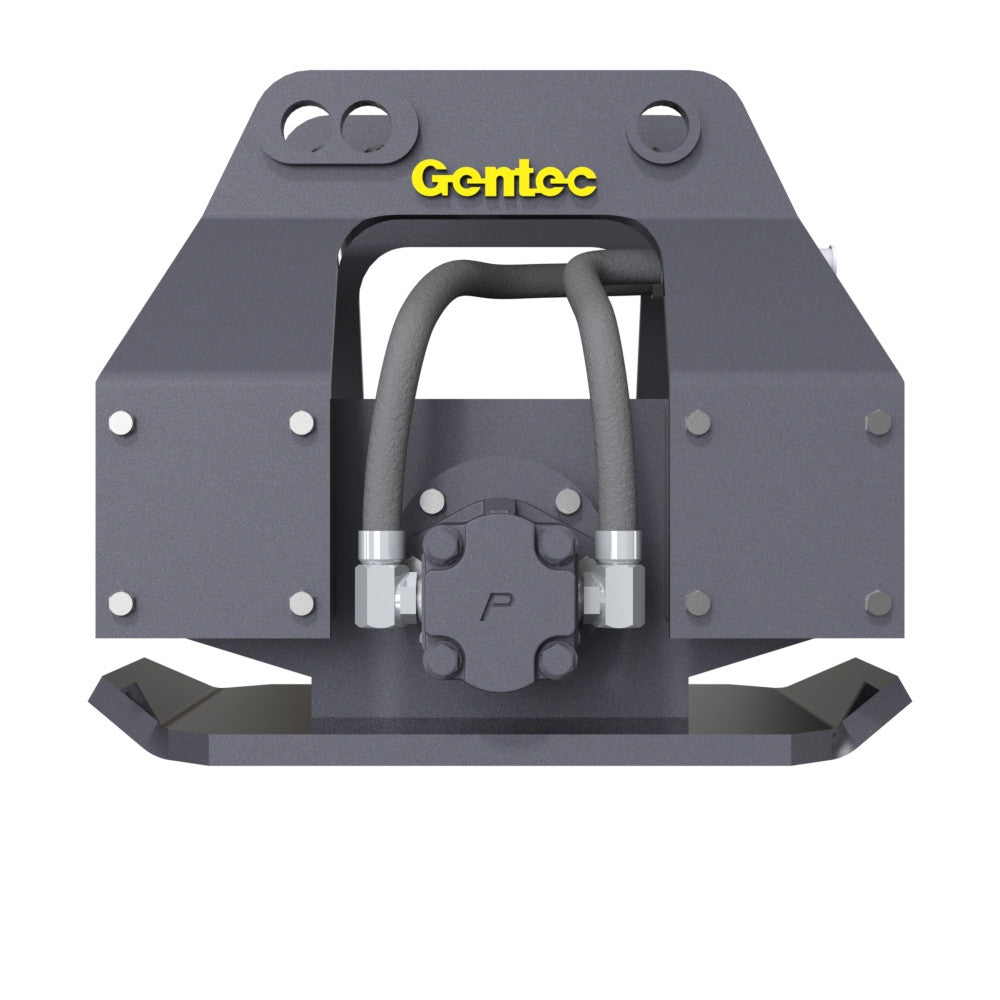

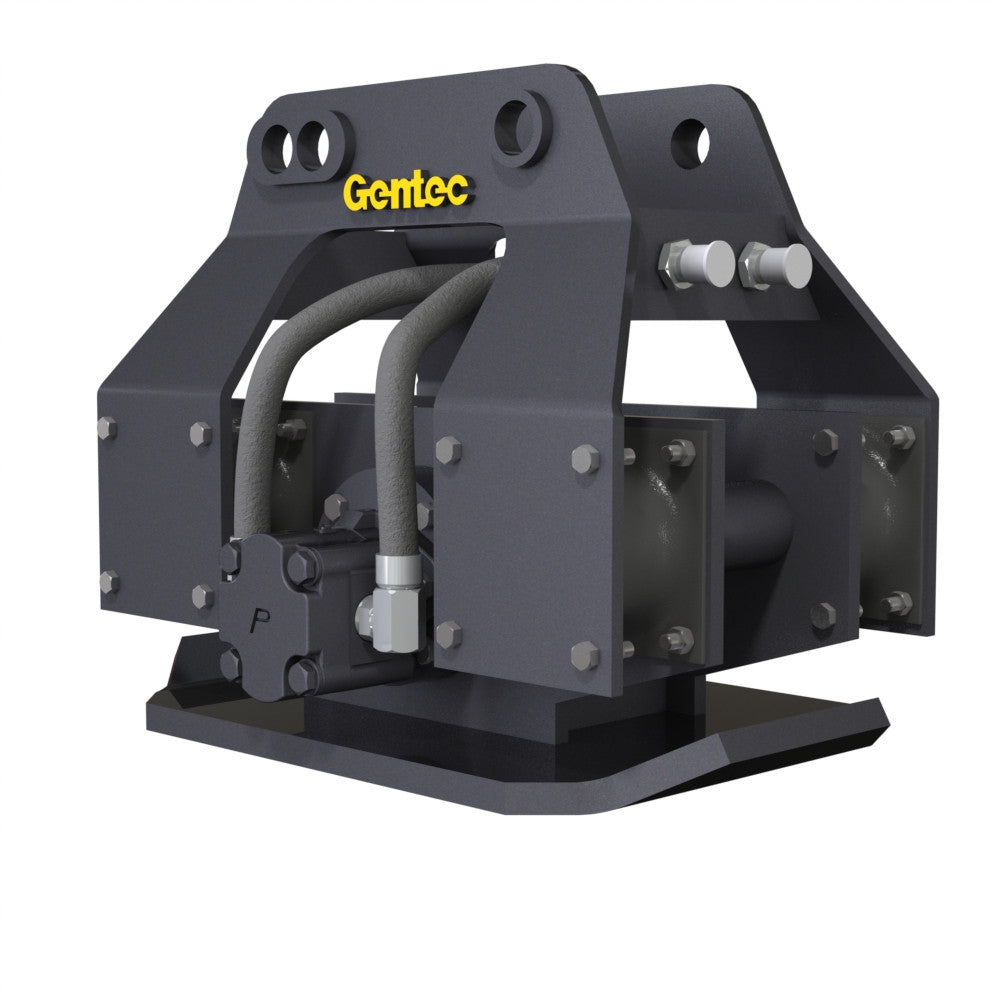

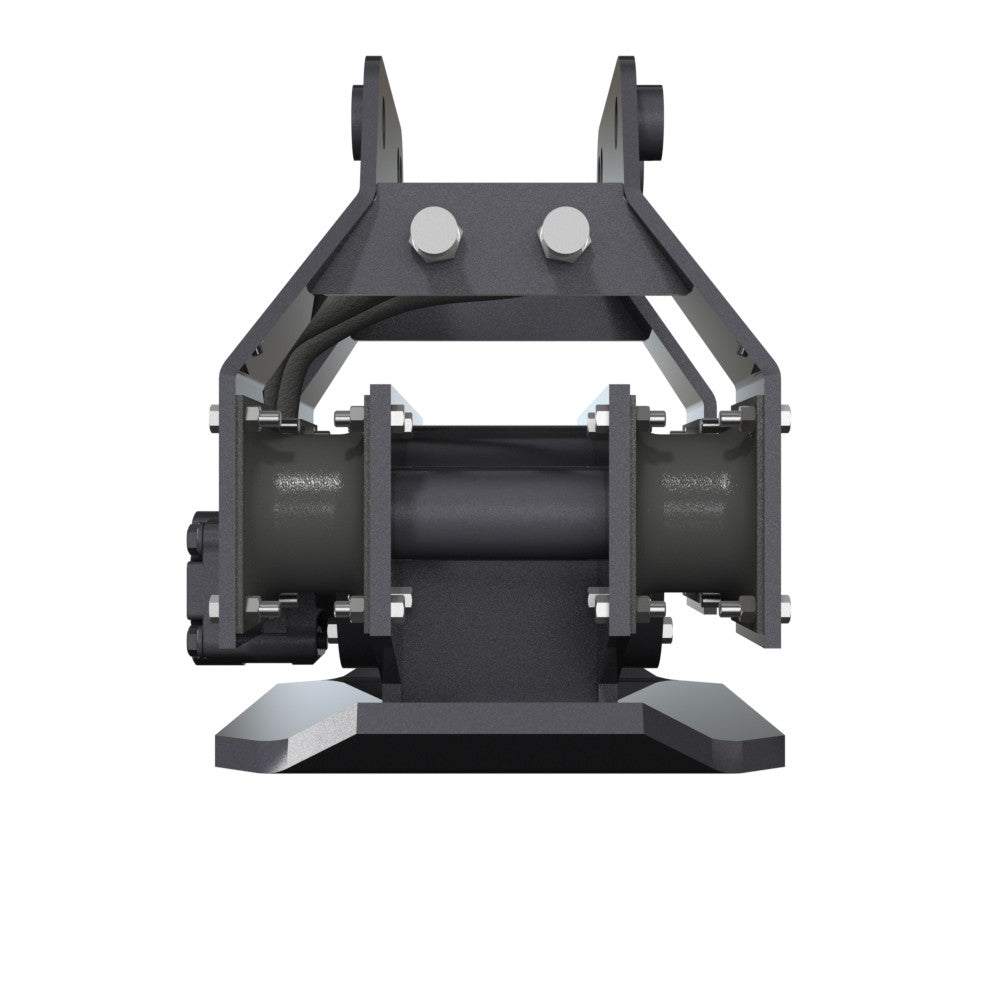

Pin-On Hydraulic Plate Compactor Excavator Attachment for 4,000 to 14,500 lb Excavators | Gentec GE870
$5,240.00
The Gentec GE870 pin-on hydraulic plate compactor delivers exceptional compaction force for carriers in the 4,000 to 14,500 lb weight class. Its optimized eccentric system pairs maximum weight with precise amplitude and frequency to achieve 95% or greater Mod Proctor Density in granular and moderately cohesive soils, making it ideal for trenches, foundations, and slope work.
This attachment doubles as a powerful vibratory driver for posts, beams, sheet piling, and seawalls. An integrally mounted baseplate and eccentric housing eliminate bolt loosening, while heavy rubber isolators protect your carrier boom. A machine-specific pin kit is required and sold separately.
Specifications
Brand
Gentec
Product Type
Pin-On Hydraulic Plate Compactor
Pressure
2000 psi
Frequency
2000 cpm
Net Weight
550 lbs
Bottom Plate Dimensions
18" x 21"
Impulse Force
6,400 lbsf
Hydraulic Flow
13 gpm
Carrier Weight Class
4,000 lbs to 14,500 lbs
Hydraulic Port Size
-12 JIC Male
Weight Class (Metric Tons)
1.5-2.2, 2.3-3.9, 4.0-5.9, 6.0-9.9
Mounting Style
Pin-On
Application
Soil compaction, vibratory pile driving
Soil Compatibility
Granular and moderately cohesive soils
Compaction Density
95% Mod Proctor Density or better
Fitment
Compatible with excavators in the 4,000–14,500 lb weight class
Maximum excavator stick width: 7.5 inches
Compatible with machines that have:
No quick coupler installed, or
A pin-grabber style quick coupler with an adjustable pin center between 10" and 12"
A machine-specific pin kit is required and sold separately to match your excavator's pin diameter.
Videos
Frequently asked questions
What carrier weight class is the GE870 compatible with?
The GE870 is designed for carriers in the 4,000 to 14,500 lb weight class.
Can the GE870 be used as a pile driver?
Yes, the GE870 can function as a vibratory pile driver in suitable granular soil, driving wood, steel, vinyl, aluminum sheeting, H and I beams, piling, posts, and seawalls.
Is a pin kit included with the GE870?
No, a pin kit must be purchased separately to match your specific machine's pin diameter.
What maintenance does the GE870 require?
The GE870 requires minimal maintenance. Its baseplate and eccentric housing are integrally mounted to eliminate frequent bolt tightening, and heavy rubber isolators protect the carrier boom from vibration.
