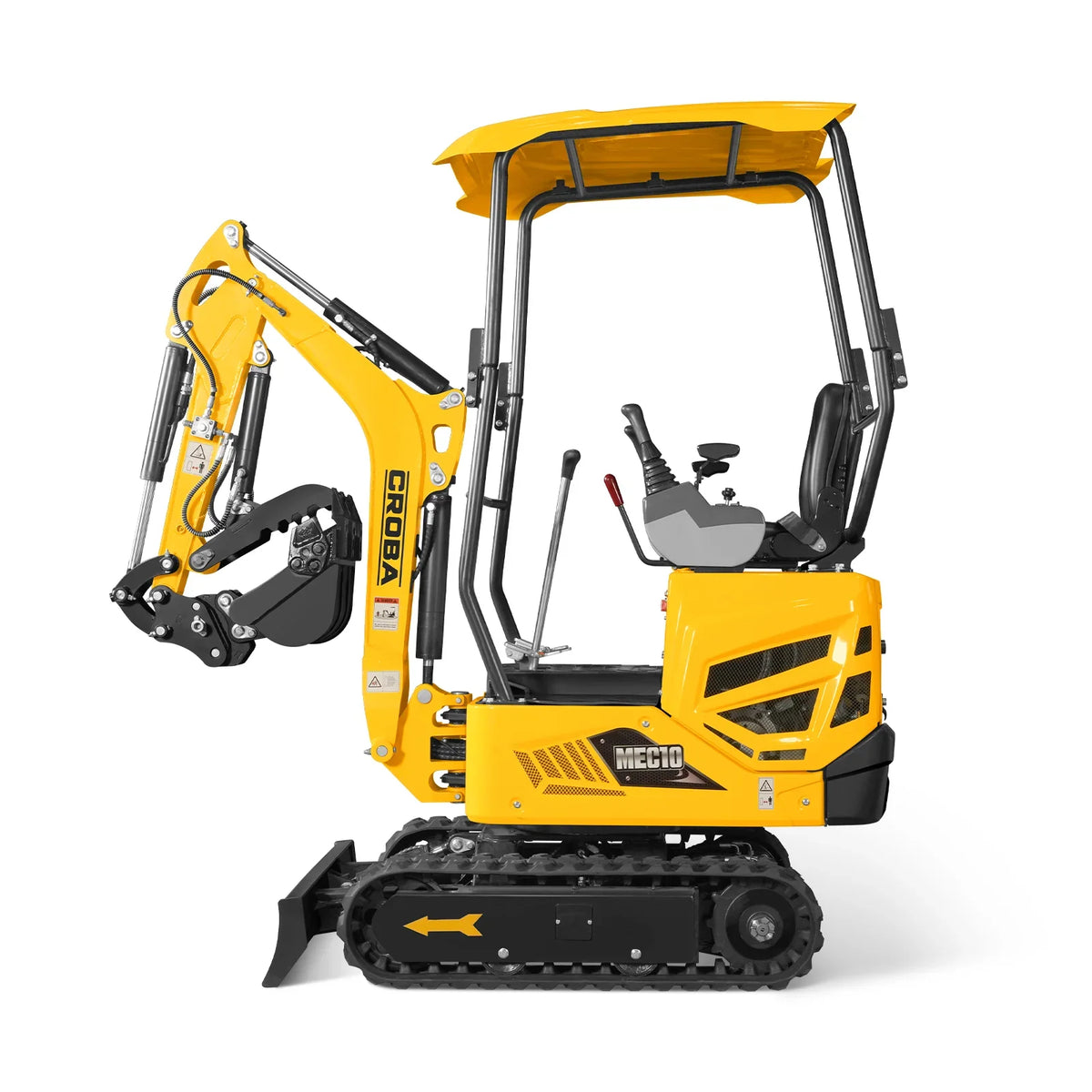

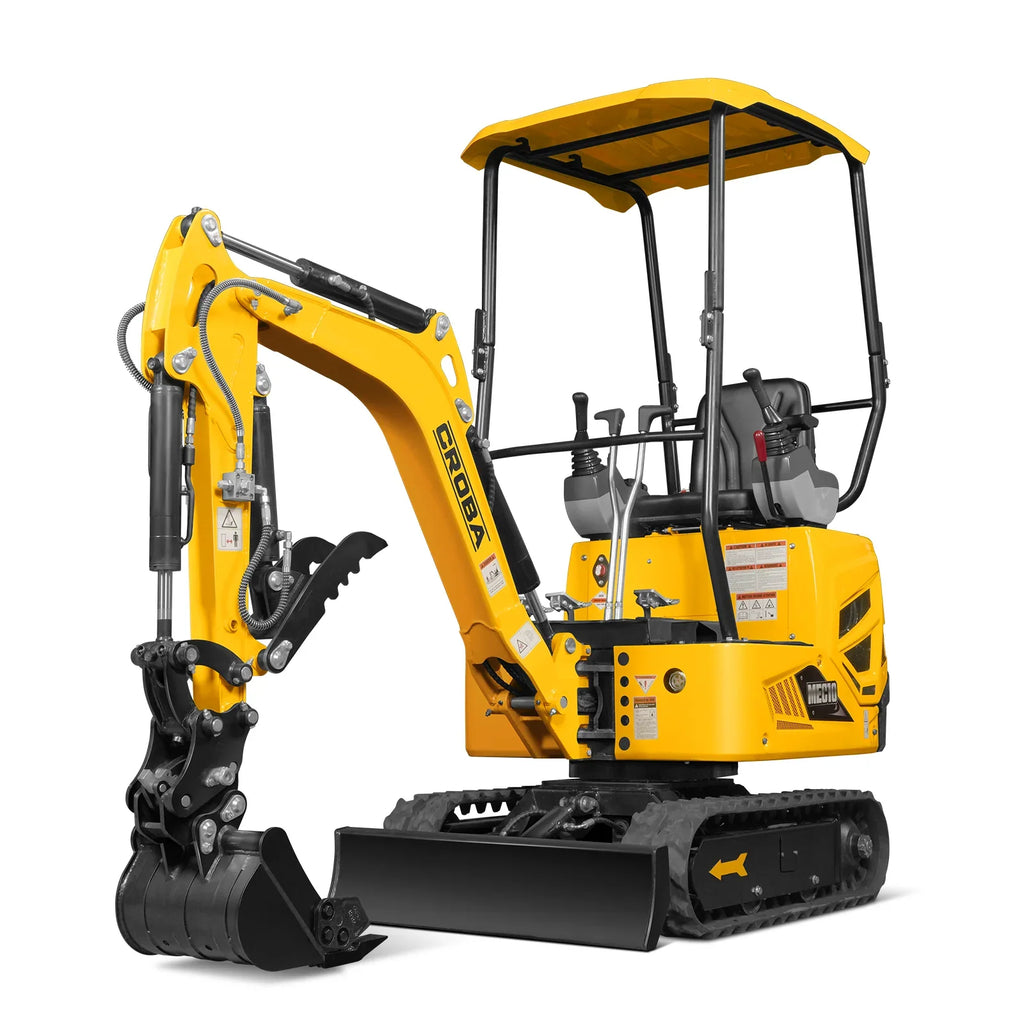

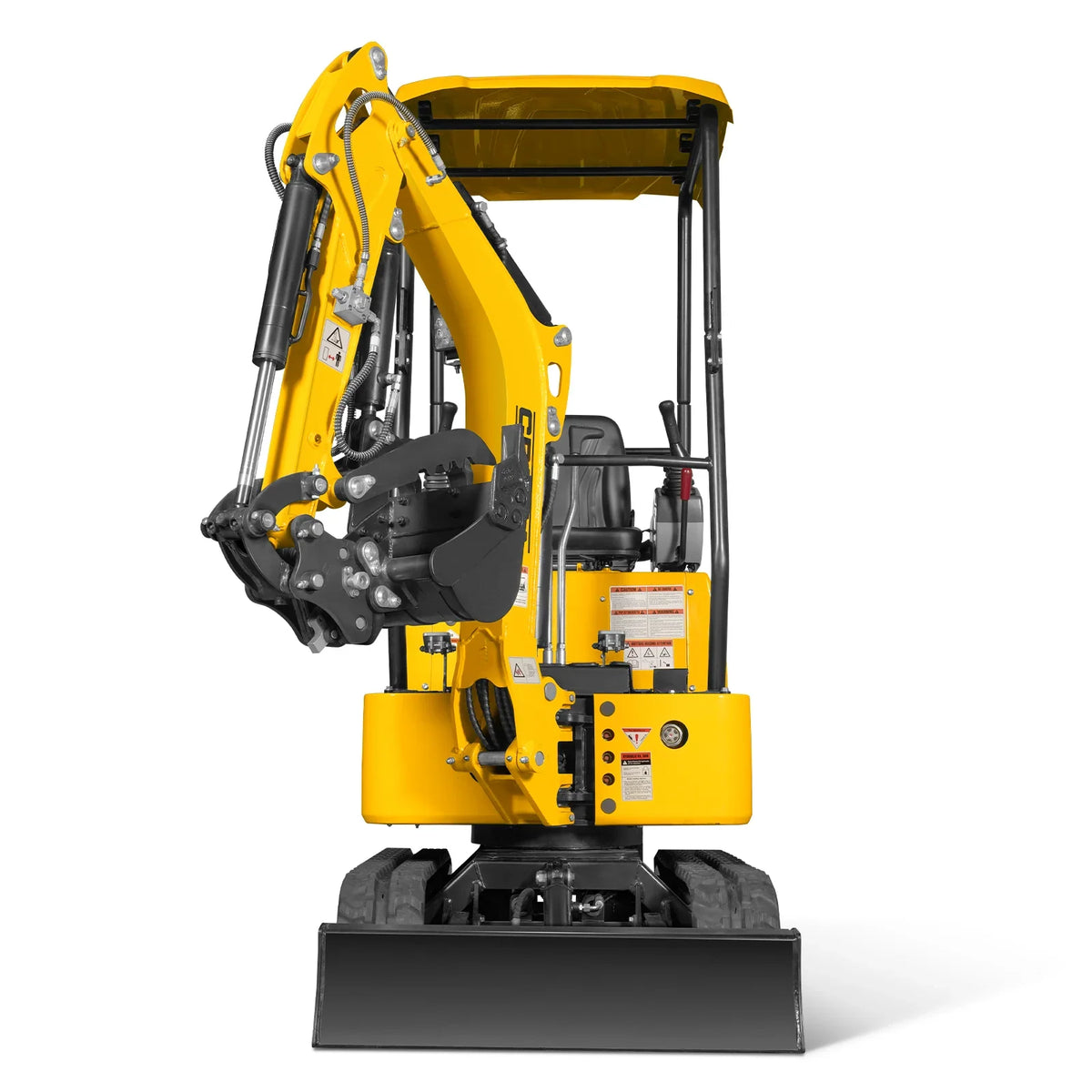

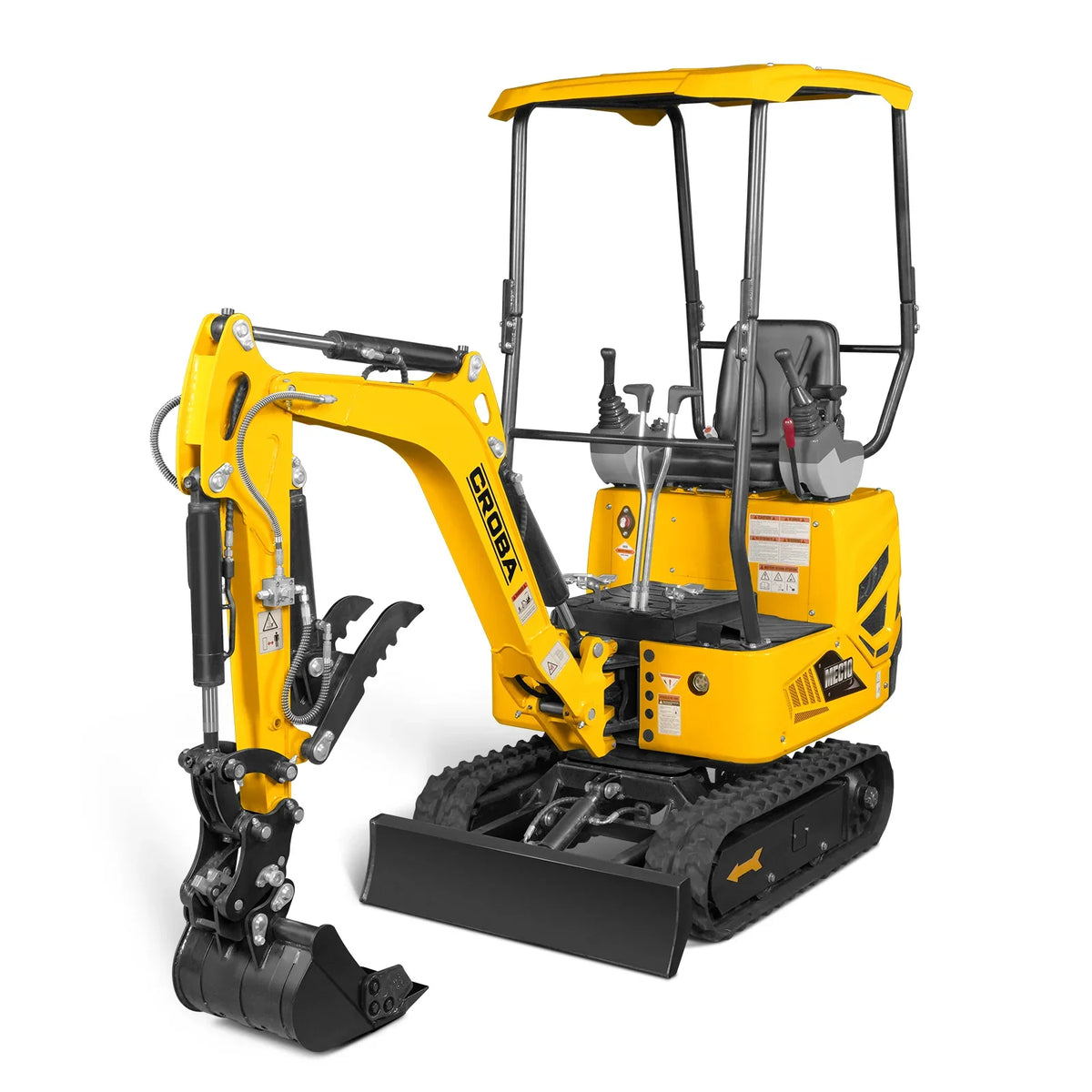

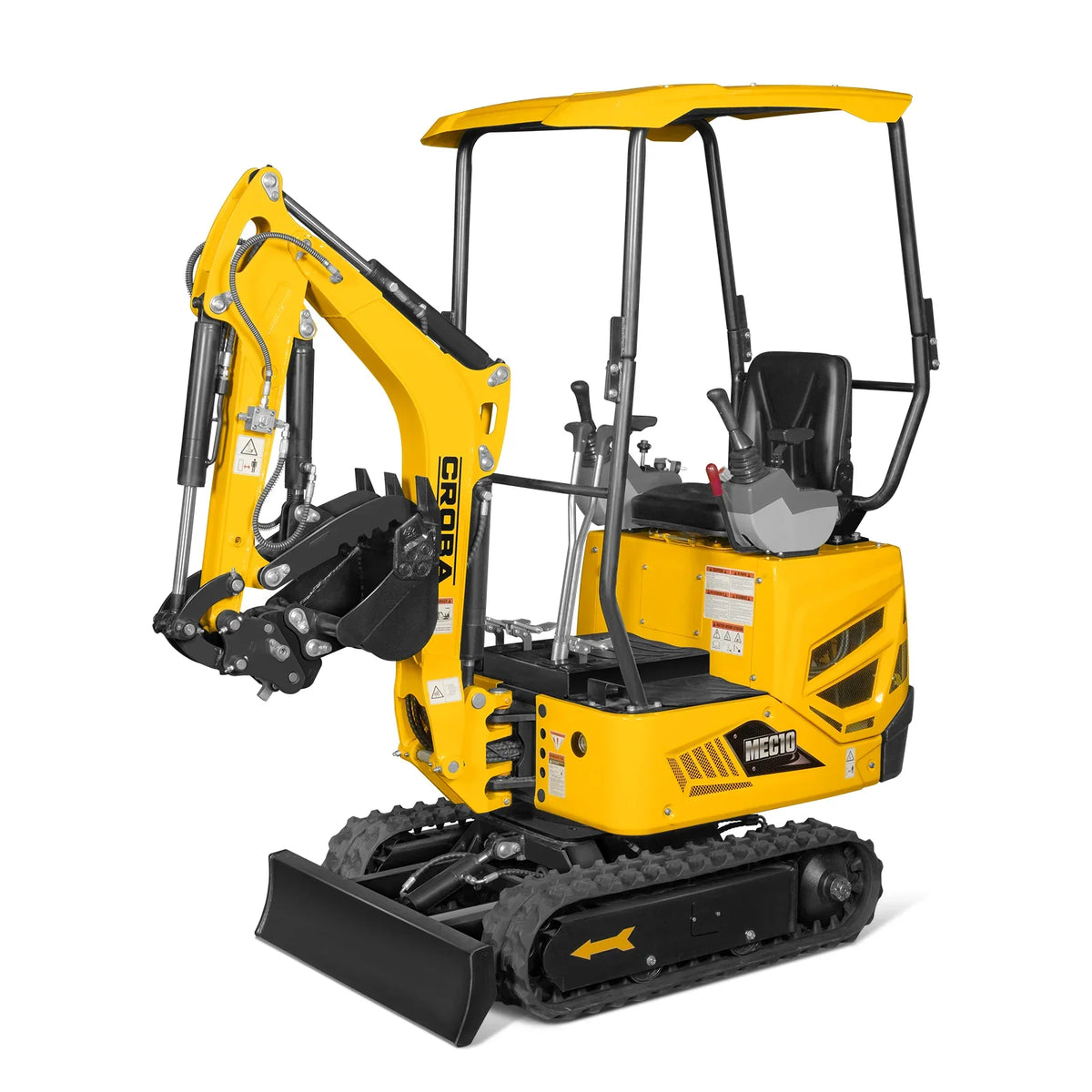

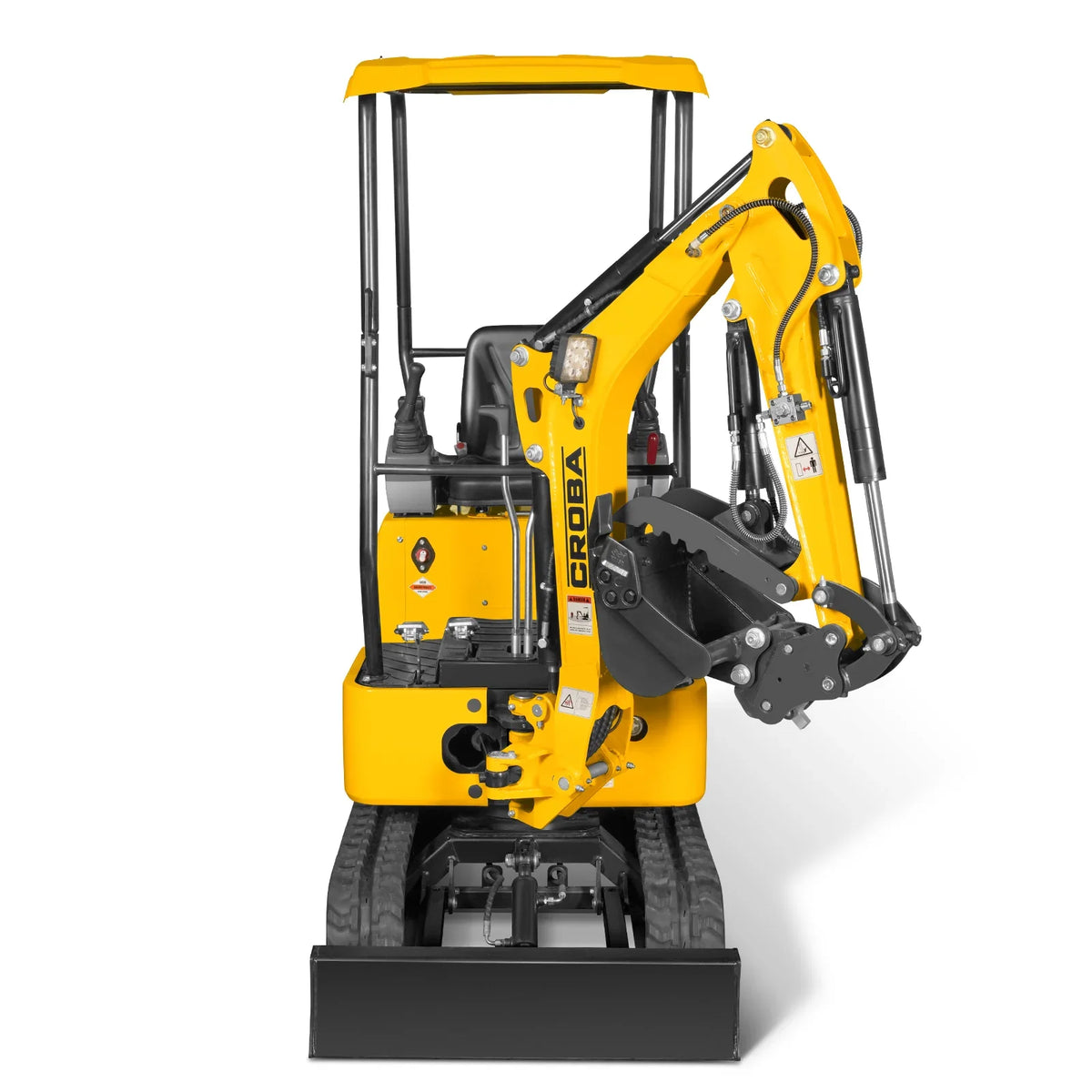

MechMaxx 1 Ton Mini Excavator – 14HP Briggs & Stratton Vanguard Engine, 65.7" Dig Depth, Compact Excavator (MEC10)
MechMaxx 1 Ton Mini Excavator – 14HP Briggs & Stratton Vanguard Engine, 65.7" Dig Depth, Compact Excavator (MEC10)
Tailor-Made for Tight Spaces. High-Flow Performance.

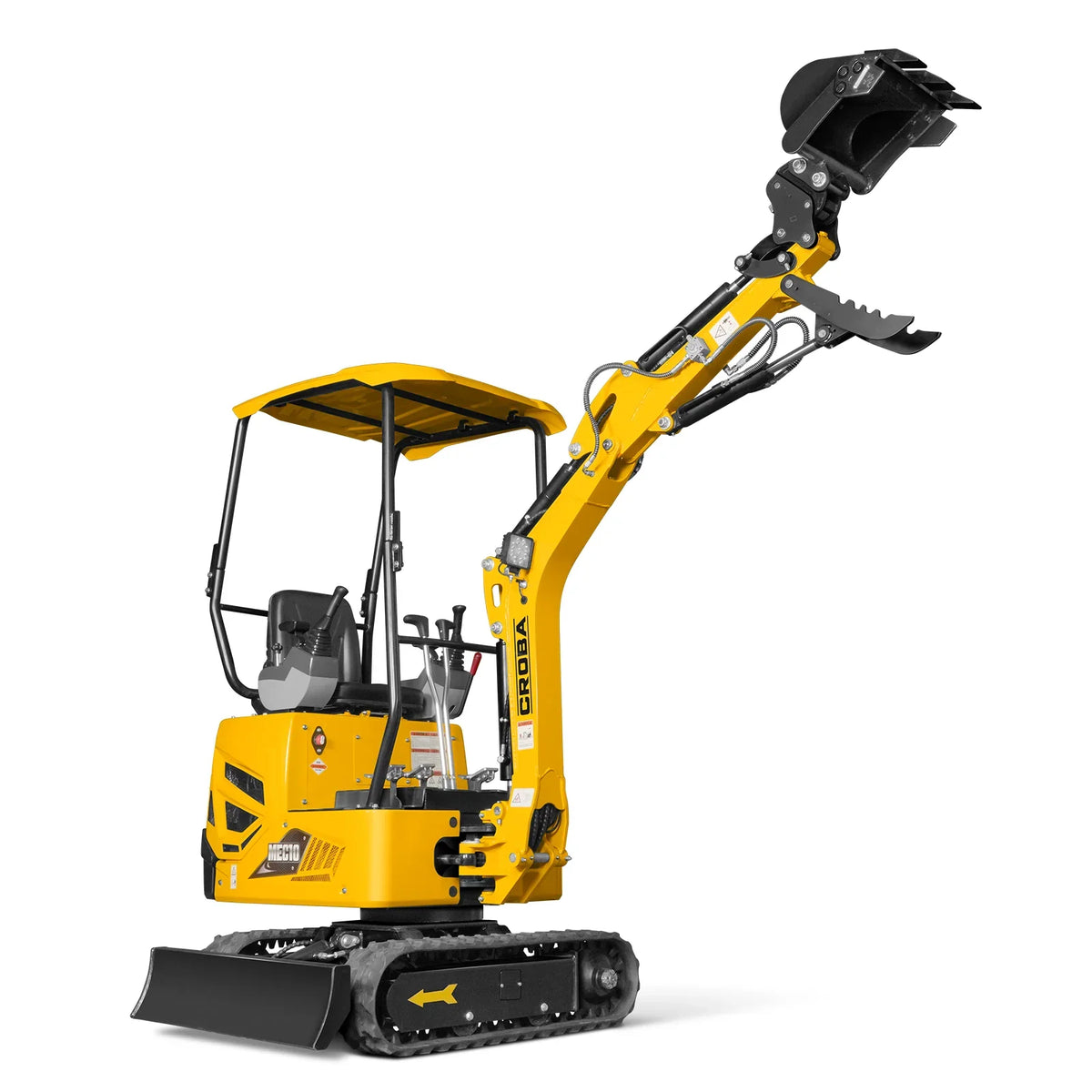

The MechMaxx MEC10 Mini Excavator is expertly engineered for construction in narrow lanes, alleys, backyards, and gardens where larger equipment can’t reach. This compact crawler provides the agility of a small machine with the hydraulic backbone to handle demanding job site tasks.
At its core is the B&S VANGUARD 408cc 14hp engine—an air-cooled powerhouse featuring a high compression ratio for superior fuel efficiency and professional-grade reliability. Paired with an enhanced hydraulic system, the MEC10 easily accommodates high-flow attachments like augers, rippers, and mulcher heads.
With a 65.7” digging depth, 118.7” reach, and full 360° rotation, you can access hard-to-reach areas without constant repositioning. The included adjustable hydraulic thumb adds immediate versatility, allowing you to pick up rocks, branches, and debris directly from the operator's seat.
Perfect for: Narrow Path Construction • Garden Projects • Utility Trenching • Concrete Cutting • Land Clearing
Note: This unit exceeds lift gate delivery limits. A forklift or unloading platform is required at the time of delivery.
Features
⚡ Semi-Automatic Quick Hitch
- Heavy-duty steel hitch allows for fast connection and detachment of tools.
- Switch between attachments quickly to maintain high productivity.
- An essential feature for maximizing the machine's versatility on-site.

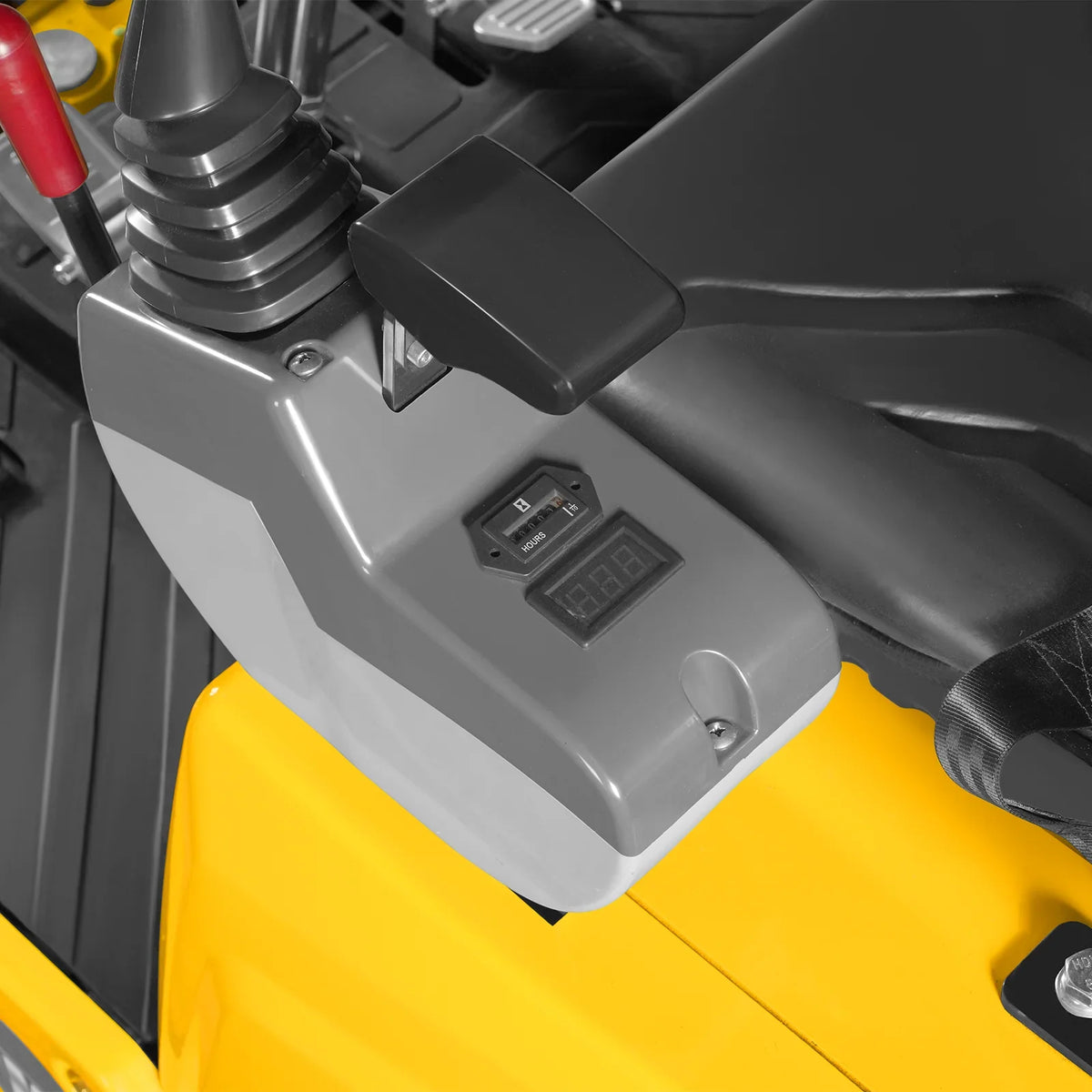

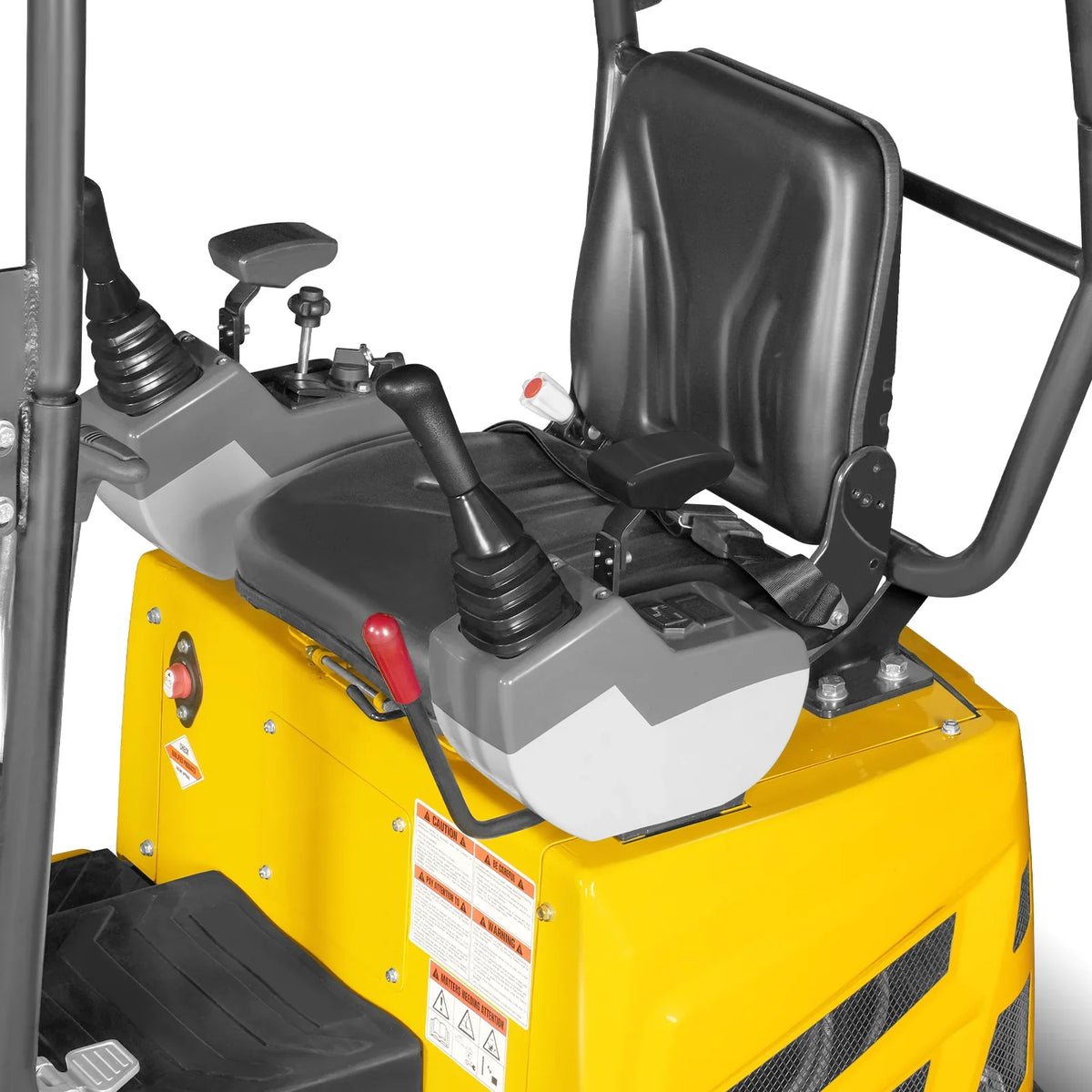

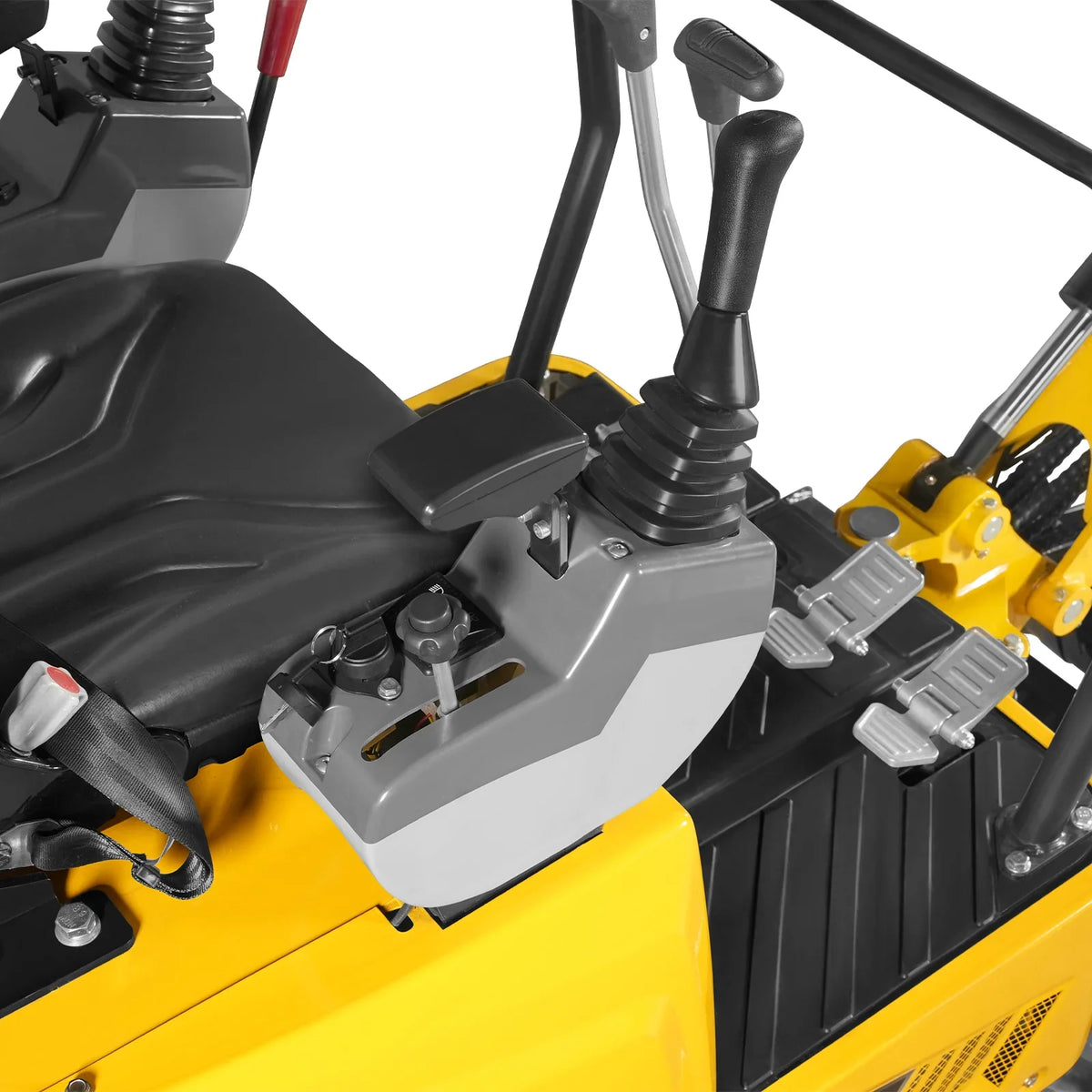

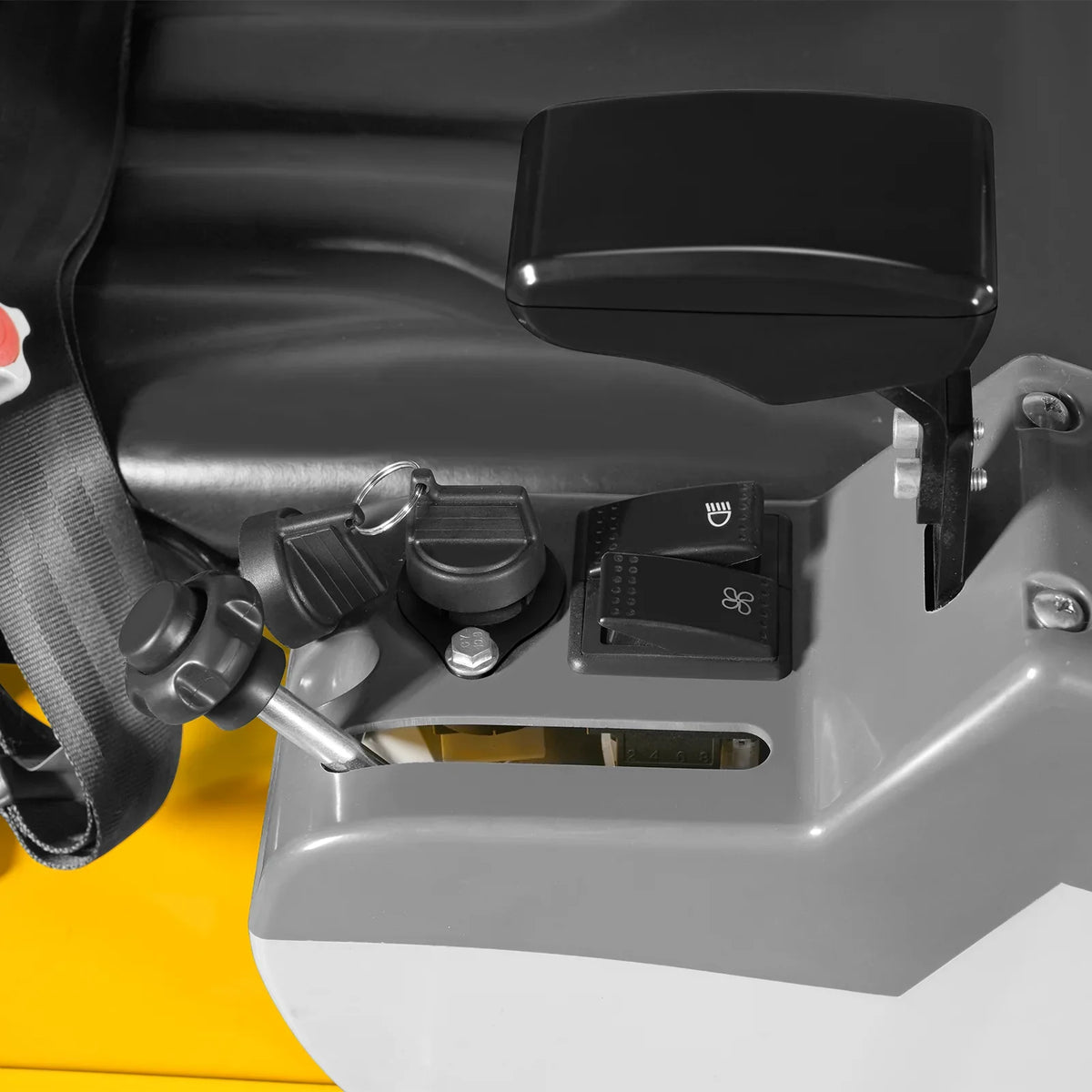

🎮 Pilot-Operated Control
- Pilot-operated levers ensure smooth, responsive, and precise machine handling.
- Ergonomic design makes operation easier and more comfortable for extended periods.
- High-accuracy control for delicate tasks in confined workspaces.

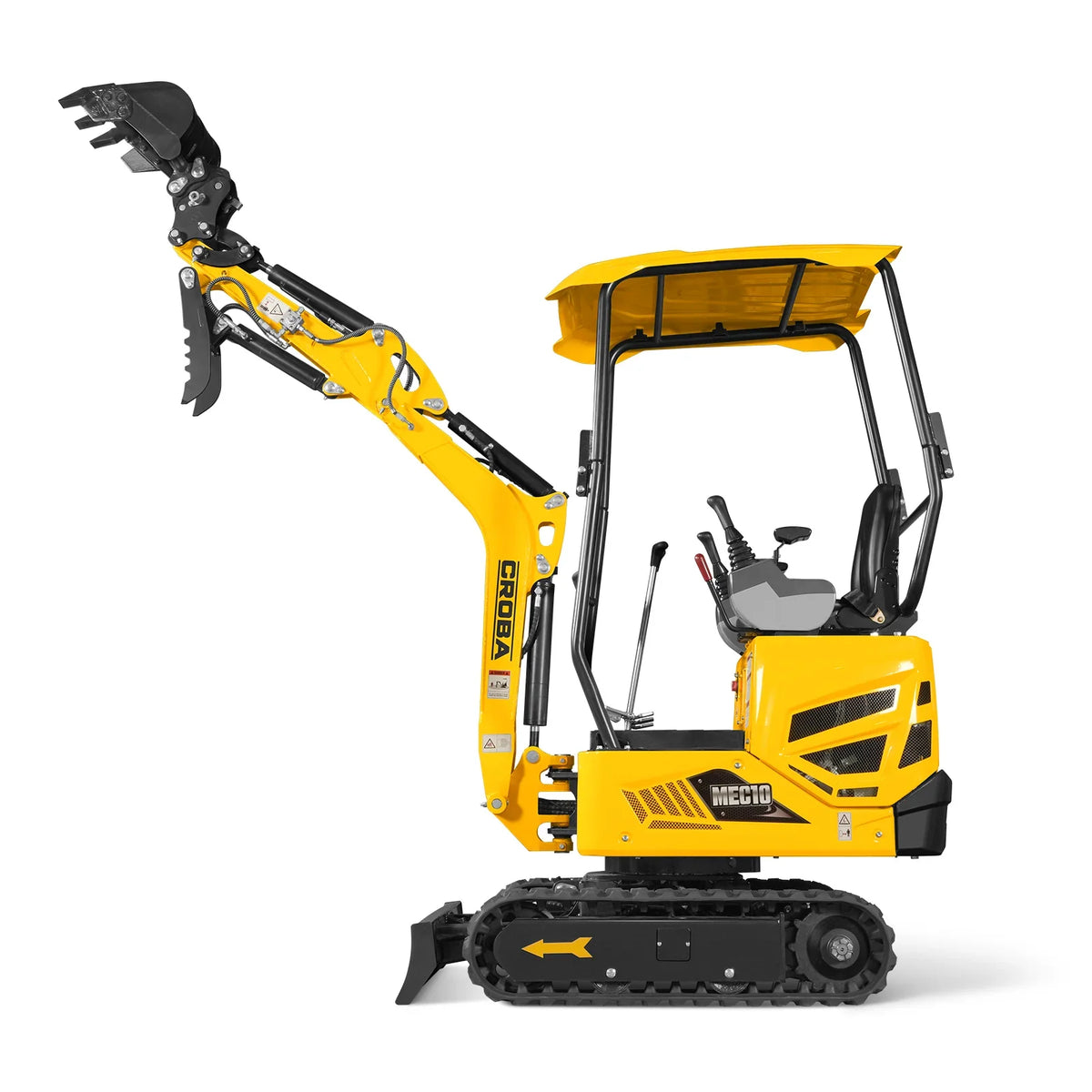

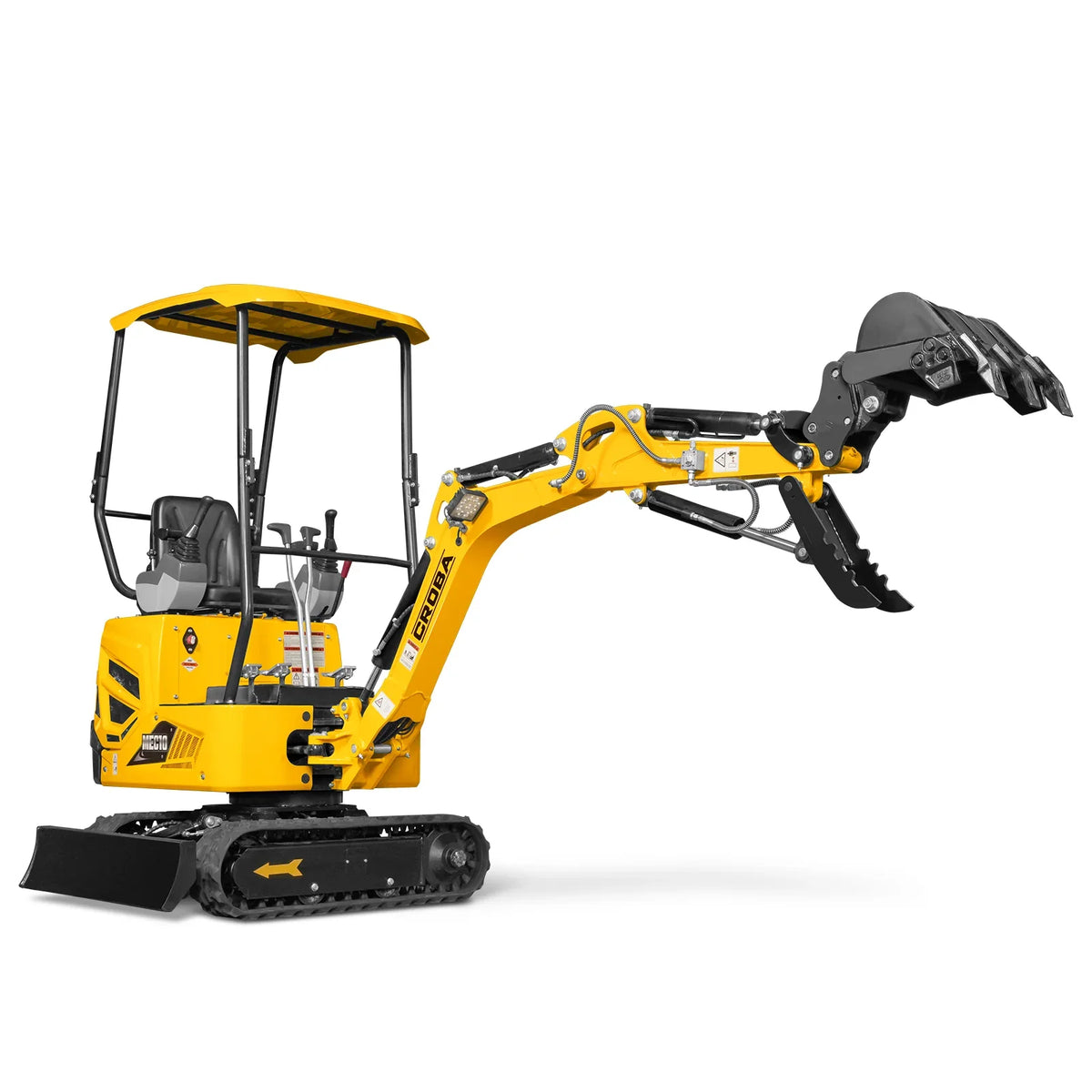

⛏️ Extended Digging Capability
- Features a 65.7-inch digging depth reach for deep excavation and trenching.
- 118.7-inch maximum ground digging radius expands your working range.
- Access hard-to-reach areas efficiently without needing to move the equipment.

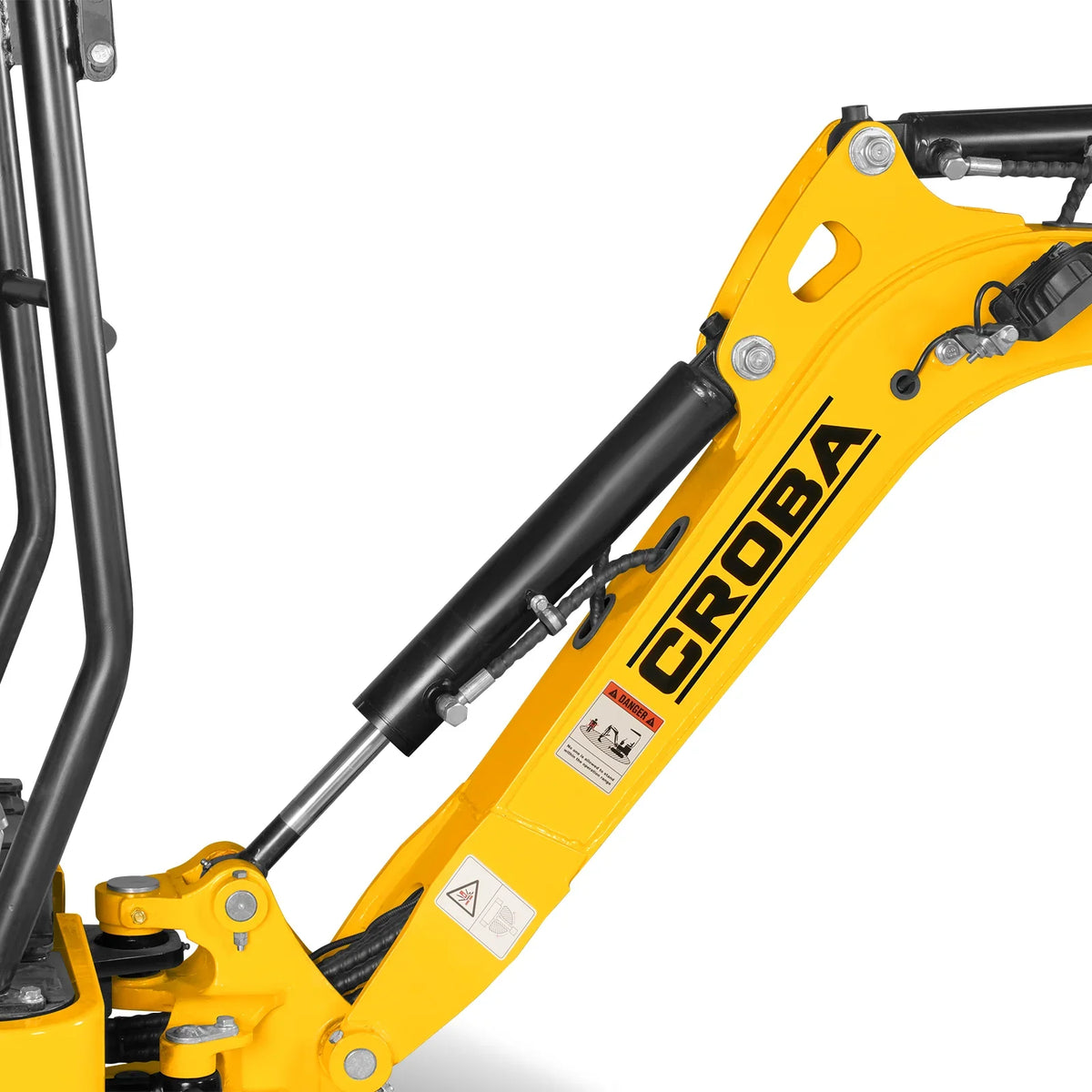

🔄 Versatile Swing Arc
- Digging arm swings 53° to the left and 40° to the right for expert positioning.
- Allows you to dig in narrow places and dump soil exactly where you need it.
- 360° rotation provides full operational flexibility on any jobsite.

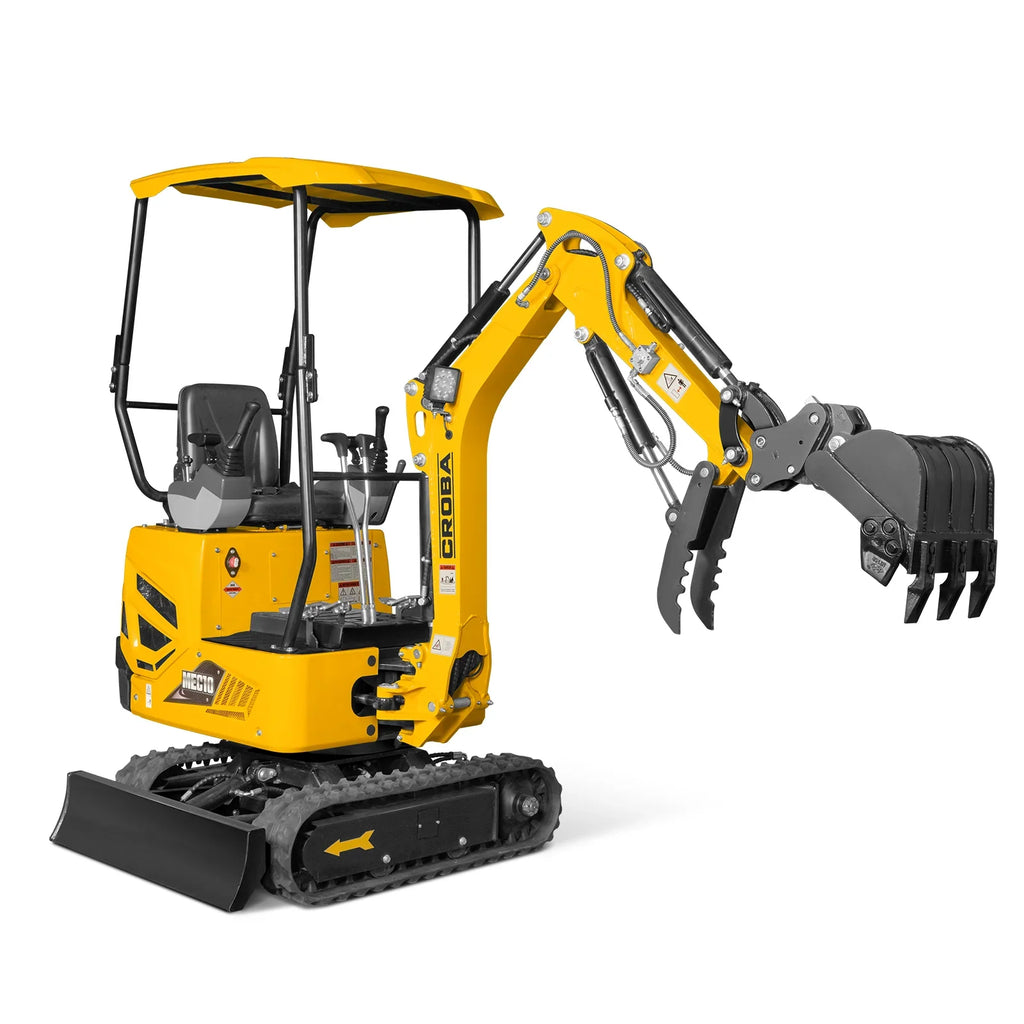

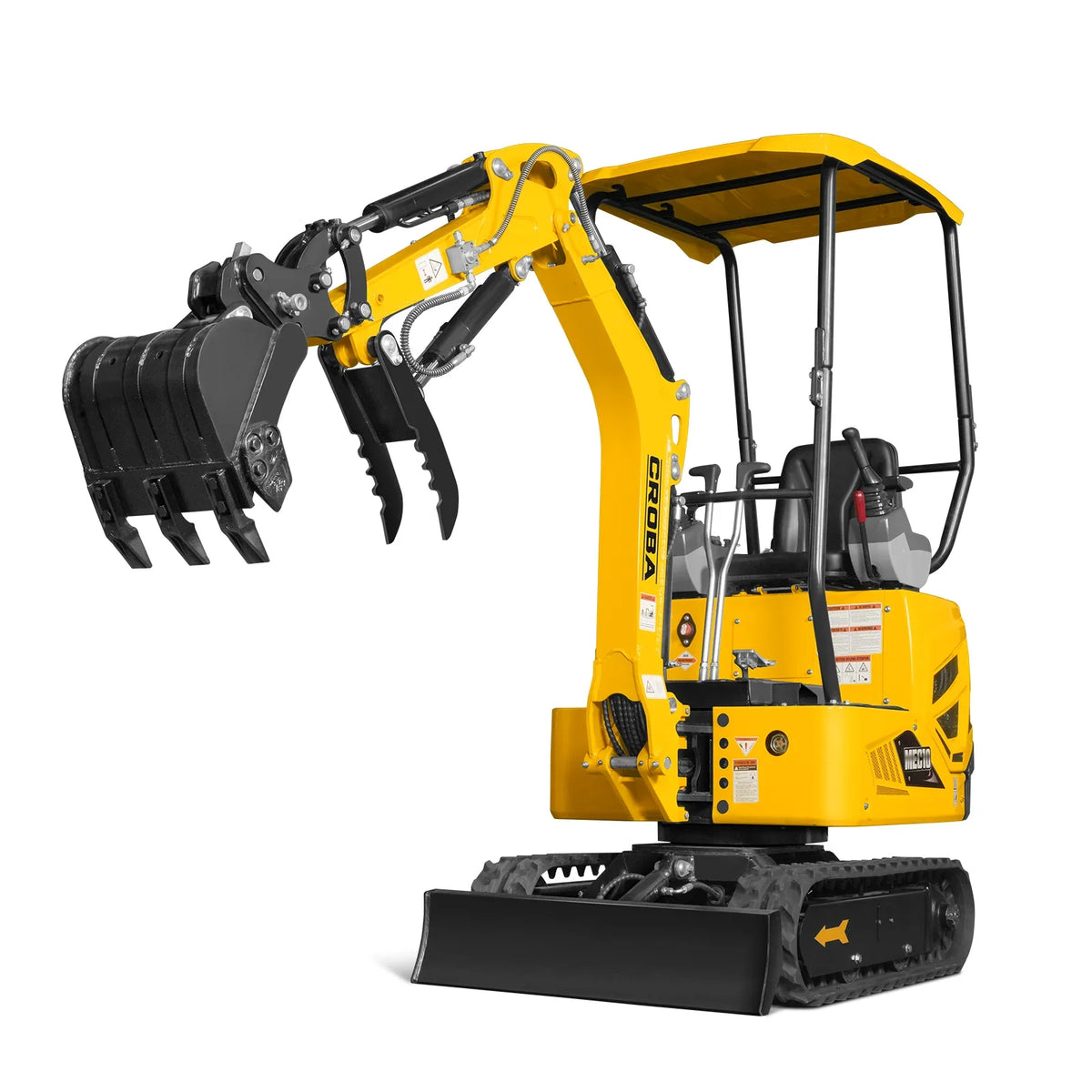

🪵 Integrated Hydraulic Thumb
- Conveniently pick up rocks, branches, and bushes with ease.
- Thumb position can be adjusted directly from the operator's seat for precision.
- Greatly improves material handling and site cleanup efficiency.

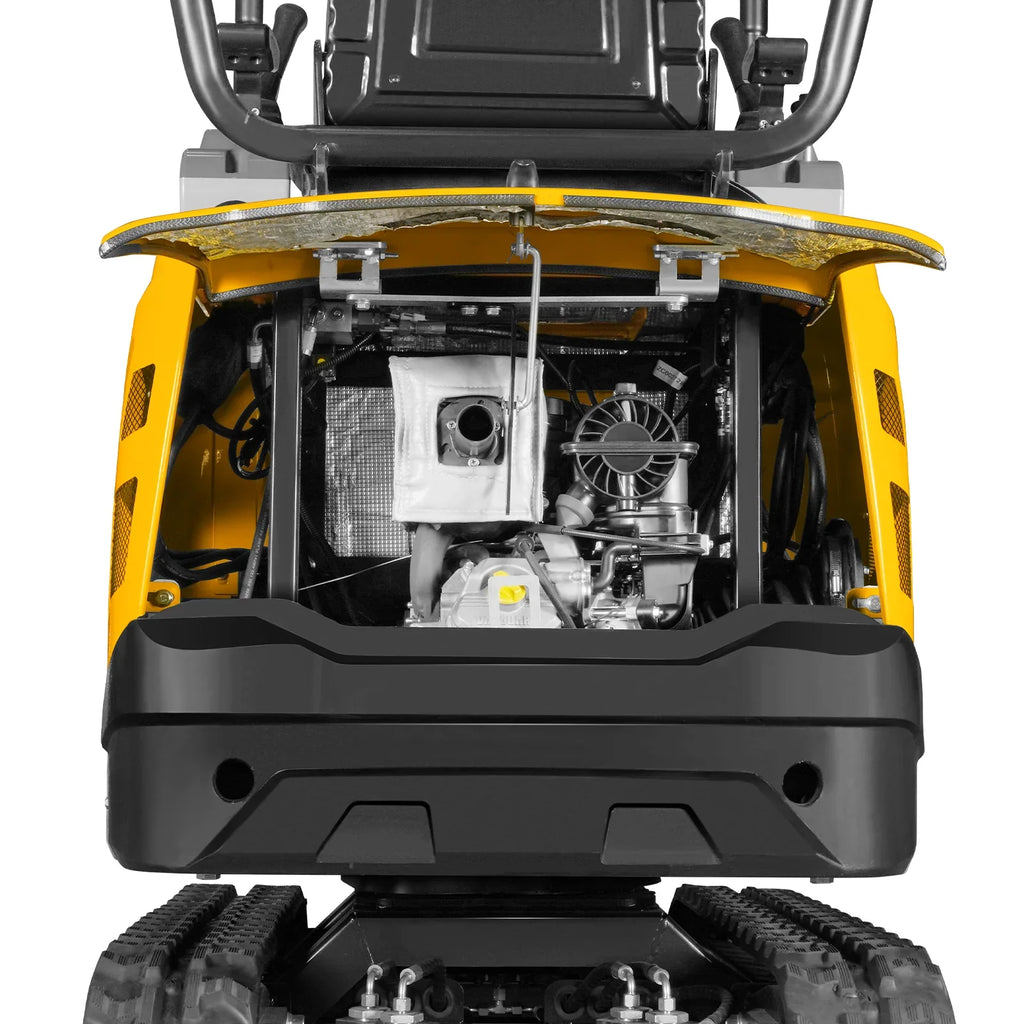

🔧 Professional Vanguard Power
- B&S Vanguard engine delivers reliable power and superior professional performance.
- Advanced technology ensures efficient fuel consumption and smooth operation.
- Built for demanding applications with a focus on long-lasting durability.
Specifications
General
- Model: MEC10
- Operating Weight: 2370 lb
- Bucket Capacity: 0.7 ft³
- Width: 37 in (Fits Tight Access)
Performance
- Max Dig Depth: 65.7 in
- Max Dig Radius: 119 in
- Max Dumping Height: 80 in
- Vertical Dig Depth: 62.6 in
Power & Force
- Bucket Digging Force: 1619 lbf
- Arm Digging Force: 1191 lbf
- Max Traction Force: 3035 lbf
- Gradeability: 30°
Movement
- Max Travel Speed: 0.75 mph
- Swing Speed: 8 rpm
- Tail Swing Radius: 32.6 in
- Boom Swing: 53° Left / 40° Right

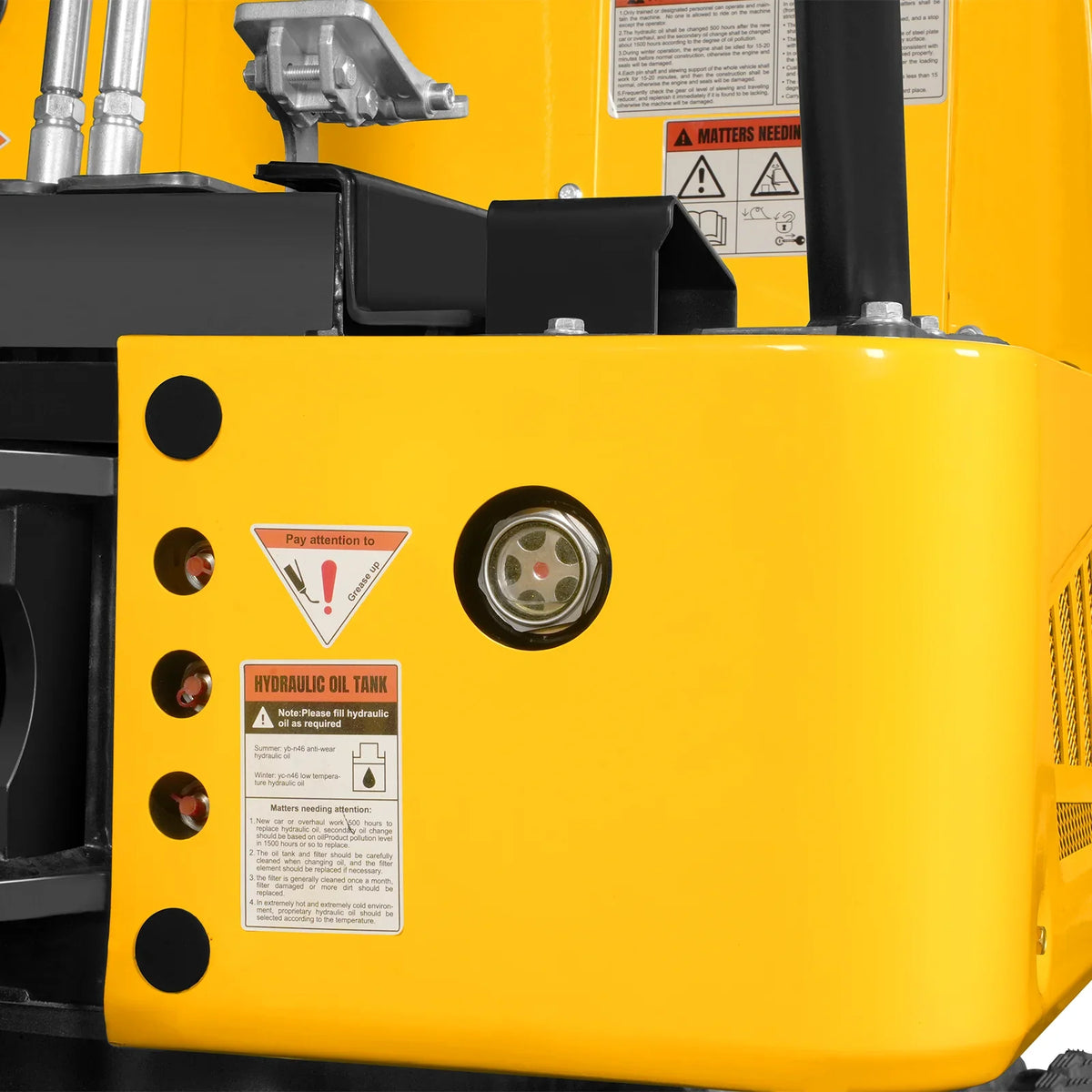

Hydraulics
- Max Discharge Flow: 4.65 gpm
- Hydraulic Tank: 3.96 gal
- Ground Pressure: 5.1 psi
- System Protection: Oil Radiator
Dimensions
- Track Width: 7 in
- Track Length: 48.5 in
- Overall Height: 88.5 in
- Ground Clearance: 15.9 in
Engine
- B&S Vanguard 408cc
- Power Output: 14 HP
- Start: Electric
- Fuel Tank: 1.52 gal
- Engine Warranty: 3-Year
Warranty & Shipping
- Machine Warranty: 1 Year
- Shipping Method: Wood Case
- Weight (N.W./G.W.): 2180 / 2440 lb
- Packing Size: 91 x 40 x 98 in
WARNING: This product can expose you to chemicals including engine exhaust, lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specifications are based on engineering calculations and are provided for comparison purposes only. Specifications for your individual equipment will vary based on design, manufacturing, and operating conditions.
