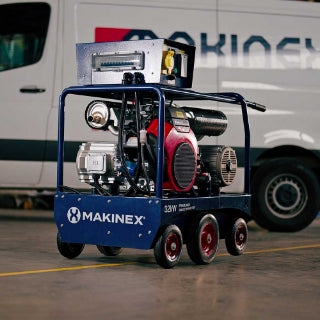

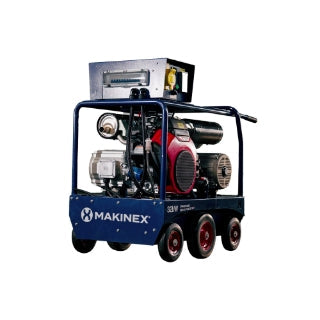

Makinex Industrial Generator 32kW | Dual Honda GX690 | 480V
Makinex Industrial Generator 32kW | Dual Honda GX690 | 480V
Industrial Contractor Generator — Ultra-Compact. 32kW. Dual-Phase.
The world’s smallest 32kW portable industrial generator delivering clean, simultaneous single-phase and full 480V three-phase power — engineered for high-demand contractors and rental fleets.
Compact 32kW Industrial Power Where Tow-Behind Generators Can’t Go
The Makinex 32kW 480V Portable Generator redefines what’s possible in high-output portable power. Designed for contractors running floor grinders, welders, compressors, and wall saws, this generator delivers serious three-phase performance without the size, weight, or access limitations of tow-behind units.
Despite its powerful 32kW output, this unit remains highly maneuverable and compact — capable of reaching tight jobsite locations where larger generators simply can’t go. By placing power closer to the load, operators eliminate voltage drop, long cable runs, and unnecessary jobsite hazards.
At the core of the system is an advanced radial flux alternator, purpose-built for high-frequency and inductive loads. This design delivers up to 15% more usable power compared to conventional copper-wound alternators while reducing electronic complexity, improving reliability, and lowering long-term maintenance requirements.
Power is supplied by dual Honda GX690 air-cooled petrol engines, providing exceptional torque, proven reliability, and smooth performance under demanding industrial loads.
High-output 480V power — without the tow-behind footprint.
Why Contractors Choose This Generator
⚡ High-Output Industrial Performance
- Up to 28kW max / 25.2kW continuous three-phase power.
- Designed for demanding inductive loads.
- Stable power for grinders, welders, and saws.
🔌 Dual-Phase Simultaneous Operation
- 480V three-phase and 110V single-phase output.
- Run multiple tools from one generator.
- No voltage switching required.
🚚 Compact & Maneuverable Design
- Significantly smaller than tow-behind 32kW generators.
- Access tight indoor and urban jobsites.
- Reduced cable runs and power loss.
🔧 Proven Honda Reliability
- Dual Honda GX690 engines.
- 1376cc combined displacement.
- Electric key start.
🛡 Advanced Operator Protection
- Integrated RCD and RCBO protection.
- Improved electrical fault safety.
- Designed for industrial compliance.
Specifications
| Voltage | 110V Single Phase / 480V Three Phase |
| Frequency | 60 Hz |
| Three-Phase Power (480V) | Max 28 kW / Continuous 25.2 kW |
| Auxiliary Single Phase | Max 2.2 kW / Continuous 2.0 kW |
| Max Amps (3Ø) | 33.8 A Max / 30.55 A Continuous |
| Engine | Dual Honda GX690 |
| Displacement | 1376 cc |
| Fuel Tank | 13.2 Gallons (50L) |
| Fuel Consumption | 2.6 gal/hr @ 50% Load |
| Noise Level (7m) | 72–76 dB |
| Dry Weight | 772 lbs |
| Dimensions | 43 L × 24.8 W × 40.3 H in |
