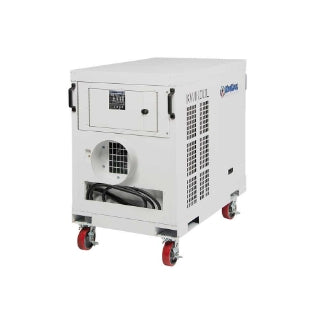

KwiKool KPO Series Portable HVAC — 60,000 BTU (5-Ton) Cooling w/ Heat | 230V / Single Phase
⚡ Power Requirement: 208V–230V / Single Phase — hardwired by qualified electrician (50–60 Amp circuit)
The KwiKool KPO5-21H 5-Ton Portable HVAC System delivers year-round cooling and heating performance in a compact, rugged platform engineered for demanding commercial and industrial environments. Designed for indoor or outdoor placement, this unit is ideal for sealed rooms, server spaces, temporary work zones, and applications where permanent HVAC is not practical.
Year-Round Climate Control for Hard-to-Reach Spaces
The KPO5-21H is built to deliver both cooling and heating to difficult heat loads using high-static Hyperdrive evaporator fans. Conditioned air can be ducted up to 50 feet for supply and return, with up to 65 feet of hot air exhaust, making it ideal for sealed interior rooms, equipment enclosures, and temporary HVAC deployments in extreme environments.
Why Choose the KwiKool KPO5-21H
⚡ Electrical Protection & Controls
- 208V–230V single-phase hardwired operation
- Integrated phase and power monitoring
- Digital LCD control panel with diagnostics
❄️🔥 Cooling & Heating Capability
- 60,000 BTU (5-ton) cooling capacity
- 12kW (41,600 BTU) electric heat
- Thermostatic expansion valve for efficiency
🛠 Industrial-Grade Construction
- 16-gauge insulated galvanized steel cabinet
- 12-gauge skid base with forklift access
- Scroll compressor with short-cycle protection
Ideal Applications
🏭 Industrial & Manufacturing
Year-round climate control for production areas, machinery, and heat-sensitive processes.
🖥️ Server & Electrical Rooms
Cooling and heating for sealed interior rooms with limited airflow.
🚧 Temporary & Emergency HVAC
Reliable climate control during outages, repairs, seasonal needs, or emergency response.
Specifications
| Cooling Capacity | 60,000 BTU / 5 Ton |
| Heating Capacity | 12kW / 41,600 BTU (Electric) |
| Operating Temperature Range | 30°F – 110°F |
| Power Supply | 230V / Single Phase |
| Current Draw | 36.9 Amps |
| Refrigerant | R-454B |
| Airflow (Evaporator) | 2,400 CFM |
| Cold Air Ducting | Up to 50 ft (Supply & Return) |
| Hot Air Exhaust | Up to 65 ft |
| Dimensions (W×D×H) | 32" × 48" × 49" (with 6" casters) |
| Unit Weight | 670 lbs |
| Shipping Weight | 735 lbs |
| Mounting | 12-Gauge Steel Skid with Locking Casters |
