KwiKool KPO Series Portable AC — 60,000 BTU (5-Ton) Cooling | 460V / 3-Phase
⚡ Power Requirement: 460V / 3-Phase — hardwired by qualified electrician (20 Amp circuit)

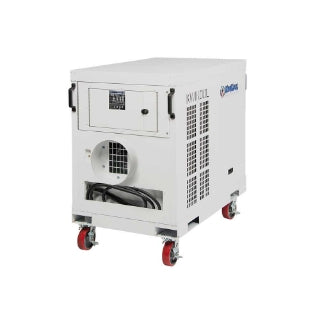

The KwiKool KPO5-43 5-Ton Portable Air Conditioning System delivers 60,000 BTU of reliable cooling in a compact, heavy-duty platform designed for demanding indoor or outdoor commercial and industrial environments. With a narrow 32-inch footprint, this unit easily fits through standard doorways and excels at cooling sealed rooms, server spaces, and temporary jobsite enclosures.
Powerful Cooling for Hard-to-Reach Applications
The KPO5-43 is engineered to deliver conditioned air to difficult and remote heat loads using high-static Hyperdrive evaporator fans. Cool air can be ducted up to 50 feet for supply and return, with up to 65 feet of hot air exhaust, making it ideal for sealed interior rooms, equipment protection, and emergency or temporary cooling when permanent HVAC systems are unavailable.
Why Choose the KwiKool KPO5-43
⚡ Electrical Protection & Controls
- 460V three-phase hardwired operation
- Integrated phase and power monitoring
- Digital LCD control panel with diagnostics
❄️ High-Performance Cooling
- 60,000 BTU (5-ton) cooling capacity
- Thermostatic expansion valve for efficiency
- Rifle tube coils for superior heat transfer
🛠 Industrial-Grade Construction
- 16-gauge insulated galvanized steel cabinet
- 12-gauge skid base with forklift access
- Scroll compressor with short-cycle protection
Ideal Applications
🏭 Industrial & Manufacturing
Cooling for production zones, machinery, and heat-sensitive industrial processes.
🖥️ Server & Electrical Rooms
Targeted cooling for sealed interior rooms and critical infrastructure.
🚧 Temporary & Emergency Cooling
Reliable spot cooling during HVAC outages, maintenance, or emergency response.
Specifications
| Cooling Capacity | 60,000 BTU / 5 Ton |
| Operating Temperature Range | 30°F – 110°F |
| Power Supply | 460V / Three Phase |
| Current Draw | 14 Amps |
| Refrigerant | R-454B |
| Airflow (Evaporator) | 2,400 CFM |

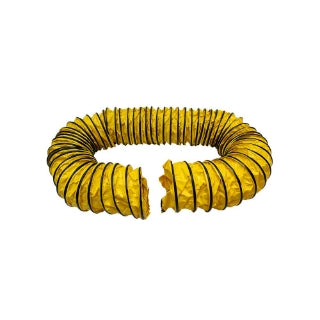

| Cold Air Ducting | Up to 50 ft (Supply & Return) |
| Hot Air Exhaust | Up to 65 ft |
| Dimensions (W×D×H) | 32" × 48" × 49" (with 6" casters) |
| Unit Weight | 710 lbs |
| Shipping Weight | 767 lbs |
| Mounting | 12-Gauge Steel Skid with Locking Casters |
