KwiKool KPO Series | Indoor / Outdoor | 12-Ton | 460V, 3 Phase
KwiKool KPO Series | Indoor / Outdoor | 12-Ton | 460V, 3 Phase

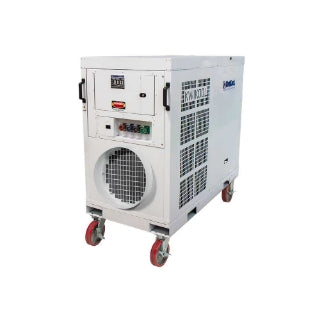

KwiKool KPO Series Portable Air Conditioner — 135,000 BTU | 460V / 3-Phase
⚡ Power Requirement: 460V / 3-Phase power with Cam Lock connections — hardwired by qualified electrician
The KwiKool KPO12-43 12-Ton Portable Air Conditioner delivers massive 135,000 BTU cooling capacity in a compact, industrial-grade system engineered for extreme-duty commercial and emergency cooling applications. Designed for indoor or outdoor operation, this unit provides powerful airflow for hard-to-reach heat loads where permanent HVAC solutions are not feasible.
Extreme-Capacity Cooling for Large & Sealed Spaces
The KPO12-43 is engineered to move cold air directly to difficult heat loads using high-static Hyperdrive evaporator fans. The system supports up to 75 feet of cold air supply and return ducting and up to 100 feet of hot air exhaust, making it ideal for sealed interior rooms, large facilities, and outdoor-to-indoor cooling scenarios.
Why Choose the KwiKool KPO12-43
⚡ Built for Heavy Electrical Loads
- 460V three-phase operation

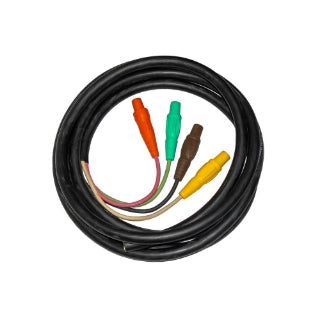

- Color-coded Cam Lock power connections
- Integrated phase and power monitor protection
❄️ Massive 12-Ton Cooling Output
- 135,000 BTU capacity for large heat loads
- Rifle tube coils for efficient heat transfer
- Thermostatic expansion valve control
🛠 Industrial-Grade Construction
- 16-gauge insulated galvanized steel cabinet
- Powder-coated epoxy finish for durability
- Scroll compressor with short-cycle protection
Ideal Applications
🏭 Industrial & Manufacturing Facilities
Temporary or emergency cooling for production areas, process rooms, and heat-intensive operations.
🖥️ Data Centers & Sealed Equipment Rooms
High-capacity cooling delivered through long duct runs into enclosed interior spaces.
🚧 Emergency & Temporary HVAC
Disaster response, planned outages, facility retrofits, and large-scale temporary cooling needs.
Specifications
| Cooling Capacity | 135,000 BTU / 12 Ton |
| Power Supply | 460V / Three Phase |
| Operating Temperature Range | 30°F – 110°F |
| Refrigerant | R-454B |
| Cold Air Ducting | Up to 75 ft (Supply & Return) |
| Hot Air Exhaust | Up to 100 ft |
| Dimensions (W×D×H) | 32″ × 64″ × 60″ (with casters) |
| Unit Weight | 1,100 lbs |
| Shipping Weight | 1,200 lbs |
| Mounting | 12-Gauge Steel Skid with Locking Casters |
