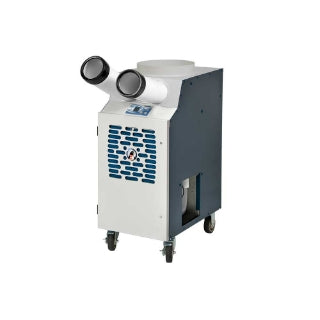

KwiKool KPAC II Series Spot Cooler — 22,900 BTU | 208/230V / 20A
⚡ Power Requirement: Standard 208/230V / 20A outlet — plug-and-play deployment
The KwiKool KPAC2421-2 22,900 BTU Spot Cooler delivers powerful 2-ton cooling in a compact, mobile system engineered for demanding commercial and industrial environments. Designed for rapid deployment, this unit provides immediate relief in high-ambient spaces without permanent HVAC installation.
High-Capacity Spot Cooling for Extreme Heat Zones
The KPAC2421-2 is built to remove heat directly from the workspace and exhaust it through a single-duct system. Producing a 20°F temperature drop, it converts 95°F intake air into 75°F output air and delivers effective cooling within a 5–7 foot targeted zone.
Why Choose the KwiKool KPAC2421-2
⚡ Fast Setup & Simple Power
- Runs on standard 208/230V 20A circuits

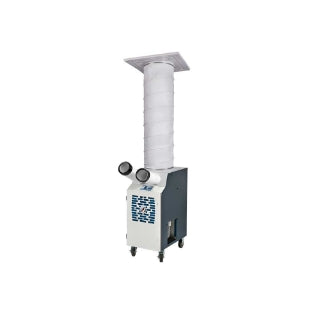

- Single-duct ceiling kit installs in under 10 minutes
- Automatic restart after power interruption
❄️ Strong 2-Ton Cooling Performance
- 22,900 BTU capacity for high-heat environments
- Rifle-tube coils for enhanced heat transfer
- Designed for continuous commercial operation
🛠 Built for Reliability
- Hermetic rotary compressor with short-cycle protection
- Galvanized steel cabinet with HammerCoat™ finish
- Freeze protection and overload safety systems
Ideal Applications
🏭 Industrial & Warehouse Operations
Targeted cooling for production lines, staging areas, and operator stations.
💻 Equipment & Mechanical Rooms
Supplemental cooling for heat-sensitive equipment during peak loads.
🚧 Construction & Temporary Facilities
Portable cooling for job trailers, retrofit projects, and HVAC downtime.
Specifications
| Cooling Capacity | 22,900 BTU / 2 Ton |
| Power Supply | 208/230V / Single Phase / 20A |
| Temperature Differential | 20°F |
| Refrigerant | R-454B |
| Operating Range | 70°F – 105°F |
| Condensate Tank | 3.5 Gallon, Float Shut-Off |
| Dimensions (L×W×H) | 20″ × 26″ × 44″ |
| Unit Weight | 206 lbs |
| Shipping Weight | 266 lbs |
| Plug Type | NEMA 6-20 |
