Katool 10,000 lb 2 Post Vehicle Lift - KT-H105 Heavy-Duty Shop Lift
Katool 10,000 lb 2 Post Vehicle Lift - KT-H105 Heavy-Duty Shop Lift
Description
Reliable Lifting Performance. Stable Base-Plate Design. Built for Professional & Home Garage Use.
The Katool KT-H105 10,000 lb Two-Post Lift is designed for automotive shops, service technicians, and home garage owners who need dependable lifting capability for daily vehicle maintenance. With a 10,000 lb lifting capacity, this lift is engineered to handle cars, SUVs, and light-duty trucks while providing the stability and working access required for professional service work.
Powered by dual hydraulic chain-drive cylinders, the KT-H105 delivers smooth and balanced lifting performance for a wide range of vehicle types. The reinforced base plate design helps maintain structural stability under load while supporting consistent lifting operation during repairs, inspections, brake work, suspension service, and general maintenance tasks.
Designed with operator safety in mind, this two-post lift features a manual safety release system for controlled lowering and dependable lock engagement during operation. The integrated rubber pad door protection helps reduce the risk of accidental contact or vehicle damage while positioning vehicles on the lift.
With a generous 98.4" drive-thru clearance, the KT-H105 provides the working space needed for larger vehicles while remaining practical for both commercial garages and residential shop setups. The included screw-on lifting pads and +100mm extension adapters improve lifting flexibility for vehicles with varying frame heights and lifting points.
Built to meet CE certification standards, the Katool KT-H105 combines durable construction, low-maintenance hydraulic operation, and versatile lifting capability for shops and garage owners looking for long-term reliability in a professional-grade two-post lift.
Perfect for: Automotive repair shops • Home garages • Vehicle maintenance • Brake & suspension work • Light-duty truck service
Features

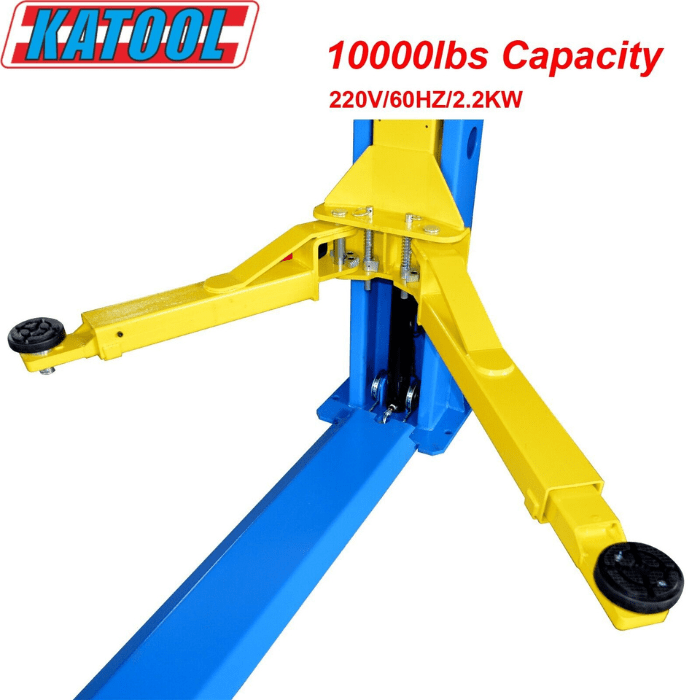

Lifting Capacity
- 10,000 lb Capacity
- Designed for cars, SUVs, and light-duty trucks
- Built for professional and residential garage use
Hydraulic System
- Dual Hydraulic Chain-Drive Cylinders
- Smooth and balanced lifting performance
- Low-maintenance hydraulic operation for long-term reliability
Structural Design
- Base Plate Design
- Improves lift stability and structural support during operation
- Suitable for compact garages and shop environments
Safety System
- Manual Safety Release
- Controlled lowering and secure lift operation
- Manual release access from both sides of the lift
Vehicle Access
- 98.4" Drive-Thru Clearance
- Accommodates a wide range of vehicle sizes
- Improves technician accessibility while servicing vehicles
Vehicle Protection
- Rubber Pad Door Protection
- Helps reduce dents and scratches during positioning
- Improves protection while entering and exiting vehicles
Lift Adaptability
- Screw-On Pads & Extension Adapters
- Includes +100mm support adapter sets
- Improves compatibility with varying frame heights and lift points
Certification & Power
- CE Approved & Certified
- 115% dynamic load capacity tested
- 150% static load capacity tested
- 220V / 60HZ / 1PH hydraulic power system
Specifications
General
- Manufacturer: Katool
- Lifting Capacity: 10,000 lbs (4,500 kg)
- Lift Type: Base Plate Two-Post Lift
- Net Weight: 1,256 lbs (570 kg)

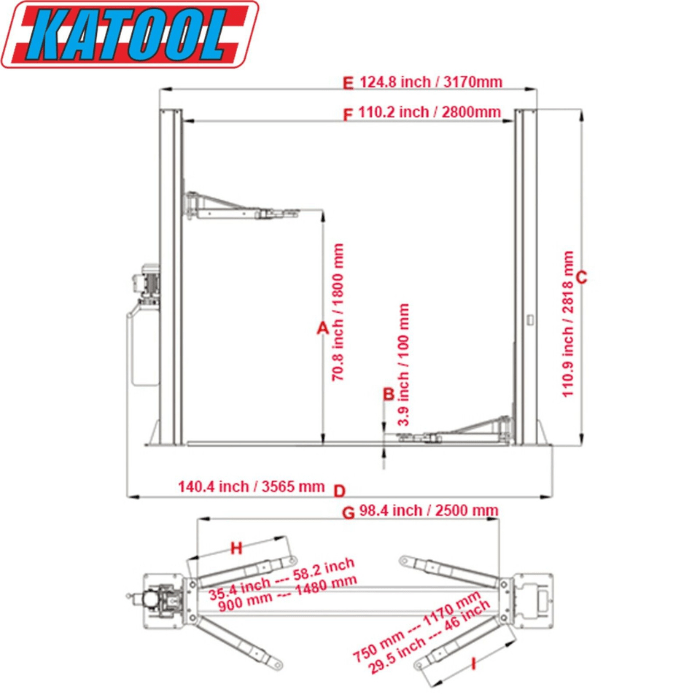

Lifting Performance
- Max Lifting Height: 70.8" (1,800 mm)
- Minimum Height: 3.9" (100 mm)
- Drive-Thru Clearance: 98.4" (2,500 mm)
- Outside Column Width: 124.8" (3,170 mm)
- Inside Column Width: 110.2" (2,800 mm)
Structure & Dimensions
- Overall Height: 110.9" (2,818 mm)
- Overall Width: 140.4" (3,565 mm)
- Base Plate Design: Reinforced Structure
- Concrete Requirement: 5.9" (150 mm) minimum at 3,000 PSI
Arm Reach
- Front Arm Reach (Min): 29.5" (750 mm)
- Front Arm Reach (Max): 46" (1,170 mm)
- Rear Arm Reach (Min): 35.4" (900 mm)
- Rear Arm Reach (Max): 58.2" (1,480 mm)
- Arm Design: 2-Stage Adjustable Arms
Power & Hydraulics
- Motor: 220VAC / 60HZ / 1PH / 2.2KW
- Hydraulic System: Dual Hydraulic Chain-Drive Cylinders
- Power Configuration: Single Phase
- Hydraulic Design: Low-Maintenance Operation
Safety & Certification
- Certification: CE Approved & Certified
- Dynamic Load Test: 115% Capacity Tested
- Static Load Test: 150% Capacity Tested
- Safety Release: Manual Dual-Side Release
- Vehicle Protection: Rubber Pad Door Guards
