Description
Heavy-Duty Lifting Capacity. Garage-Friendly Footprint. Built for Trucks, SUVs & Everyday Service Work.
The Katool KT-4H110 11,000 lb 4-Post Lift is designed for automotive shops, home garages, and vehicle owners who need more lifting capability than standard hobby-grade lifts can provide. With a true 11,000 lb lifting capacity, this lift is built to handle full-size trucks, SUVs, Jeeps, vans, and performance vehicles while maintaining dependable stability during storage and service applications.
Constructed with a reinforced four-post design and diamond-plate non-skid runways, the KT-4H110 delivers confident vehicle positioning throughout loading, lifting, and maintenance operations. Four independent mechanical locking devices with primary and secondary safety systems provide additional protection while raised, while the single-point manual lock release simplifies lift operation from one convenient location.
Engineered for flexibility, the KT-4H110 features a free-standing installation design that does not require anchor bolts for standard operation. The configurable power column can be positioned on either side, front, or rear of the lift to better match garage layouts and workflow requirements. With support for both 110V and 220V power configurations, the lift adapts easily to residential garages and professional shop environments alike.
Fourteen locking positions spaced every 4.7 inches allow operators to fine-tune working height for different vehicles and service needs. Combined with a fast lifting cycle and wide runway spacing, the KT-4H110 offers the versatility needed for vehicle storage, detailing, brake service, inspections, and general repair work.
Whether you're maximizing garage storage space or adding a dependable service lift to your shop, the Katool KT-4H110 combines heavy-duty lifting capability, professional-grade safety features, and flexible installation options into a versatile 4-post lift solution built for long-term use.
Perfect for: Home garages • Full-size trucks • SUV storage • Brake service • Vehicle maintenance • Performance cars • General repair work
Benefits of the Katool KT-4H110
Speeds up workflow with a fast lift and lower cycle, helping reduce downtime between jobs and keeping bays moving efficiently throughout the day.
Maximizes usable garage space by allowing vertical parking, effectively storing one vehicle above another without sacrificing accessibility or stability.
Built with multiple mechanical locking points, dual safety backups, and non-skid diamond-plate runways to maintain secure vehicle positioning during service and storage.
Designed to handle a wide range of vehicles including sedans, SUVs, vans, and full-size trucks up to 11,000 lbs without operating near its maximum rating.
Rear slip plates are integrated directly into the runways, with optional front turntables available to support full four-wheel alignment setups when needed.
Configurable layout allows the power column to be positioned on different sides of the lift, making it easier to adapt to various shop or garage setups.
Features
Lock System & Control
- 14-position adjustable lock ladder with 4.7" spacing
- Precise height control for storage and under-car work
- Single-point manual release controls all four locks at once
- Reduces time spent moving between columns during operation
Power & Cycle Speed
- 83-second lift time for efficient workflow
- 40-second controlled lowering for safe operation
- Available 110V motor standard with optional 220V upgrade
- Requires dedicated 30-amp circuit with 10-gauge wiring
Free-Standing Design
- No floor anchoring required for standard installation
- Simple setup with reduced installation complexity
- Allows relocation if shop layout changes
- Ideal for rented or shared garage spaces
Included Accessories
- 3 Drip trays included at no extra cost
- Jack tray included for under-vehicle service support

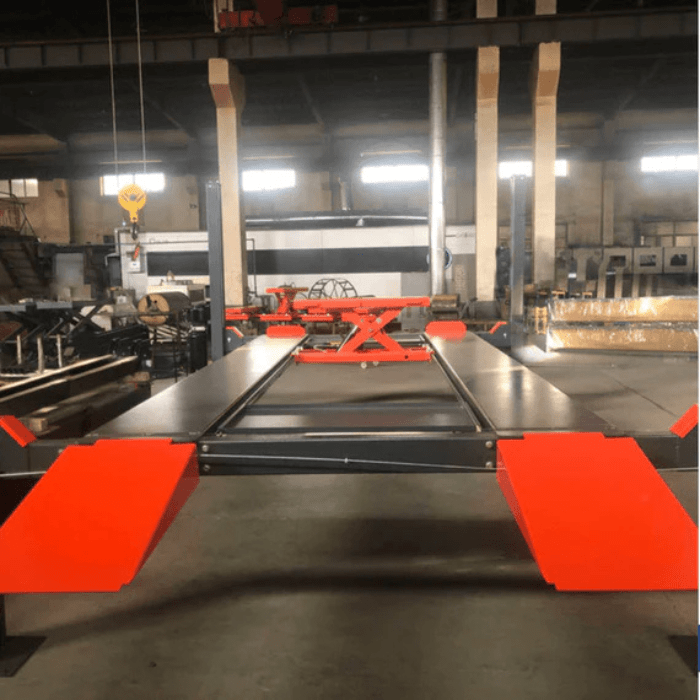

- Optional rolling jack and caster kits available
- Ready-to-use setup out of the crate
Runway Design
- 181.9" runway length supports trucks and long-wheelbase vehicles
- 18.7" wide non-skid diamond-plate surfaces
- Improved tire grip during loading and unloading
- Designed for stable positioning under heavy loads
Safety Certification
- CE-certified lift system
- 115% dynamic load testing for operational safety
- 150% static load testing for structural assurance
- Four mechanical locks with dual safety redundancy
Specifications
General
- Manufacturer: Katool
- Model: KT-4H110
- Product Type: 4-Post Lift
- Lifting Capacity: 11,000 lbs (4,990 kg)
- Net Weight: 2,116 lbs (960 kg)
Lifting Performance
- Max Lifting Height: 84.25 in (2,140 mm)

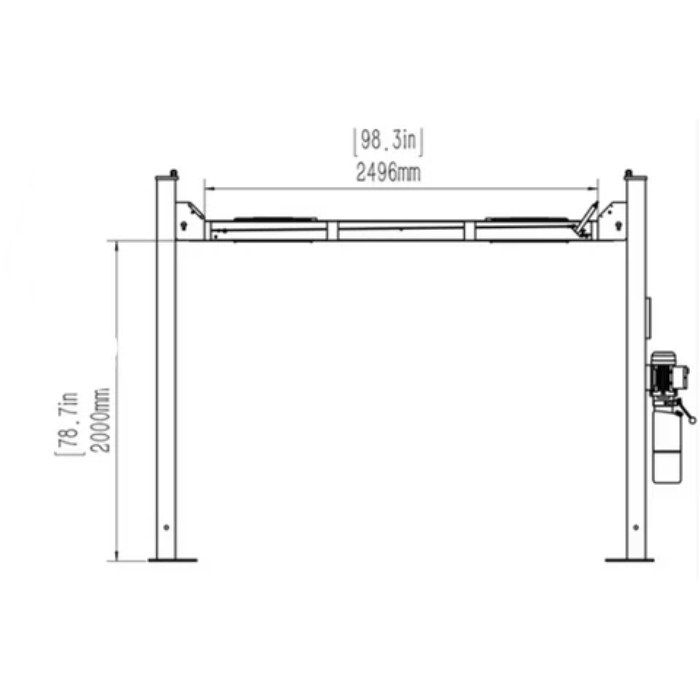

- Max Underneath Clearance: 78.7 in (2,000 mm)
- Lifting Time: 83 sec up / 40 sec down
- Lock Positions: 14 positions (every 4.7 in)
- Min Runway Height: 6.2 in (157 mm)

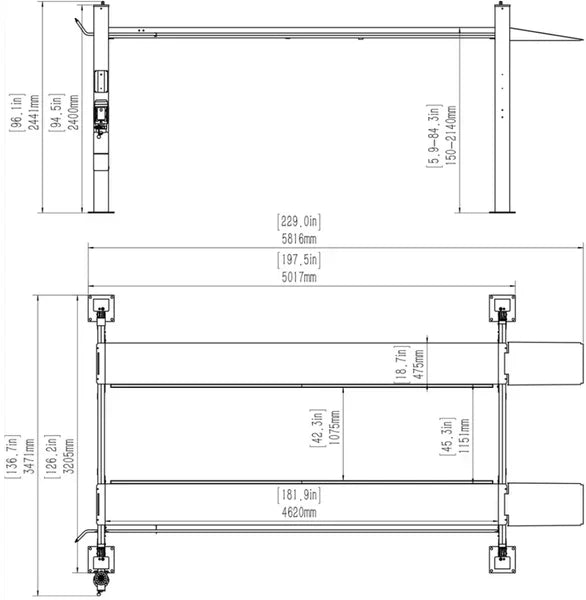

Structure & Dimensions
- Height of Posts: 94.88 in (2,410 mm)
- Overall Width: 126 in (3,200 mm)
- Width Inside Columns: 112.81 in (2,865 mm)
- Width Inside Runways: 45 in (1,143 mm)
- Runway Length: 181.9 in (4,620 mm)
- Overall Length (with ramps): 229.73 in (5,835 mm)
- Length (without ramps): 197.5 in (5,016 mm)
Power & Electrical
- Motor Options: 110V or 220V / 60Hz / 1PH / 3HP
- Electrical Requirement: Dedicated circuit, 10-gauge wire, 30-amp breaker
- Operation: Hydraulic lift system
Included Accessories
- Included Items: 3 drip trays, 1 jack tray, ramps
- Runway Surface: Non-skid steel construction
- Setup Ready: Fully equipped out of the crate

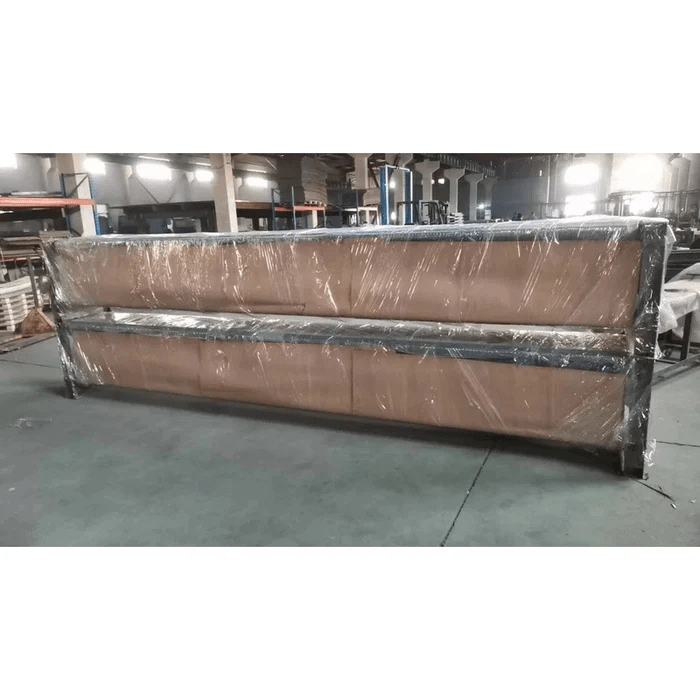

Shipping & Warranty
- Shipping Dimensions: 195" L x 26" W x 32" H
- Shipping Weight: 2,119 lbs
- Warranty: 1-Year limited parts & defects
- Structural Warranty: 3-Year coverage
