Katool 12,000 lb 4 Post Alignment Lift - KT-4H120X Heavy-Duty Shop Lift

Description

Professional Alignment Capability. Heavy-Duty 12,000 lb Capacity. Complete Service Lift with Included RJ70 Rolling Jack.

The Katool KT-4H120X 12,000 lb 4-Post Lift is designed for repair facilities, alignment shops, and serious automotive users who need a dependable service lift built for everyday vehicle maintenance and precision alignment work. With a 12,000 lb lifting capacity, this lift easily handles cars, SUVs, trucks, vans, and larger commercial vehicles while maintaining stable lifting performance and generous working clearance.

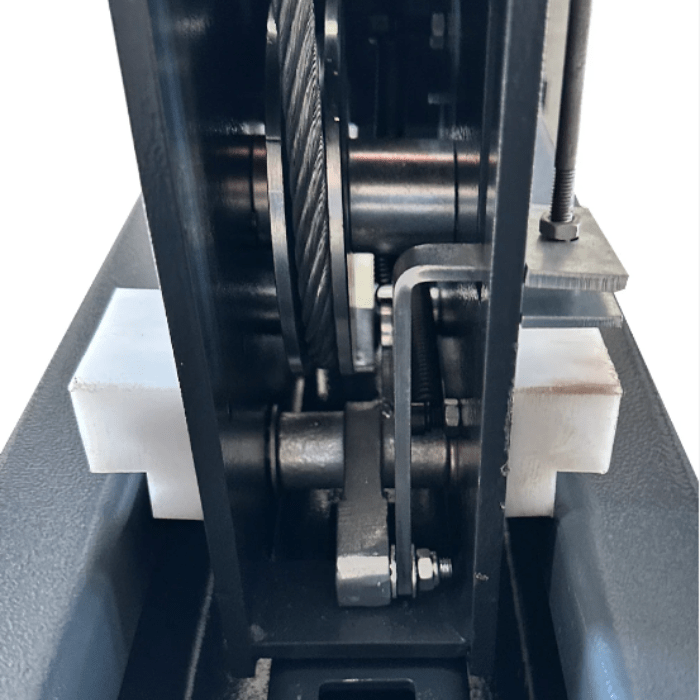

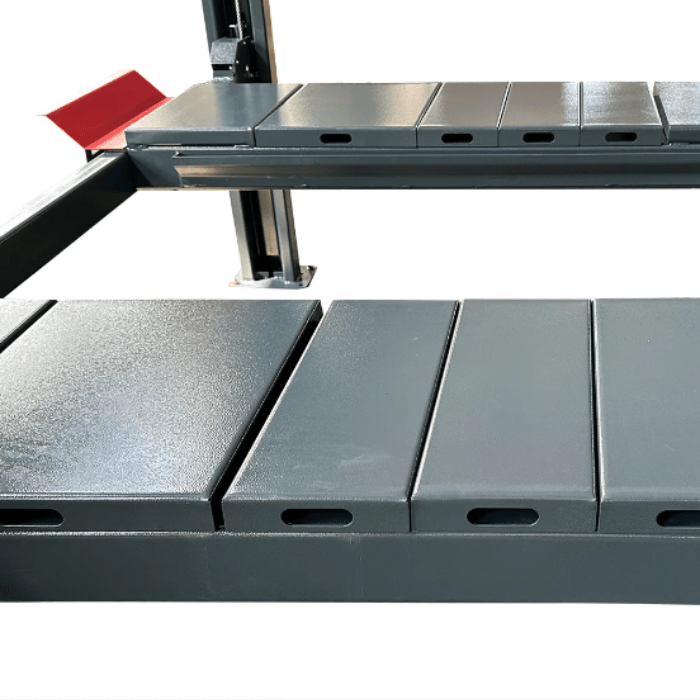

Engineered for daily shop use, the KT-4H120X features a reinforced four-post structure with diamond-plate non-skid runways that improve traction and vehicle stability during loading and service operations. The lift utilizes a quad-cable synchronization system to maintain balanced runway movement throughout the lifting cycle, while the integrated top-limit switch helps prevent over-travel during operation.

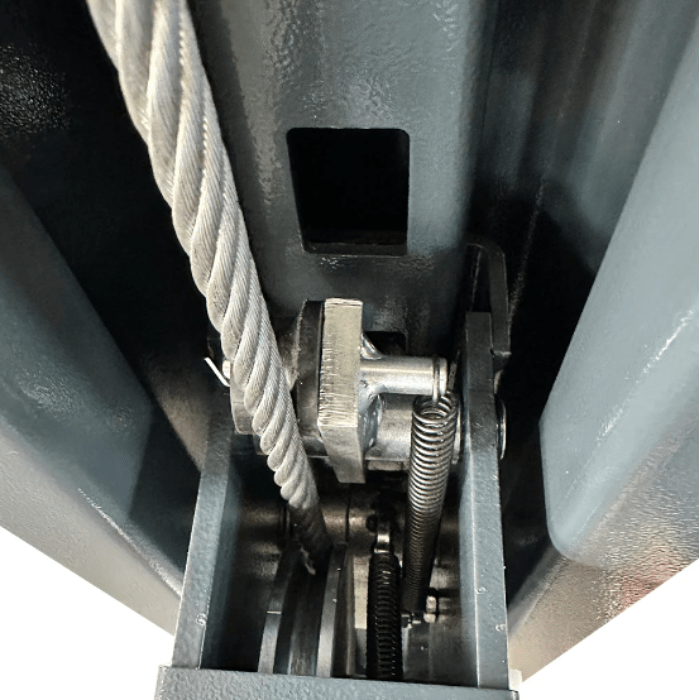

Safety remains a core focus of the design. Each column is equipped with primary and secondary mechanical locking systems that engage automatically as the lift rises. A single-point manual safety release allows operators to disengage the locks from one convenient location for smoother workflow and controlled lowering.

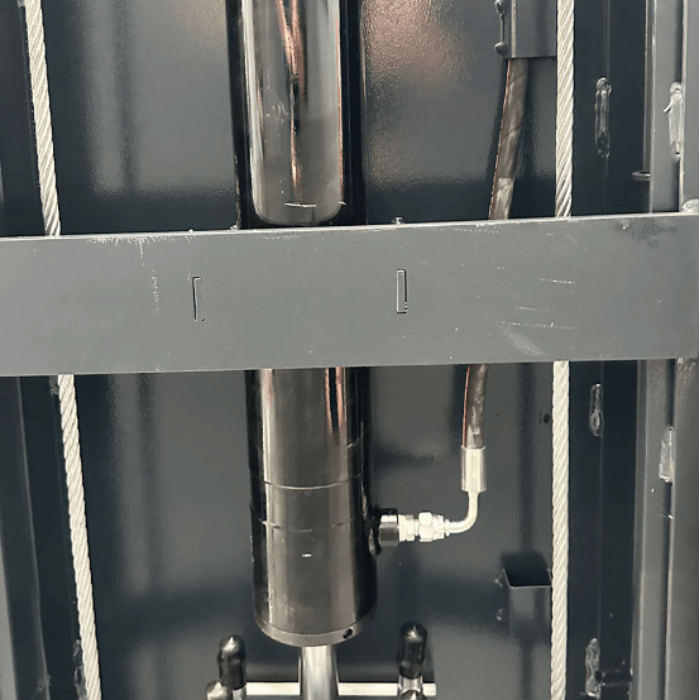

Powered by a 220V single-phase hydraulic system, the KT-4H120X delivers smooth lifting performance with approximately 83 seconds of rise time and 40 seconds of lowering time. With a maximum lifting height of 86.9 inches and approximately 80 inches of underneath clearance, technicians have the working room needed for undercar service, inspections, suspension repairs, and drivetrain access.

Built for full-service versatility, this package includes the RJ70 7,000 lb pneumatic rolling jack, allowing wheels-free access for brake service, tire replacement, suspension repairs, and axle work without removing the vehicle from the lift. Rear slip plates are integrated directly into the runways, and optional front alignment turn plates can be added to create a complete four-wheel alignment setup.

Whether used for alignment service, wheel and tire work, long-wheelbase vehicle maintenance, or heavy-duty storage applications, the Katool KT-4H120X combines commercial-grade lifting capability, professional alignment functionality, and dependable hydraulic performance into a complete 4-post service lift solution.
