Katool 12,000 lb 2 Post Vehicle Lift – KT-H120D - Single Lock Release Heavy-Duty Shop Lift
Katool 12,000 lb 2 Post Vehicle Lift – KT-H120D - Single Lock Release Heavy-Duty Shop Lift
Description
Heavy-Duty Lifting Power. Symmetric Arm Design. Built for Professional Shops & Serious Home Garages.
The Katool KT-H120D 12,000 lb Two-Post Car Lift is engineered for demanding automotive environments where strength, safety, and reliability are essential. With a massive 12,000 lb (5,500 kg) lifting capacity, this lift is designed to handle everything from standard passenger vehicles to heavy-duty trucks and SUVs with ease.
Powered by a 4 HP hydraulic system, the KT-H120D delivers smooth, consistent lifting performance for daily use in busy repair shops and well-equipped home garages. The dual hydraulic design ensures balanced lifting action, helping maintain stability and control throughout the entire lift cycle.
Built with symmetric lifting arms, this model provides even weight distribution across a wide range of vehicle types, improving safety and reducing stress during operation. The integrated lock release system enhances operator control, allowing for secure engagement and smooth lowering when servicing vehicles.
Safety and vehicle protection are a priority in the KT-H120D design. The lift includes rubber pad door guards to help prevent accidental contact and reduce the risk of vehicle damage during positioning. Reinforced construction and precision engineering ensure dependable long-term performance under heavy workloads.
Designed for versatility, the KT-H120D includes extension adapters that allow it to accommodate a wide variety of vehicle sizes and frame configurations. This makes it a practical solution for shops working on everything from compact cars to full-size trucks.
With a focus on efficiency, this lift is designed for quick installation and straightforward setup, making it a strong choice for both new and expanding automotive facilities. Whether you're running a professional repair shop or upgrading a personal garage, the KT-H120D delivers the strength and reliability needed for daily operation.
Perfect for: Auto repair shops • Heavy-duty vehicle service • Fleet maintenance • Truck and SUV lifting • Professional garage installations
Features
Lifting Capacity
- 12,000 lb Capacity
- Handles a broad range of vehicles with ease
- Ideal for professional shops, garages, and fleet use
Hydraulic System
- Top-Level Hydraulic System (220V / 60Hz / 1PH)

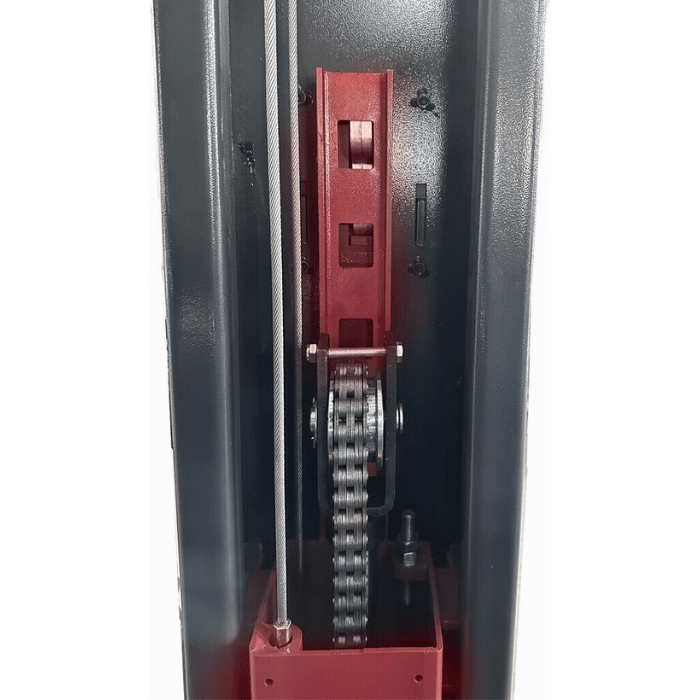

- Dual hydraulic chain-drive cylinders
- Smooth, powerful, and consistent lifting performance
Structural Design
- Heavy-Duty Steel Construction
- Long-term durability for high-use environments
- Stable base plate design for reinforced support
Safety System
- Mechanical Locking System with multiple lock positions
- Single-side safety release for convenient operation
- Secure and controlled lowering system
Arm & Access Design
- Symmetric Arm Design for improved positioning
- Adjustable lift arms for multiple vehicle types
- Clear-floor design maximizes workspace access
Vehicle Protection
- Rubber Pad Door Protection
- Helps prevent dents and scratches during positioning
- Improved safety during vehicle entry and exit
Lift Adaptability
- Screw-on pads + extension support adapters (+100mm)
- Compatible with a wide range of vehicle lift points
- Improves flexibility across vehicle sizes
Specifications
General
- Model: KT-H120D
- Brand: Katool Automotive Equipment
- Product Type: Two Post Vehicle Lift
- Lifting Capacity: 12,000 lbs (5,443–5,500 kg)
- Construction: Heavy-duty structural steel
- Color: Dark Gray and Red
Lifting Performance
- Max Lifting Height: 74.8 in (1,900 mm)
- Min Pad Height: ~4.5 in
- Drive-Thru Clearance: ~94–110.2 in (varies by configuration)
- Column Height: 110.9 in (2,818 mm)
- Lift Configuration: Asymmetric arms / clear-floor design

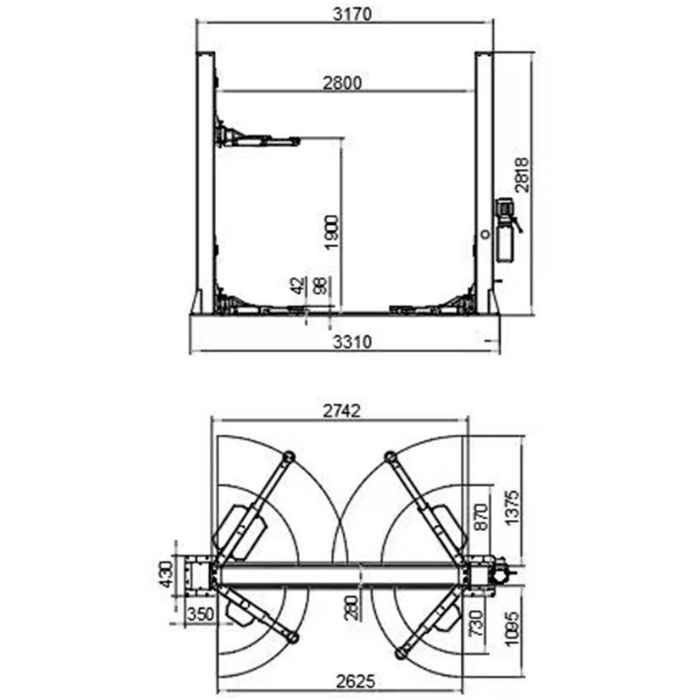

Structure & Dimensions
- Overall Height: ~144 in (clear-floor)
- Column Width: 124.8 in (3,170 mm)
- Weight: 1,234 lb (560 kg)
- Cable Thickness: 3/8 in (9.5 mm)
- Design: Clear-floor, asymmetric arm layout
Arms & Locking
- Arm Style: Symmetric arms (regional variations noted)
- Lock Release: Single-point lock release
- Locking System: Multiple mechanical lock positions
- Safety System: Dual-locking safety with cable equalization
Power & Hydraulics
- Motor: 2–3 HP (4.0 HP in some configurations)
- Power Supply: 220V / 60Hz / 1PH
- Hydraulic System: Dual hydraulic chain-drive cylinders
- Oil Type: AW-46 (AW-32 in colder climates)
Safety & Certification
- Certification: CE Approved
- Load Testing: 115% dynamic / 150% static tested
- Door Protection: Rubber pad guards
- Safety Features: Automatic shut-off & cable equalization
