EKKO EPF20LI Electric Pallet Jack
The EKKO EPF20LI Lithium Iron Phosphate Electric Walkie Pallet Jack delivers the perfect blend of manual pallet jack versatility and high-capacity motorized performance. Engineered with top-tier steel, precision robotic welding, and an advanced AC drive control system, this electric walkie easily withstands rugged warehouse floor environments, aggressive directional changes, and high-impact workflows, keeping your operations moving smoothly and confidently.
Performance & Applications
Purpose-built for high-throughput material handling, the EPF20LI excels at loading and unloading freight trailers, working active staging docks, supplying fast-moving manufacturing lines, and navigating crowded fulfillment warehouse aisles. By providing full power driving and lifting capabilities within a light, agile footprint, it relieves physical operator stress and scales up cross-dock efficiency.
High-Voltage 48V Lithium System
Powered by a robust 48V / 30Ah LiFePO4 (Lithium Iron Phosphate) battery pack, the EPF20LI provides impressive torque, steady power curves, and outstanding runtime. The quick-swap, 22.4 lb plug-and-play battery module pairs with an included 100–240 VAC smart charger to maximize asset uptime.
Pinwheel and Tight-Space Handling
Don't let confined layout spaces bottleneck your material flow. The EPF20LI features an expert pinwheel function paired with a tight 57.8" turning radius, letting operators maneuver right-angle turns inside standard freight trucks or narrow warehouse aisles with fluid precision.
Responsive AC Drive Control
Equipped with an advanced AC drive control system, a 0.75 kW drive motor, and a 0.8 kW lift motor, this electric walkie delivers sharp acceleration and fine speed adjustments. It reaches a steady 4.2 km/h loaded and 4.5 km/h unfolded to ensure rapid facility transit cycles.
Industrial Welded Build
Constructed from reinforced premium steel using advanced robotic welding methods, the EPF20LI is built for demanding daily commercial use. It safely lifts an impressive 4,400 lbs while maintaining a remarkably light 390 lb total service weight to minimize floor load wear.
Key Features
Includes a solid 3-year limited warranty on structural welding and core components, ensuring peace of mind for your operations.

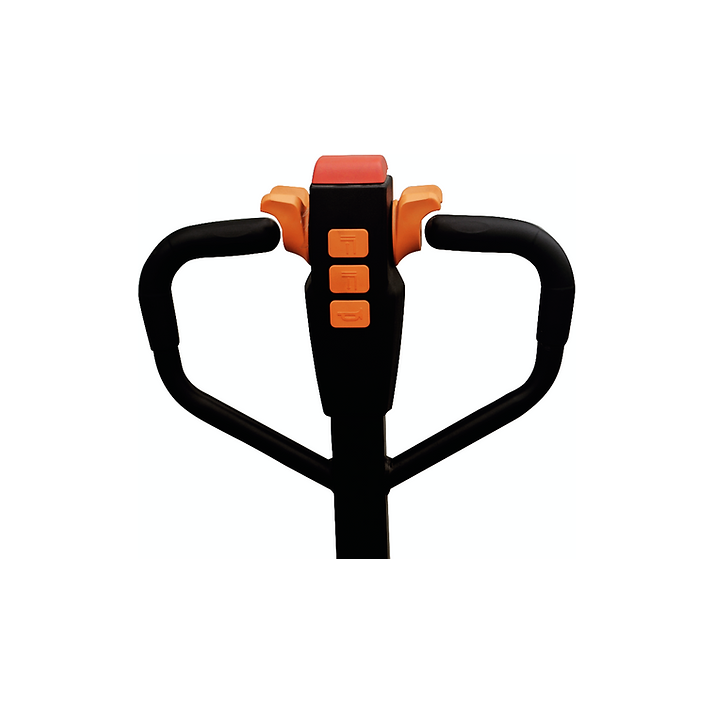

Designed with intuitive, ambidextrous thumb-wheels and comfortable lift/lower tabs to facilitate smooth handling for any operator.
An automatic fail-safe electronic brake engages instantly when the handle is released or placed upright, protecting workers on ramps.
Durable polyurethane drive (Φ8.27"x2.76") and load wheels smoothly traverse joints and dock plates without marking facility floors.
Features a lowered fork height of just 2.95" and a raised extension of 7.87", ensuring clean entries into low-clearance skids and pallets.
Engineered to operate at a low noise output rating of ≤70 dB(A), maintaining a quiet work environment in tight warehouse configurations.
Specifications
| Fork Size (W x L) | 27 x 48 in |
| Individual Fork Size (s/e/l) | 1.97 / 5.91 / 45.0 in |
| Overall Length (l1) | 65.86 in |
| Body Length (l2) | 17.83 in |
| Overall Width (b1 / b2) | 26.97 in |
| Raised Fork Height (h3) | 7.87 in |
| Lowered Fork Height (h13) | 2.95 in |
| Handle Height - Operating (h14) | 29.13 / 45.67 in |
| Load Centre (c) | 23.6 in |
| Wheelbase (y) | 51.69 in |
| Fork Backrest to Front Wheel (x) | 39.92 in |
| Minimum Ground Clearance (m2) | 1.38 in |
| Load Capacity (Q) | 4,400 lbs |
| Drive Speed (Loaded / Unloaded) | 4.2 / 4.5 km/h |
| Max Gradeability (Loaded / Unloaded) | 5% / 10% |
| Minimum Turning Radius (Wa) | 57.8 in |
| Aisle Width (39.37x47.24 Crossways) | 73.78 in |
| Aisle Width (31.5x47.24 Lengthways) | 75.75 in |
| Brake Type | Electromagnetic Brake |
| Control Drive Type | AC Control |
| Maximum Noise Level | ≤70 dB(A) |
| Service Weight (With Battery) | 390 lbs |
| Tire Material | Polyurethane (PU) |
| Driving Wheel Size (Φ x w) | Φ 8.27 x 2.76 in |
| Bearing Wheel Size (Φ x w) | Φ 3.15 x 3.35 in |
| Wheel Quantity (Front / Rear) | 1x / 2 |
| Tread Width (b11) | 21.06 in |
| Battery Configuration | 48V / 30Ah Lithium (LiFePO4) |
| Battery Pack Weight | 22.4 lbs (±5%) |
| Drive Motor Output | 0.75 kW |
| Lift Motor Output | 0.8 kW |
| Charger Input Voltage | 100–240 VAC (Included) |
| Charger Output Current | 36 A |
| System Control Voltage | 24 VDC |
