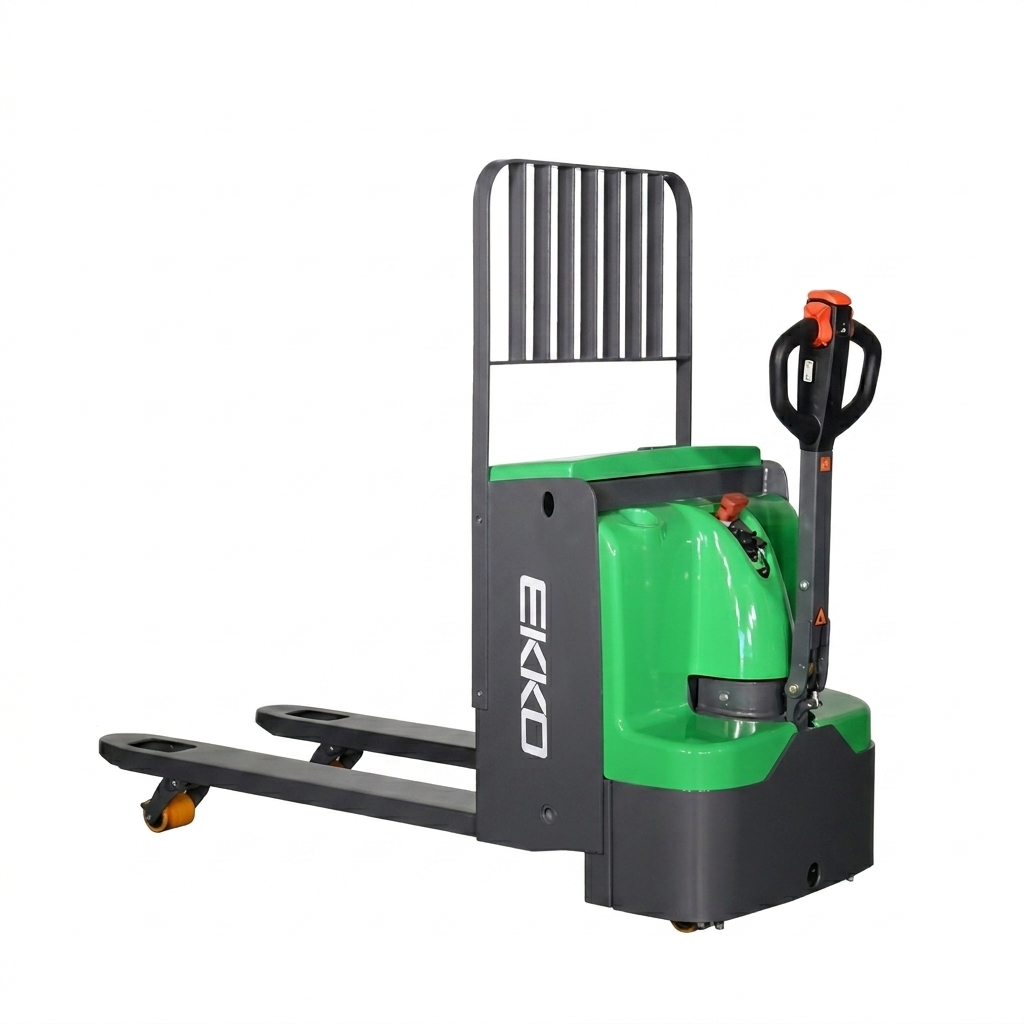

EKKO EP20E-LI Lithium Electric Pallet Jack
The EKKO EP20E-Li Lithium Electric Walkie Pallet Jack combines the tight maneuverability of a traditional hand pallet jack with heavy-duty, full-power motorized driving and lifting. Constructed from high-strength structural steel and put together with precision robotic welding, this high-performance walkie utilizes advanced industrial drives to handle rugged terrains, intense everyday workloads, structural impacts, and rapid direction changes across any application.
Performance & Applications
Purpose-built for high-capacity workflows, the EP20E-Li is the ideal material handling choice for rapid truck loading and unloading, busy freight hubs, commercial stock rooms, active manufacturing floors, and large fulfillment centers. By swapping demanding manual pulling for motorized efficiency, it optimizes your team's throughput while reducing physical strain.
Advanced Curtis Controller System
Equipped with an industry-trusted Curtis Controller, the EP20E-Li delivers precise energy output management, thermal safety protection, and simplified system diagnostics. This heavy-duty control architecture gives operators smooth acceleration curves and consistent control under heavy loads.
High-Efficiency AC Drive Control
Driven by a high-output 1.3 kW AC motor speed control system, this walkie provides rapid acceleration and sustained torque. The brush-free AC motor configuration cuts down on routine mechanical maintenance intervals, helping you keep your material handling asset on the floor longer.
Lightweight & Efficient Lithium Power
Powered by a high-capacity 24V/100Ah Lithium battery, this unit provides steady performance curves and opportunity-charging capabilities. Paired with a fast 24V/30A built-in charger, the pallet jack keeps its total service weight down to an agile 755 lbs while maximizing shift runtime.
Rugged Industrial Build
Fabricated from premium-grade steel and reinforced with precise automated robotic welding, the EP20E-Li securely handles massive 4,400 lb loads. Its tough engineering absorbs everyday warehouse impacts, maintaining strict alignment across demanding multi-shift operations.
Key Features
Comes backed by a strong 3-year limited factory warranty covering structural welding and core mechanical frameworks for worry-free operation.
Features an integrated, high-amperage 24V/30A built-in charger that connects directly to standard outlets for fast and flexible plug-and-play charging.

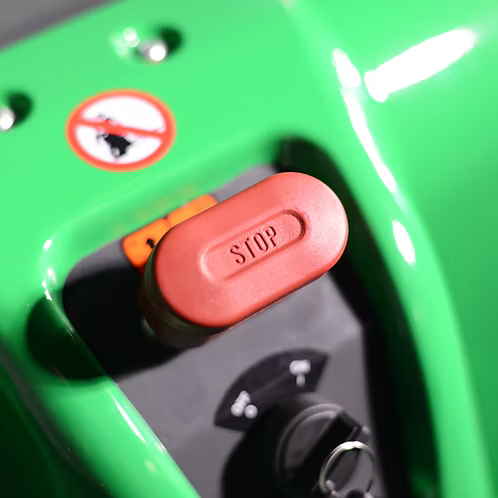

An automatic, fail-safe electromagnetic braking system stops the unit immediately whenever the ergonomic control arm is released or placed upright.
Equipped with rugged steel entry wheels at the fork tips that smoothly guide the unit into low-clearance pallets and skids without catching.
High-grade polyurethane wheels roll quietly across expansion joints and dock plates without marring or scarring your clean facility floors.

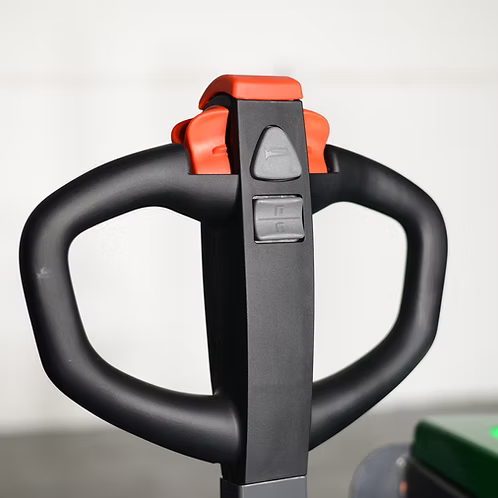

An intuitive handle head places all lift, lower, travel, and safety controls directly at the operator's fingertips for comfortable, ambidextrous handling.
Specifications
| Fork Size (W x L) | 27 x 48 in |
| Individual Fork Size (s/e/l) | 2 / 6 / 48 in |
| Outside Distance of Fork | 27 in |
| Overall Length | 71.2 in |
| Overall Width | 28 in |
| Lifting Height | 7.9 in |
| Lowered Fork Height | 3.3 in |
| Load Center | 24 in |
| Wheelbase | 53 in |
| Load Capacity | 4,400 lbs |
| Lifting Speed (Laden / Unladen) | 0.8 / 1.1 in/s |
| Lowering Speed (Laden / Unladen) | 1.5 / 1.5 in/s |
| Max Gradient (Laden / Unladen) | 8% / 15% |
| Minimum Turning Radius | 60 in |
| Brake Type | Electromagnetic |
| Control Drive Type | AC Motor Speed Control |
| Maximum Noise Level | 68 dB(A) |
| Service Weight (With Battery) | 755 lbs |
| Main Wheel Material | Polyurethane (PU) |
| Entry Wheel Material | Steel |
| Chassis Fabrication | Heavy-Duty Steel Construction |
| Welding Method | Automated Robotic Welding |
| Load Backrest | Optional Accessory |
| Battery Configuration | 24V / 100Ah Lithium Battery |
| Charger Configuration | Built-In Charger (24V / 30A) |
| Drive Motor Output | 1.3 kW |
| Lift Motor Output | 0.8 kW |
| System Controller Type | Curtis Controller |
