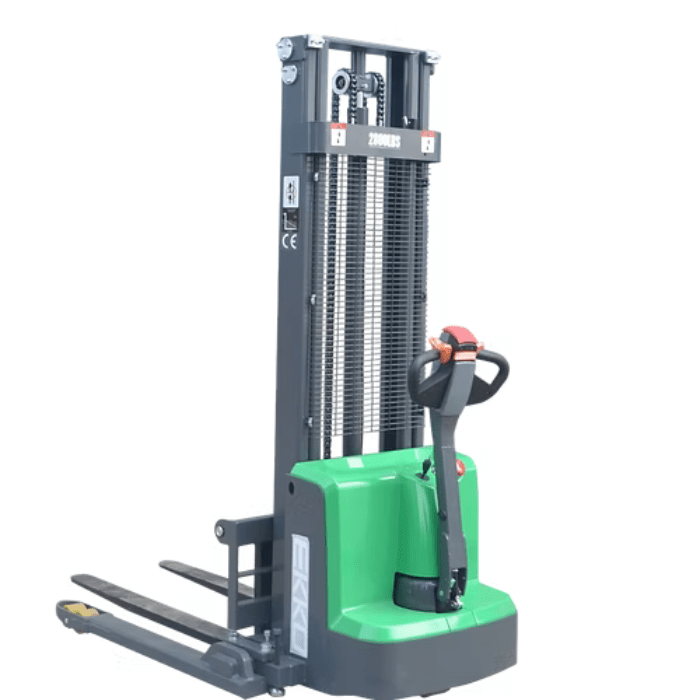

EKKO EB13E-138LI Lithium Electric Straddle Stacker
The EKKO EB13E-138LI Lithium Electric Straddle Stacker brings together the high-reaching functionality of a standard forklift and reach truck with the space-saving operation of a walkie stacker. Built from reinforced structural steel and assembled using advanced robotic welding, this high-performance unit features an efficient lithium battery configuration to smoothly master tight warehouse paths, active loading bays, and multi-tier storage racks with total confidence.
Performance & Applications
The EB13E-138LI is explicitly engineered to handle demanding logistics cycles, making it the perfect equipment choice for stock rooms, manufacturing floors, tight staging zones, and high-density warehousing. Outfitted with adjustable straddle legs and customizable forged forks, this full-electric walkie unit seamlessly modifies its structural width to match open or closed pallets, skids, and bulk cargo crates.
Modern Lithium Battery Pack
Powered by a high-efficiency 24V/50Ah Lithium battery system, this stacker delivers consistent voltage and supports rapid opportunity charging during scheduled breaks. This eliminates the regular maintenance, battery watering, and extended charge cycles associated with older lead-acid designs.
Curtis Instrument Control
At the core of the machine's electrical system is an industry-trusted Curtis Controller. This setup guarantees highly accurate travel speed adjustments, integrated thermal protection, smooth acceleration curves, and efficient onboard troubleshooting diagnostics.
Responsive 2.2kW Lift Motor
Equipped with a powerful 2.2kW hydraulic lift motor, the unit features vertical lifting response speeds up to 136 mm/s (unladen) and controlled lowering speeds up to 112 mm/s (laden). This ensures secure, stable handling of heavy loads at high elevations.
Compact Center-Drive Layout
With its compact center-drive layout and 0.75kW drive motor, this walkie stacker offers excellent floor traction and a tight 52.6" turning radius. Operators can spin, pivot, and stack pallets comfortably in constrained aisles at travel speeds up to 4.2 km/h.
Key Features
Includes a solid 3-year limited factory warranty on structural welds and core components to ensure long-term operational protection.
Features easy-to-adjust straddle legs (45.5" - 59.1") and adjustable forks (8.3" - 33.5") to adapt perfectly to standard pallets, custom skids, and crates.
Outfitted with a highly convenient 24V/15A internal onboard charger that plugs straight into standard facility outlets for seamless recharging.
The multi-functional handle head centralizes travel, lift, lower, horn, and safety reversing switches to minimize operator fatigue and protect warehouse staff.
Durable polyurethane (PU) wheels slide effortlessly over finished warehouse floors without causing unsightly scuffs or structural floor marring.
Fitted with extra-low 2.35" lowered forks to slip easily beneath low-profile pallet configurations, custom crates, and specialized skids.
Specifications
| Fork Width Adjustment Range | 8.3 - 33.5 in |
| Fork Length | 45.3 in |
| Single Fork Width | 4 in |
| Adjustable Straddle Legs | 45.5 - 59.1 in |
| Fixed Leg Length | 36.5 in |
| Overall Dimensions (L x Max W) | 70 x 61 in |
| Mast Height (Lowered / Extended) | 91.7 / 159.4 in |
| Lowered Fork Height | 2.35 in |
| Load Center Distance | 24 in |
| Load Capacity | 2,800 lbs |
| Maximum Lifting Height | 138 in |
| Lifting Speed (Laden / Unladen) | 92 / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 / 98 mm/s |
| Driving Speed (Laden / Unladen) | 4.0 / 4.2 km/h |
| Minimum Turning Radius | 52.6 in |
| Service Weight (With Battery) | 1,365 lbs |
| Tire & Wheel Material | Polyurethane (PU) |
| Chassis Fabrication | Reinforced Structural Steel |
| Welding Assembly Method | Automated Robotic Welding |
| Mast Configuration | Heavy-Duty Steel Straddle Stacker |
| Battery Configuration | 24V / 50Ah Lithium Battery Pack |
| Charger Configuration | Internal Onboard Charger (24V / 15A) |
| Lifting Motor Output | 2.2 kW |
| Drive Motor Layout | 0.75 kW Center-Drive System |
| System Controller Type | Curtis Instrument Controller |
