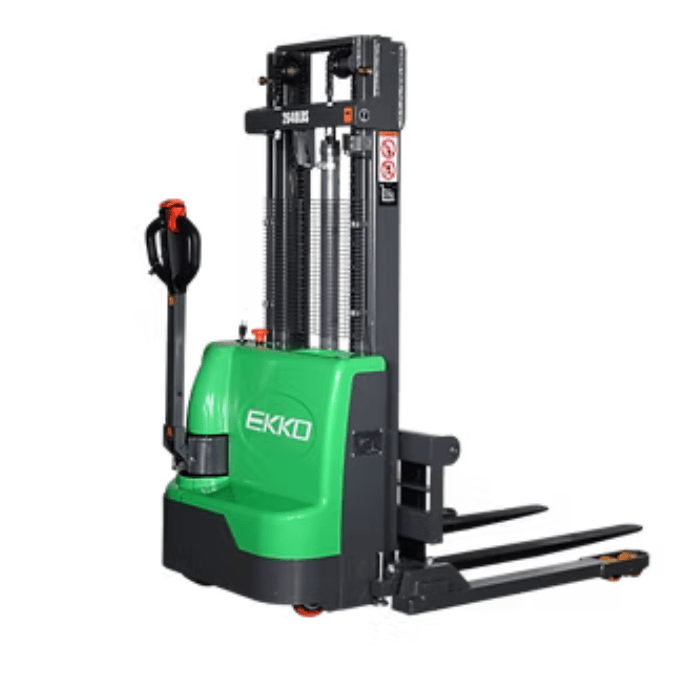

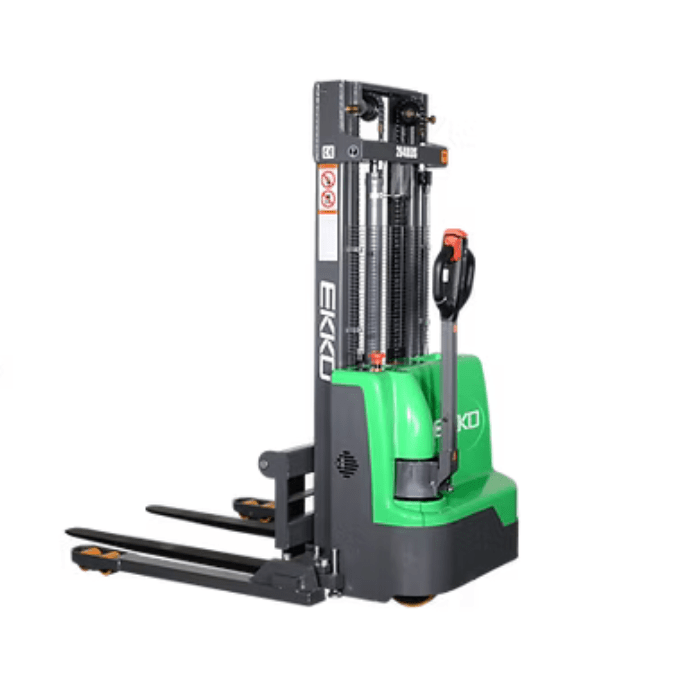

EKKO EB12E-98Li Lithium Electric Straddle Stacker
The EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker offers a unique blend of forklift-style lifting utility and a ultra-compact walkie footprint. Designed with a low-profile 72.05" lowered mast height, this full-electric stacker moves smoothly through standard interior doorways and overhead barriers, making it an excellent match for active loading docks, crowded store rooms, manufacturing floors, and multi-tier warehousing.
Performance & Applications
Engineered for reliable, multi-shift durability, the EB12E-98Li features a chassis made from premium structural steel and precise robotic welding to easily withstand unexpected impacts and abrupt directional changes. Outfitted with adjustable straddle legs and forged adjustable forks, this versatile walkie unit handles open or closed pallets and heavy skids to maximize warehouse space.
Advanced Lithium-Iron Phosphate Power
Powered by a lightweight 24V/60Ah LiFePO4 battery pack weighing just 29 lbs, this stacker delivers consistent voltage output and supports rapid opportunity charging. Say goodbye to routine battery watering and long downtime periods typical of older lead-acid designs.
Curtis Controller Technology
At the core of the electrical management system is a professional Curtis Instrument Controller. This system ensures highly accurate power distribution, reliable thermal safeguards, smooth acceleration curves, and efficient onboard diagnostics.
Responsive 2.2kW Hydraulic Lift
Equipped with a powerful 2.2kW lift motor, the unit features vertical response speeds up to 136 mm/s (unladen) and controlled lowering speeds up to 112 mm/s (laden). This ensures secure, stable handling of fragile loads at maximum height.
Compact, Low-Clearance Navigation
With a small 52.6" turning radius and a low-profile 72.05" mast, operators can confidently navigate narrow storage aisles, cross-docks, and interior doorways. The 0.75kW electric drive motor achieves travel speeds up to 4.2 km/h.
Key Features
Includes a solid 3-year limited factory warranty on structural welds and core mechanical components for dependable long-term protection.
Features adjustable straddle legs (45.5" - 59.1") and adjustable forks (8.27" - 33.47") to effortlessly handle standard pallets, skids, and custom shipping crates.
The ergonomic handle head centralizes travel speeds, lift, lower, horn, and safety reversing switches to minimize operator fatigue and protect facility staff.
Outfitted with premium PU tires (including a large 8.3" drive wheel) that roll smoothly over warehouse floors without scuffing or damaging concrete surfaces.
Designed with a minimal 2.56" lowered fork height, enabling the unit to slide cleanly under low-profile pallet configurations and customized skids.
Equipped with a reliable electromagnetic braking system that engages instantly for controlled stopping power, even when working on warehouse inclines.
Specifications
| Fork Width Adjustment Range | 8.27 - 33.47 in |
| Fork Dimensions (T x W x L) | 1.38 x 3.94 x 45.28 in |
| Adjustable Straddle Legs | 45.5 - 59.1 in |
| Fixed Leg Length | 36.5 in |
| Overall Length | 71 in |
| Length to Fork Face | 23.82 in |
| Max Overall Width | 61 in |
| Mast Height (Lowered / Extended) | 72.05 / 119.96 in |
| Lowered Fork Height | 2.56 in |
| Load Center Distance | 24 in |
| Load Capacity | 2,640 lbs |
| Maximum Lifting Height | 98.42 in |
| Lifting Speed (Laden / Unladen) | 92 / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 / 98 mm/s |
| Driving Speed (Laden / Unladen) | 4.0 / 4.2 km/h |
| Maximum Gradeability (Laden / Unladen) | 6% / 8% |
| Minimum Turning Radius | 52.6 in |
| Service Weight (With Battery) | 1,300 lbs |
| Tire & Wheel Material | Polyurethane (PU) |
| Front Load Wheels (Size / Qty) | Φ3.1 x 2.7 in (4 wheels) |
| Rear Drive Wheel (Size / Qty) | Φ8.3 x 2.7 in (1 wheel) |
| Balance Caster Wheel (Size / Qty) | Φ6.0 x 2.3 in (1 wheel) |
| Chassis Fabrication | Reinforced Structural Steel |
| Welding Assembly Method | Automated Robotic Welding |
| Min. Ground Clearance | 0.95 in |
| Battery Configuration | 24V / 60Ah Lithium Iron Phosphate |
| Battery Weight | 29 lbs |
| Lifting Motor Output | 2.2 kW (DC Control Type) |
| Drive Motor Output | 0.75 kW |
| System Controller Type | Curtis Instrument Controller |
| Braking Method | Electromagnetic Service Brake |
| Operator Sound Level | 69 dB |
