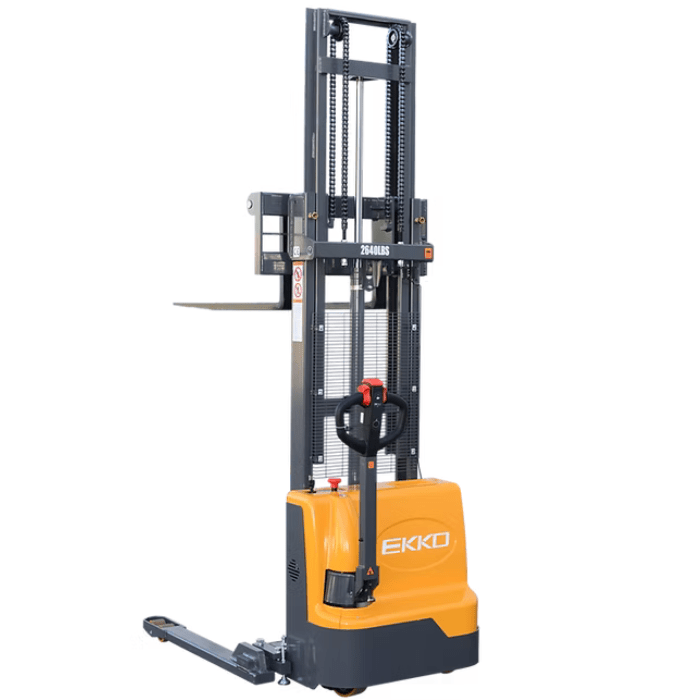

EKKO EB12E-138 Electric Straddle Stacker
The EKKO EB12E-138 Electric Straddle Stacker combines the vertical material handling utility of a conventional forklift and reach truck with the space-saving agility of a walkie stacker. Built from industrial-grade structural steel and finalized with automated robotic welding, this full-power stacker utilizes heavy-duty drives to consistently manage elevated pallet placement, variable surface layouts, and immediate directional changes with absolute precision.
Performance & Applications
The EB12E-138 is specifically engineered to maximize vertical warehouse space across high-density storage zones, loading docks, logistics staging areas, and active manufacturing floors. Equipped with fully adjustable straddle legs and forged adjustable forks, this versatile stacker effortlessly configures to different skid formats, standard GMA pallets, and heavy crates to handle complex multi-tier stacking tasks.
Curtis Control Architecture
At the foundation of the EB12E-138 is a professional Curtis Controller system, providing seamless power regulation and intelligent system management. This reliable setup guarantees smooth acceleration, complete thermal overload protection, and streamlined onboard diagnostic troubleshooting.
High-Output 2.2kW Lift Motor
Outfitted with a heavy-duty 2.2kW hydraulic lift motor, this unit accelerates vertical material flow. It features impressive lift speeds reaching up to 136 mm/s (unladen) and regulated lowering speeds up to 112 mm/s (laden) for the ultra-secure handling of high-elevation loads.
Compact & Agile Drive
Driven by an efficient 0.75kW electric drive motor, this walkie stacker achieves quick travel speeds up to 4.2 km/h. Its narrow 52.6" turning radius allows operators to fluidly turn, stack, and retrieve pallets within highly confined racking aisles and crowded staging floors.
Industrial High-Mast Stability
Constructed from reinforced heavy-gauge steel and put together with precision robotic welding, the durable frame withstands tough, repetitive warehouse use. Its 1,450 lb service weight delivers excellent structural counterweighting for absolute stability when operating at its full 11.5 ft mast extension.
Key Features
Comes backed by a strong 3-year limited factory warranty on structural welds and core mechanical frameworks for reliable long-term operations.
Features easy-to-adjust straddle legs (45.5" - 59.1") and adjustable forks (8.3" - 33.5") to adapt perfectly to standard pallets, custom skids, and crates.
Equipped with an integrated 24V/15A internal charger that hooks up directly to standard wall outlets, paired with an included 2x12V/100Ah battery system.
An intuitive control arm centralizes travel, lift, lower, horn, and safety reversing switches to minimize operator fatigue and maximize safety.
Durable polyurethane wheels roll smoothly across concrete floors, joints, and dock areas without causing scuffs or structural floor markings.
Designed with a minimal 2.35" lowered fork height, enabling the unit to slide cleanly beneath low-profile pallet designs and specialized shipping skids.

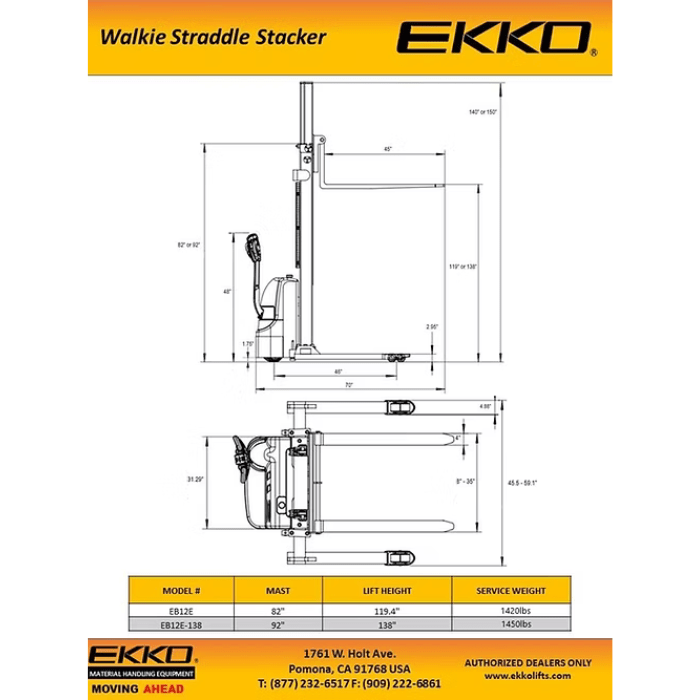

Specifications
| Fork Width Adjustment Range | 8.3 - 33.5 in |
| Fork Length | 45.3 in |
| Single Fork Width | 4 in |
| Adjustable Straddle Legs | 45.5 - 59.1 in |
| Fixed Leg Length | 36.5 in |
| Overall Dimensions (L x Max W) | 70 x 61 in |
| Mast Height (Lowered / Extended) | 92 / 154 in |
| Lowered Fork Height | 2.35 in |
| Load Center Distance | 24 in |
| Load Capacity | 2,640 lbs |
| Maximum Lifting Height | 138.0 in (11.5 ft) |
| Lifting Speed (Laden / Unladen) | 92 / 136 mm/s |
| Lowering Speed (Laden / Unladen) | 112 / 98 mm/s |
| Driving Speed (Laden / Unladen) | 4.0 / 4.2 km/h |
| Minimum Turning Radius | 52.6 in |
| Service Weight (With Battery) | 1,450 lbs |
| Tire & Wheel Material | Polyurethane (PU) |
| Chassis Fabrication | Reinforced Industrial Steel |
| Welding Assembly Method | Automated Robotic Welding |
| Mast Configuration | Heavy-Duty Steel Straddle Stacker |
| Battery Configuration | 2x12V / 100Ah (10" x 6.6" x 8.5") |
| Charger Configuration | Internal Onboard Charger (24V / 15A) |
| Lifting Motor Output | 2.2 kW |
| Drive Motor Output | 0.75 kW |
| System Controller Type | Curtis Controller System |
