Description
Heavy-Duty 9,000 lb Capacity. Extra-Wide Runways. Complete Lifting Solution with Two 6,000 lb Rolling Bridge Jacks.

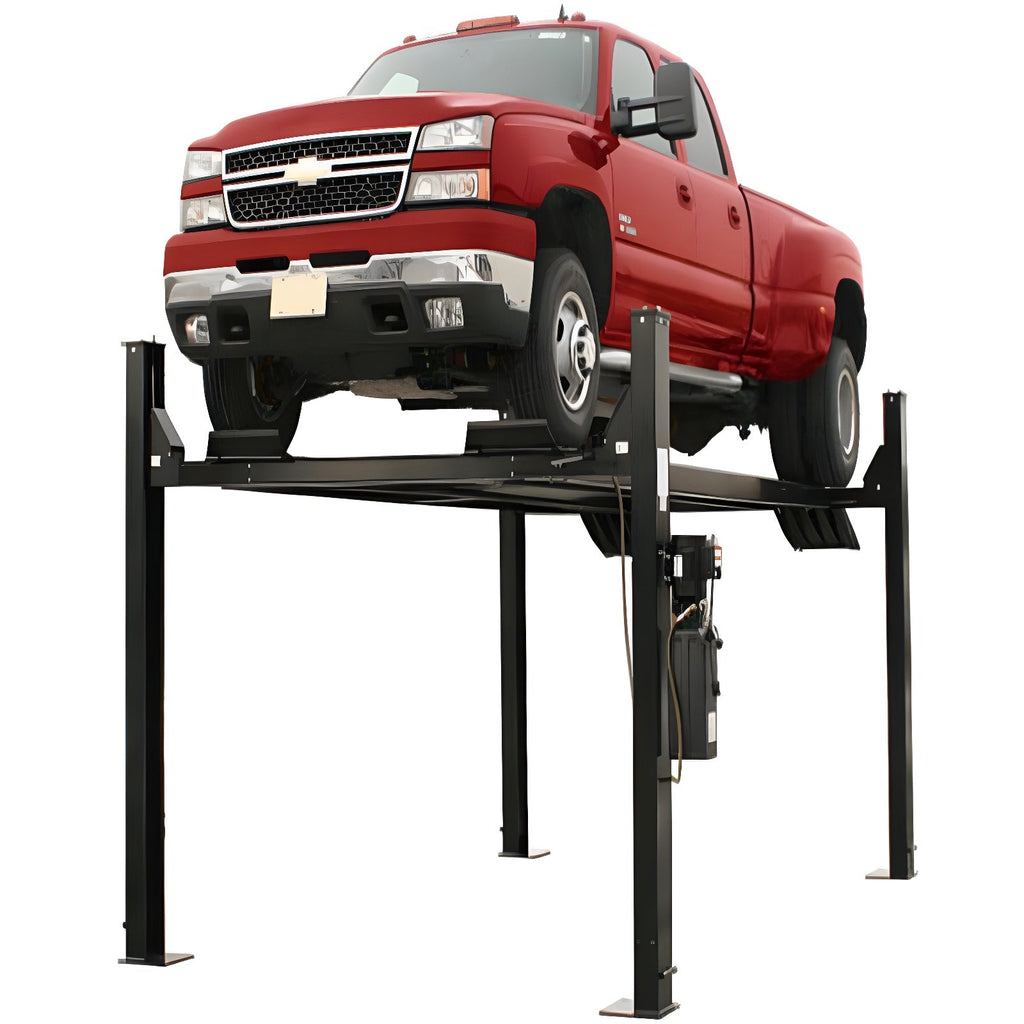

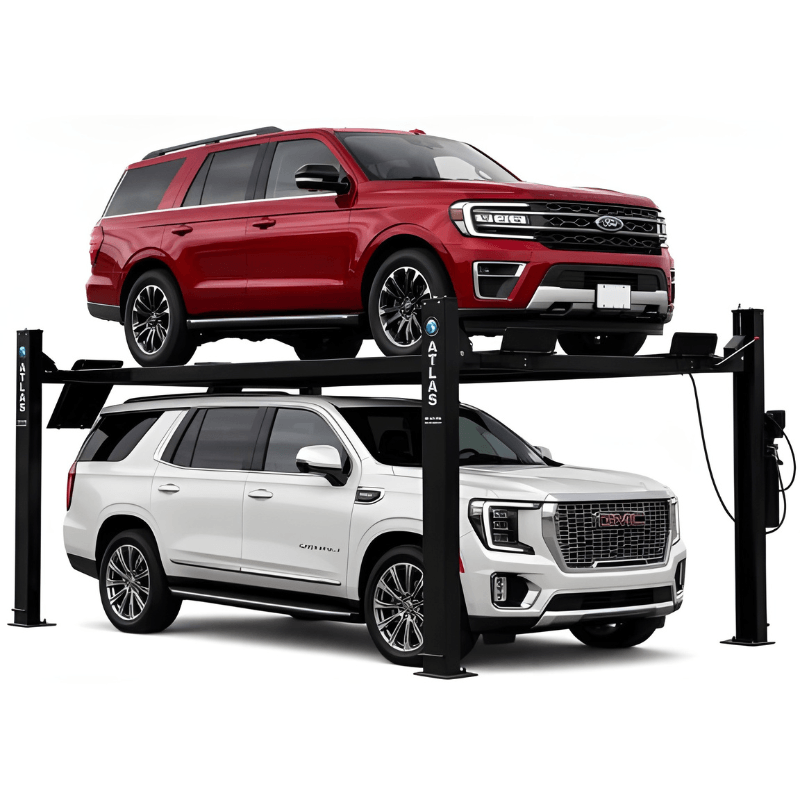

The Atlas Automotive PRO9000 9,000 lb 4-Post Lift + (2) RJ6 Rolling Bridge Jacks Combo is designed for automotive shops, home garages, and vehicle enthusiasts who need additional lifting capacity, extended runway length, and room for larger vehicles. With a 9,000 lb lifting capacity, extra-wide configuration, and long runways, the PRO9000 accommodates a wide range of vehicles, including passenger cars, SUVs, full-size pickups, and compatible diesel dually trucks.
Built around a heavy-duty four-post design, the PRO9000 features a free-standing, portable configuration and an included caster kit with polyurethane wheels. Its single-point lock release, lock ladder design, and double-lock safety system provide convenient operation and additional security when raising and lowering vehicles. Included accessories feature steel approach ramps, a steel jack tray, four plastic drip trays, and two rubber wheel chocks.

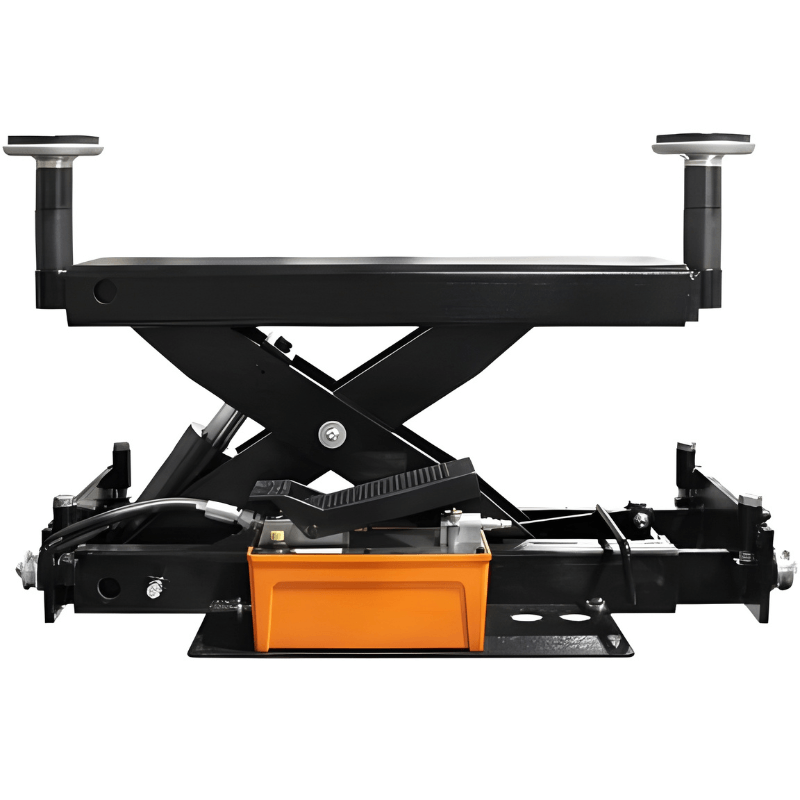

This combo package includes two Atlas RJ6 6,000 lb rolling bridge jacks, allowing you to lift a vehicle's wheels off the runways for tire changes, brake service, and other maintenance work. Each RJ6 features air/hydraulic operation, multiple safety lock positions, smooth-rolling movement, and a scissor mechanism designed to support level lifting. A four-piece truck adapter set is included with each jack.
With a lifting height of up to 85 inches to the top of the runways and 80 1/4 inches of clearance underneath, the PRO9000 provides substantial vertical space for vehicle storage and service work. Its 199 1/2-inch runways, generous clearance between columns, and wide drive-through dimensions make it a versatile option for larger vehicles and long-wheelbase applications.
Whether you're maximizing garage storage, servicing trucks, or equipping a professional automotive shop, the Atlas PRO9000 and two RJ6 rolling bridge jacks combine vehicle storage capability with added wheel-free service access in one comprehensive lifting package.
Perfect for: Home garages • Diesel dually trucks • Full-size pickups • SUVs • Vehicle storage • Tire and brake service • Suspension work • Automotive repair shops
Benefits of the Atlas Automotive PRO9000 + (2) RJ6 Combo
The 9,000 lb capacity and extra-wide, extended-runway design accommodate a broad range of vehicles, including full-size pickups, SUVs, and compatible diesel dually trucks. Always verify vehicle weight, wheelbase, track width, and lifting-point compatibility before use.
The four-post lift provides elevated vehicle storage, while the two included RJ6 rolling bridge jacks provide additional flexibility for lifting vehicle wheels off the runways for maintenance. Together, they offer a versatile solution for both storage and service applications.
Each RJ6 uses an air/hydraulic system and scissor mechanism to lift a vehicle from the runways. Having two rolling jacks included provides additional flexibility for wheel, tire, brake, and other wheel-end service tasks when used within the manufacturer's requirements.
The 199 1/2-inch runways and generous clearance between columns provide space for many longer and wider vehicles. The PRO9000's extra height also provides substantial under-runway clearance for vehicle storage.
The single-point lock release, lock ladder design, and double-lock safety system help simplify lift operation. Each RJ6 also includes multiple safety lock positions. Always follow the manufacturer's instructions for lifting, locking, and supporting vehicles.
The free-standing design and included caster kit support relocation when needed. Installation, movement, and operation must follow the manufacturer's requirements, including the specified concrete and electrical provisions.
Features
Lift Capacity & Design
- 9,000 lb lifting capacity
- Extra-tall, extra-wide, and extra-long configuration
- Designed for compatible passenger cars, SUVs, and full-size trucks
- Free-standing, portable four-post lift design
- Suitable for vehicle storage and service applications
Lifting Height & Runways
- 85-inch lifting height to the top of the runways
- 80 1/4-inch clearance underneath the runways
- 199 1/2-inch runway length
- 21 1/4-inch runway width including rails

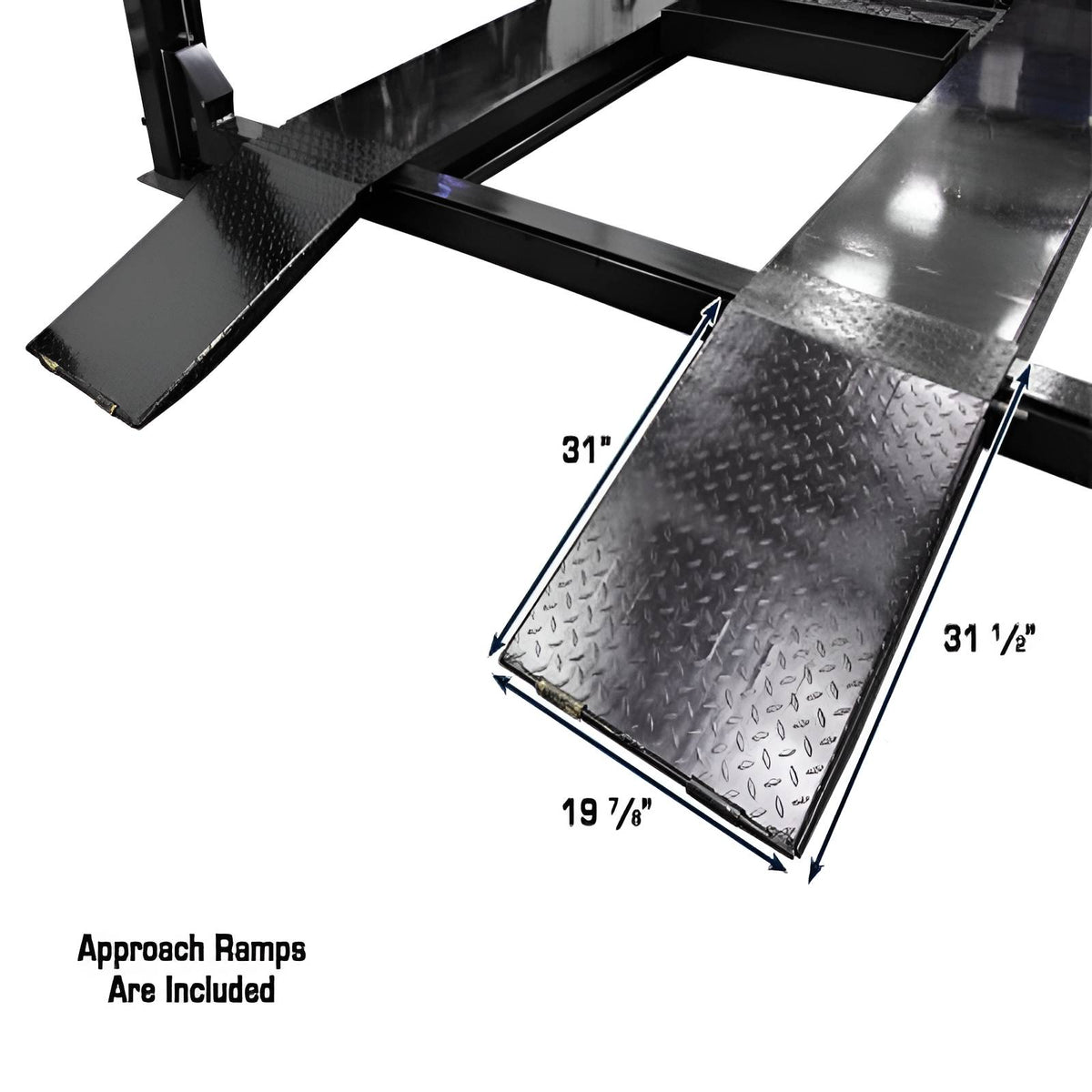

- 31-inch steel approach ramps
Lock System & Safety

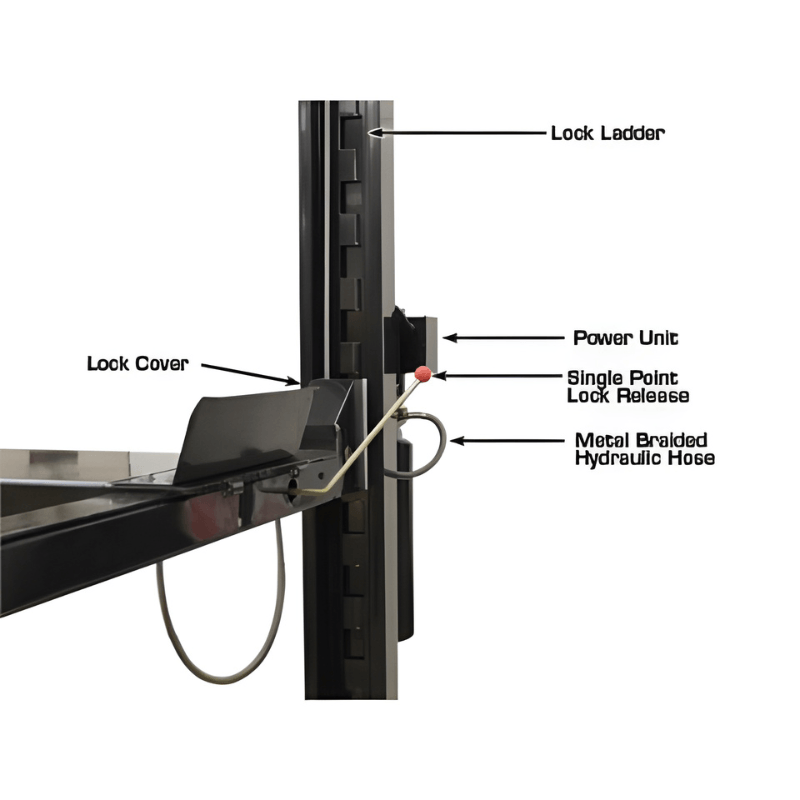

- Single-point lock release

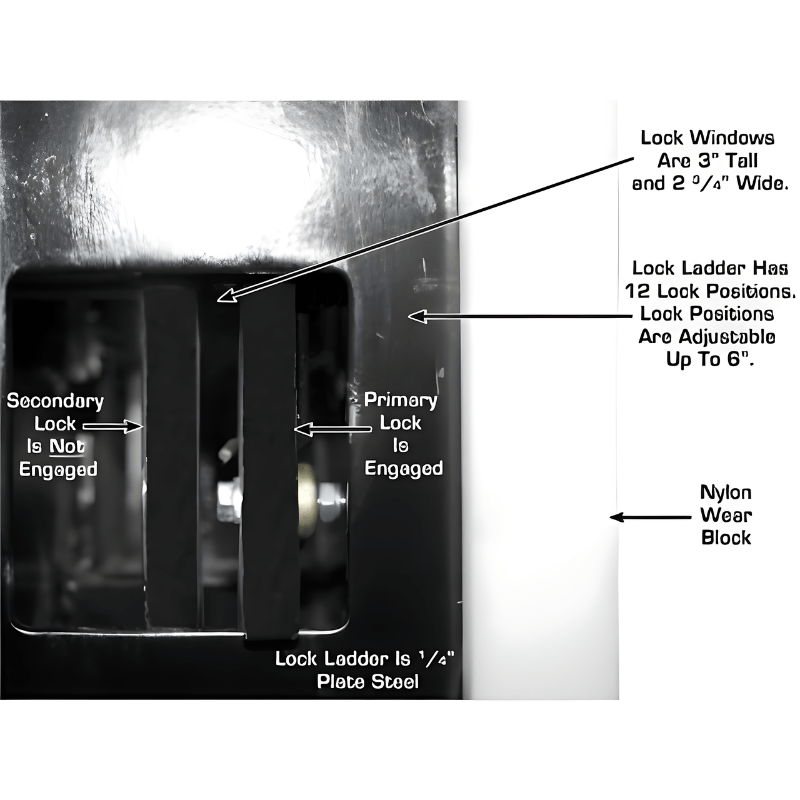

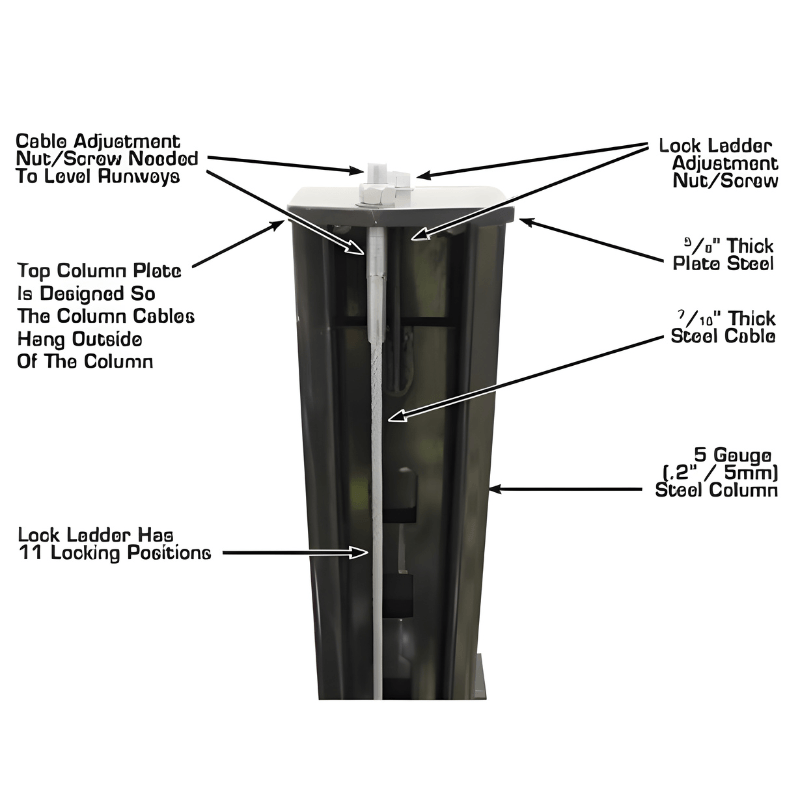

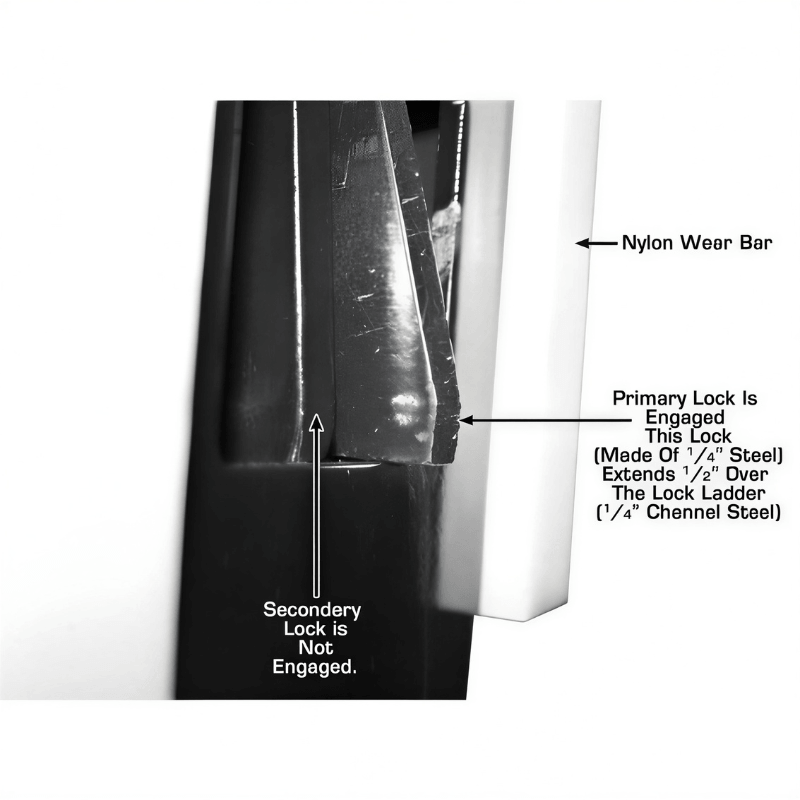

- Lock ladder design
- Double-lock safety system

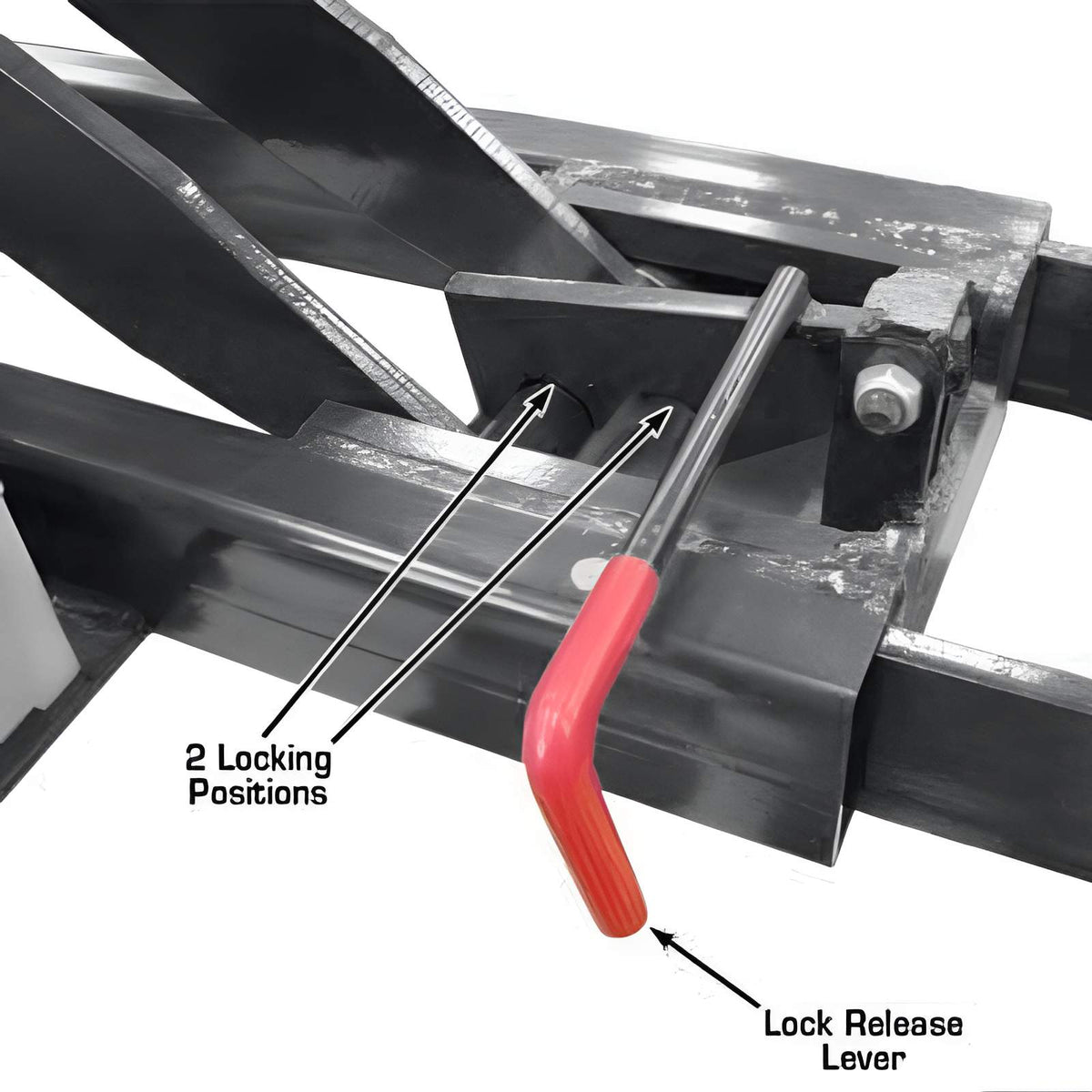

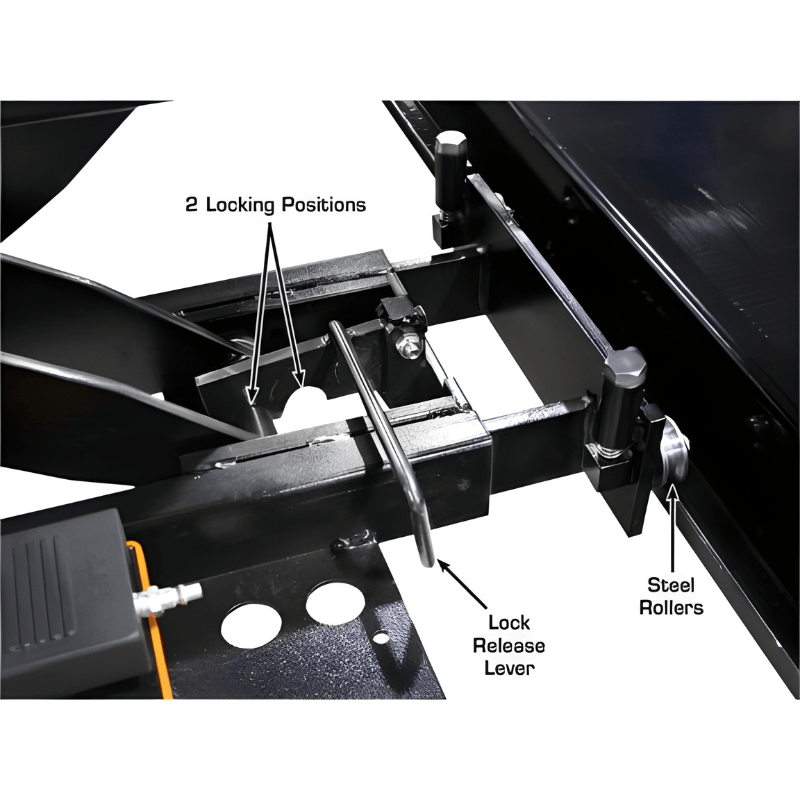

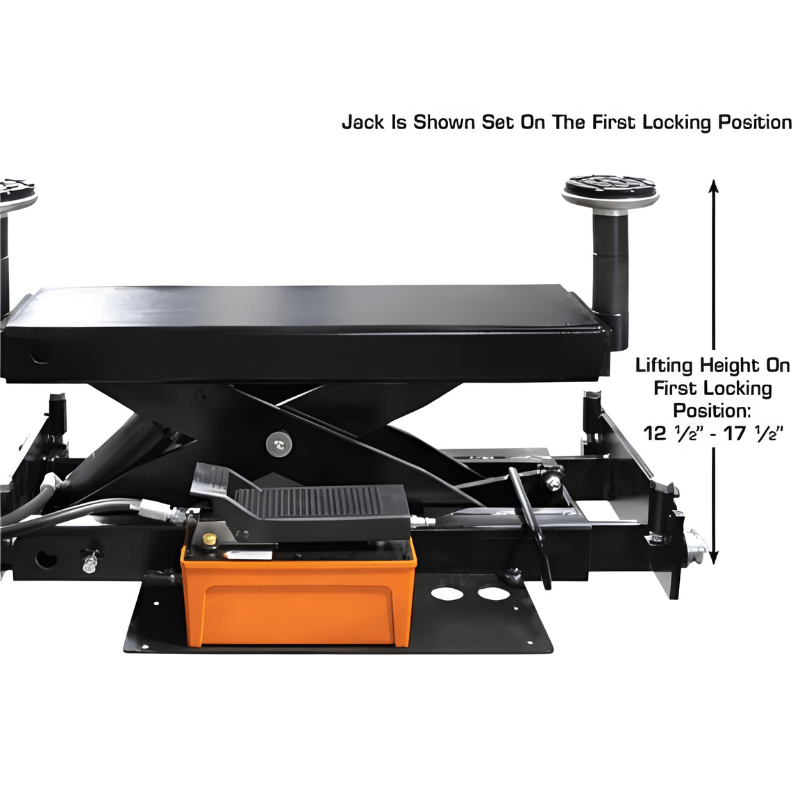

- Each RJ6 includes multiple safety lock positions
- Follow manufacturer instructions for safe lifting and storage

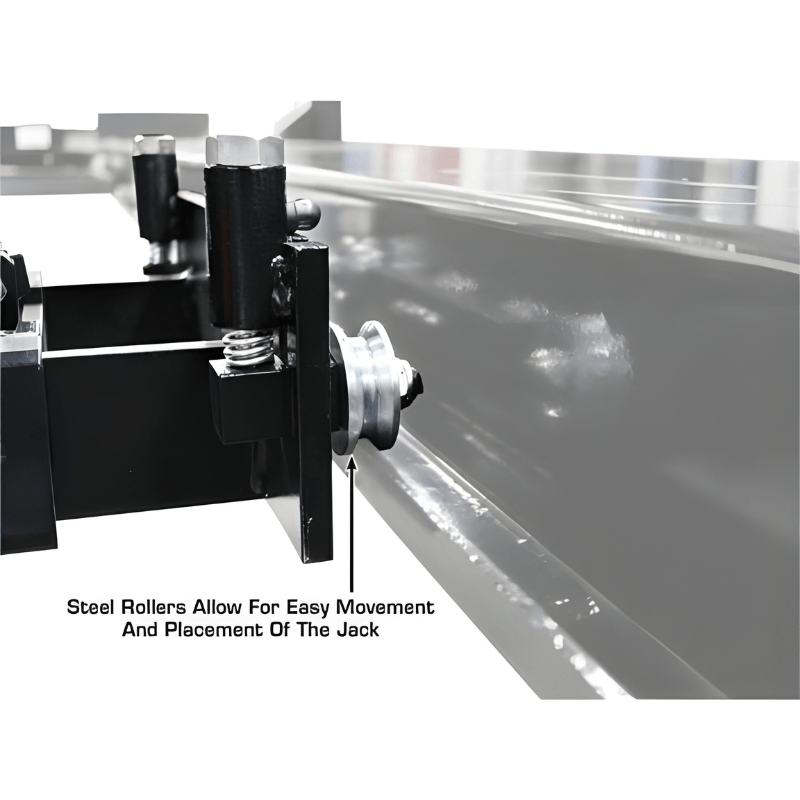

Two RJ6 Rolling Bridge Jacks
- Two jacks included
- 6,000 lb capacity per jack
- Air/hydraulic operation

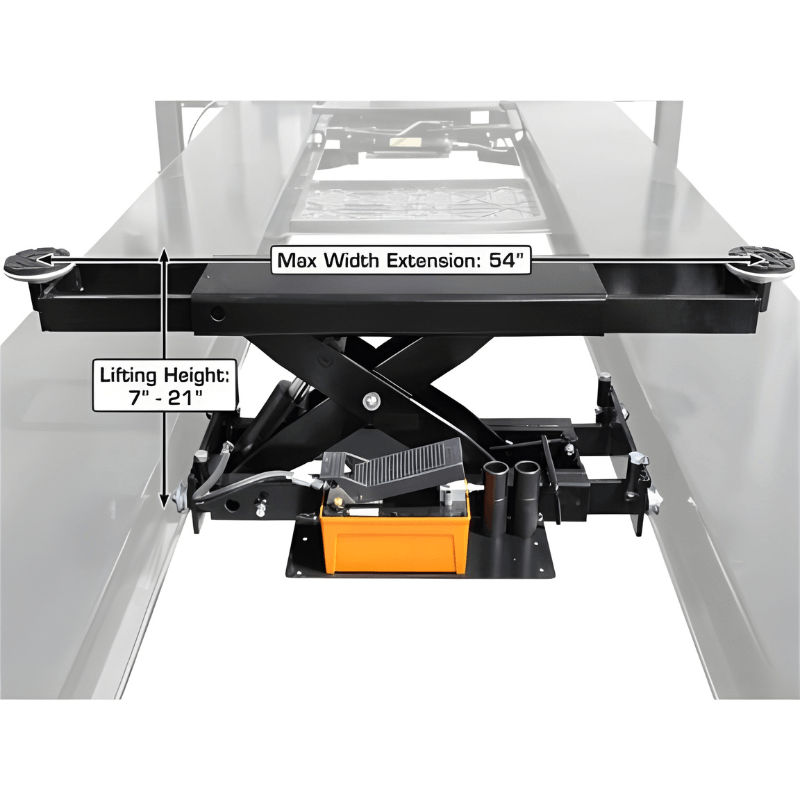

- Roller width adjusts from 35 to 55 inches
- Runway spacing capability: 32–52 inches
- Maximum lifting height with adapters: 21 inches
- Four-piece truck adapter set included with each jack
Mobility & Included Accessories

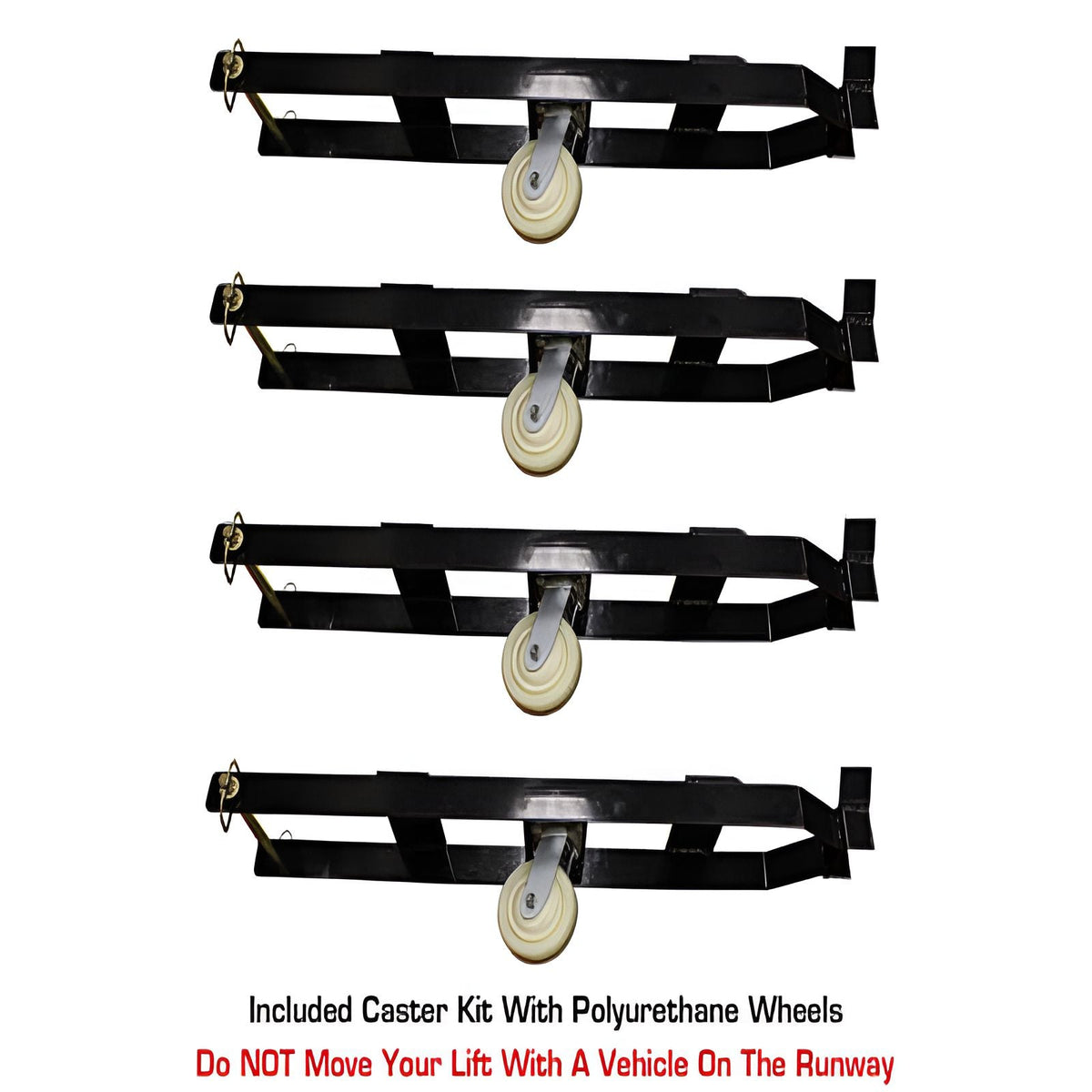

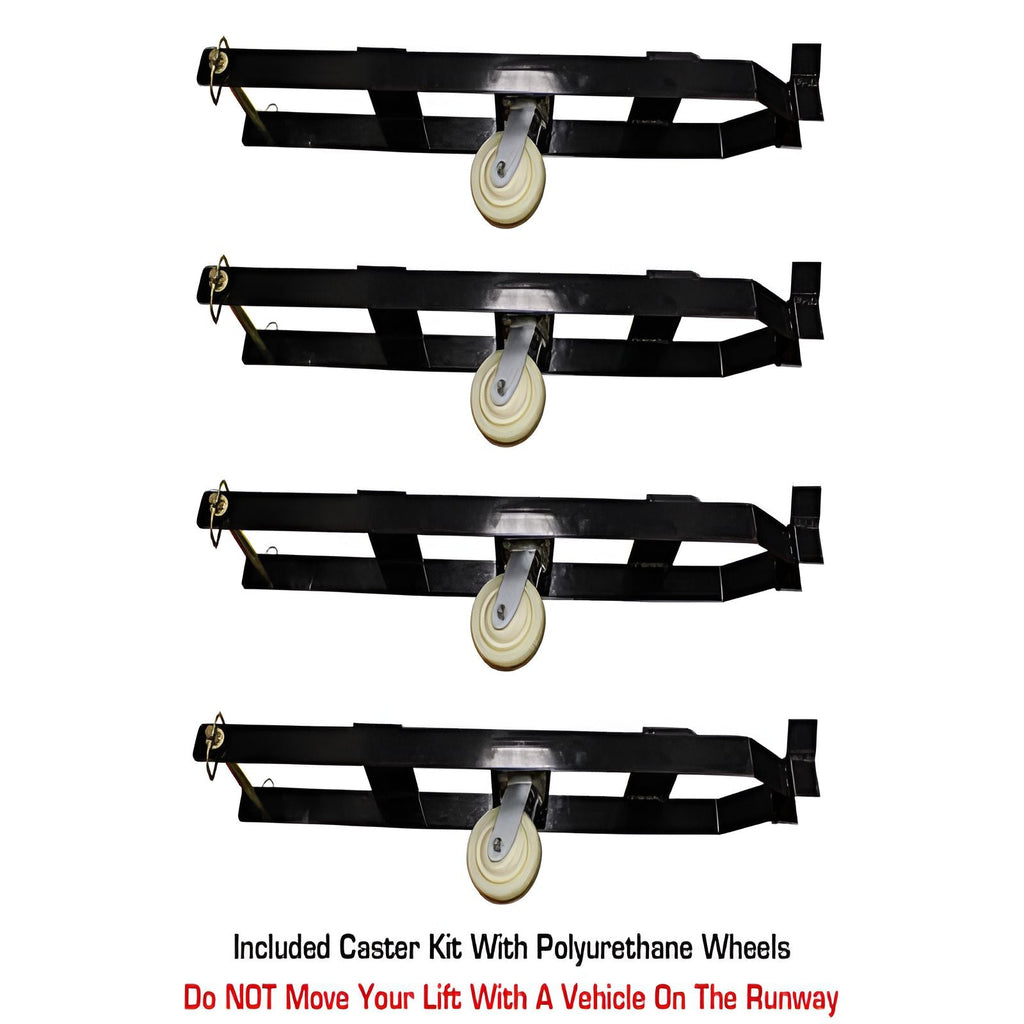

- Caster kit with polyurethane wheels
- Steel approach ramps

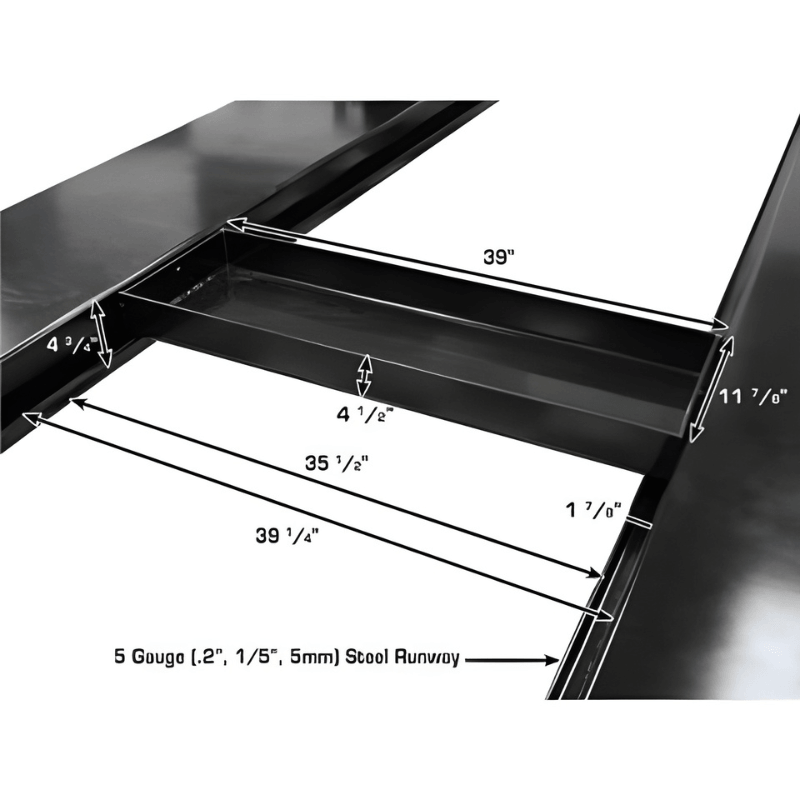

- Steel jack tray
- Four plastic drip trays

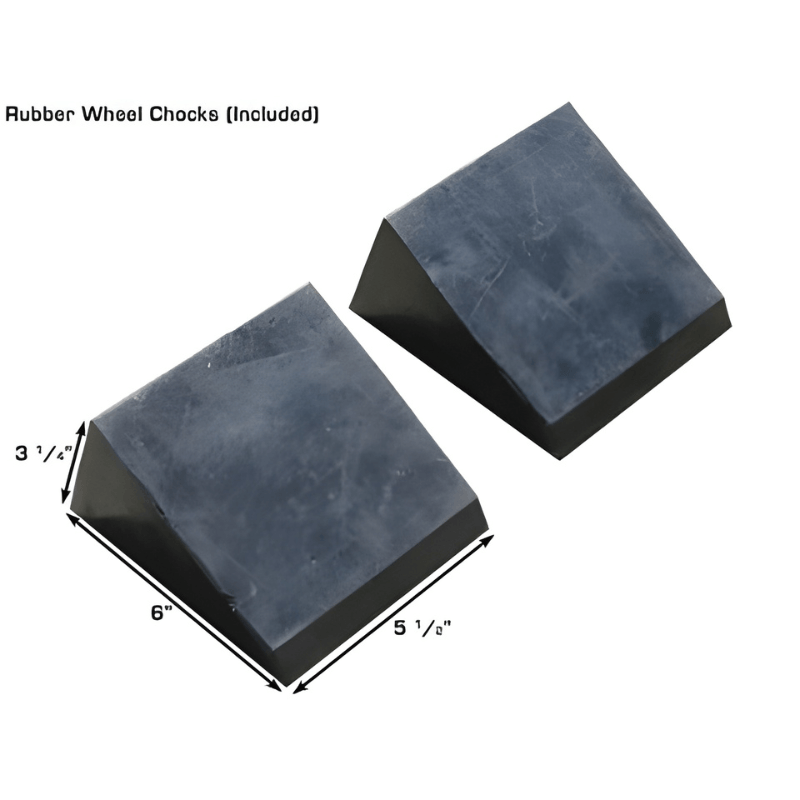

- Two rubber wheel chocks
- Two RJ6 rolling bridge jacks
Power & Installation
- 110V electrical supply for the PRO9000
- 30-amp breaker required
- Minimum 4-inch-thick concrete
- Concrete strength: 3,000 PSI minimum
- Each RJ6 requires an external compressed-air supply
- RJ6 air pressure requirement: 70–115 PSI
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Lift Model: Garage PRO9000
- Rolling Jack Model: RJ6 / RJ6BK
- Product Type: 4-Post Lift and Two Rolling Bridge Jacks
- Lift Capacity: 9,000 lbs
- Rolling Jack Capacity: 6,000 lbs each
- Number of Rolling Jacks Included: 2
- Lift Configuration: Four-post, free-standing design
Lifting Performance

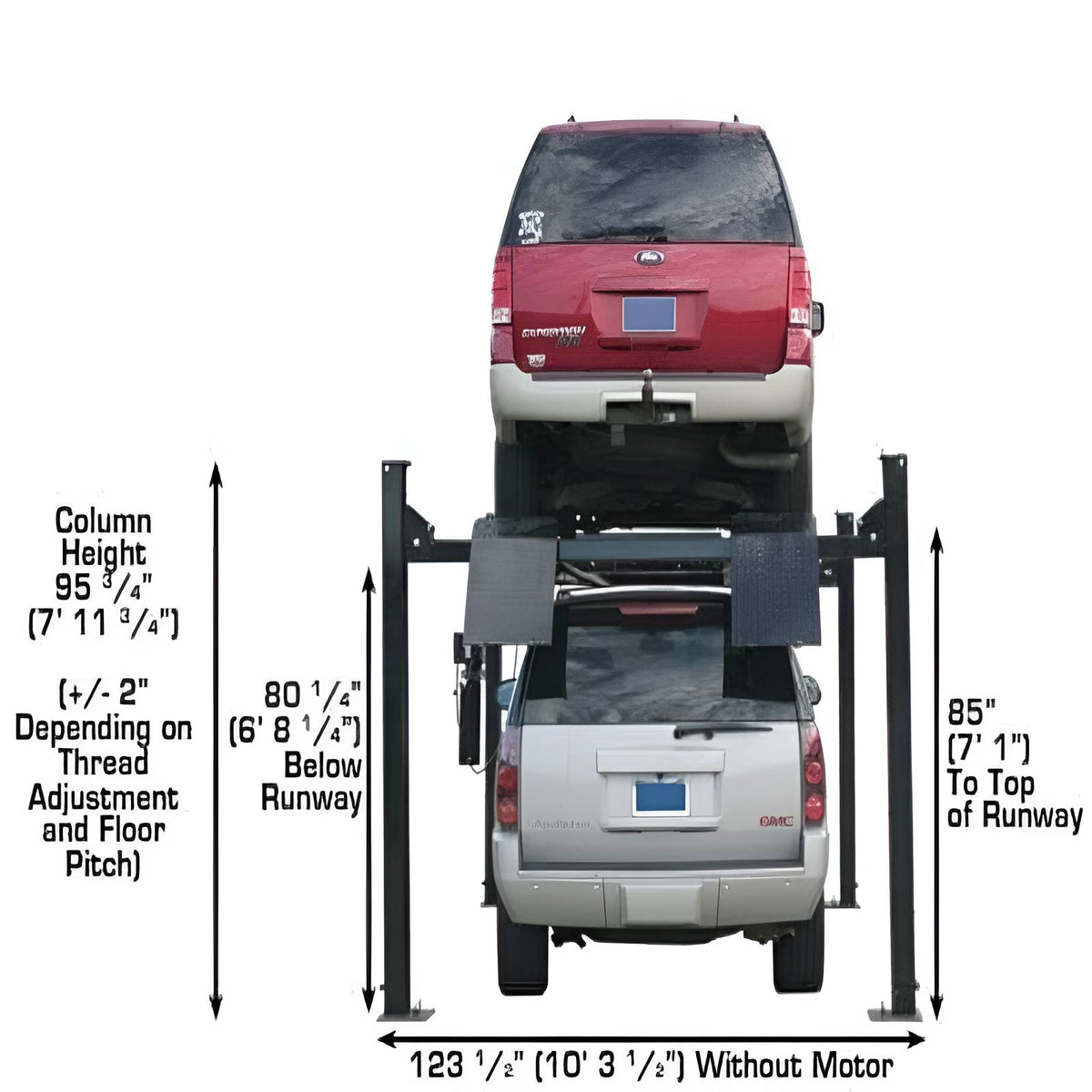

- Lift Height to Runway Top: 85 in (7 ft 1 in)

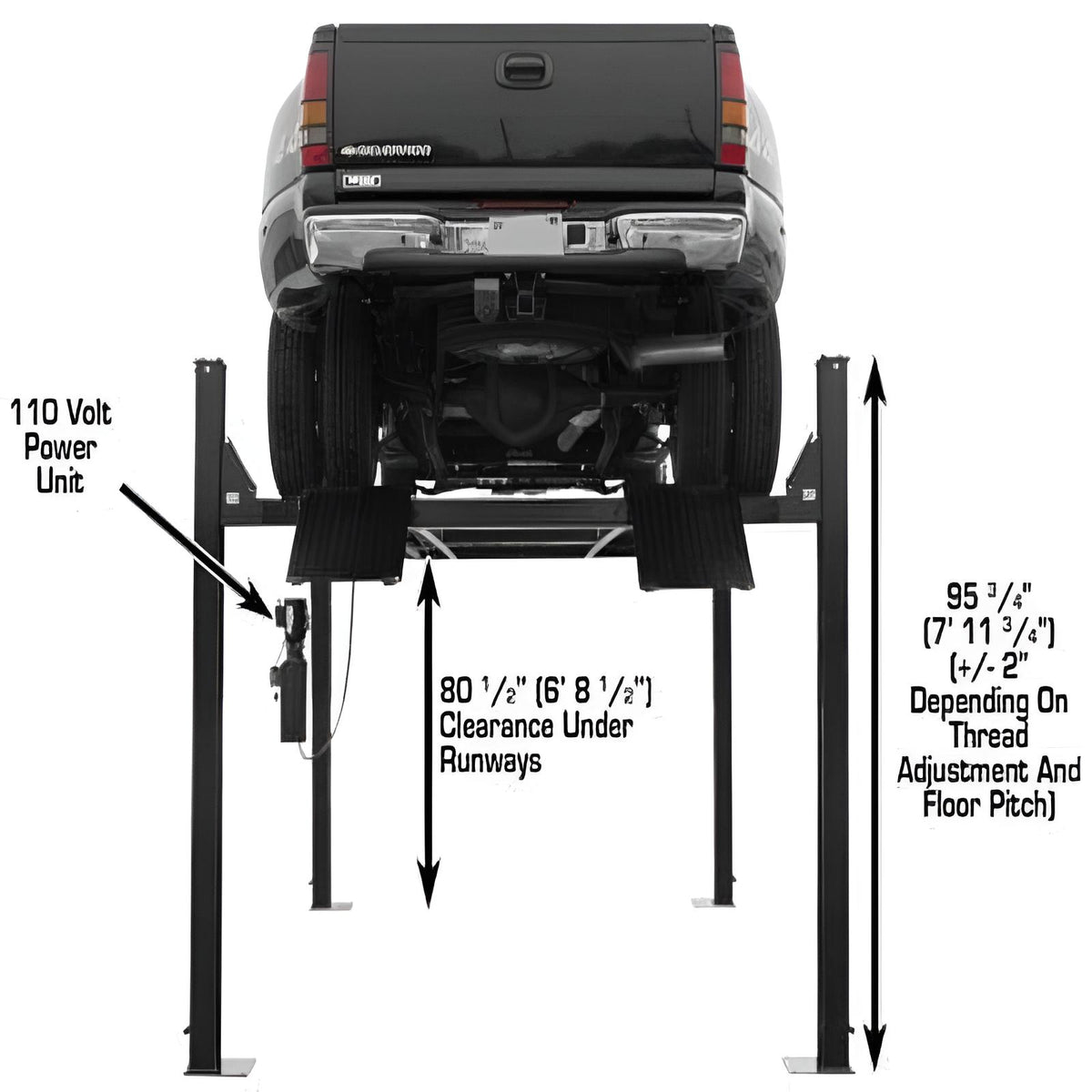

- Clearance Under Runways: 80 1/4 in (6 ft 8 1/4 in)
- Maximum Wheelbase: 187 in (15 ft 7 in)
- Lift Lock System: Single-point release with lock ladder
- Lift Safety System: Double-lock design
- RJ6 Maximum Lifting Height with Adapters: 21 in
PRO9000 Structure & Dimensions

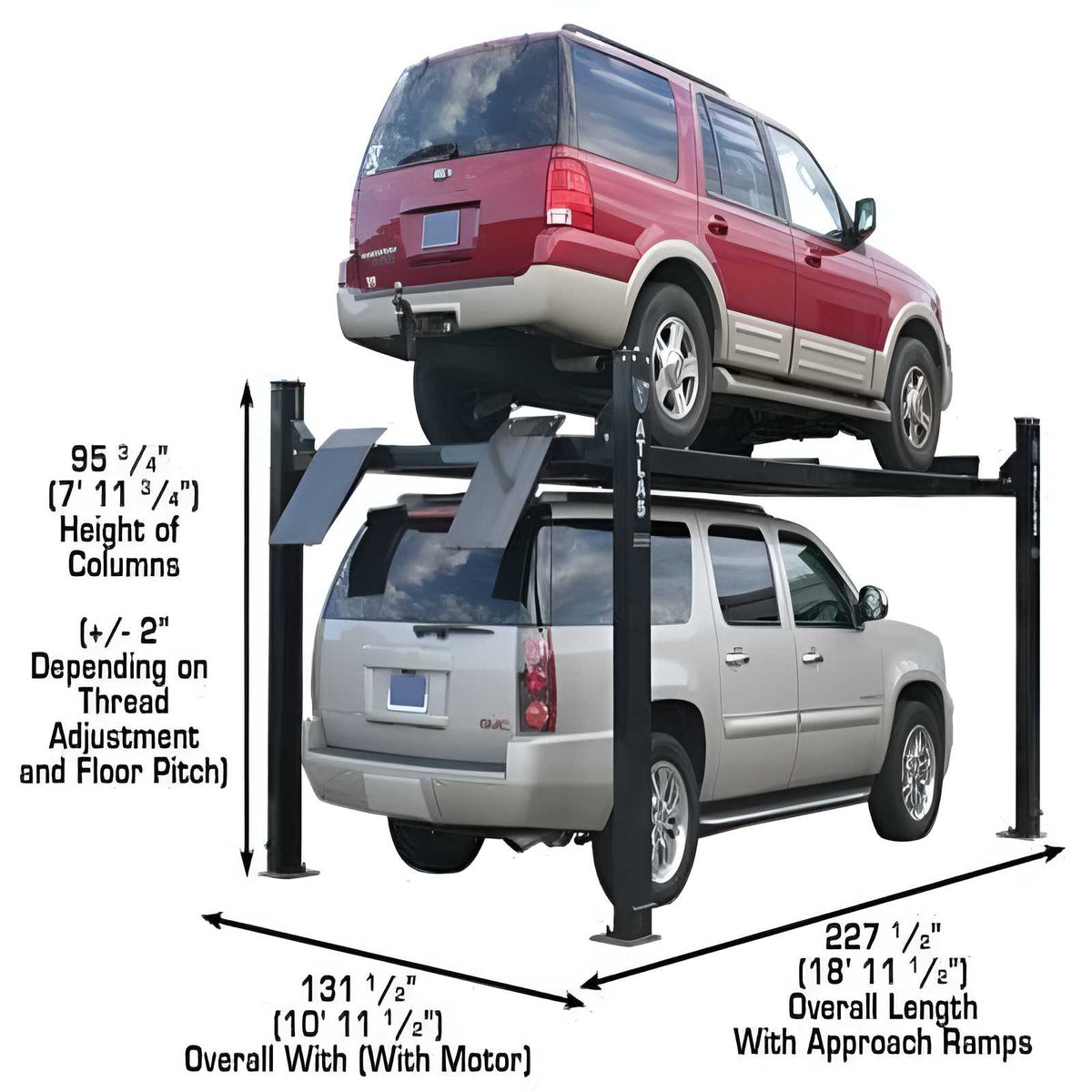

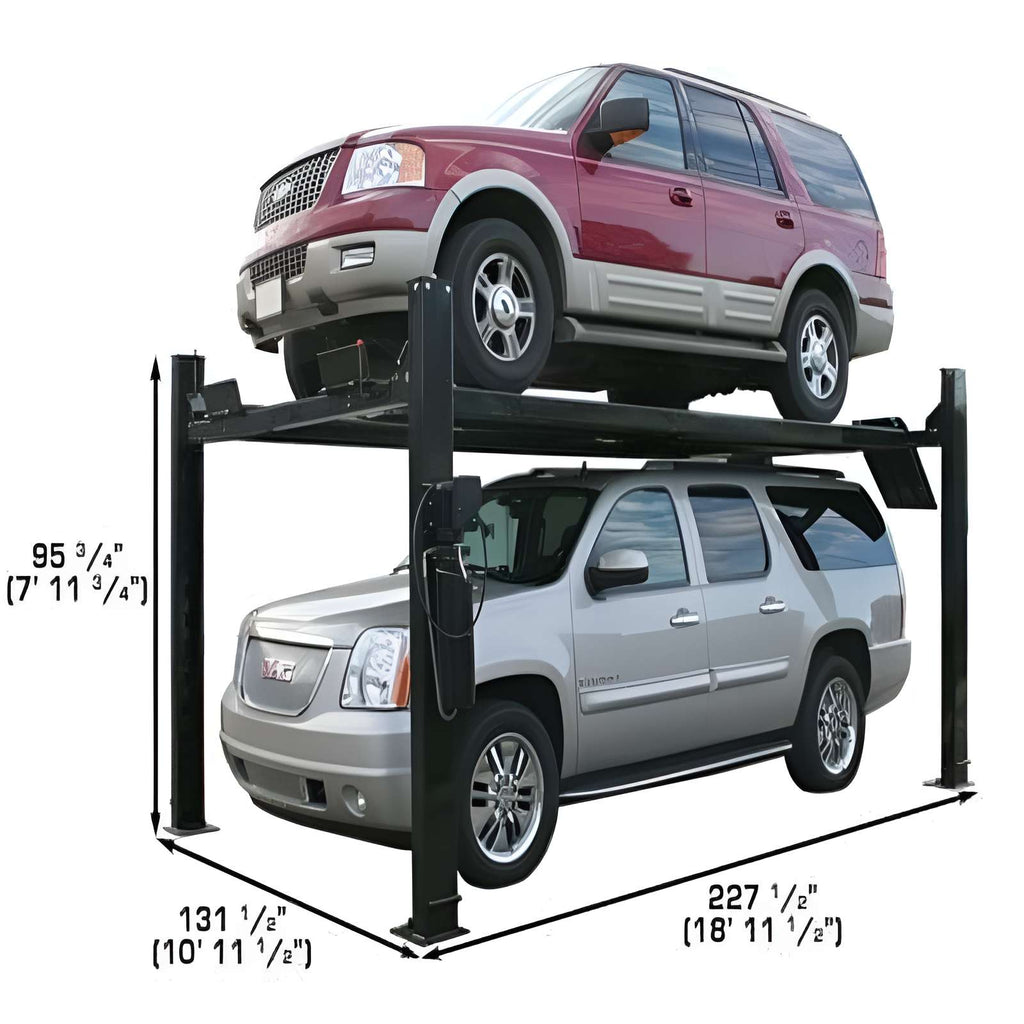

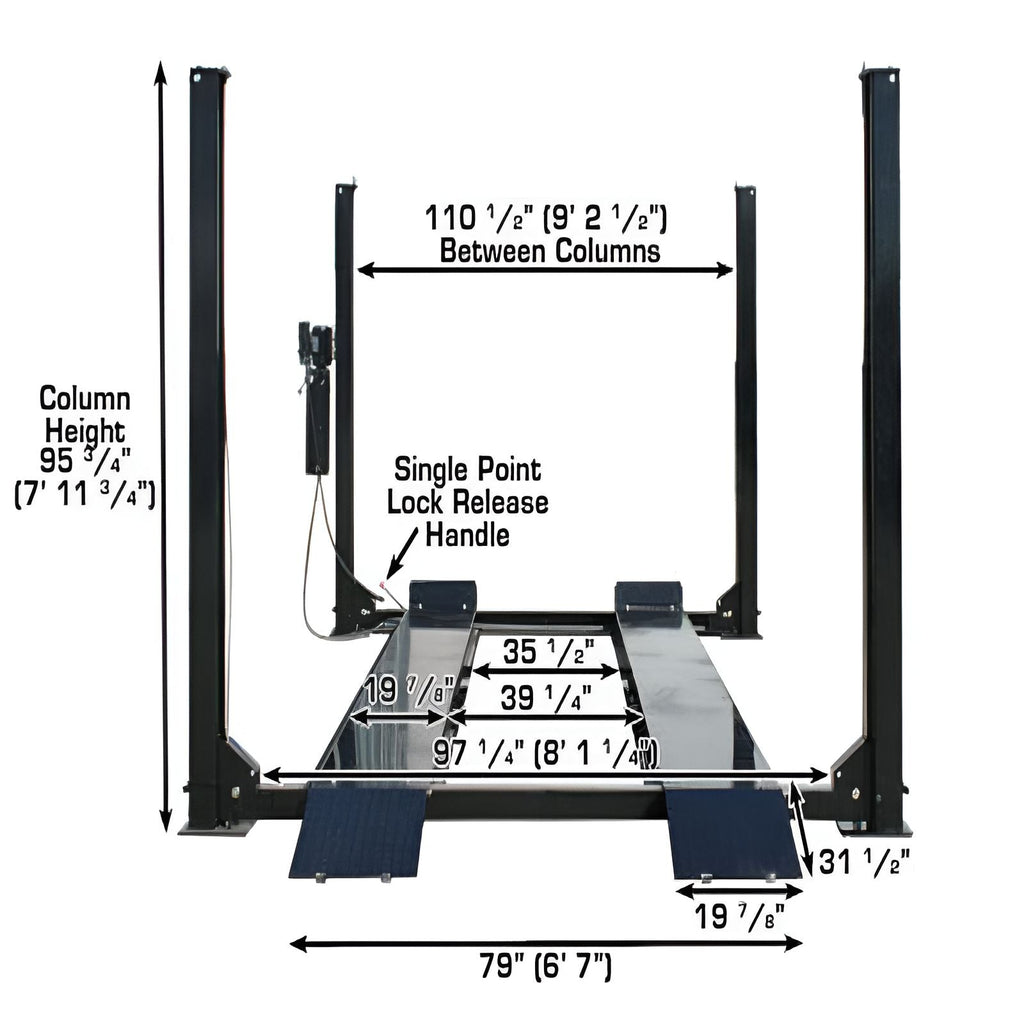

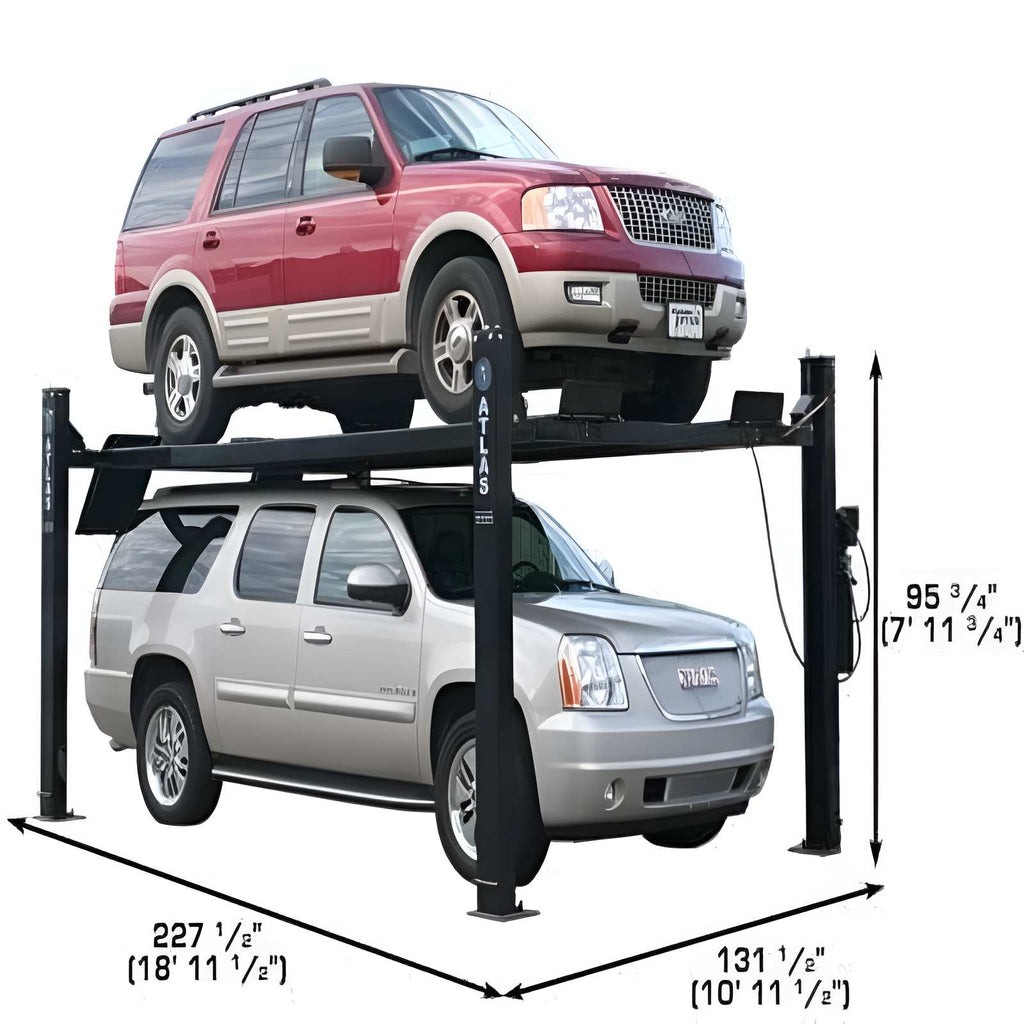

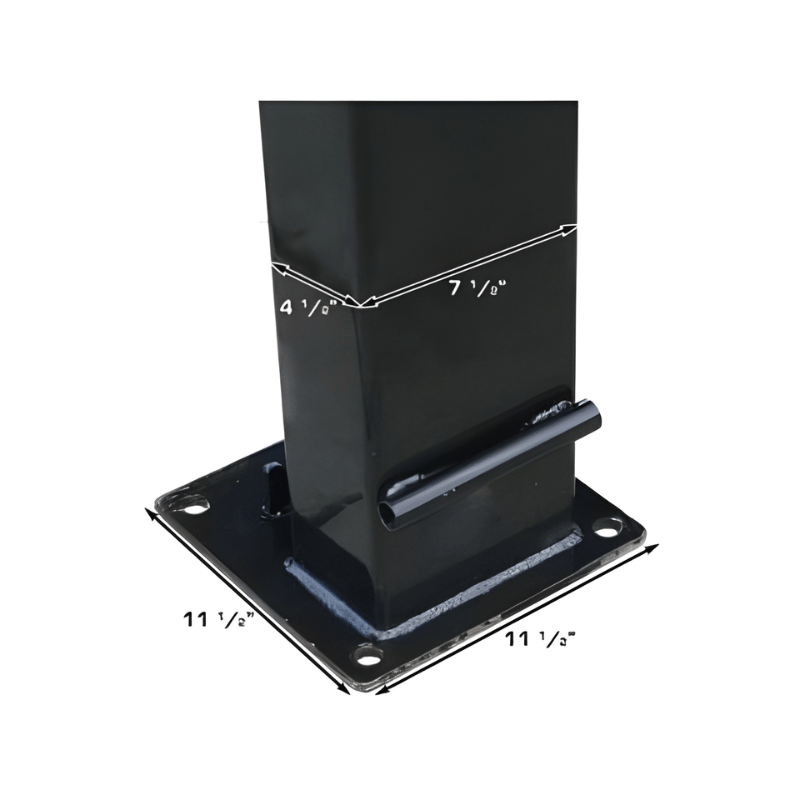

- Column Height: 95 3/4 in (7 ft 11 3/4 in)
- Overall Width Without Motor: 123 1/2 in (10 ft 3 1/2 in)

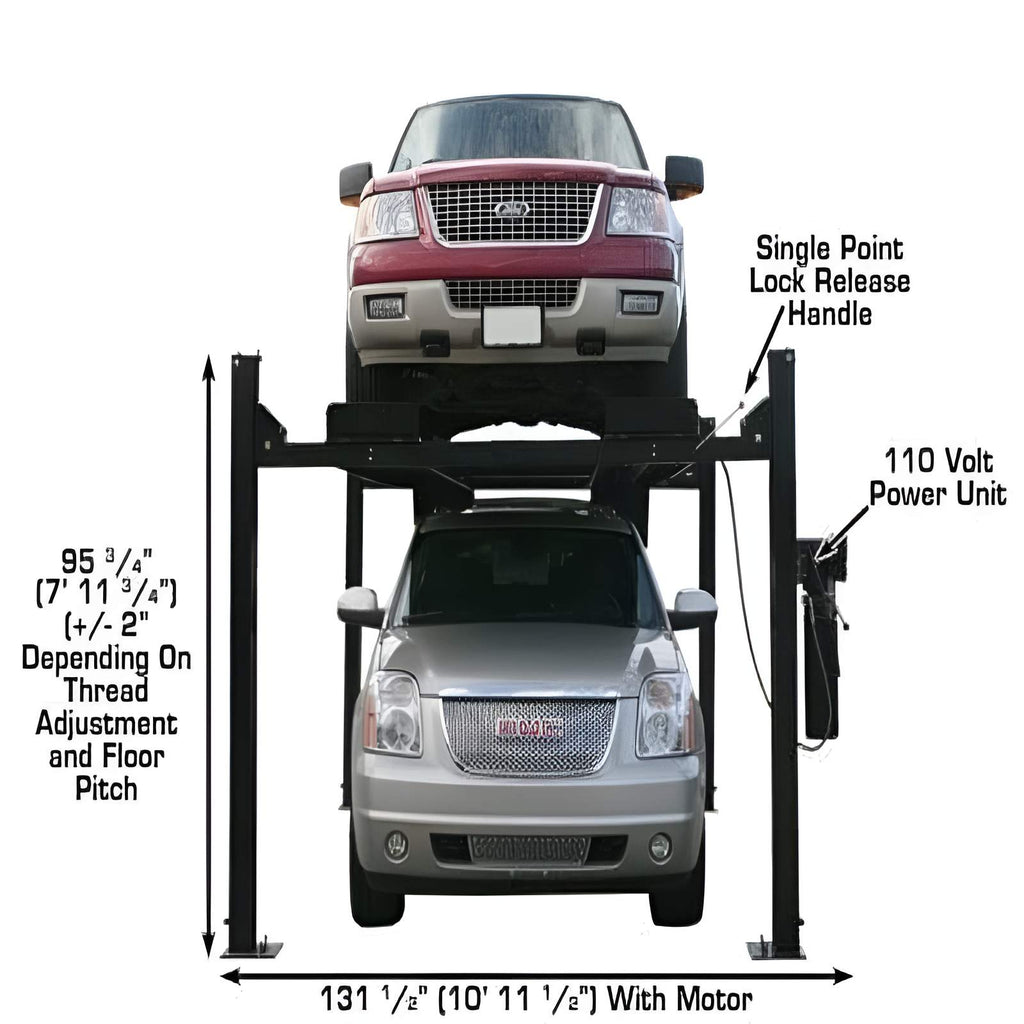

- Overall Width With Motor: 131 1/2 in (10 ft 11 1/2 in)

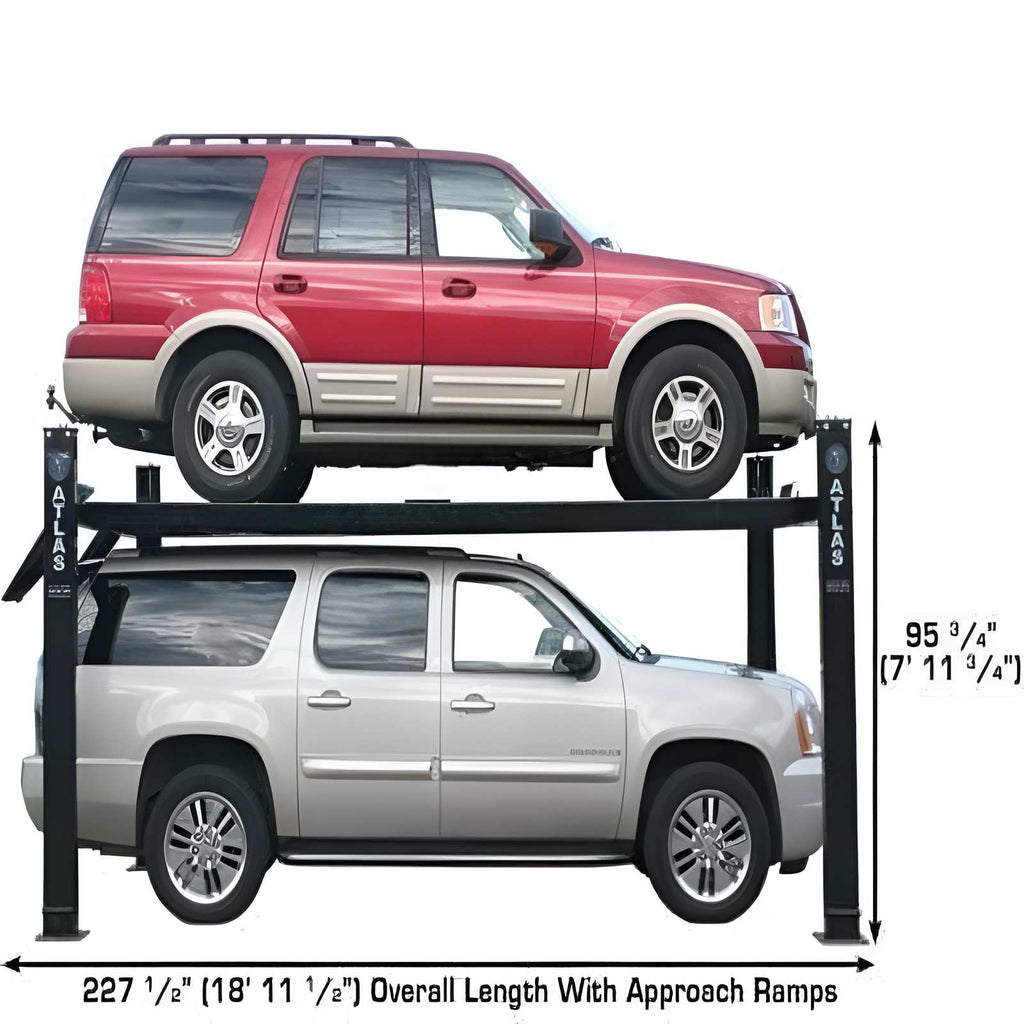

- Overall Length with Approach Ramp: 227 1/2 in (18 ft 11 1/2 in)
- Approach Ramp Length: 31 in
- Runway Length: 199 1/2 in (16 ft 7 1/2 in)

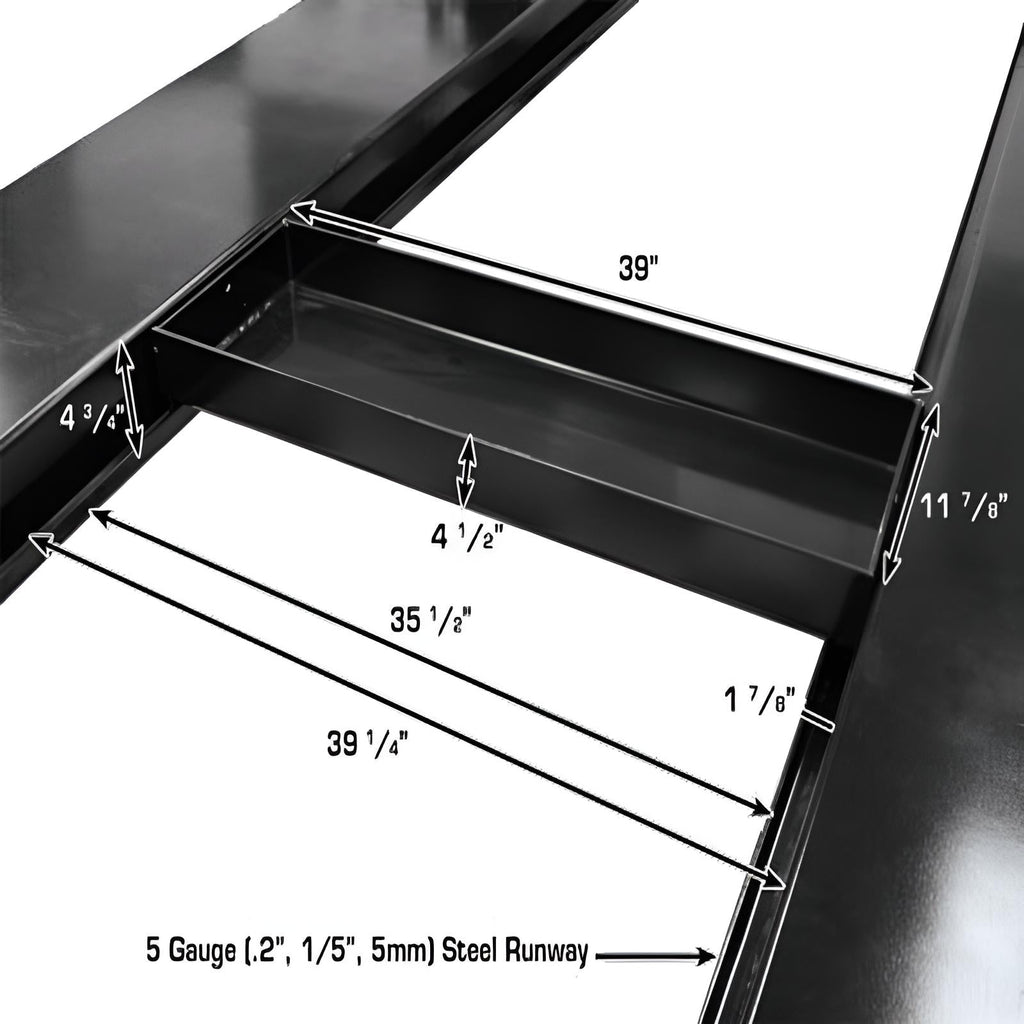

- Runway Width with Rails: 21 1/4 in
- Driving Surface Width: 20 in
- Runway Thickness: 4 3/4 in
- Width Between Runways: 39 3/4 in
- Width Between Runway Rails: 35 1/2 in
- Outside Runway to Outside Runway: 79 in
- Clearance Between Columns: 110 1/2 in
- Length Between Columns: 184 1/2 in
- Drive-Through Width, Outside Tire to Outside Tire: 97 1/4 in
PRO9000 Power & Installation
- Electrical Requirement: 110V
- Breaker Requirement: 30 amp
- Concrete Thickness: Minimum 4 in
- Concrete Strength: 3,000 PSI minimum
RJ6 Rolling Bridge Jacks
- Quantity Included: 2
- Capacity: 6,000 lbs each

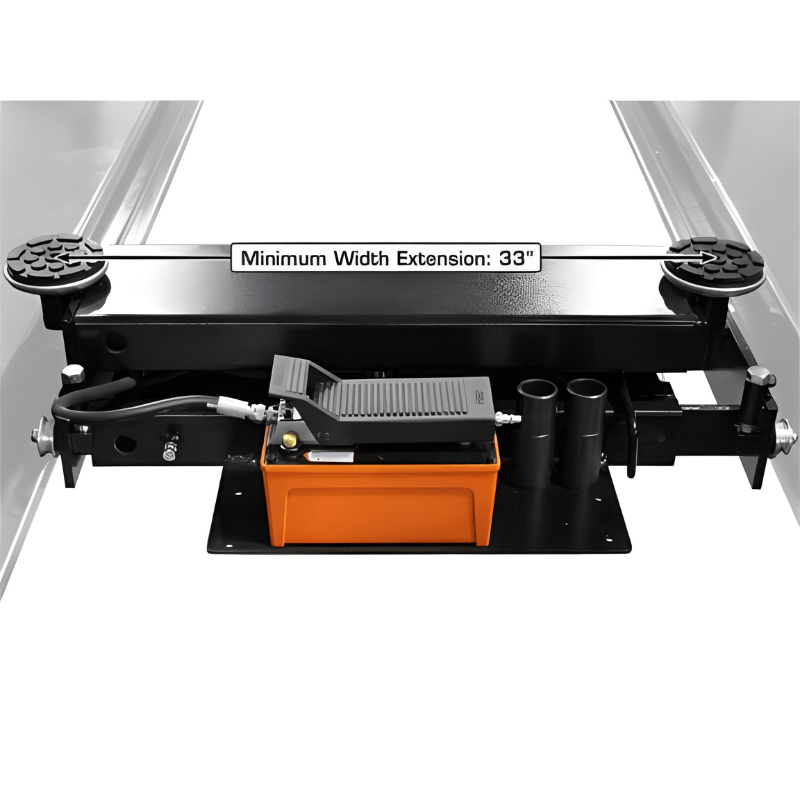

- Minimum Width: 35 in (2 ft 11 in)
- Maximum Width: 55 in (4 ft 7 in)
- Runway Spacing Capability: 32–52 in

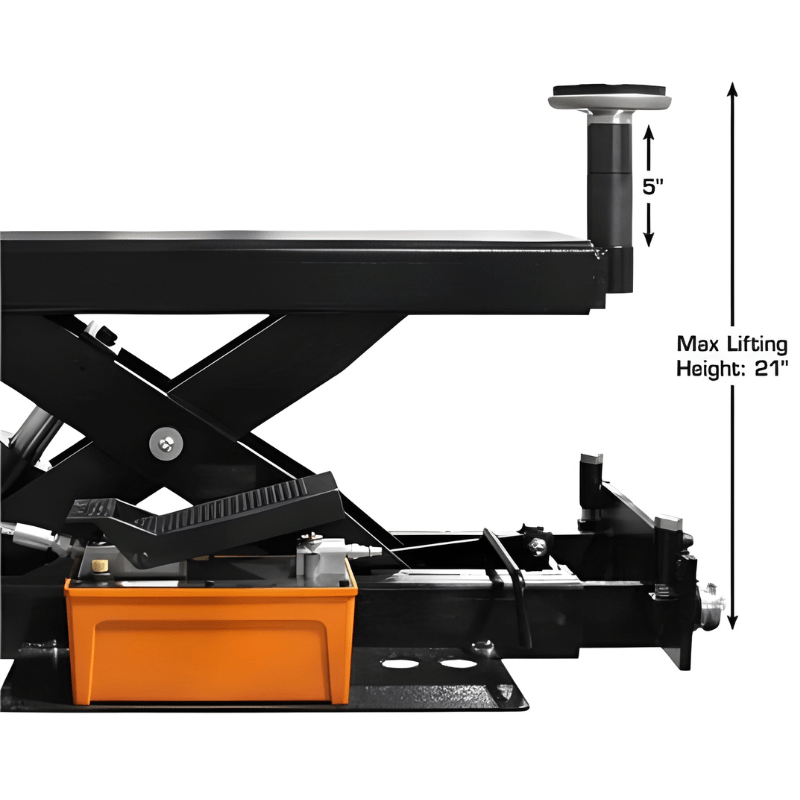

- Maximum Lifting Height with Adapters: 21 in
- Operation: Air/hydraulic
- Air Requirement: 70–115 PSI

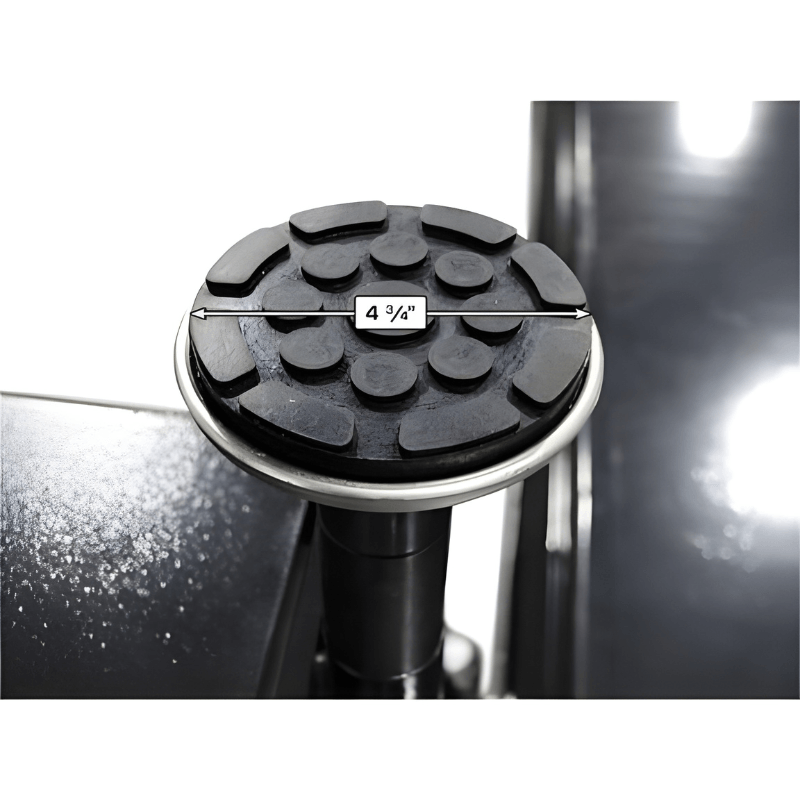

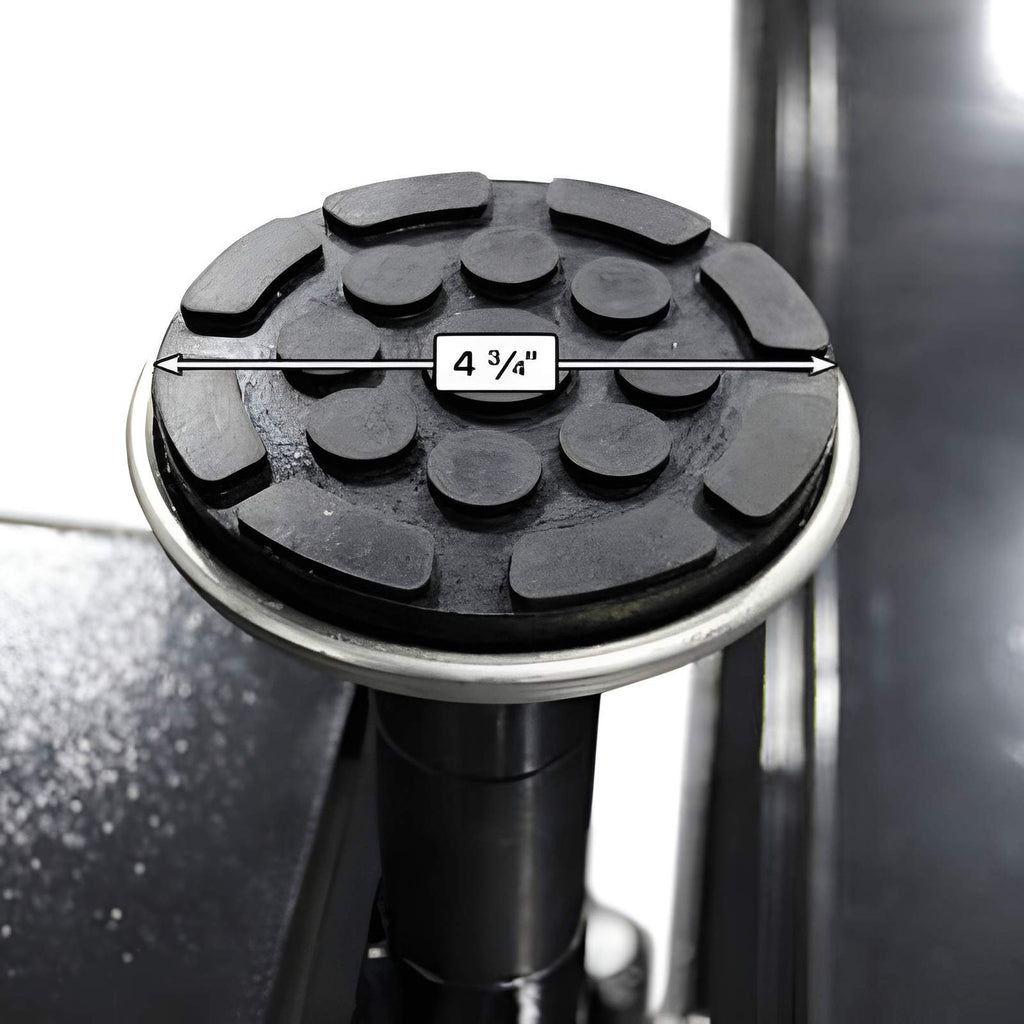

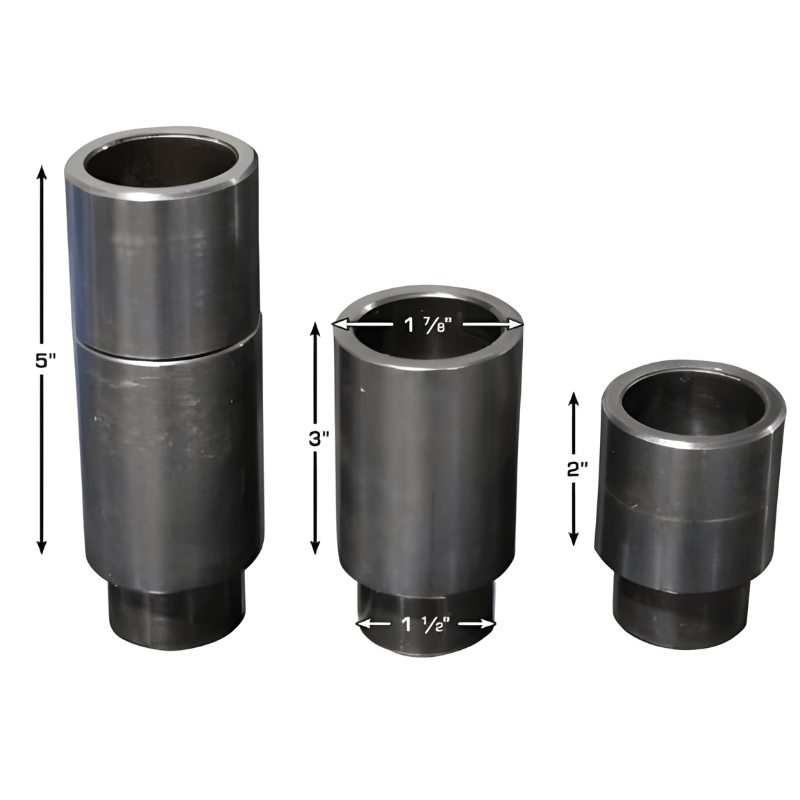

- Adapter Peg Size: 1.5 in
- Adapter Heights: Two each, 2 in and 3 in
- Included Adapters: Four-piece truck adapter set per jack

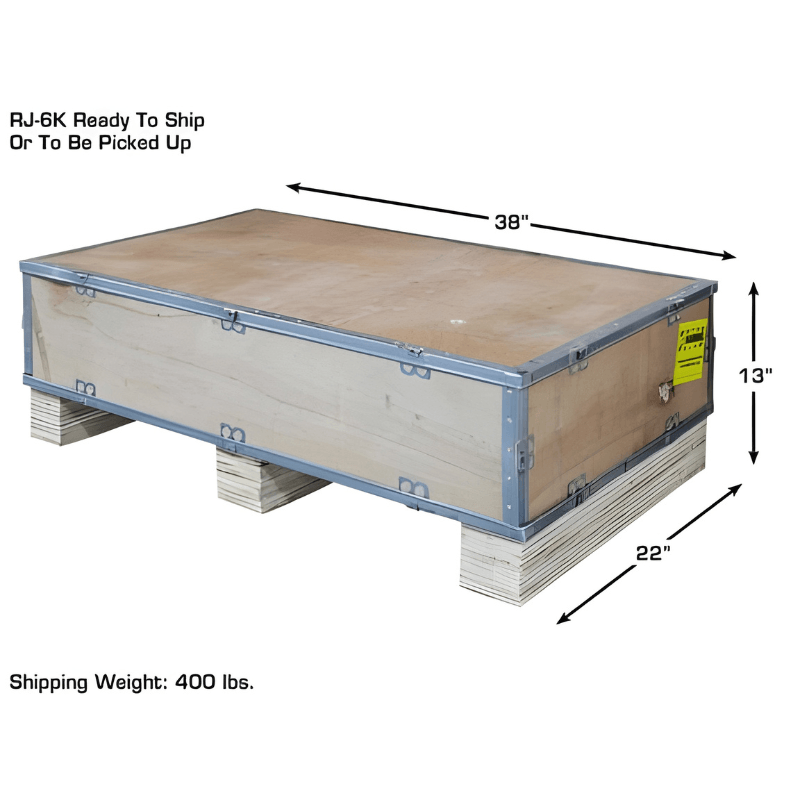

- Shipping Dimensions per Jack: 38 x 22 x 13 in
- Shipping Weight per Jack: 350 lbs
Included Accessories & Warranty
- PRO9000 Accessories: Caster kit, steel approach ramps, steel jack tray, four plastic drip trays, and two rubber wheel chocks
- RJ6 Accessories: Four-piece truck adapter set per jack
- PRO9000 Structural Warranty: 2 years
- PRO9000 Hydraulic Warranty: 1 year, parts only
- RJ6 Warranty: 1 year, parts only
- PRO9000 Shipping Weight: 2,300 lbs
- PRO9000 Shipping Dimensions: 202 1/4 x 21 1/2 x 18 1/4 in (as listed by supplier)
Downloads
- Atlas Automotive PRO9000 Product Manual (PDF)
- Atlas PRO9000 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The PRO9000 requires a suitable concrete surface and the specified electrical supply. Both RJ6 rolling bridge jacks require an external compressed-air supply, which is not included. Verify vehicle weight, dimensions, lifting points, runway spacing, and adapter compatibility before use. Follow all manufacturer installation, operating, and safety instructions.
