Description
Heavy-Duty 9,000 lb Capacity. Extra-Wide Runways. Includes Two 3,500 lb Sliding Bridge Jacks for Complete Vehicle Storage and Service.

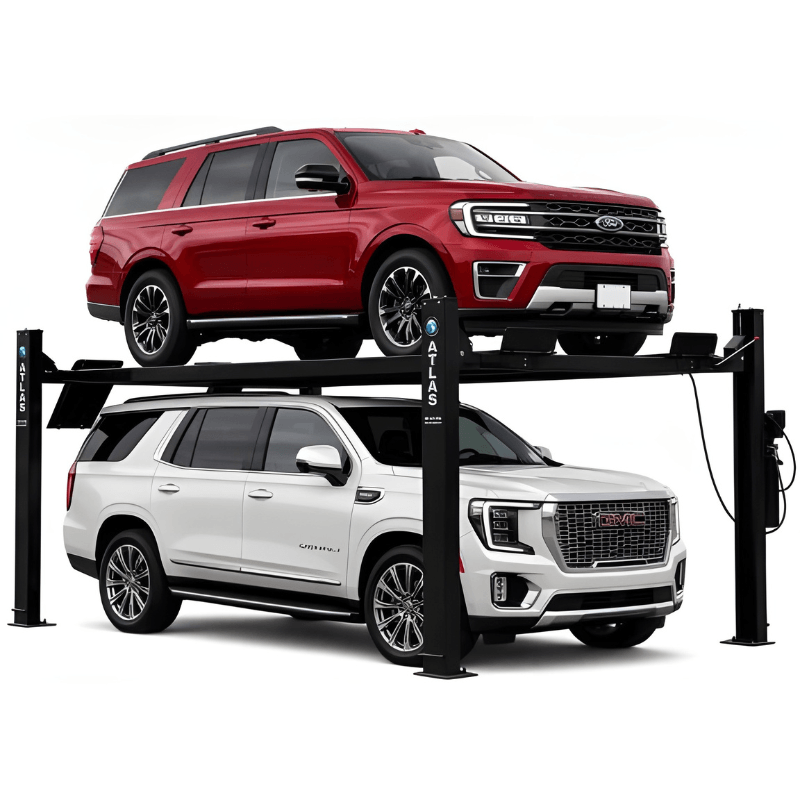

The Atlas Automotive PRO9000 9,000 lb 4-Post Lift + (2) RJ35 Sliding Bridge Jack Combo is designed for automotive shops, home garages, and vehicle enthusiasts who need substantial lifting capacity, extended runway length, and additional working space for larger vehicles. With a 9,000 lb lifting capacity, extra-wide configuration, and extended runways, the PRO9000 accommodates a broad range of vehicles, including passenger cars, SUVs, full-size pickups, and many diesel dually trucks.

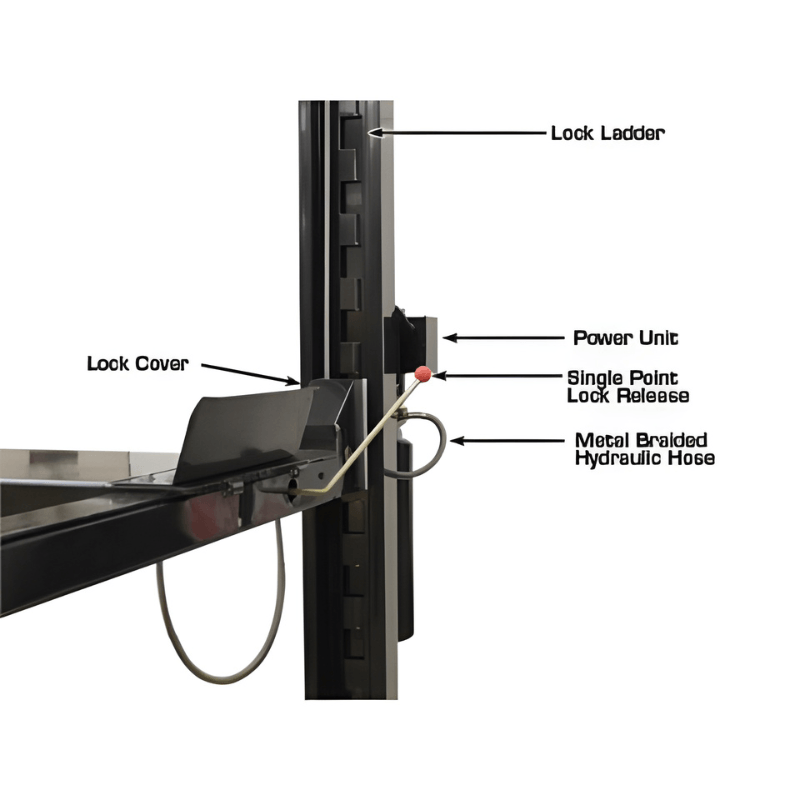

Built around a heavy-duty four-post design, the PRO9000 features a free-standing configuration and an included caster kit with polyurethane wheels to support relocation when needed. Its single-point lock release, lock ladder system, and double-lock safety system provide convenient operation and additional security when raising and lowering vehicles. The included steel approach ramps, steel jack tray, four plastic drip trays, and two rubber wheel chocks add versatility for everyday vehicle storage and service applications.

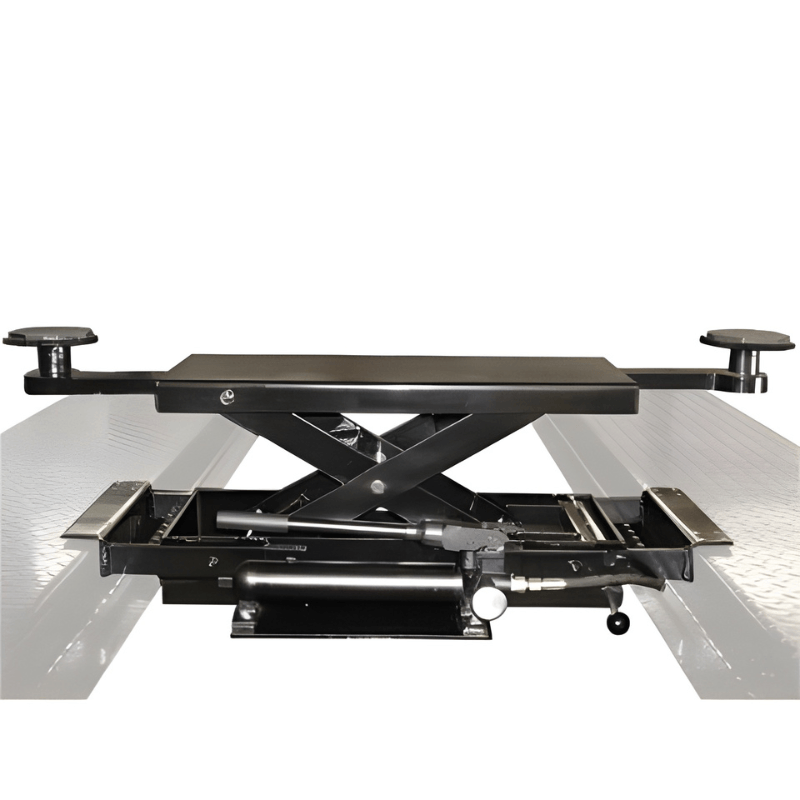

This combo includes two Atlas RJ35 sliding bridge jacks, each rated for 3,500 lbs, allowing you to lift a vehicle off the runways for wheel-free access during tire changes, brake service, suspension work, and other maintenance tasks. Each jack features a manual hand-pump lifting system, adjustable lift arms, a compact low-profile design, and multiple safety lock positions. The scissor lifting mechanism supports level lifting, while the included four-piece truck adapter set helps accommodate a wider range of lifting points.
With a maximum lifting height of 85 inches to the top of the runways and 80 1/4 inches of clearance underneath, the PRO9000 provides substantial vertical space for vehicle storage and maintenance. Its generous 199 1/2-inch runways, 110 1/2-inch clearance between columns, and 97 1/4-inch drive-through width measured from outside tire to outside tire help accommodate many larger vehicles. The 187-inch maximum wheelbase further expands compatibility with longer vehicles.
Whether you're maximizing garage storage, servicing full-size trucks, or equipping a professional automotive shop, the Atlas PRO9000 and dual RJ35 sliding bridge jack combo combines elevated vehicle storage with the convenience of two independently operated rolling jacks in one versatile lifting package.
Perfect for: Home garages • Full-size pickups • Diesel dually trucks • SUVs • Vehicle storage • Tire and brake service • Suspension work • Automotive repair shops
Benefits of the Atlas Automotive PRO9000 + (2) RJ35 Combo
The 9,000 lb capacity, extended runways, and extra-wide configuration accommodate a broad range of vehicles, including full-size pickups, SUVs, and many diesel dually trucks. Always verify vehicle weight, wheelbase, track width, and lifting-point compatibility before use.
The four-post lift provides elevated vehicle storage, while the two included RJ35 bridge jacks allow you to raise a vehicle's wheels off the runways for additional maintenance access. The two-jack configuration provides greater flexibility when positioning lifting equipment for service work.
Each RJ35 jack uses a manual hand pump and scissor lifting mechanism to raise a vehicle from the runways. This allows access to tires, brakes, and other wheel-end components without relying on the runways alone.
With 199 1/2-inch runways, a 187-inch maximum wheelbase, and generous clearance between the columns, the PRO9000 provides the space needed to accommodate many longer and wider vehicles.
The RJ35 jacks feature adjustable widths and lift arms to accommodate a variety of vehicle lifting points and compatible four-post lift configurations. Multiple safety lock positions help support secure operation when used according to the manufacturer's instructions.
The PRO9000's single-point lock release, lock ladder design, and double-lock safety system simplify operation. The RJ35 jacks add their own safety lock positions and scissor lifting mechanisms for maintenance applications.
The free-standing design and included caster kit support relocation when needed, making the PRO9000 a versatile option for changing shop layouts. Installation, movement, and operation must follow the manufacturer's requirements, including applicable floor and concrete specifications.
Features
Lift Capacity & Design
- 9,000 lb lifting capacity
- Heavy-duty, free-standing four-post design
- Extra-wide and extended-runway configuration
- Designed for many full-size and heavy-duty vehicles
Lifting Height & Access
- 85-inch lifting height to the top of the runways
- 80 1/4-inch clearance underneath the runways
- 199 1/2-inch runway length
- 31-inch steel approach ramps
- 187-inch maximum wheelbase

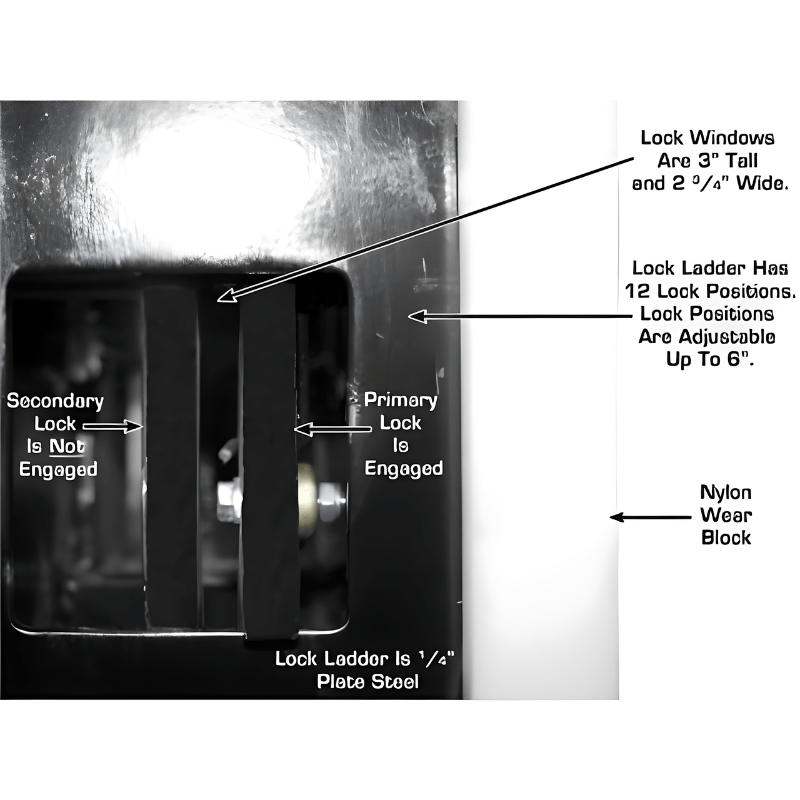

Lock System & Safety
- Single-point lock release
- Lock ladder design

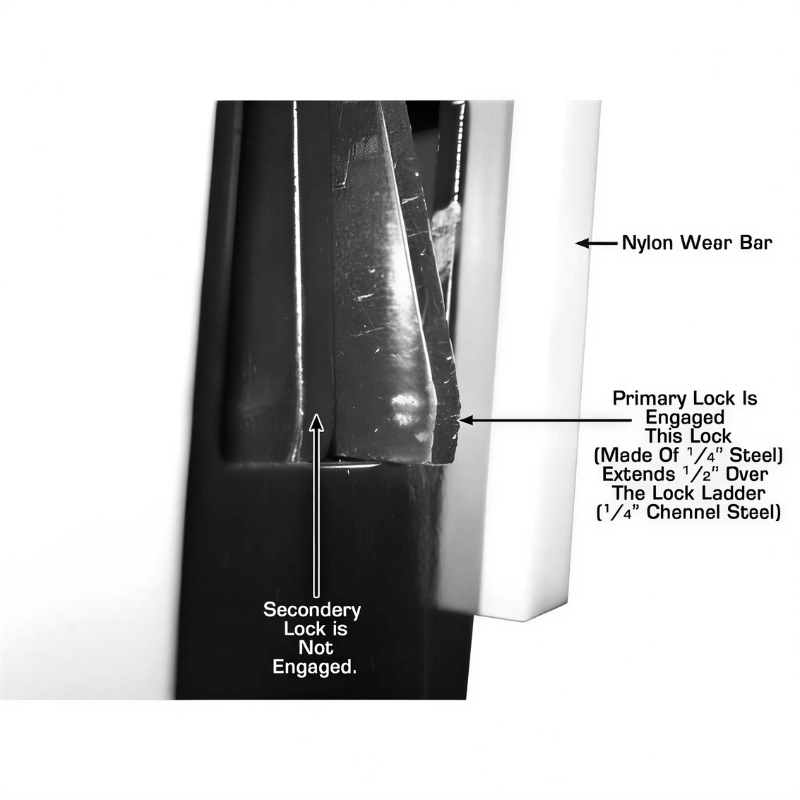

- Double-lock safety system
- RJ35 jacks include multiple safety lock positions
Dual RJ35 Sliding Bridge Jacks
- Two jacks included
- 3,500 lb capacity per jack

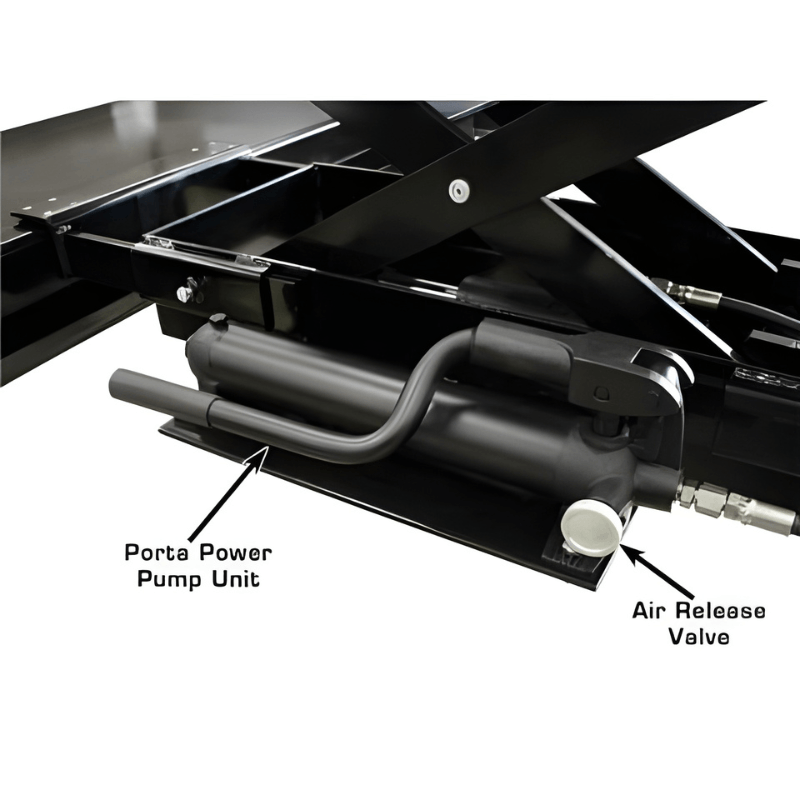

- Manual hand-pump operation
- Adjustable width from 29 1/2 to 64 3/4 inches
- Adjustable lift arms for varied lifting points
- Scissor mechanism supports level lifting

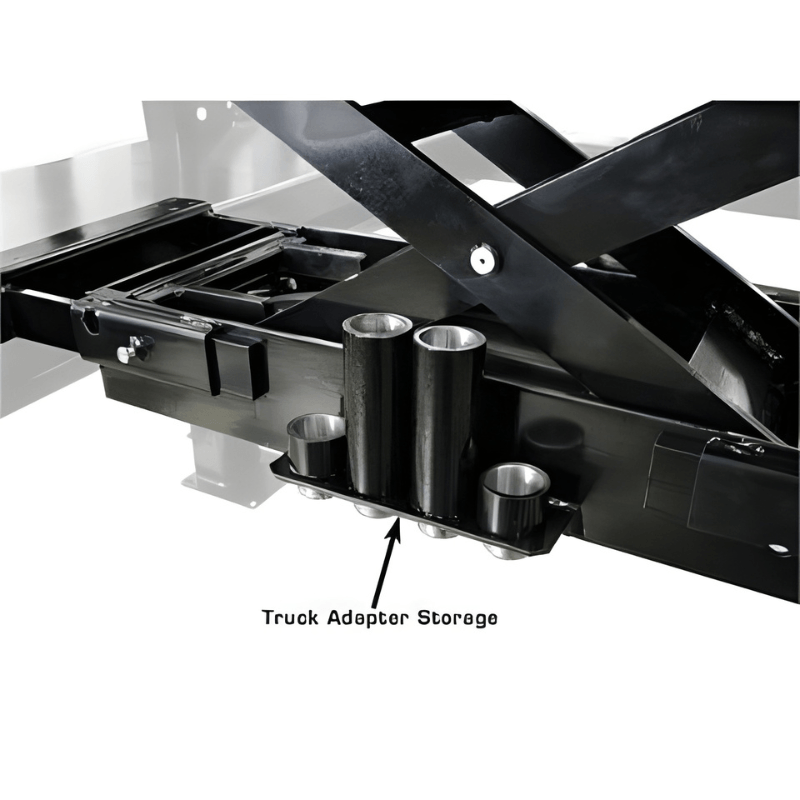

- Four-piece truck adapter set included with each jack
Mobility & Accessories
- Caster kit with polyurethane wheels
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays

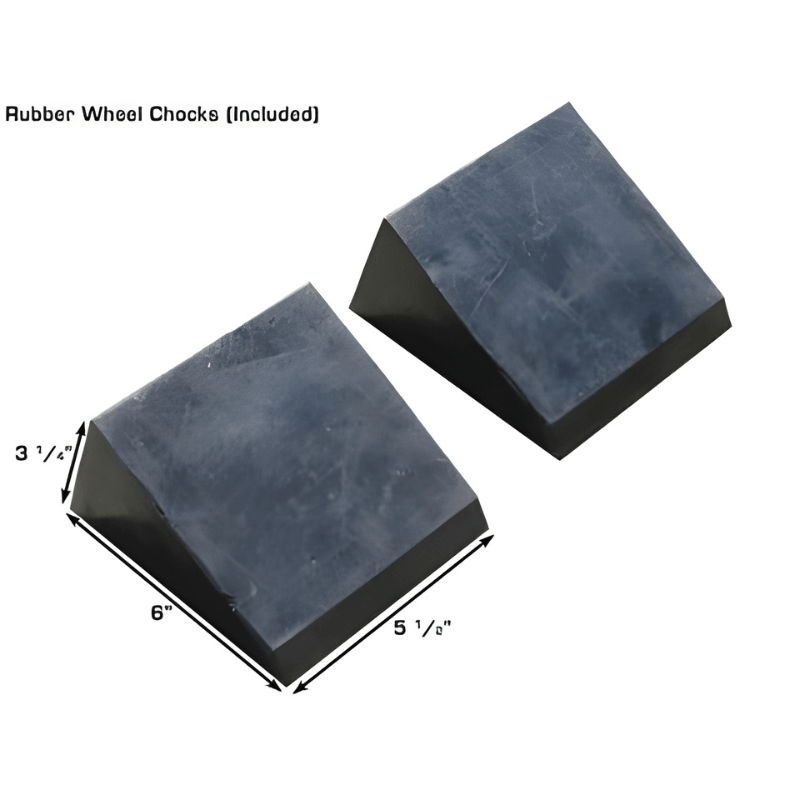

- Two rubber wheel chocks
- Truck adapters for RJ35 jacks
Power & Installation
- 110V electrical supply for the PRO9000
- 30-amp breaker required
- Minimum 4-inch-thick, 3,000 PSI concrete specified
- RJ35 jacks operate manually with a hand pump
- No compressed-air connection specified for the RJ35 jacks
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Model: PRO9000 + (2) RJ35
- Product Type: Four-Post Vehicle Lift with Two Sliding Bridge Jacks
- Lift Capacity: 9,000 lbs
- Jack Capacity: 3,500 lbs each
- Configuration: Four-post, free-standing design
Lifting Performance
- Lifting Height to Runway Top: 85 in (7 ft 1 in)
- Under-Runway Clearance: 80 1/4 in (6 ft 8 1/4 in)
- Maximum Wheelbase: 187 in (15 ft 7 in)
- Lock System: Lock ladder with single-point release
- Safety System: Double-lock design

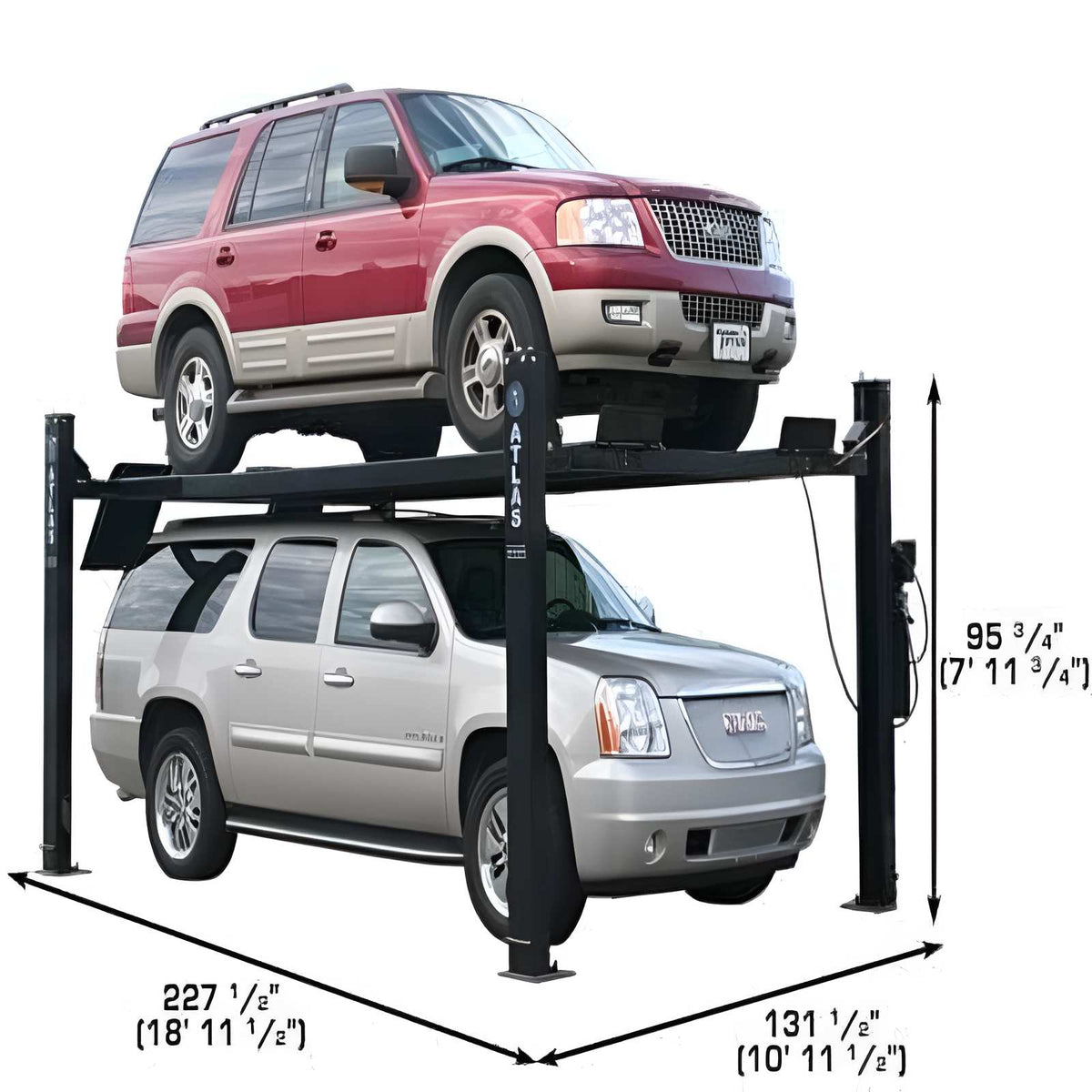

Structure & Dimensions

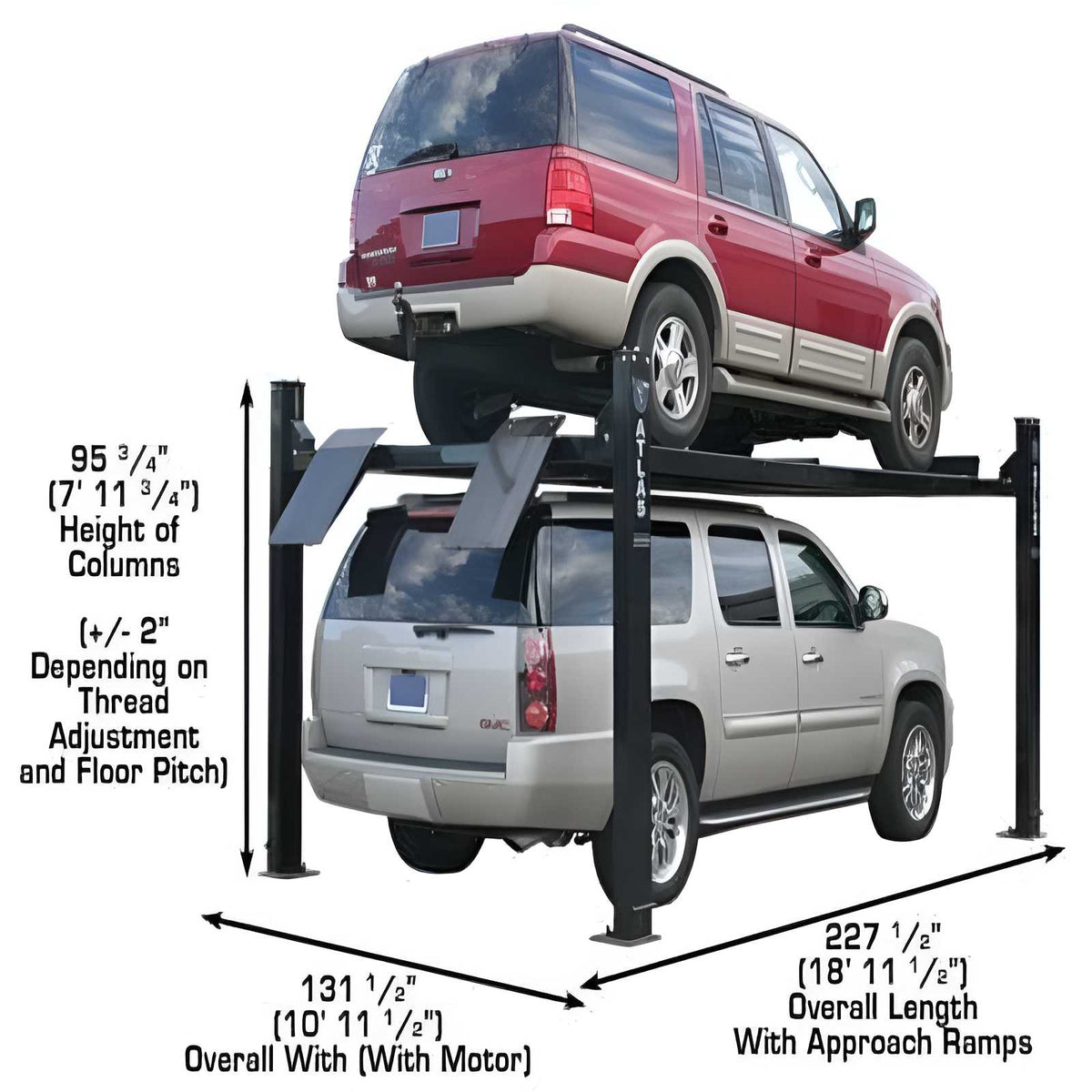

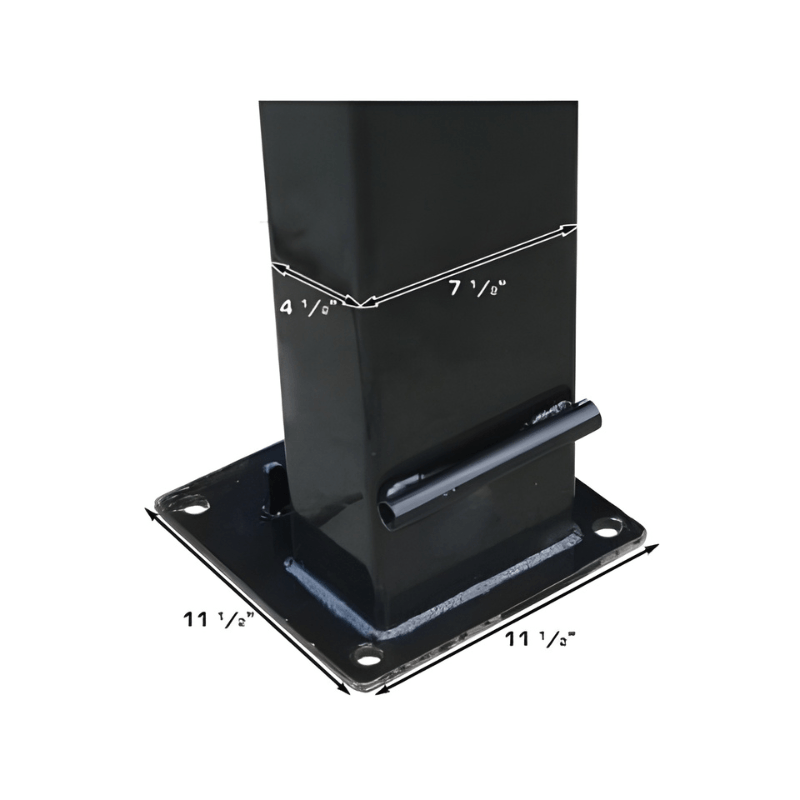

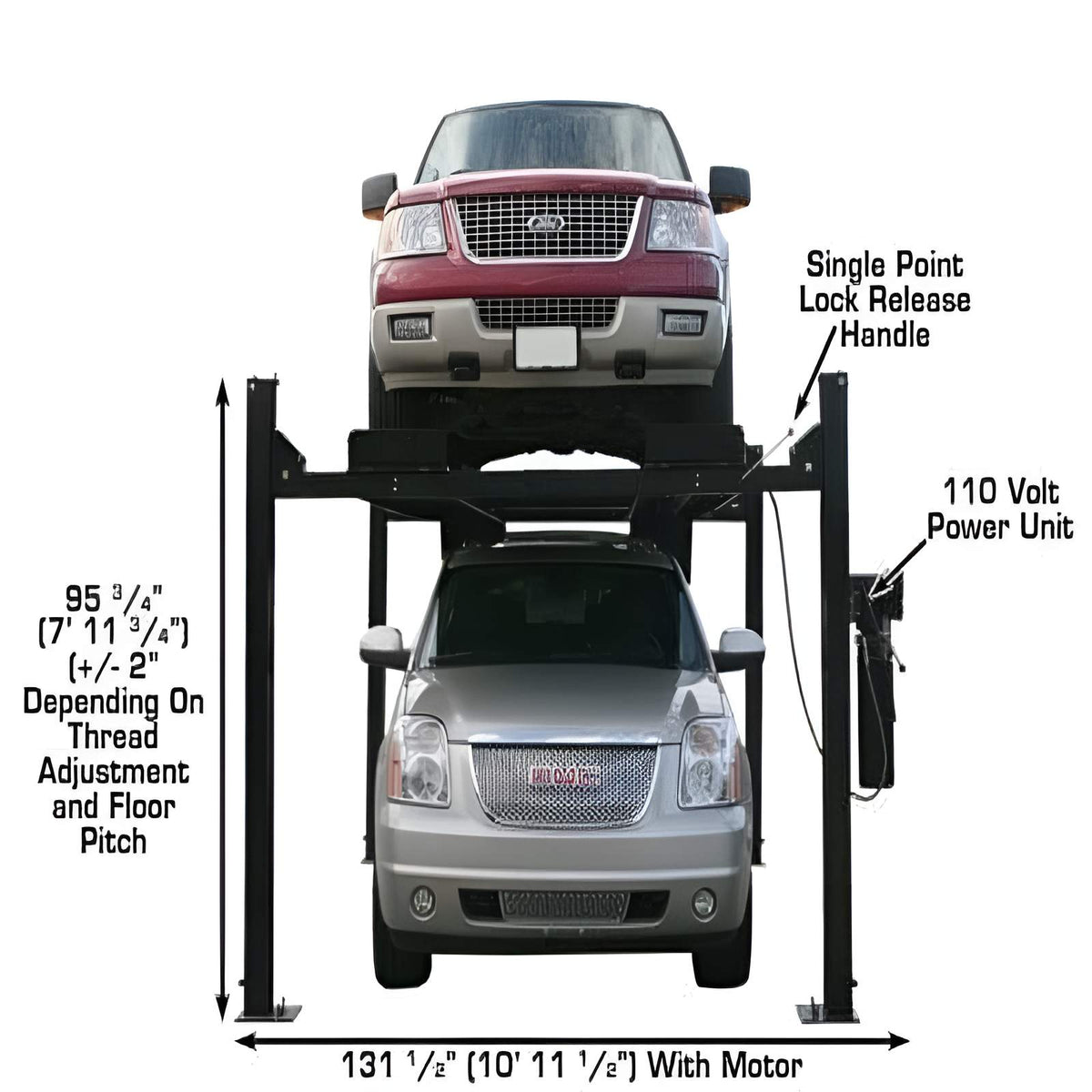

- Column Height: 95 3/4 in
- Overall Width Without Motor: 123 1/2 in
- Overall Width With Motor: 131 1/2 in

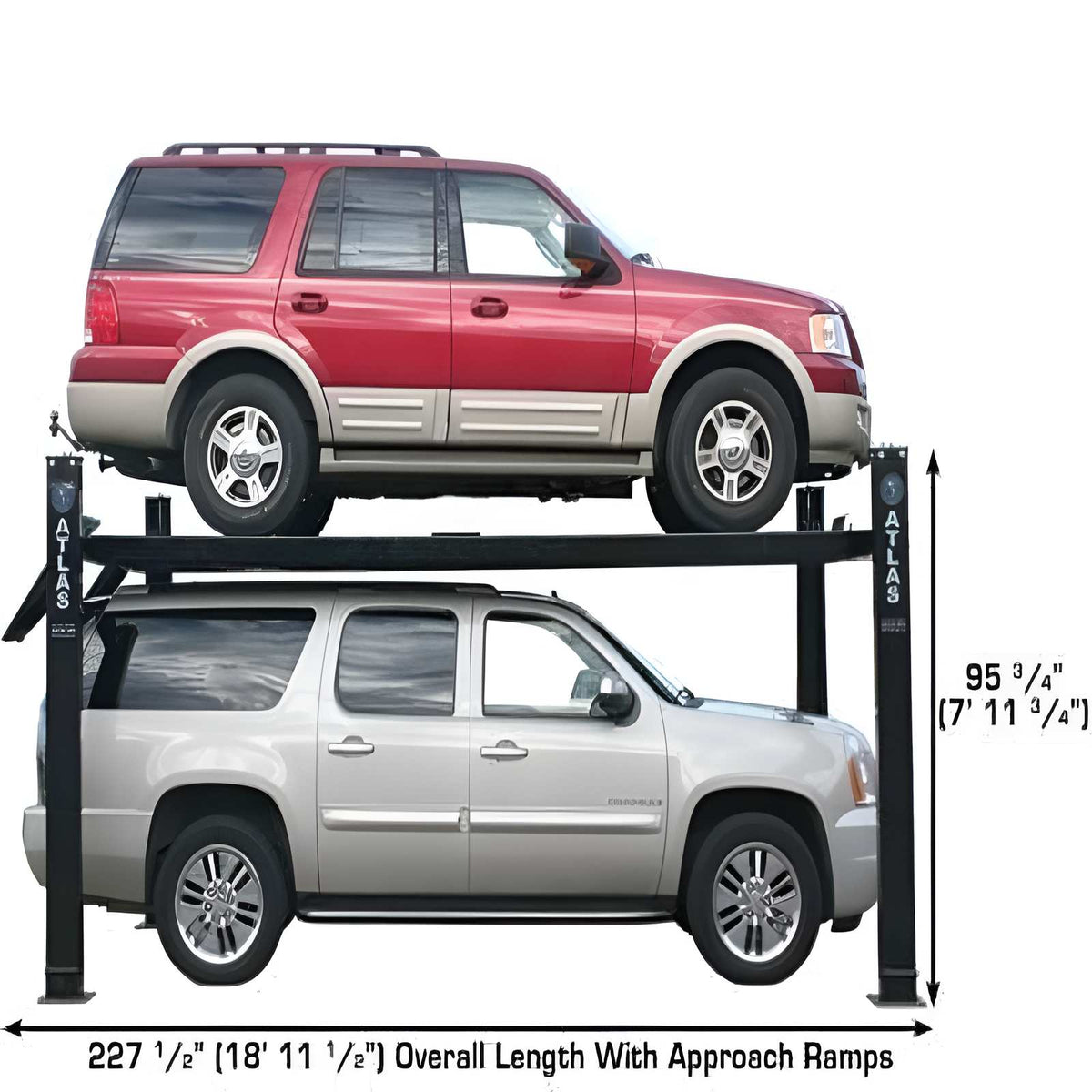

- Overall Length with Approach Ramp: 227 1/2 in (18 ft 11 1/2 in)
- Runway Length: 199 1/2 in
- Runway Width with Rails: 21 1/4 in
- Driving Surface Width: 20 in
- Runway Thickness: 4 3/4 in

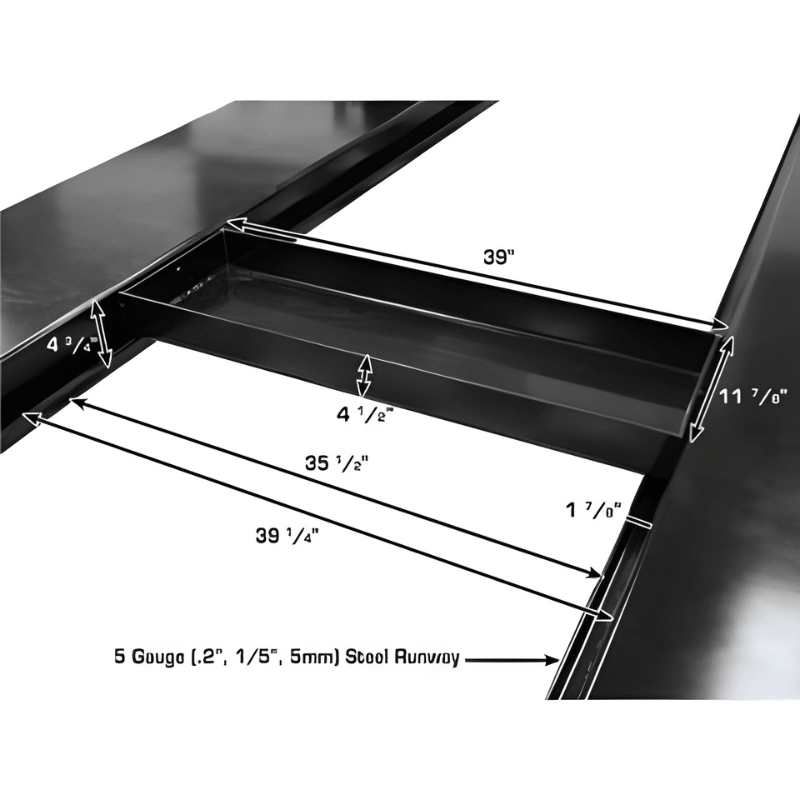

- Width Between Runways: 39 3/4 in
- Width Between Runway Rails: 35 1/2 in
- Outside Runway to Outside Runway: 79 in
- Clearance Between Columns: 110 1/2 in

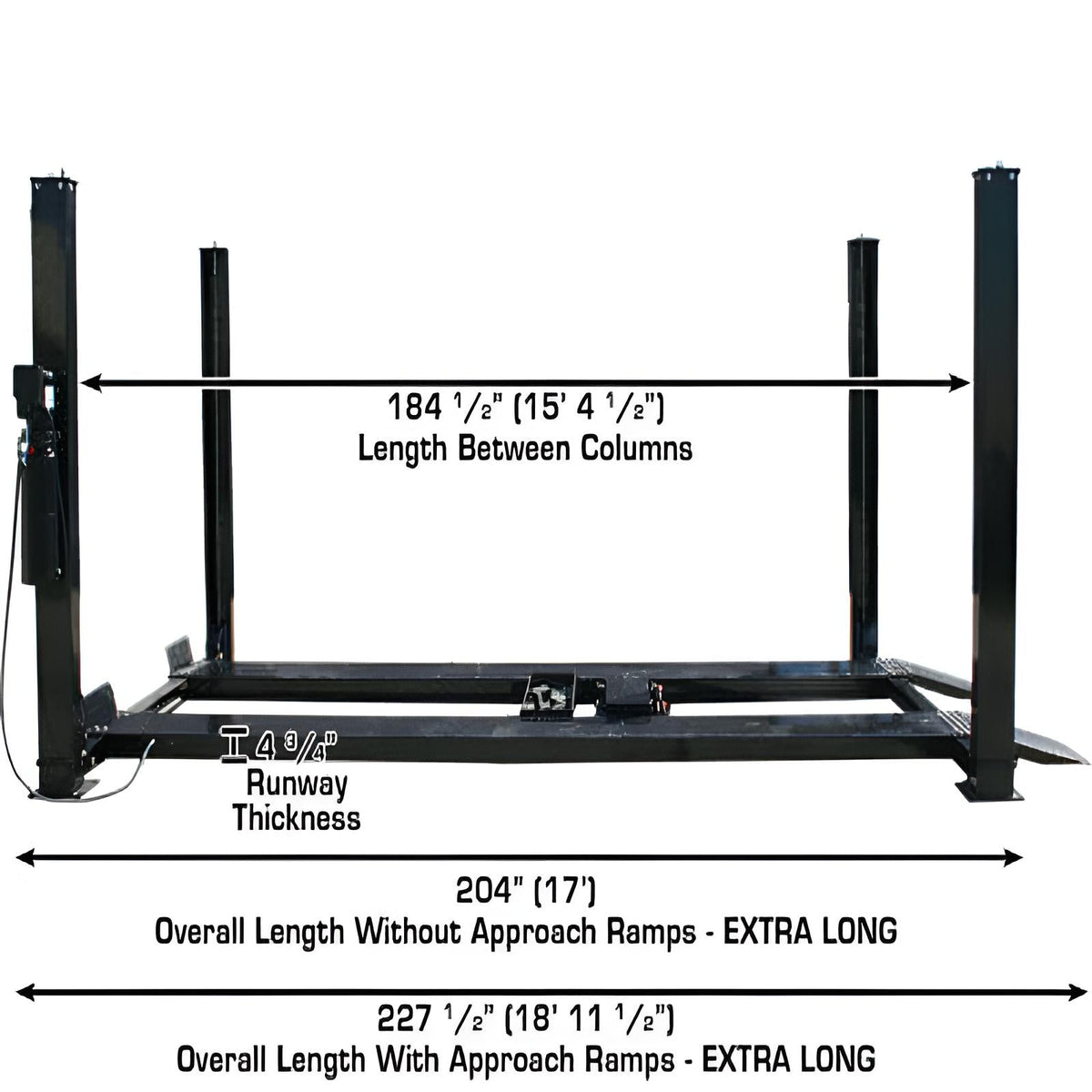

- Length Between Columns: 184 1/2 in
- Drive-Through Width, Outside Tire to Outside Tire: 97 1/4 in
- Approach Ramp Length: 31 in
Power & Installation
- Electrical Requirement: 110V
- Breaker Requirement: 30 amp
- Concrete Thickness: Minimum 4 in
- Concrete Strength: 3,000 PSI minimum

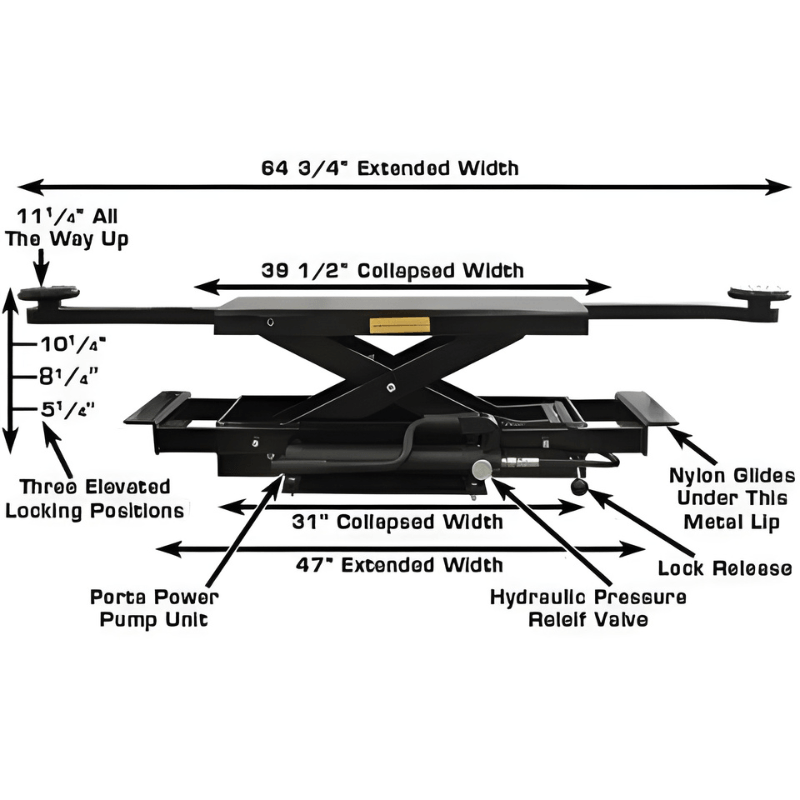

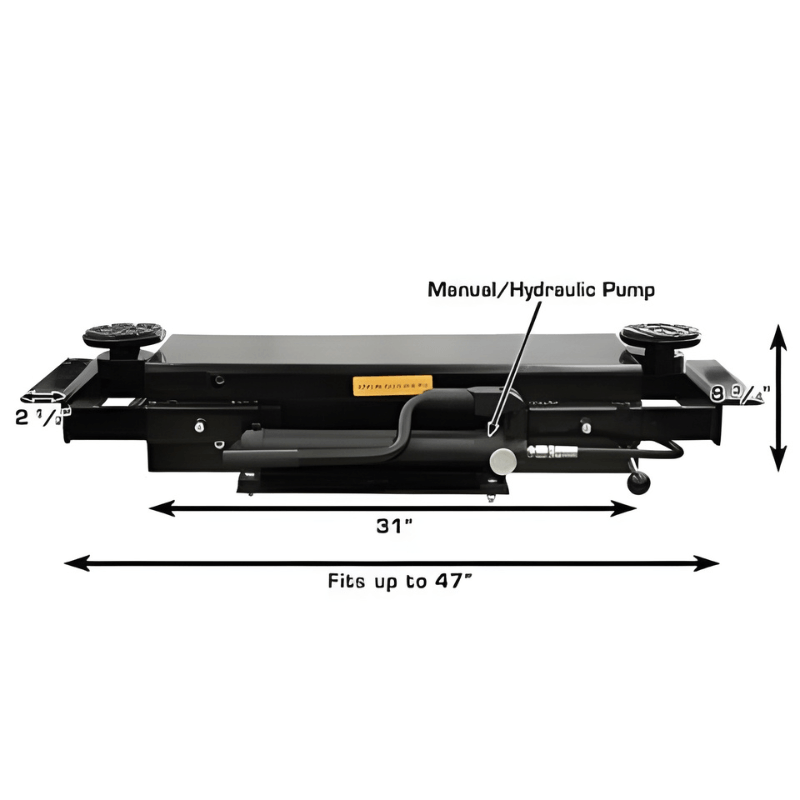

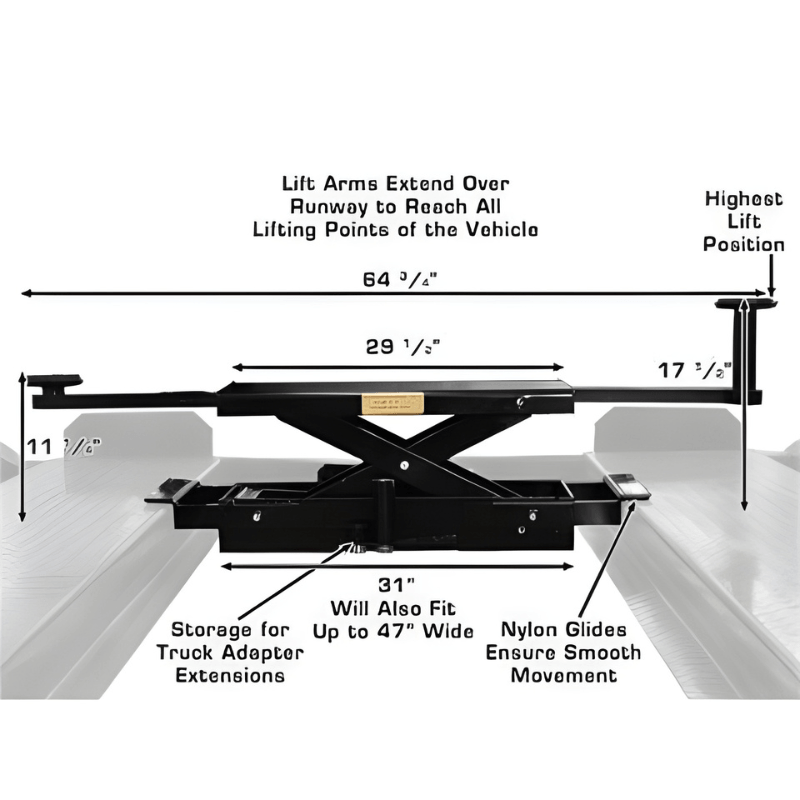

RJ35 Sliding Bridge Jacks (Each)
- Model: RJ35 / PROJACK35
- Maximum Capacity: 3,500 lbs
- Minimum Width: 29 1/2 in
- Maximum Width: 64 3/4 in
- Minimum Height with Pad Above Runway: 3 1/2 in (may vary by lift)
- Lift Pad Height Above Arm: 1 3/8 in

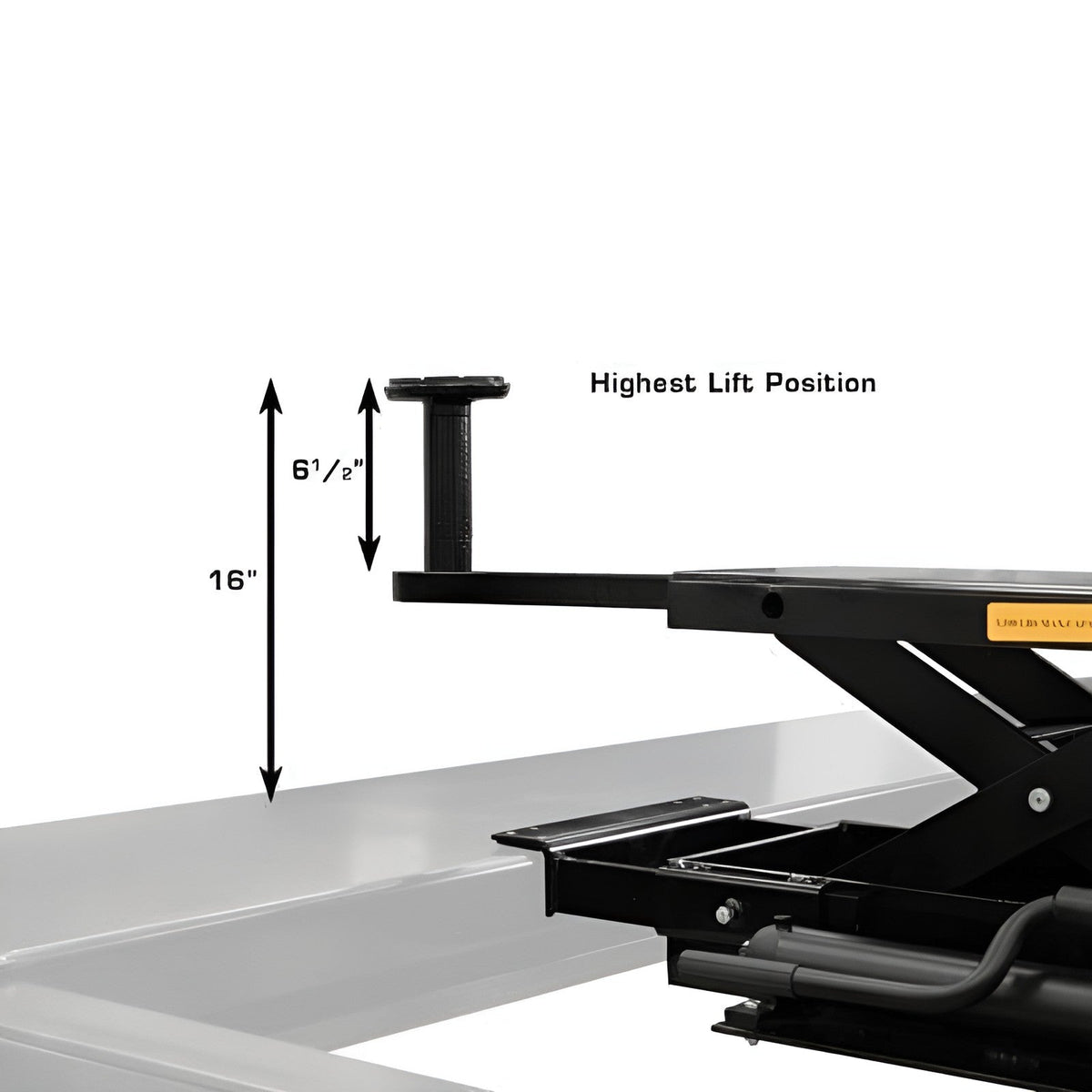

- Maximum Raised Height Without Adapters: 11 in
- Maximum Raised Height with Adapters: 17 1/4 in

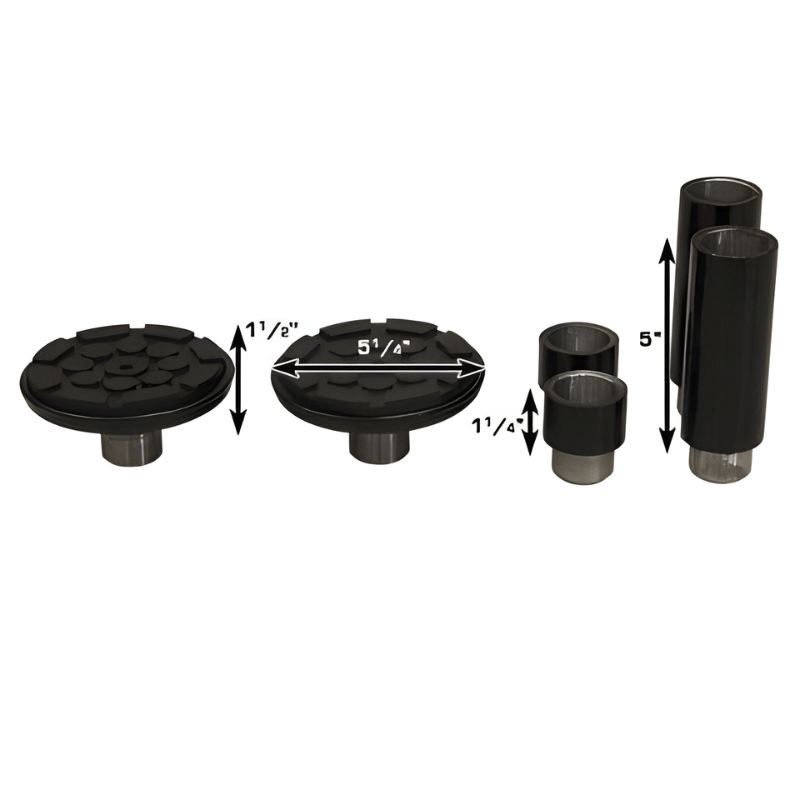

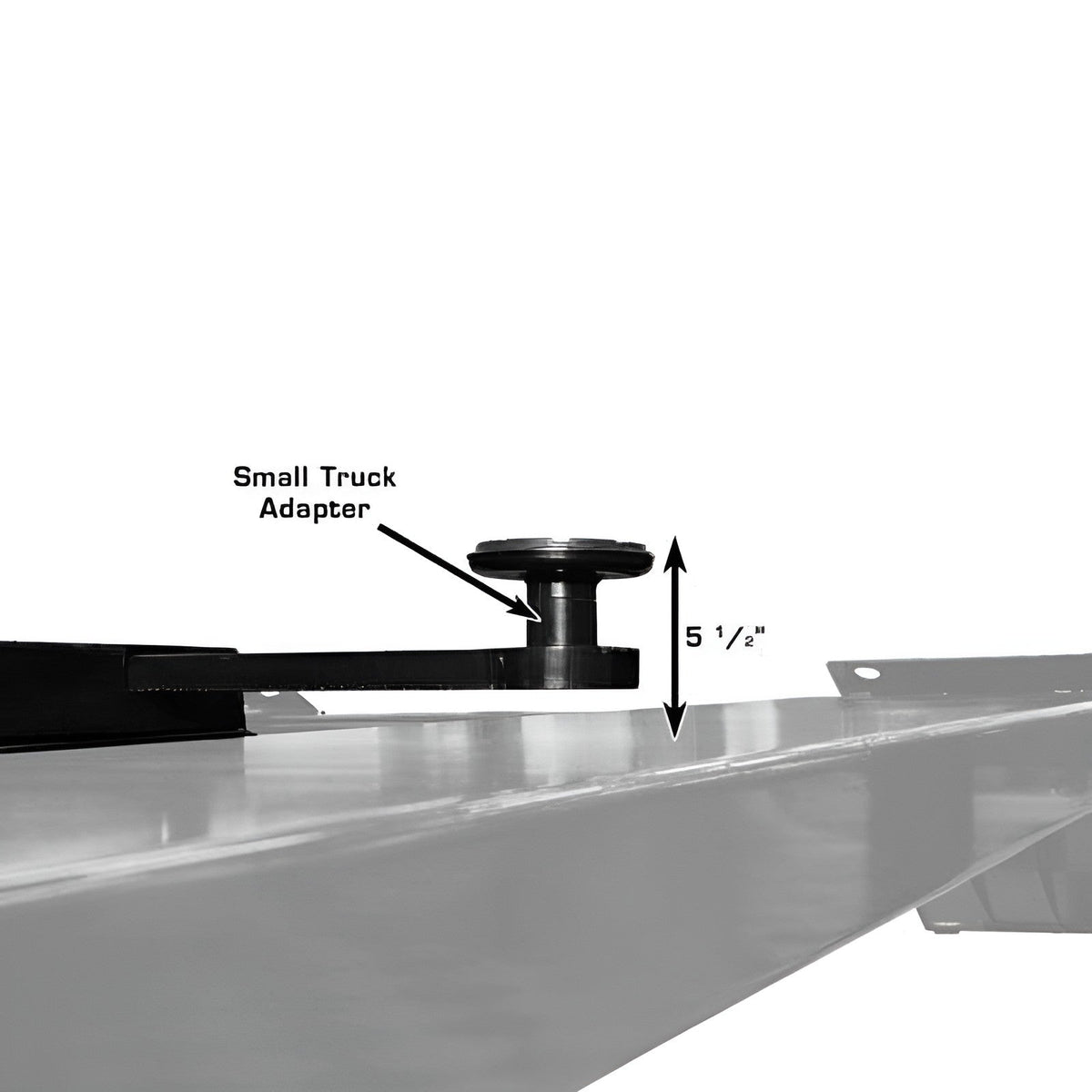

- Adapter Heights: Two each, 1.5 in and 5 in
- Arm Hole / Adapter Peg Size: 1.5 in
- Operation: Manual hand pump
- Shipping Weight: 350 lbs each
Shipping & Warranty

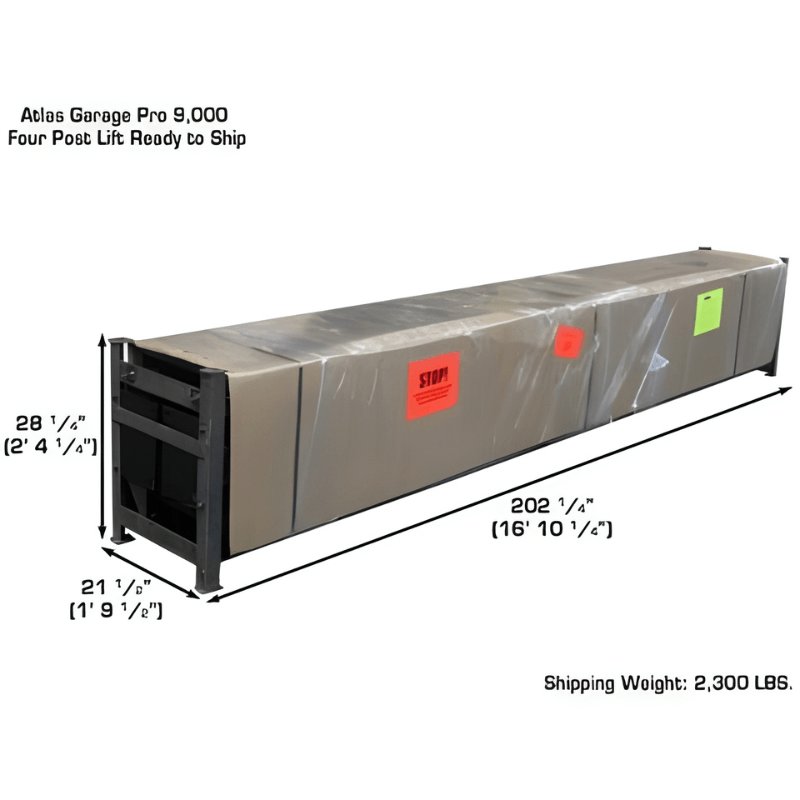

- PRO9000 Shipping Dimensions: 202 1/4 x 21 1/2 x 18 1/4 in (as supplied)
- PRO9000 Shipping Weight: 2,300 lbs

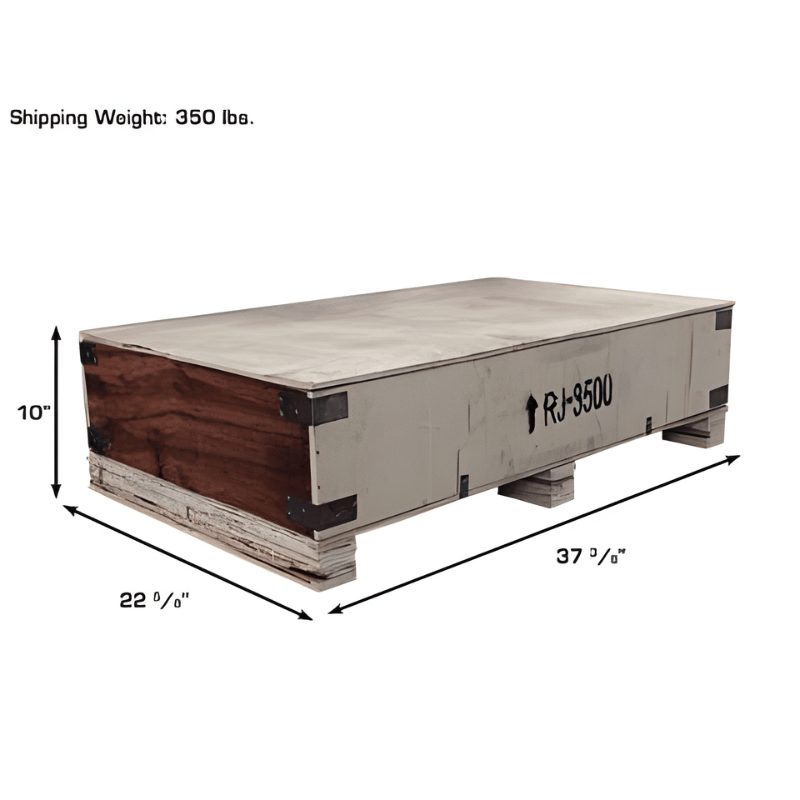

- RJ35 Shipping Dimensions: 22 5/8 x 37 3/8 x 10 in per jack
- RJ35 Shipping Weight: 350 lbs per jack
- PRO9000 Warranty: 2-year structural and 1-year hydraulic, parts only
- RJ35 Warranty: 1-year parts-only warranty
- Freight Delivery: Oversized shipment; freight-terminal delivery is unavailable
Downloads
- Atlas Automotive PRO9000 Product Manual (PDF)
- Atlas PRO9000 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The PRO9000 requires a suitable concrete surface and the specified electrical supply. The included RJ35 sliding bridge jacks are manually operated and must be used only with compatible lifts and approved lifting points. Verify vehicle weight, dimensions, wheelbase, lifting points, and adapter compatibility before use. Follow all manufacturer installation, operating, and safety instructions.
