Description
Heavy-Duty 9,000 lb Capacity. Extra-Wide Runways. Complete Lifting Solution for Trucks, SUVs & Professional Service Work.

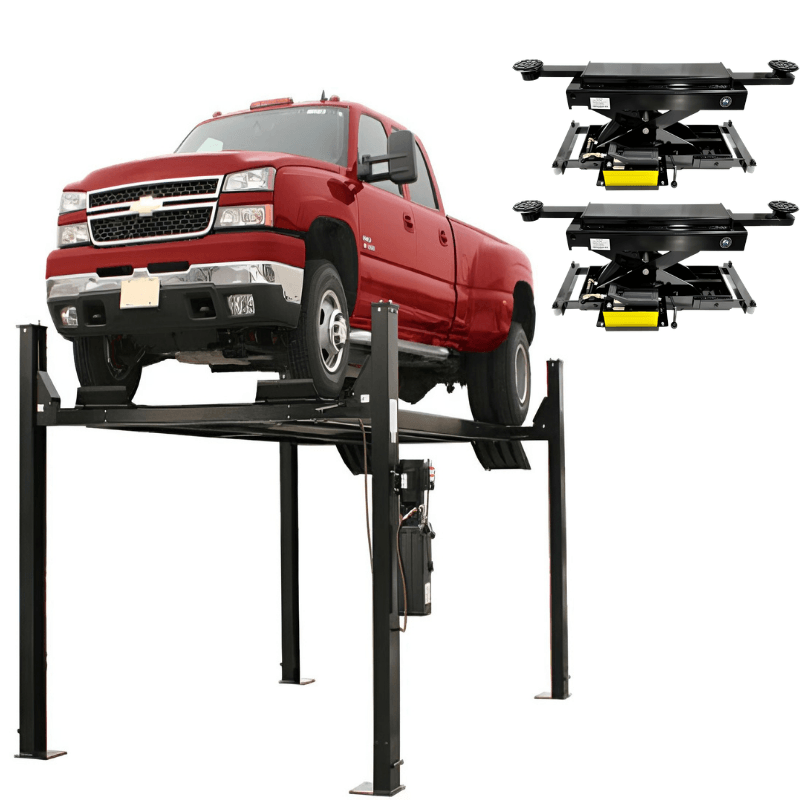

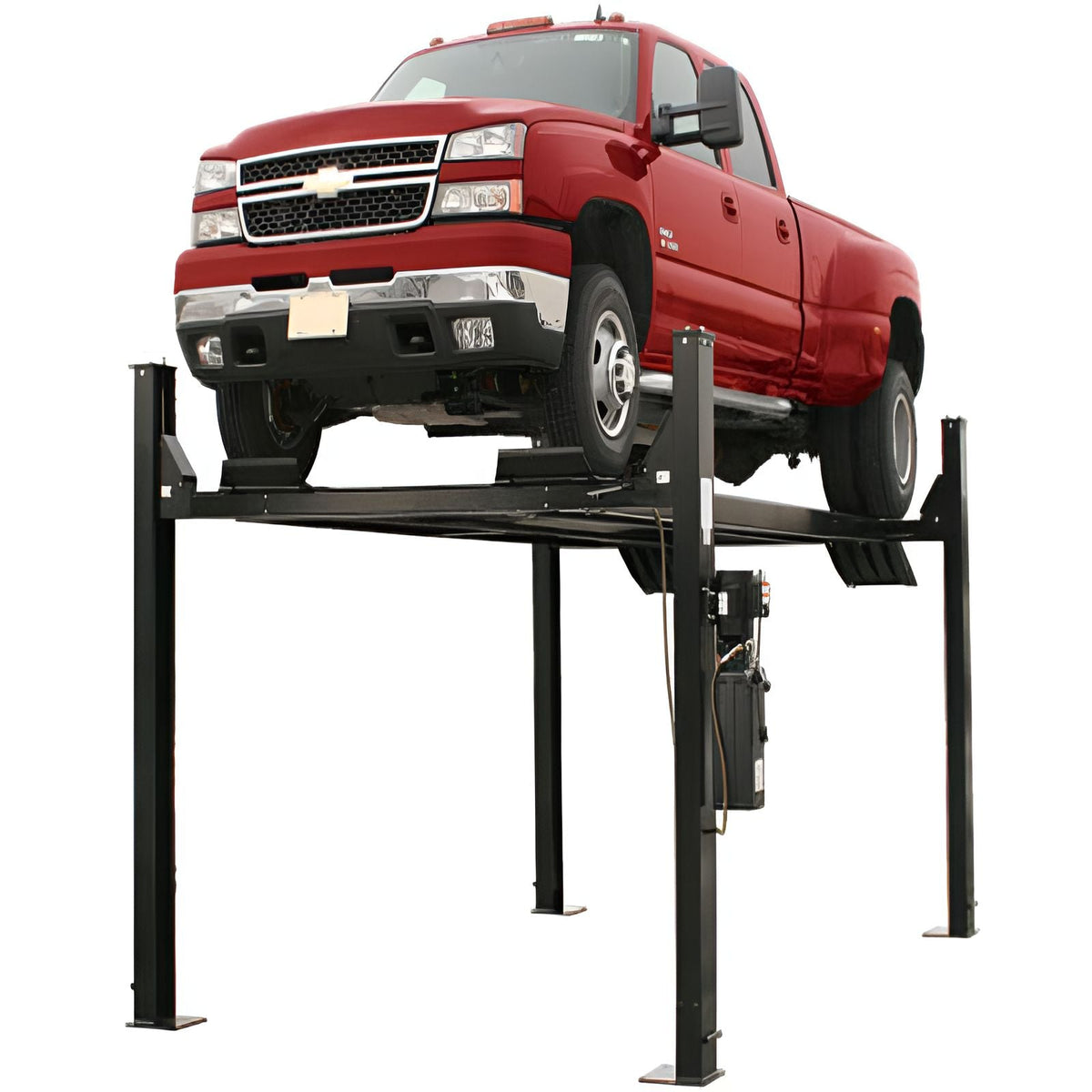

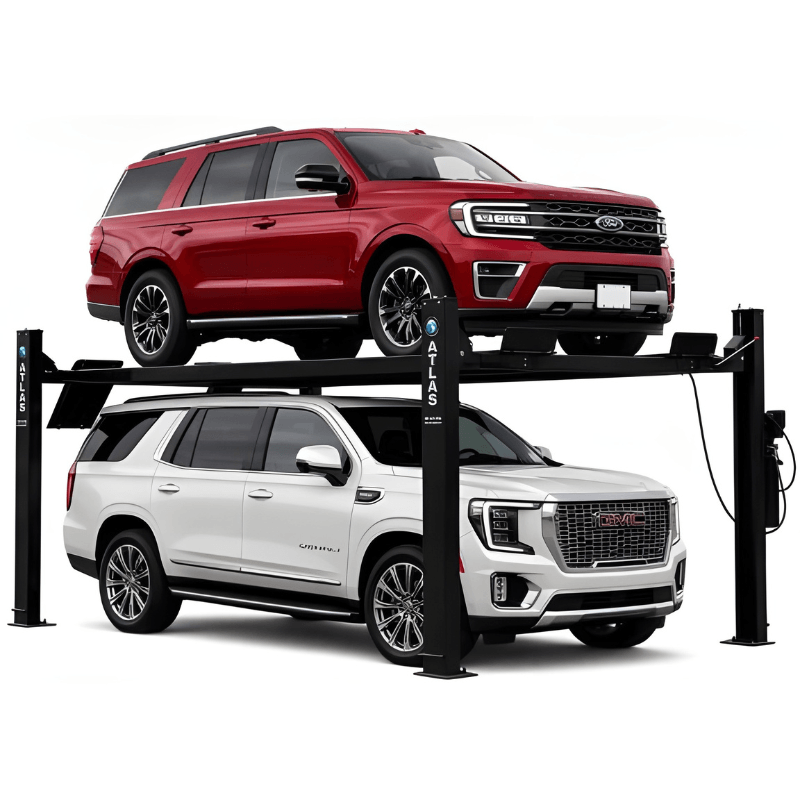

The Atlas Automotive PRO9000 9,000 lb 4-Post Lift + RJ45A Rolling Bridge Jack Combo is designed for automotive shops, home garages, and vehicle enthusiasts who need additional lifting capacity, runway length, and working space for larger vehicles. With a 9,000 lb lifting capacity, an extra-wide configuration, and extended runways, the PRO9000 accommodates everything from passenger cars and SUVs to full-size trucks and diesel dually pickups.
Built around a heavy-duty four-post design, the PRO9000 features a free-standing, portable configuration that allows the lift to be relocated when shop layouts or storage needs change. Its single-point manual lock release, lock ladder system, and double-lock safety system provide convenient operation and additional security when raising and lowering vehicles. The included caster kit with polyurethane wheels, steel approach ramps, plastic drip trays, steel jack tray, and wheel chocks add versatility for everyday storage and service applications.

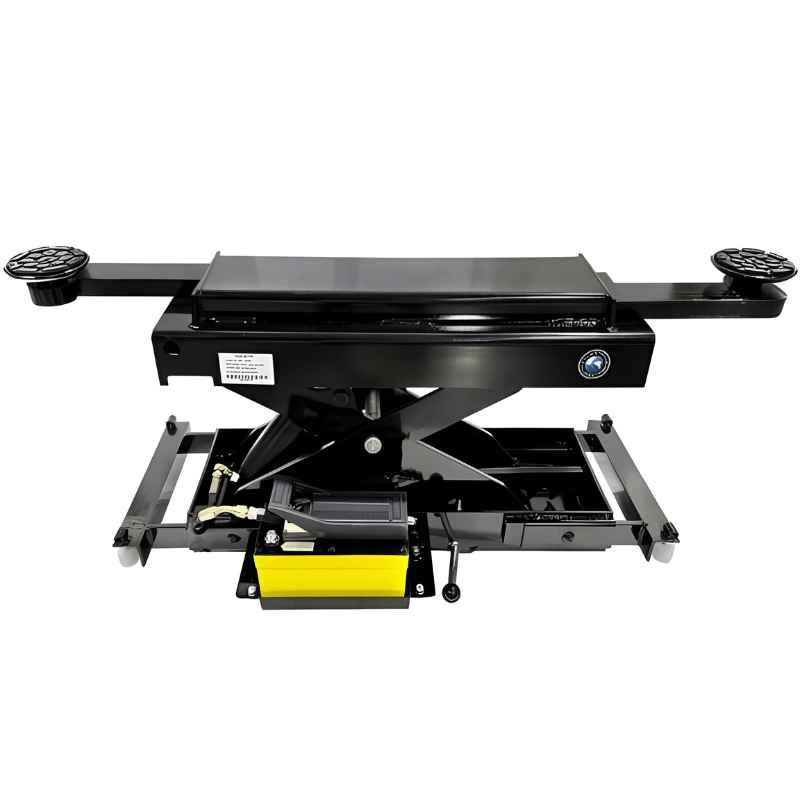

The included Atlas RJ45A 4,500 lb Rolling Bridge Jack expands the lift's capabilities beyond basic vehicle storage. Using an air/hydraulic lifting system, the rolling jack raises a vehicle off the runways to provide wheel-free access for tire changes, brake service, suspension work, and other maintenance tasks. Multiple safety lock positions, a scissor lifting mechanism, and the included four-piece truck adapter set make the RJ45A a valuable addition for working on a wide range of vehicles.

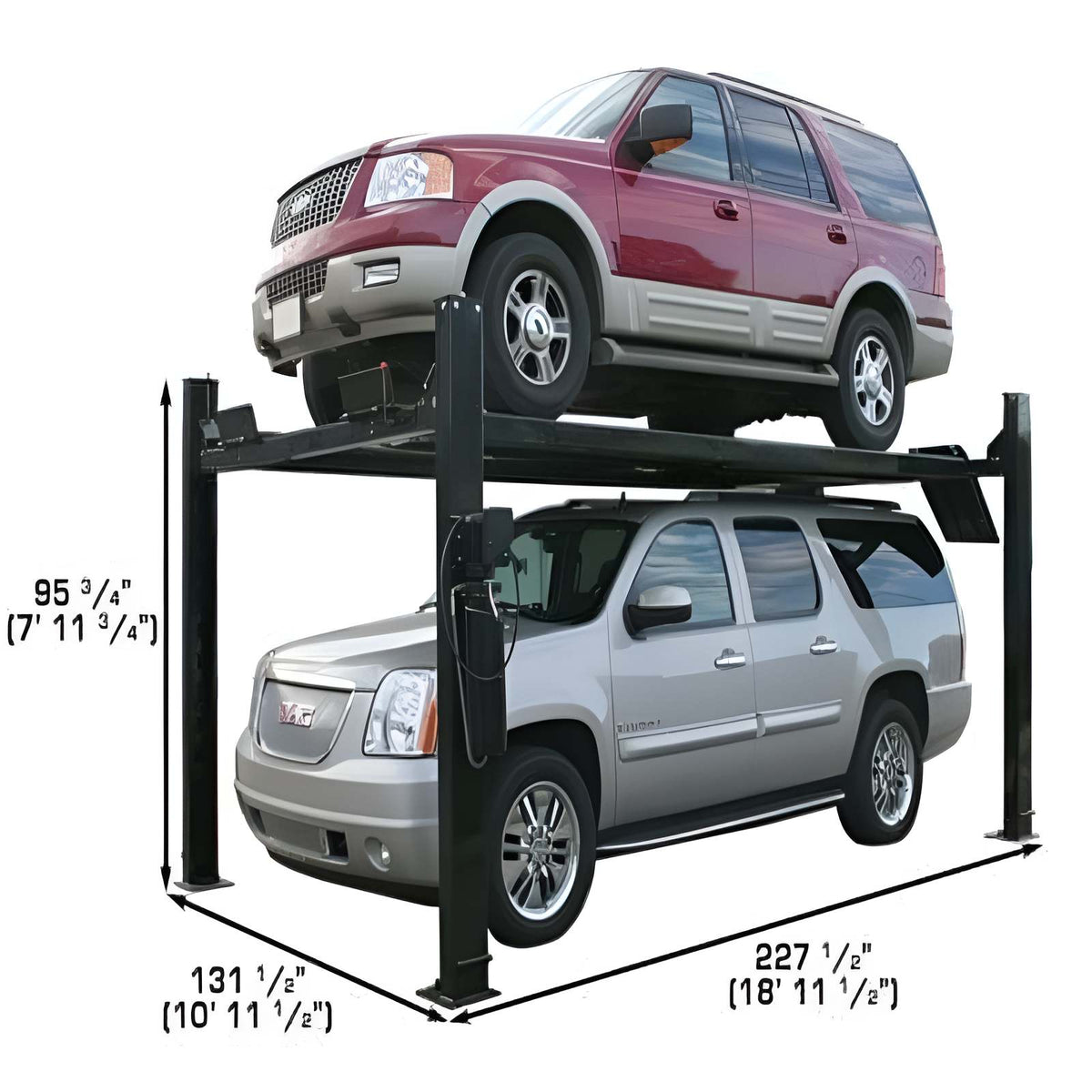

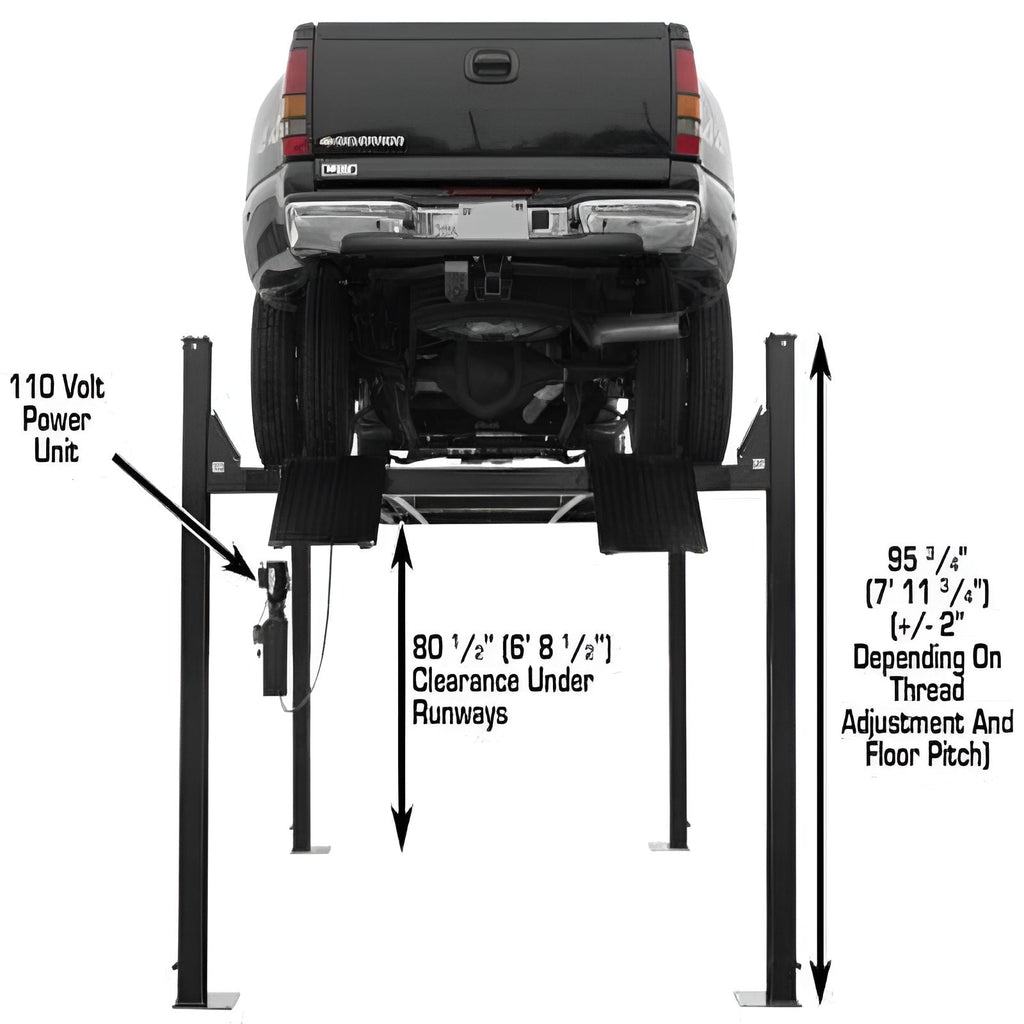

With up to 85 inches of lifting height to the top of the runways and 80 1/4 inches of clearance underneath, the PRO9000 provides substantial vertical space for vehicle storage and maintenance. Its generous 199 1/2-inch runways, 110 1/2-inch clearance between columns, and wide drive-through dimensions help accommodate larger vehicles that may be difficult to position on smaller lifts.
Whether you're maximizing garage storage, servicing heavy-duty trucks, or equipping a professional automotive shop, the Atlas Automotive PRO9000 and RJ45A combo combines vehicle storage capability with the added convenience of a rolling bridge jack in one versatile lifting package.

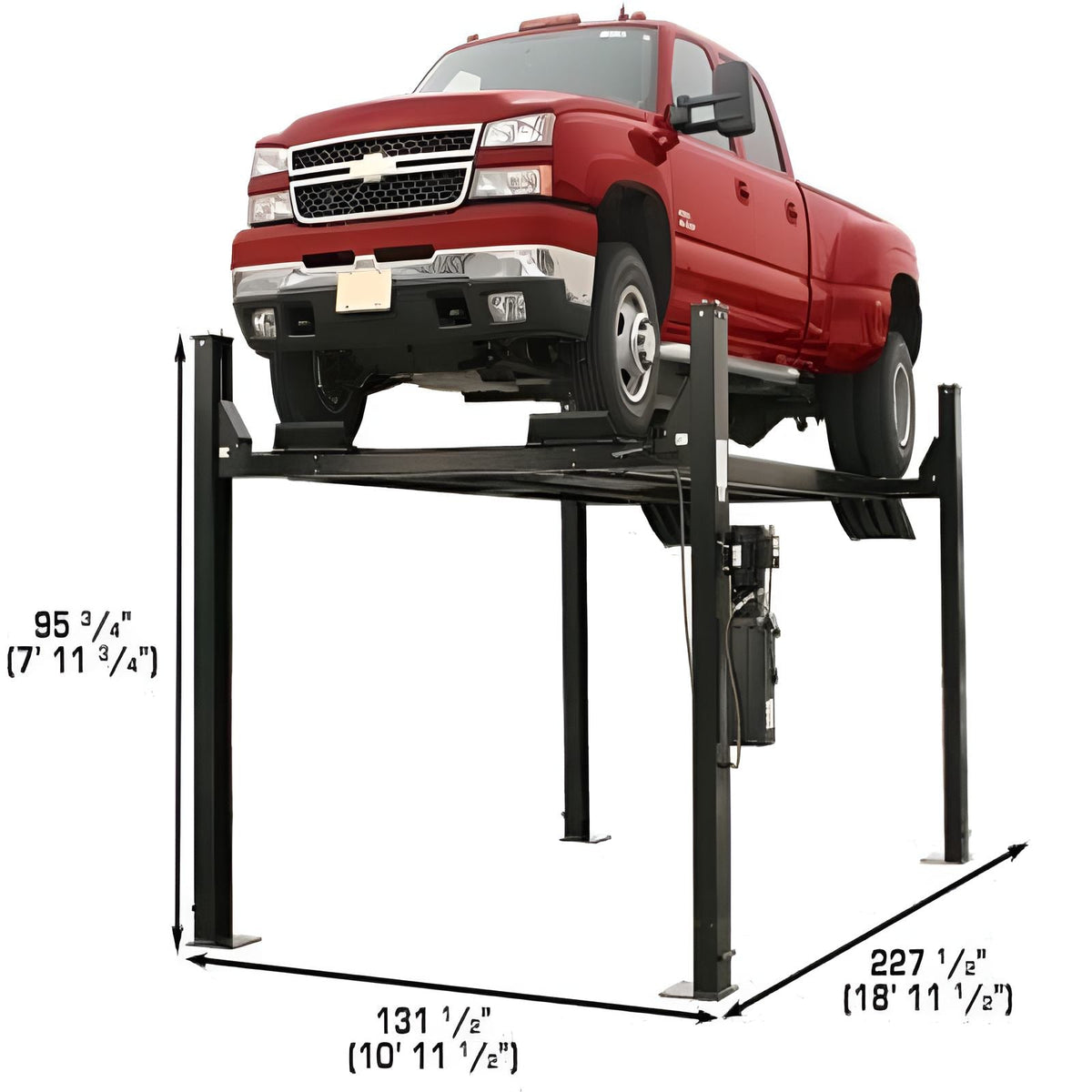

Perfect for: Home garages • Diesel dually trucks • Full-size pickups • SUVs • Vehicle storage • Tire and brake service • Suspension work • Automotive repair shops
Benefits of the Atlas Automotive PRO9000 + RJ45A Combo
The 9,000 lb capacity and extra-wide design accommodate a broad range of vehicles, including full-size pickups, SUVs, and many diesel dually trucks. Always verify vehicle weight, wheelbase, track width, and lifting-point compatibility before use.
The four-post lift provides elevated vehicle storage, while the included rolling bridge jack allows the vehicle's wheels to be lifted off the runways for additional maintenance access. This combination offers greater versatility than a storage-only lift.
The RJ45A rolling bridge jack raises the vehicle using its air/hydraulic system and scissor mechanism, allowing technicians to access tires, brakes, and other wheel-end components without relying on the runways alone.
With 199 1/2-inch runways and generous clearance between the columns, the PRO9000 provides the space needed to accommodate many longer and wider vehicles.
The single-point manual lock release, lock ladder design, and double-lock safety system help simplify operation and provide additional protection when the lift is used according to the manufacturer's instructions.
The free-standing design and included caster kit support relocation when needed, making the PRO9000 a versatile option for changing shop layouts. Installation, movement, and operation must follow the manufacturer's requirements, including applicable floor and concrete specifications.
Features
Lift Capacity & Design
- 9,000 lb lifting capacity for a wide range of vehicles
- Extra-wide and extended-runway configuration
- Designed to accommodate many full-size and heavy-duty trucks
- Free-standing four-post lift design
Lifting Height & Access
- 85-inch lifting height to the top of the runways
- 80 1/4-inch clearance underneath the runways
- 199 1/2-inch runway length
- 31-inch steel approach ramps for drive-on access
Lock System & Safety

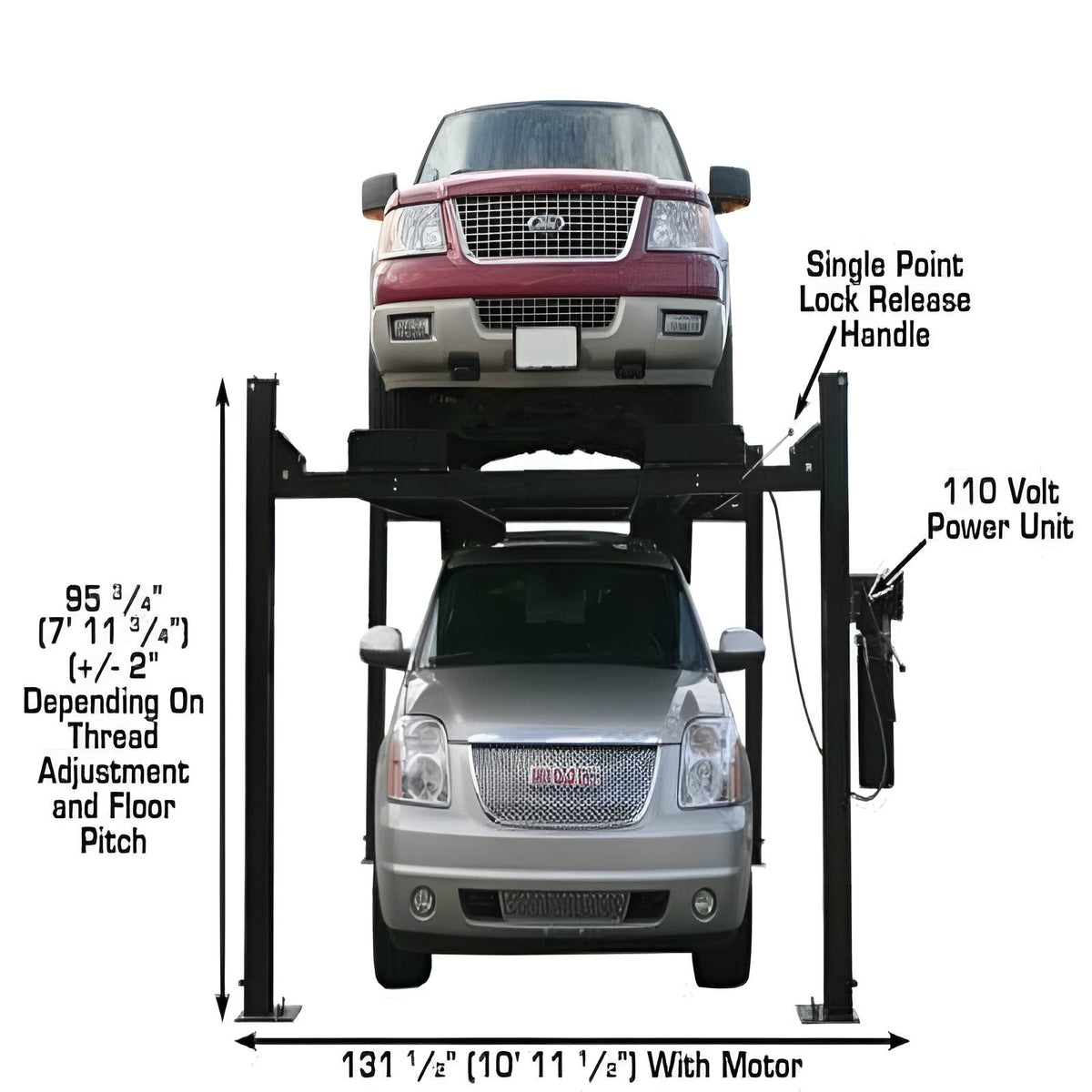

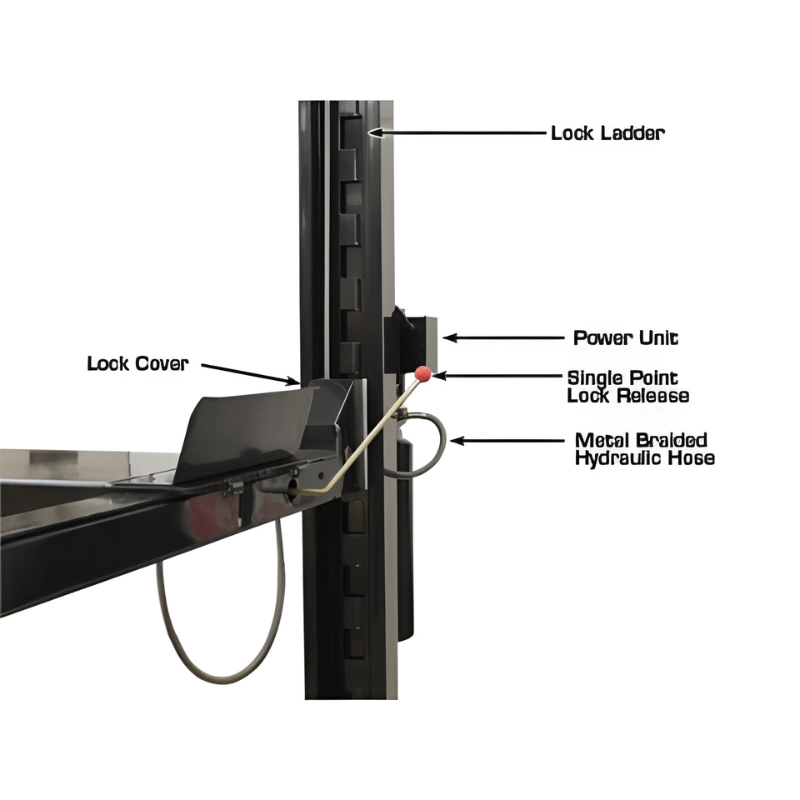

- Single-point manual lock release

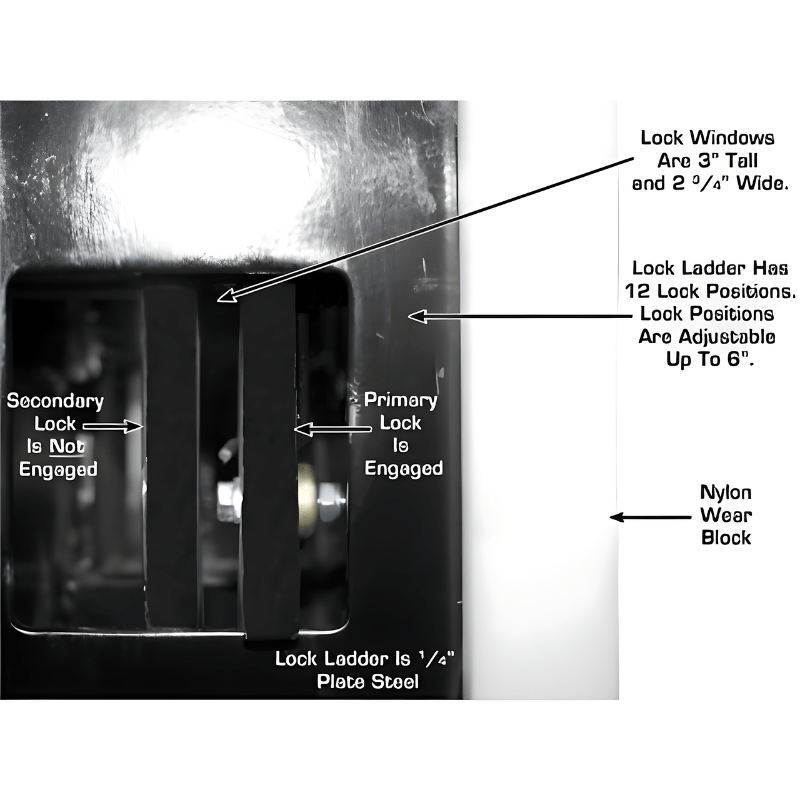

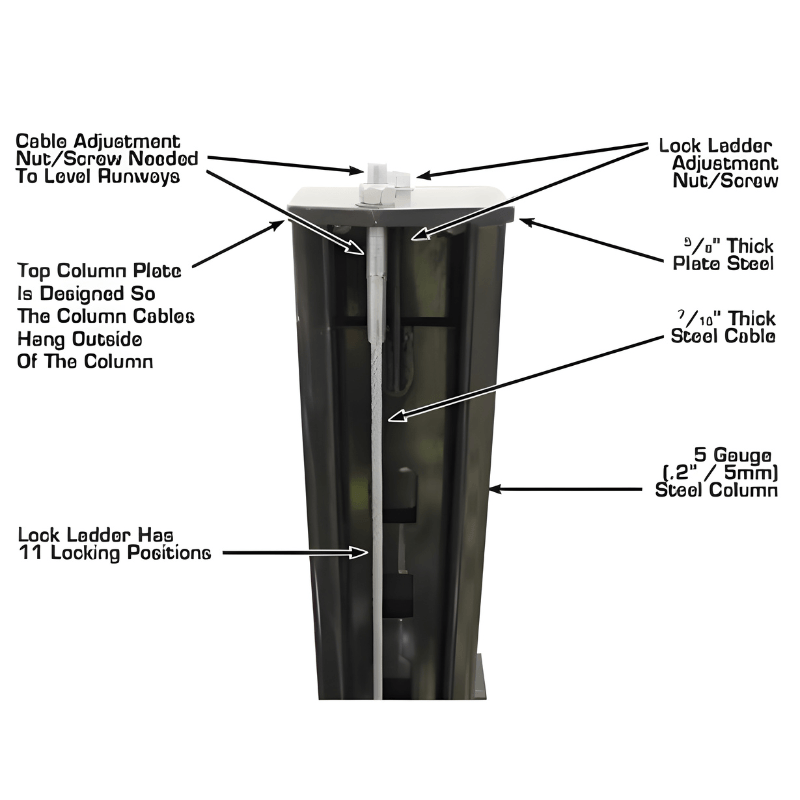

- Lock ladder system for adjustable lifting positions

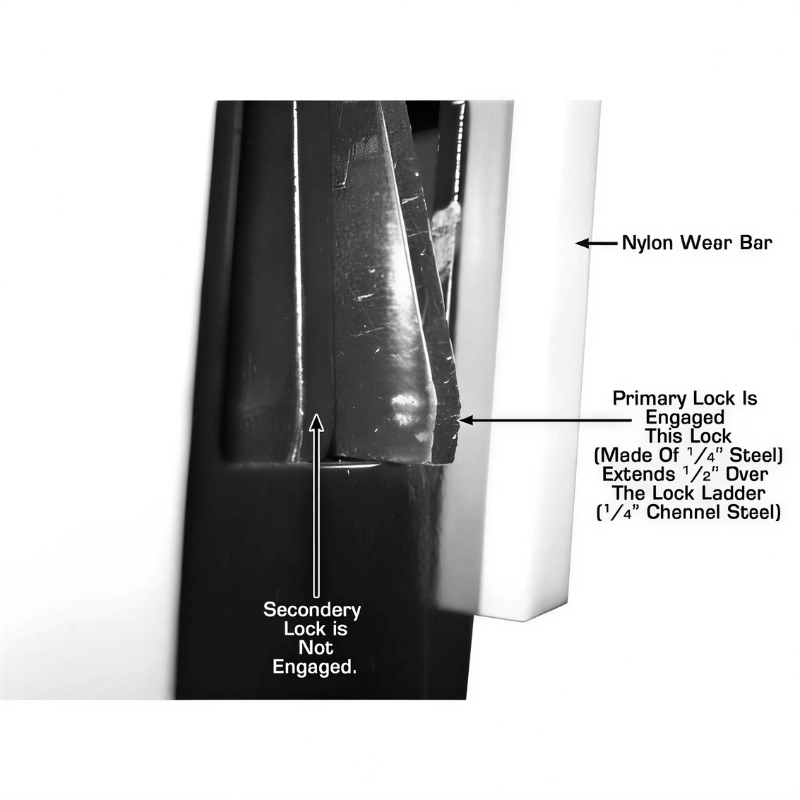

- Double-lock safety system
- RJ45A rolling jack includes multiple safety lock positions

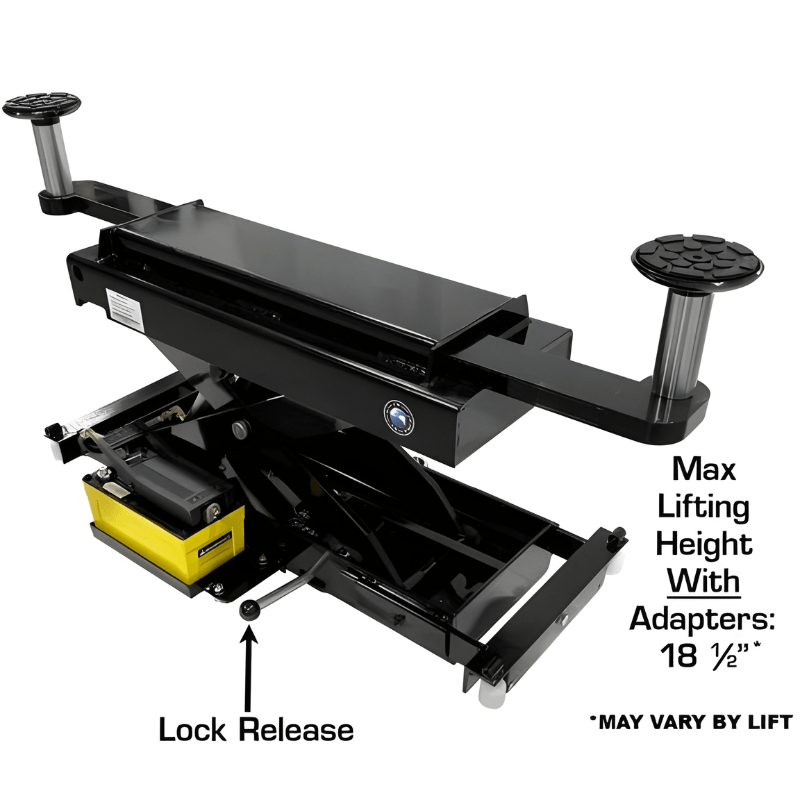

RJ45A Rolling Bridge Jack
- 4,500 lb lifting capacity
- Air/hydraulic operation requiring 70–115 PSI
- Roller-arm width adjusts from 36 to 54 inches
- Scissor mechanism supports level lifting

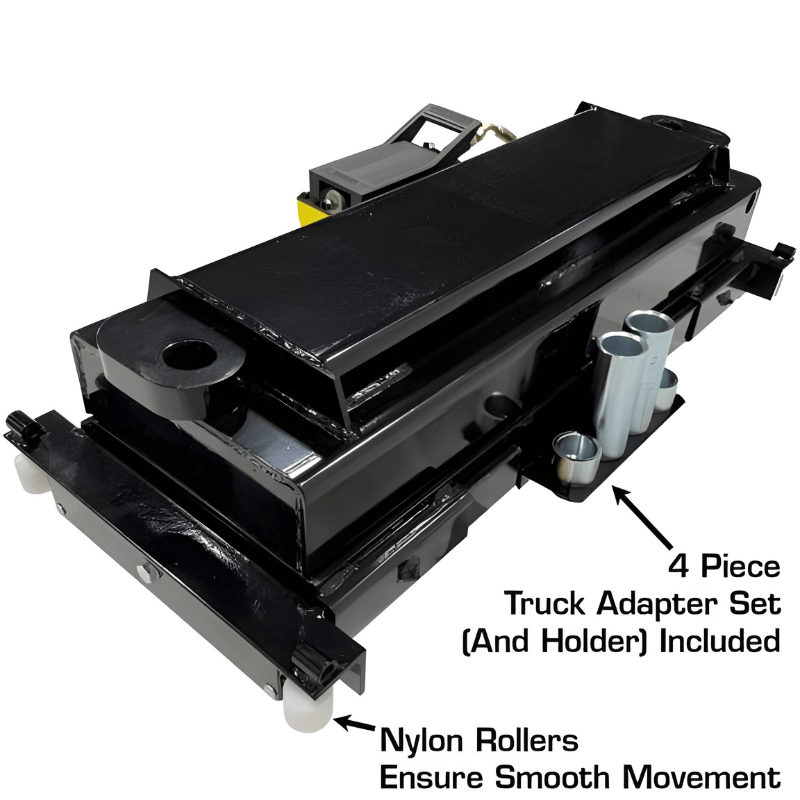

- Four-piece truck adapter set included
Mobility & Accessories

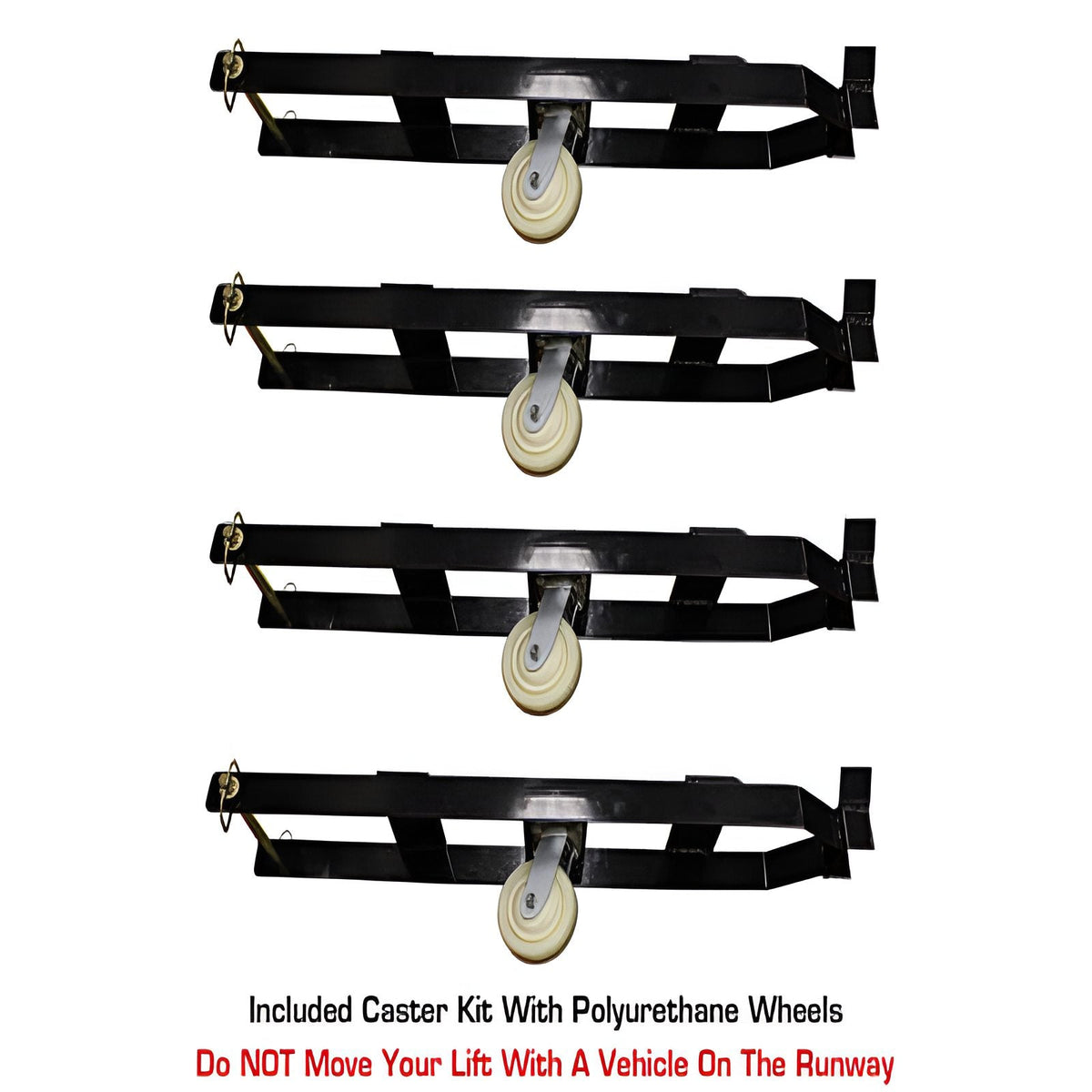

- Caster kit with polyurethane wheels
- Steel approach ramps
- Plastic drip trays

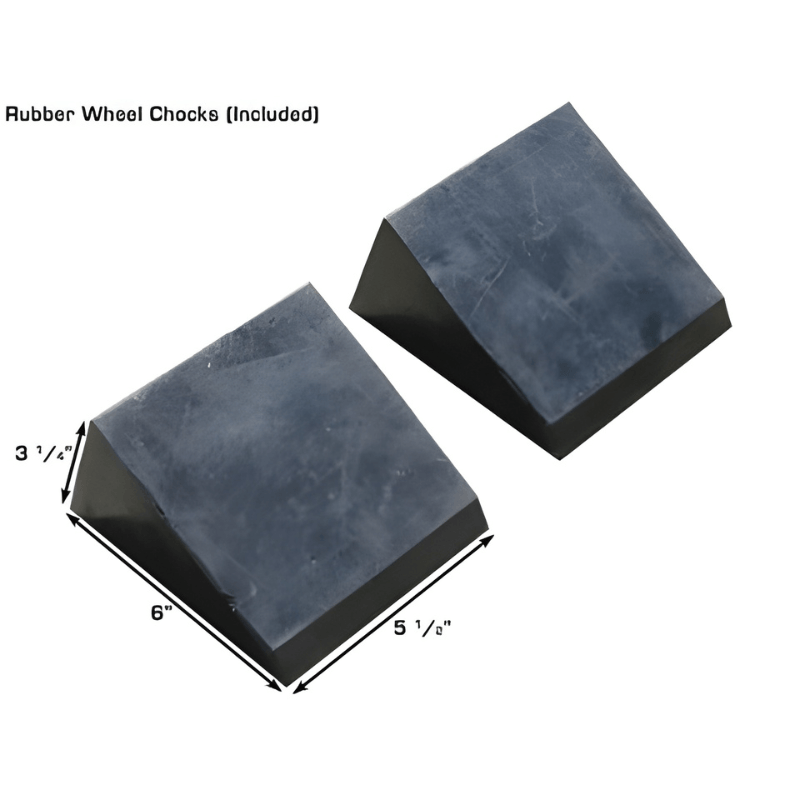

- Steel jack tray and wheel chocks
- Rolling jack adapters included for additional vehicle compatibility
Power & Installation
- 110V electrical supply for the PRO9000 lift
- 30-amp breaker required
- Minimum 4-inch-thick, 3,000 PSI concrete specified
- RJ45A requires a separate compressed-air supply
- RJ45A air pressure requirement: 70–115 PSI
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Model: Garage PRO9000
- Product Type: 4-Post Vehicle Storage Lift
- Lifting Capacity: 9,000 lbs
- Configuration: Four-post, free-standing design
Lifting Performance

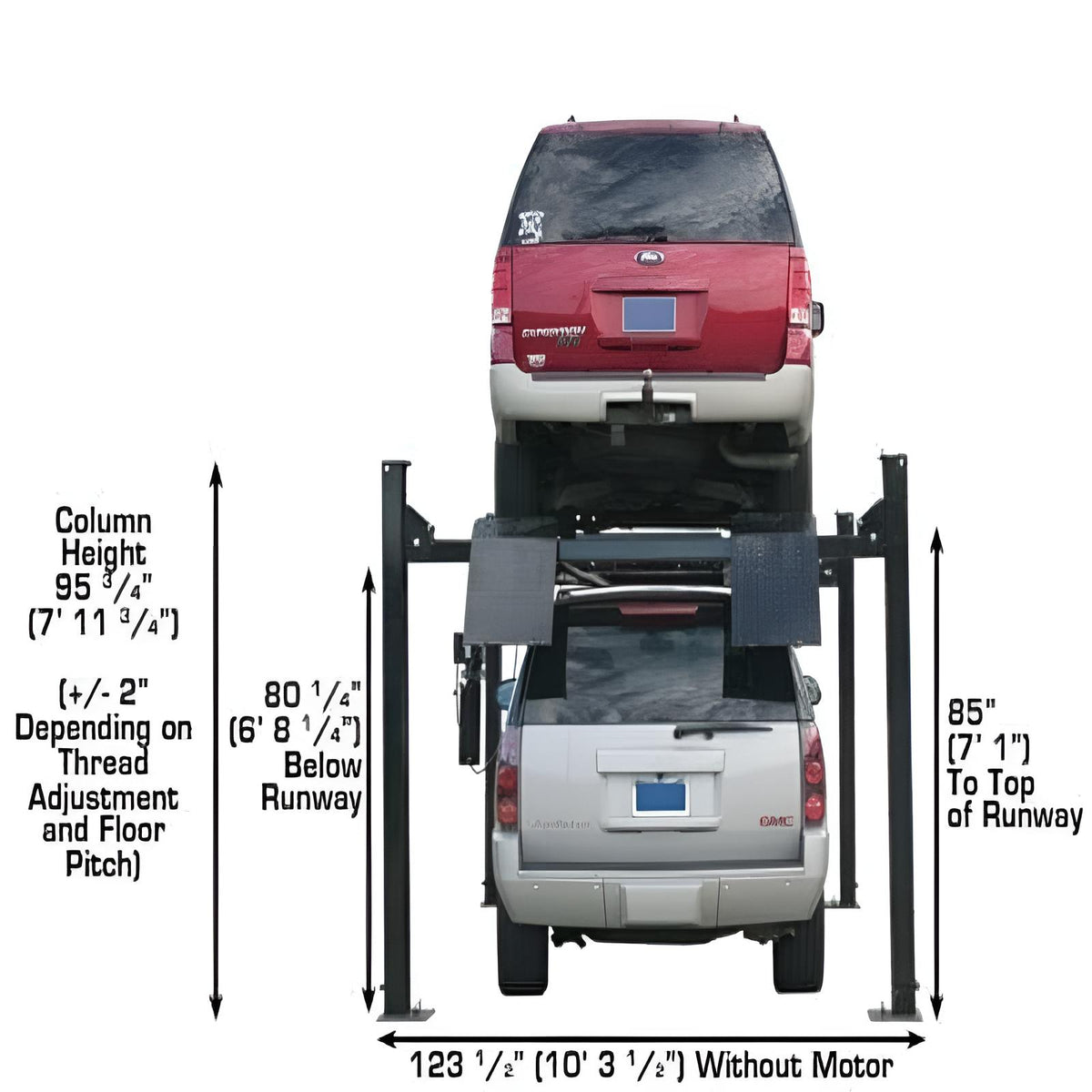

- Lifting Height to Runway Top: 85 in (7 ft 1 in)
- Under-Runway Clearance: 80 1/4 in (6 ft 8 1/4 in)
- Maximum Wheelbase: 187 in (15 ft 7 in)
- Lock System: Lock ladder with single-point release
- Safety System: Double-lock design

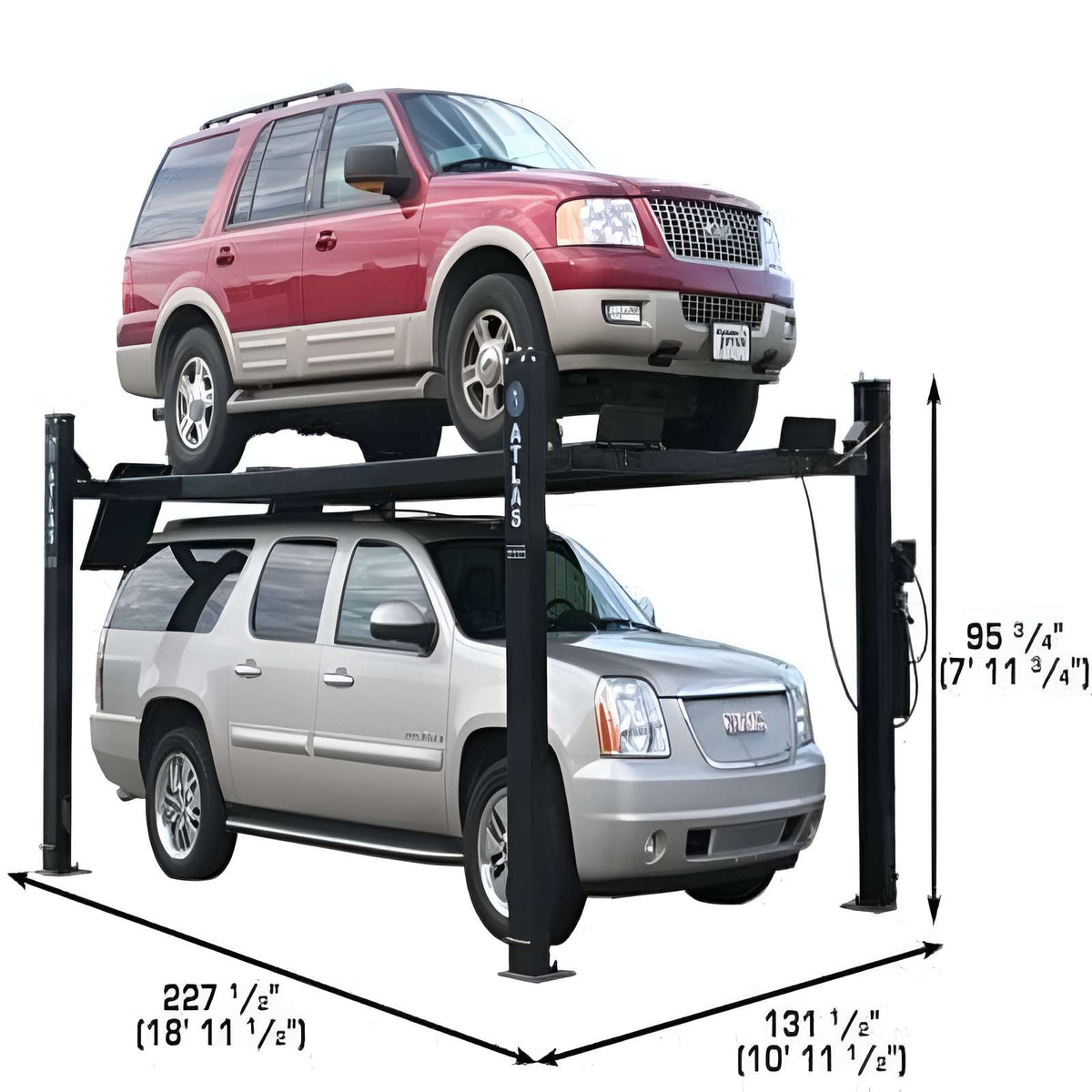

Structure & Dimensions

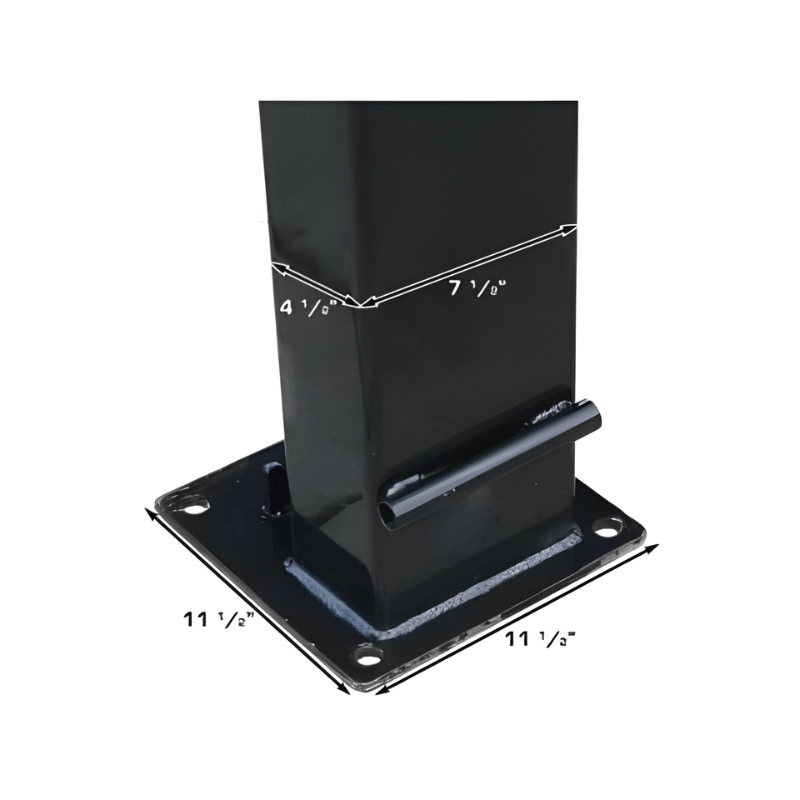

- Column Height: 95 3/4 in
- Overall Width Without Motor: 123 1/2 in
- Overall Width With Motor: 131 1/2 in

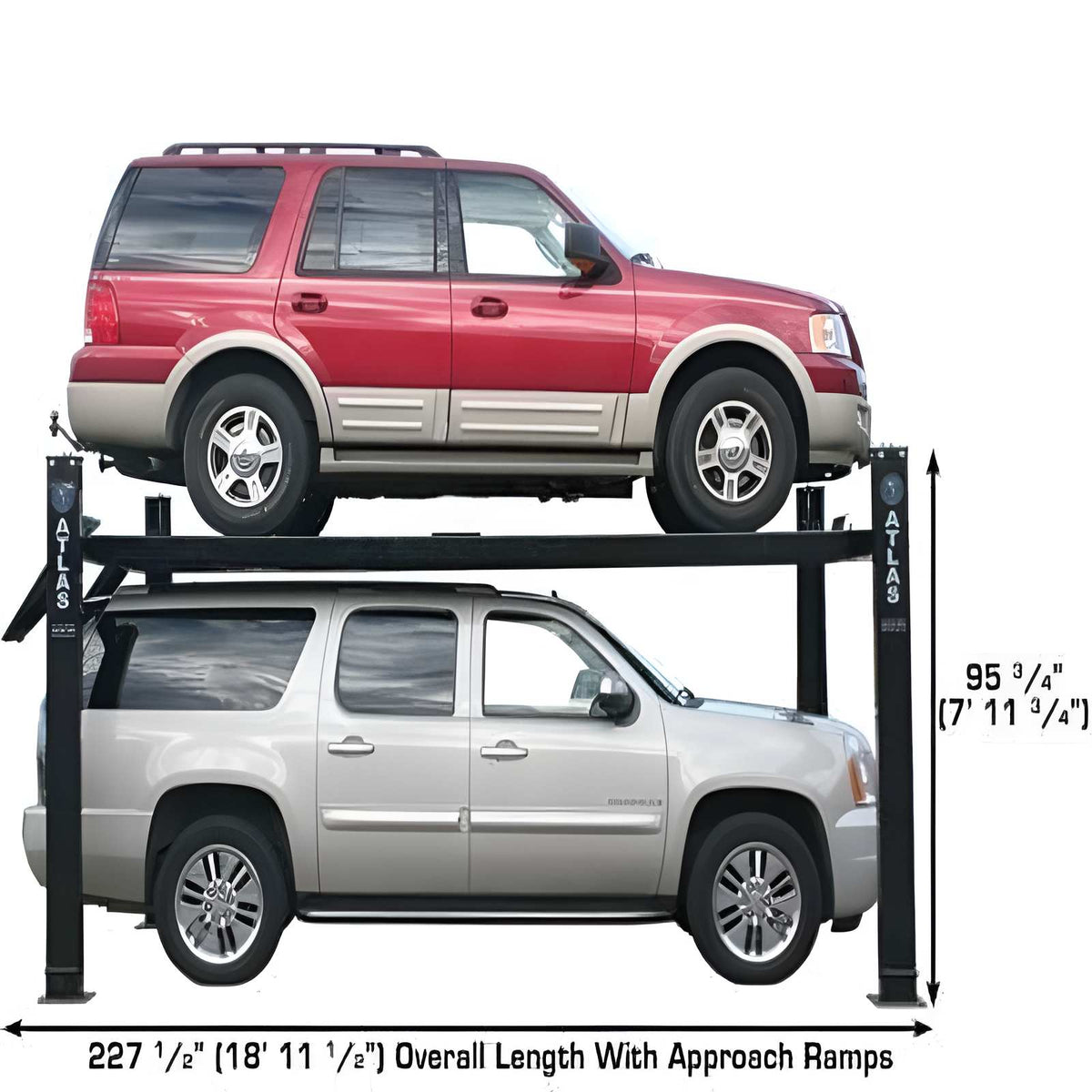

- Overall Length with Ramps: 227 1/2 in (18 ft 11 1/2 in)
- Runway Length: 199 1/2 in
- Runway Width with Rails: 21 1/4 in
- Driving Surface Width: 20 in
- Runway Thickness: 4 3/4 in

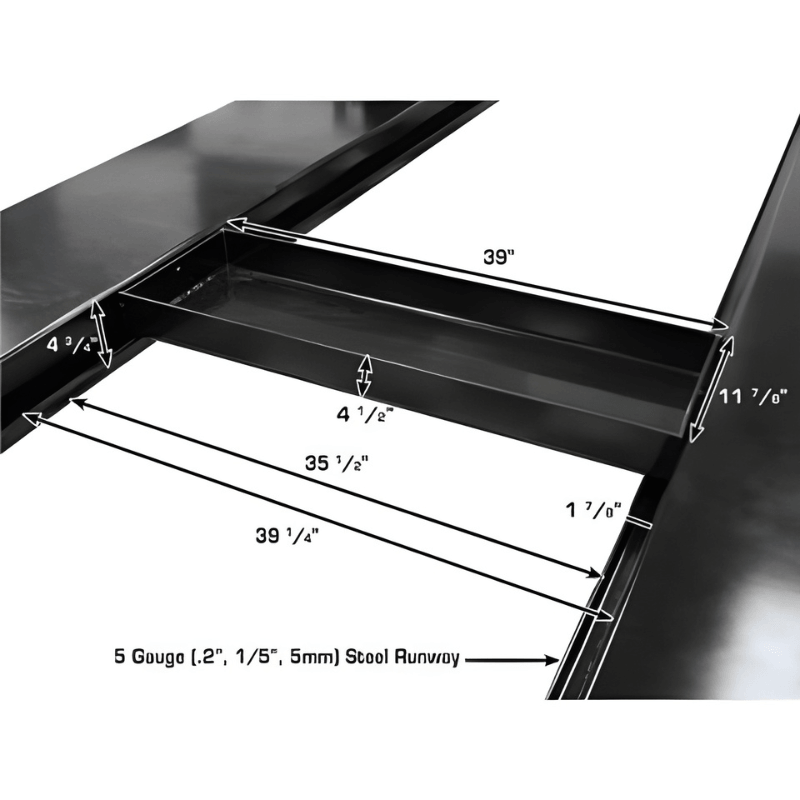

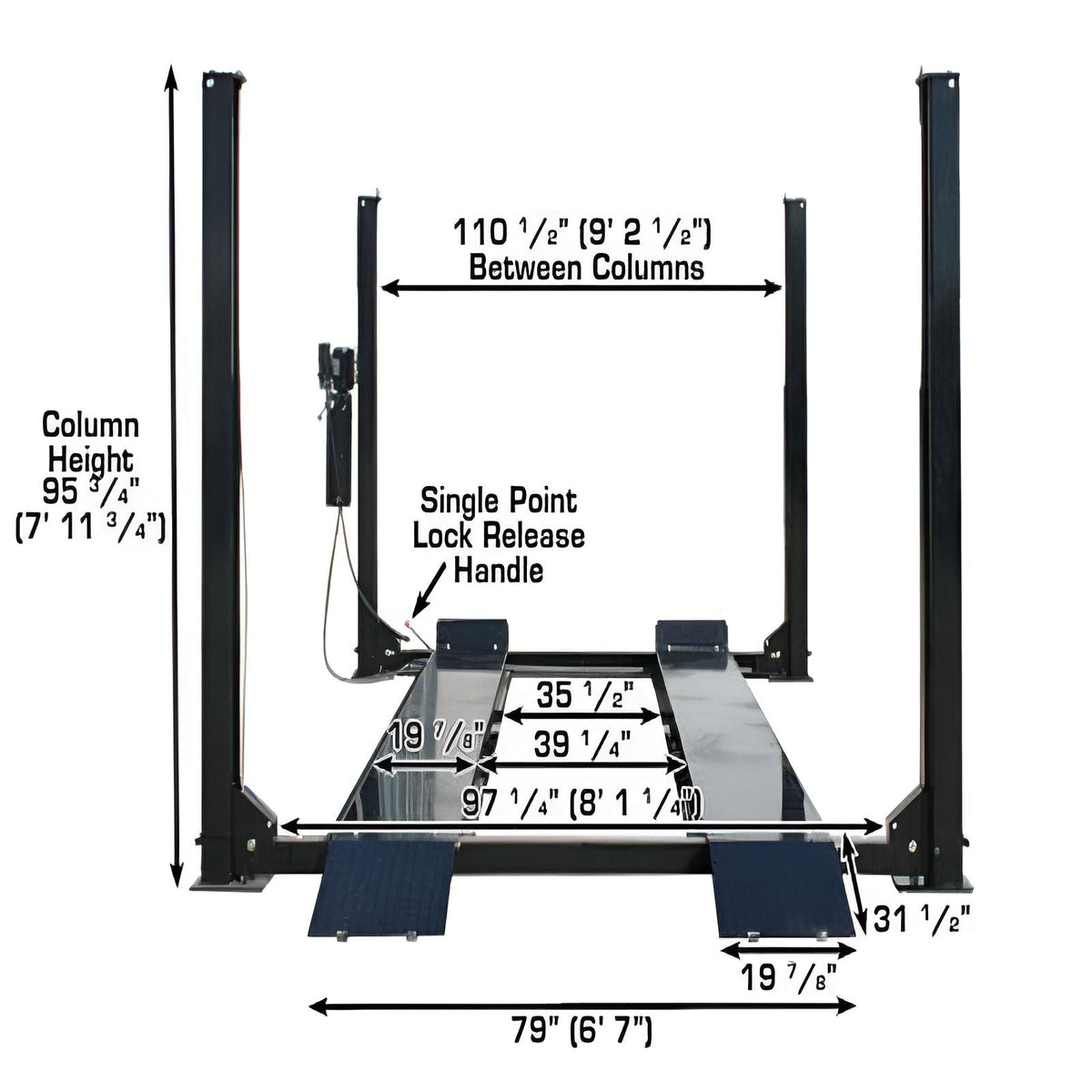

- Width Between Runways: 39 1/4 in
- Width Between Runway Rails: 35 1/2 in
- Outside Runway to Outside Runway: 79 in
- Clearance Between Columns: 110 1/2 in
- Length Between Columns: 184 1/2 in
- Drive-Through Width, Outside Tire to Outside Tire: 97 1/4 in

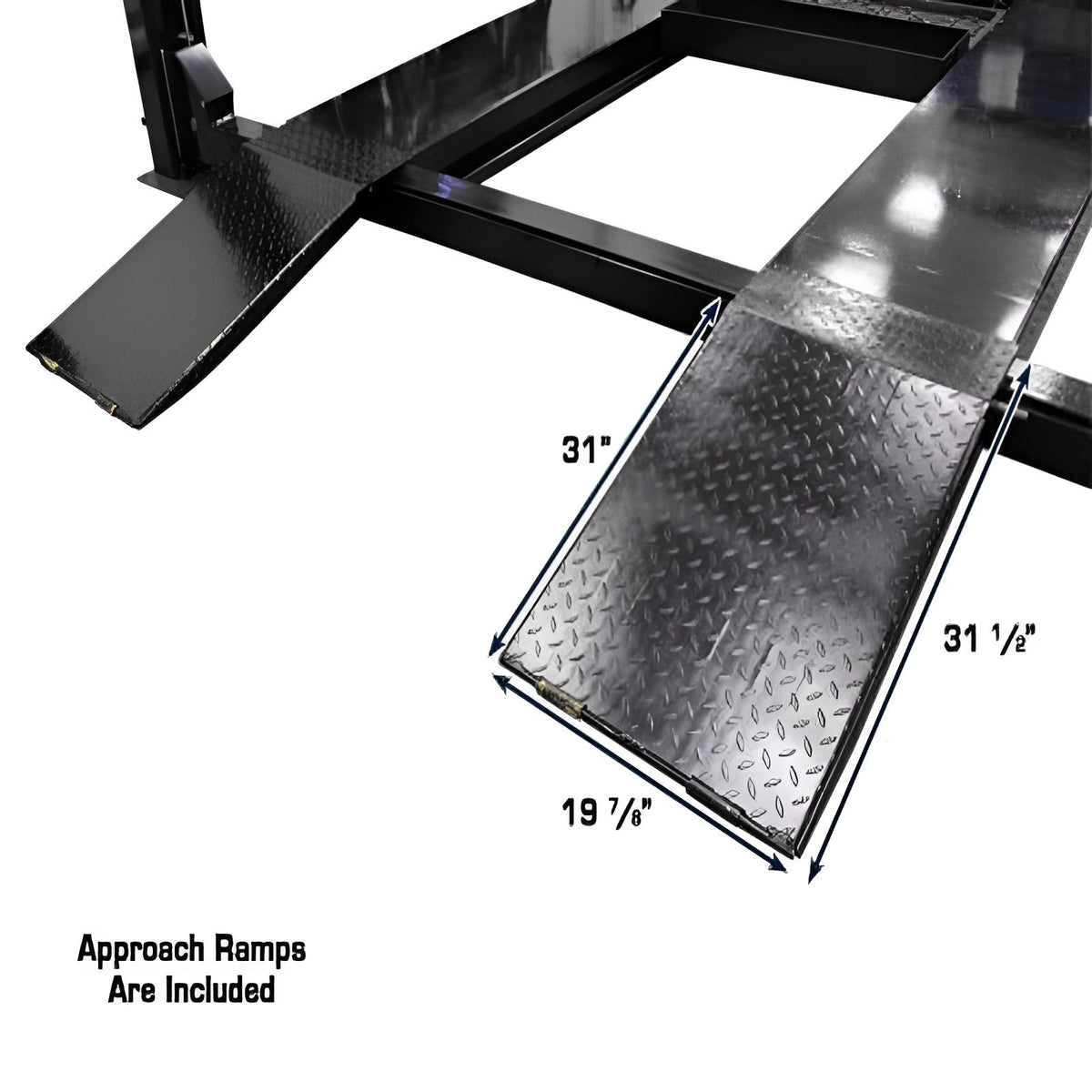

- Approach Ramp Length: 31 in
Power & Installation
- Electrical Requirement: 110V
- Breaker Requirement: 30 amp
- Concrete Thickness: Minimum 4 in
- Concrete Strength: 3,000 PSI minimum
- Rolling Jack Air Requirement: 70–115 PSI
- Rolling Jack Operation: Air/hydraulic
RJ45A Rolling Bridge Jack
- Model: RJ45A
- Lifting Capacity: 4,500 lbs

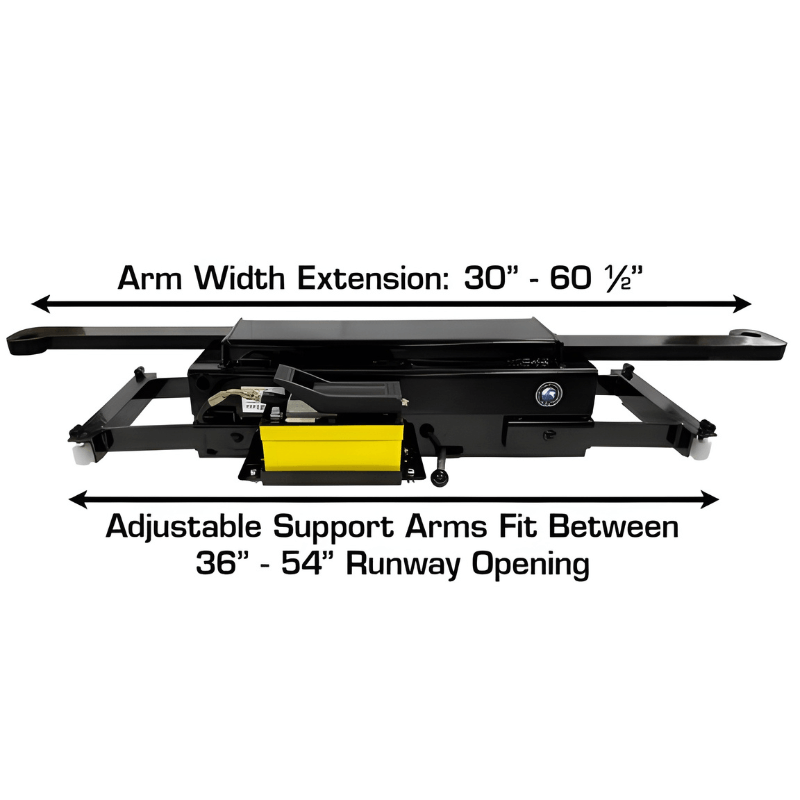

- Minimum Roller-Arm Width: 36 in
- Maximum Roller-Arm Width: 54 in

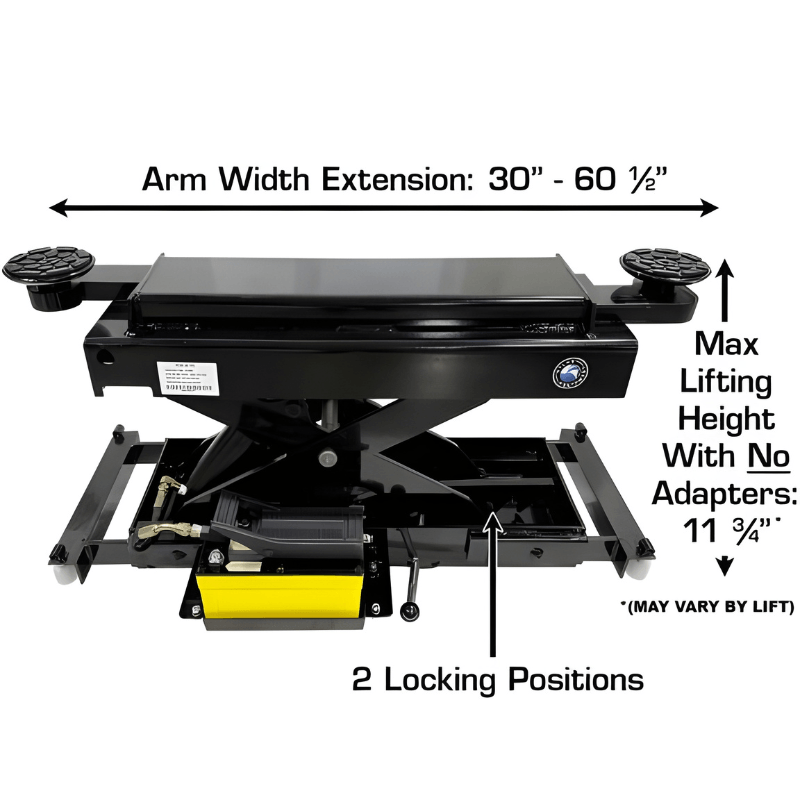

- Lift Arm Width, Center of Pad: 30–60 1/2 in

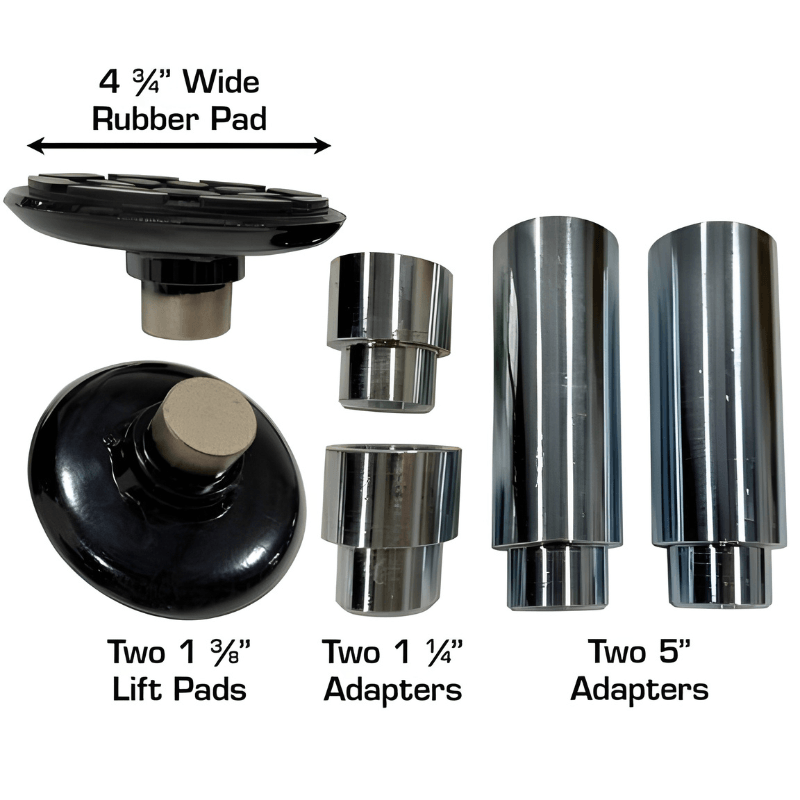

- Adapter Peg Size: 1 1/2 in
- Adapter Heights: Two each, 1 1/4 in and 5 in
- Included Adapters: Four-piece truck adapter set

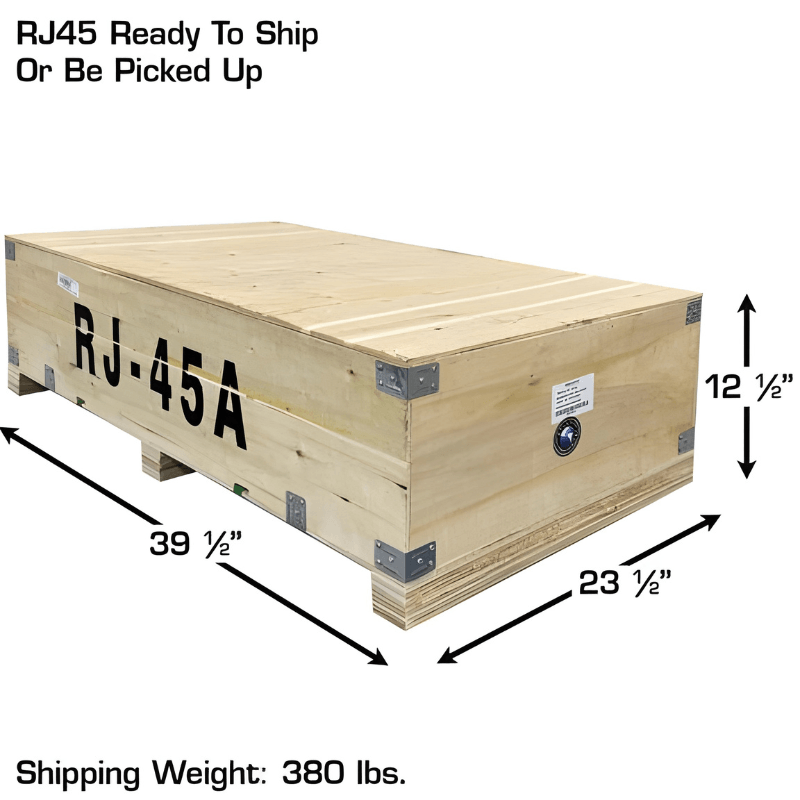

- Shipping Weight: 380 lbs
Shipping & Warranty

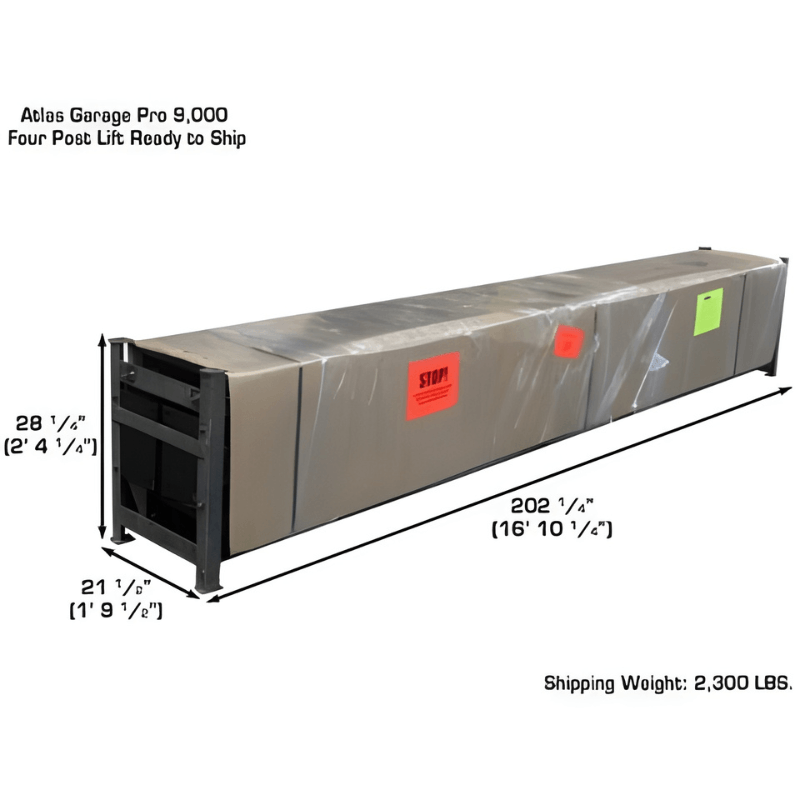

- PRO9000 Shipping Dimensions: 202 1/4 x 21 1/2 x 28 1/4 in
- PRO9000 Shipping Weight: 2,300 lbs
- RJ45A Shipping Weight: 380 lbs
- RJ45A Warranty: 1-year parts-only warranty
- Lift Warranty: Confirm coverage in the manufacturer documentation
- Freight Delivery: Oversized shipment; freight-terminal delivery is unavailable
Downloads
- Atlas Automotive PRO9000 Product Manual (PDF)
- Atlas PRO9000 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The PRO9000 requires a suitable concrete surface and the specified electrical supply. The included RJ45A rolling bridge jack requires an external compressed-air supply, which is not included. Verify vehicle weight, dimensions, lifting points, and adapter compatibility before use. Follow all manufacturer installation, operating, and safety instructions.
